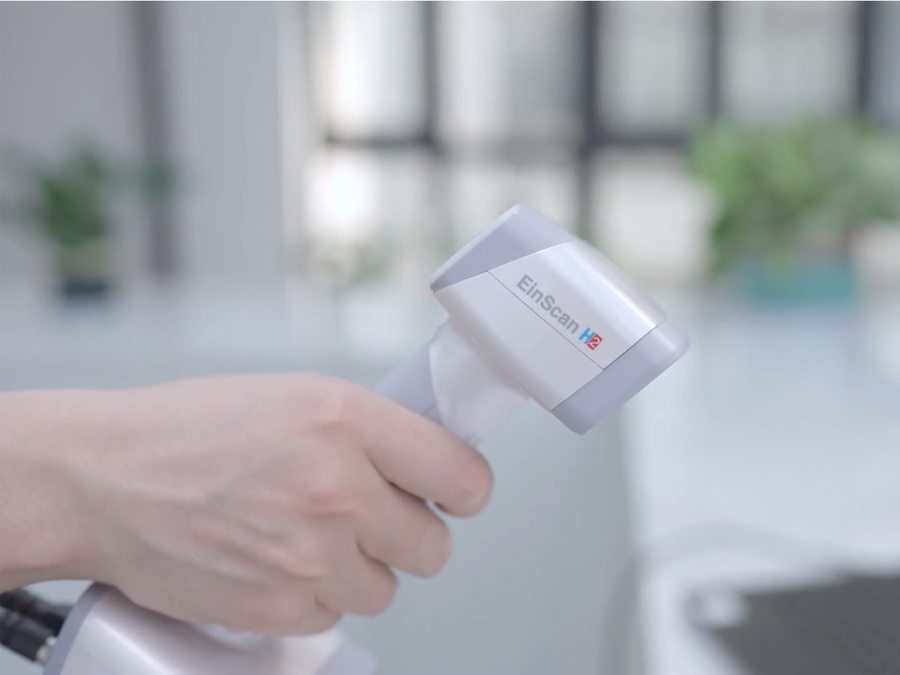

Shining 3D EinScan H2 Handheld Hybrid 3D Scanner
The EinScan H2 is a hybrid 3D scanner that utilizes infrared and white LED light sources to produce high-texture scans. It's ideal for scanning humans and organic materials, suited for healthcare, art, and education sectors. Key features include a hybrid white LED & infrared projector light source, the ability to capture dark surfaces and body scans, and a built-in color camera for capturing full-color texture. The scanner is lightweight, portable, and can process up to 1.2 million points per second. It excels in capturing photorealistic textures and reproducing colors and surface details in all scan modes.
- Hybrid white LED & infrared projector light source
- Captures photorealistic textures and colors
- Lightweight, portable, and processes quickly
| List Price: | $5,299.00 |
|---|---|
| Price: | $5,299.00 Financing starts at: $100 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
EINSCAN H2
Hybrid High Texture Resolution 3D Scanner
The EinScan H2 is a hybrid light source 3D scanner combining infrared and structured LED light technologies. It offers high precision, safety, and comfort, making it ideal for scanning humans and organic materials. It's perfect for healthcare, art, and education applications.
Key Features of the EinScan H2 Handheld 3D Scanner:
- Hybrid white LED & infrared projector light source
- Wider flexibility in scanning distance
- Capture dark surfaces, bright-lit environments, and body scans
- Built-in color camera for full-color texture capturing & tracking
- Quick scanning by processing up to 1.2 million points per sec (via Laser)
- Scanner is lightweight, portable, ergonomic, and compact
*NOTE: There are flashing lights in this video due to the nature of 3D scanning.
CAPTURE PHOTOREALISTIC TEXTURES
Thanks to its advanced hybrid technology and built-in color camera, the EinScan H2 excels in capturing fantastic photorealistic textures in all scan modes. It meticulously reproduces colors and surface details, making it an invaluable tool for creating high-quality 3D models in healthcare, art, education, and any field requiring lifelike digital reproductions.
ACCOMMODATING ADAPTABILITY
The EinScan H2 Hybrid 3D Scanner boasts remarkable adaptability to various materials, lighting, and environments. Whether scanning humans, organic materials, or complex objects, it ensures high-precision results, making it a versatile choice for diverse scanning needs across multiple industries.
FLEXIBLE WORKING DISTANCE
The EinScan H2 offers an adjustable working distance, providing users with a flexible scanning experience. This feature, combined with its various scan modes, makes this 3D scanner an ideal choice for succeeding with a variety of applications.
- Working Distance Range: 200 to 1500mm
- FOV (Field of View): Up to 780 x 900mm2
- Two Scan Modes: White Light and IR
What's Included with the EinScan H2 Handheld Hybrid 3D Scanner?
- 1 x EinScan H2 3D Scanner
- 1 x Carrying Case
- 1 x Calibration Board
- 1 x Pack of Markers (for scanning)
- 1 x Power Adaptor
- 1 x Connection Cable
- 1 x USB Drive
- 1 x Solid Edge SHINING 3D Edition
- 1 x Quick Guide
- Additional Accessories
What are the Differences Between the EinScan H2 and HX?
 |
 |
|
|---|---|---|
| Model | EinScan HX | EinScan H2 |
| Price | $9,999 | $5,299 |
| Intended Application | Top-quality, efficient, and accurate scan results. |
Scan photorealistic texture. Flexible scanning distance range. |
| Hybrid Light Source | Blue LED & Blue Laser | White LED & Infrared |
| 3D Scan Accuracy | Up to 0.04 mm | Up to 0.05mm |
| Volumetric Accuracy | 0.04+0.06mm/m (by Laser Scan) |
0.05+0.1mm/m (by White Light Mode) |
| Max 3D Scan Speed | 1,200,000 points/s | 1,200,000 points/s |
| Max FOV | 420mm×440mm (Rapid Scan Mode) |
780mm×900mm (IR Mode) |
| Compatible Working Distance | 470mm | Anywhere between 200mm - 700mm (470mm is the best) |
| Texture Scan Compatibility | Some Modes | All Modes |
What are the Technical Specifications for the EinScan H2 3D Scanner?
| SCAN MODE | White Light Mode | IR Mode |
|---|---|---|
| 3D Scan Accuracy | Up to 0.05mm | Up to 0.1mm |
| Volumetric Accuracy* | 0.05+0.1mm/m (Markers Alignment) |
0.1mm±0.3mm/m |
| Effective Working Distance Range |
200mm - 700mm | 200mm - 1500mm |
| 3D Scan Speed | 1,200,000 points/s | 1,060,000 points/s |
| Align Mode | Feature Alignment Hybrid Alignment Markers Alignment Texture Alignment |
Feature Alignment Hybrid Alignment Texture Alignment Global Markers |
| Depth of Field | 200mm - 700mm | 350mm - 610mm |
| Max FOV | 420mm×440mm | 780mm×900mm |
| Light Source | White LED Light, Visible |
Infrared VCSEL Light, Invisible |
| Safety | Eye-safe | Class I (Eye-safe) |
| All Scan Modes | |
| Point Distance | 0.2mm - 3mm |
| Best Working Distance |
470mm |
| Built-in Color Camera |
Yes |
| Texture Scan | Yes |
| Texture Resolution | 5MP |
| Software Included | ExScan Pro Solid Edge SHINING 3D Edition |
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF |
| Connection Standard | USB 3.0 |
| Operating Temperature Range |
0°C - 40°C |
| Operating Humidity Range |
10% RH - 90% RH |
| Input Voltage | DC: 12V 5A |
| Dimensions | 108mm×110mm×237mm |
| Weight | 731.1g |
| Certifications | CE, FCC, ROHS, WEEE, KC |
| Recommended Configuration |
OS: Win 10/11, 64 bit; Graphics card: NVIDIA GTX2060 or better; Video memory: >6GB; Processor: I7-11700 or better; Memory: >64G |
| Required Configuration |
OS: Win 10, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: >4GB; Processor: I7-8700; Memory: >16GB |
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm (rapid scan) / 0.06mm (laser scan) per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment.
