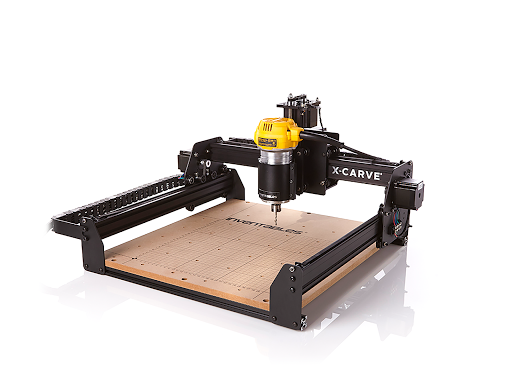

Inventables X-Carve 500mm

The X Carve from Inventables is a 3D Carver powered by a DeWalt 611 spindle and capable of cutting your designs out of wood, plastic and soft metals. Compatible with 1/8" and 1/4" router bits, the X-Carve is ready to tackle your next project. The model available from MatterHackers includes everything you need to get started with wood and plastic right away.
Product No. MJS7PDL9
Available Add-ons (6)
Price: $115.00 View Addon »
Price: $79.00 View Addon »
Price: $58.00 $55.00 View Addon »
Price: $27.75 View Addon »
Price: $22.75 View Addon »
Price: $21.75 View Addon »
Show More Addons
Price: $1,599.00
Price: $...
Order Now: Ships calculating... Free U.S. Shipping

Tabletop 3D Carver, sized to fit your needs

The X-Carve is available in two sizes; 500mm and 1000mm so no matter how much space you have for the machine and what kind of projects you need to accomplish with it, there is an X-Carve to suit your needs. While router bits can create beautiful designs, standard tables only allow for one flat edge to be created at a time. The X-controller that powers the X-Carve takes your designs and brings them to life in three axis.

Work with a variety of materials

The X-Carve's powerful DeWalt 611 spindle accepts 1/4" and 1/8" router bits, opening up many material carving possibilities including wood, plastic and soft metals.

Material options include:

  • Wood
  • MDF
  • Acrylic
  • Circuit Boards
  • Foam Core
  • Plastic
  • Cork
  • Aluminum

Create 3D designs

The X-Carve is more than the ability to just cut out shapes, because the machine has a 65mm vertical work area you can design parts with geometry in three dimensions and create complex parts with vertical features as well. A standard table-mounted router can only carve the shape of the installed bit - at that depth - but the X-Carve can take a standard cutting bit and use it's vertical movement to create surface features well beyond what a standard router can do.

Fully-Loaded Configuration

  • X-Carve Core Components
  • 500mm Rail Kit
  • 110V DeWalt 611 Spindle and Mount
  • X-Controller Kit
  • NEMA 23 500mm Motor Kit
  • 500mm Waste Board Kit
  • 500mm Drag Chain Kit
  • Toolkit
  • 500mm Homing Switch Kit
  • Z-Probe
  • 500mm Side Board Kit
  • 500mm X-Carve Dust Control System
  • Clamp Set
  • Digital Calipers
  • 1-year Easel Pro Software Subscription

Technical Specifications

  • Machine Footprint: 750mm x 500mm
  • Work Area: (X,Y,Z) 300mm x 300mm x 65mm
  • Electronics: X-Controller with Grbl installed (USB)
  • Input Voltage: 115VAC or 230VAC (selectable)
  • Rapid Rate: (X,Y,Z) 8000mm/min, 8000mm/min, 500mm/min
  • Spindle: DeWalt 611
    • Amps: 7.0Amps
    • Horsepower: 1-1/4HP
    • No load speed: 16,000 - 27,000rpm
  • Control Software: Easel
