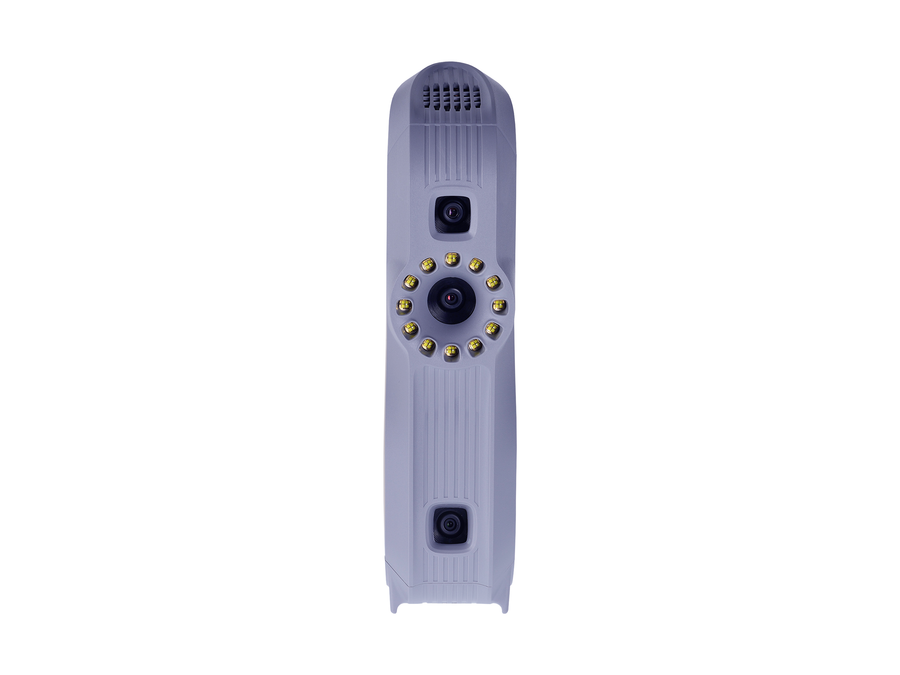

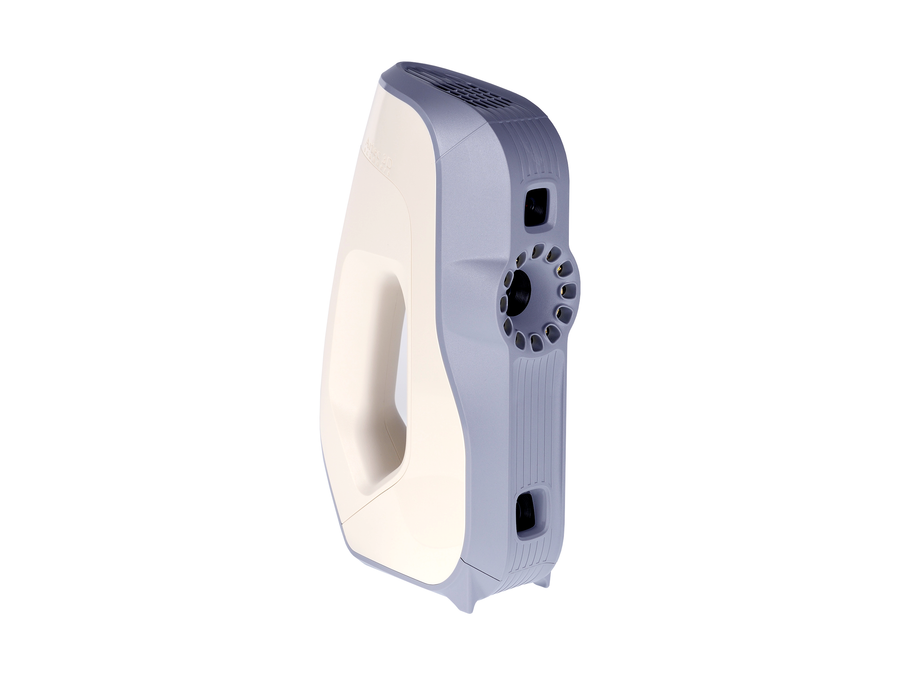

Artec Artec Eva Lite 3D Scanner
The Artec Eva Lite is the budget version of the bestselling Artec Eva 3D scanner. It features the same precision specs, but with reduced functionality. The Eva Lite captures only geometry, which provides many benefits including less power usage and less strain on the connected computer. As a result, this more affordable 3D scanner can be used for making high quality, textureless 3D scans when scanning geometrically rich objects.
- High precision, affordable professional 3D scanning
- Efficient for compatibility with less powerful computers
- Upgradeable to full functionality
| List Price: | $9,800.00 |
|---|---|
| Price: | $9,800.00 Financing starts at: $184 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Artec Eva Lite
AFFORDABLE, PROFESSIONAL QUALITY
Artec Eva Lite brings professional 3D scanning within reach, offering high precision at an affordable price. Tailored for capturing detailed geometries like the human body, it's a boon for healthcare fields. Its efficient, upgradeable system is complemented by an educational package, making it a smart choice for those looking to invest in the future of technology.
Key Features of the Artec Eva Lite 3D Scanner:
- Affordable, high-precision professional 3D scanning
- Efficient, operates on less powerful computers
- Upgradeable to full functionality easily
- Ideal for geometry-rich objects, perfect for healthcare
- Special educational package available
Need more capabilities now? Consider the Artec Eva
Professional Precision That's Budget-Friendly
The Eva Lite is an attractive and inexpensive option for healthcare clinics with a limited budget or anyone who is interested in purchasing a professional quality, white light 3D scanner. This Lite version of the Eva scanner provides basic functionality at a more manageable cost for businesses, educators or healthcare institutions.
EFFICIENT WITH ROOM FOR UPGRADES
Artec Eva Lite's streamlined data generation, due to no color capture, ensures compatibility with more affordable PCs. If you find the need for additional capabilities, Eva Lite can be upgraded at any time to the full feature Artec Eva 3D scanner just by paying the price difference between the two models, enabling anyone to become an Eva Lite user now and confidently upgrade later as needed.
GET AHEAD WITH EDUCATION
The Artec Educational Package for Eva Lite makes advancing innovation accessible by offering a special discount, 20 Artec Studio Lifetime licenses, continuous software upgrades for two years, and a reassuring two-year with Artec Care.
FAST & EASY DATA PROCESSING
Artec Studio is the ultimate software for fast, efficient, and comprehensive scan processing. Its Autopilot mode guarantees top-notch results effortlessly, catering to both novices and professionals. Scan with Artec Eva Lite and enjoy a suite of advanced tools for detailed manual editing for a time-saving solution that creates precise 3D models ready for CAD and 3D printing.
What's Included with the Artec Eva Lite Scanner?
1 × Artec Eva Lite
- 1 × USB Cable
- 1 × Power Supply
- 1 × Two-Year Warranty
What are the Functional Differences Between the Artec Eva and Eva Lite?
 |
|
|
|---|---|---|
| Model | Artec Eva | Artec Eva Lite |
| Starting Price | $19,800 | $9,800 |
| Hybrid Geometry & Texture Tracking | ✔ | |
| Geometry Tracking | ✔ | ✔ |
| Texture Capture | ✔ | |
| Geometry Capture | ✔ | ✔ |
| Continuous Scanning | ✔ | |
| Auto-Continue from Selected Scans | ✔ | |
| Option to Scan Using Targets | ✔ | |
| HD Mode | ✔ | |
| Autopilot | ✔ | ✔ |
| Autoalign Scans | ✔ (Texture & geometry based) |
✔ (Geometry data only) |
| Global Registration | ✔ (Texture & geometry based) |
✔ (Geometry data only) |
| Make Full-color 3D Models | ✔ |
Which Artec 3D Scanner is Right for Me?
|
|
 |
|
|---|---|---|---|
| Model | Artec Eva Lite | Artec Eva | Artec Space Spider |
| Starting Price* | $9,800 | $19,800 | $24,800 |
| Scanner Type | Handheld | Handheld | Handheld |
| Object Size | 20 - 50 cm (Medium) |
20 - 50 cm (Medium) |
5 - 20 cm (Small) |
| Accuracy, up to | 0.1mm | 0.1mm | 0.05mm |
| Resolution, up to | 0.5mm | 0.2mm | 0.1mm |
| Target-Free Tech | ✔ | ✔ | ✔ |
| Color + Geometry Tracking |
— | ✔ | ✔ |
| Scanning Software | Artec Studio | Artec Studio | Artec Studio |
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
uOBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | Affordable and accurate. |
Best-seller. Fast, versatile, and accurate. |
A metrological structured-light 3D scanner, set apart with its ability to render complex geometry, sharp edges, and thin ribs in high precision. |
 |
 |
 |
|
| Model | Artec Leo | Artec Micro II | Artec Metrology Kit |
| Starting Price | $34,800 | $22,500 | $27,400 |
| Scanner Type | Handheld, Tetherless | Desktop | Photogammetry |
| Object Size | 20 - 200 cm (Medium to Large) |
<90×60×60mm - 20 cm (Extra Small to Small) |
>20 cm (Medium to XL) |
| Accuracy, up to | 0.1 mm | 0.005mm | 0.002mm repeatability |
0.002mm |
| Resolution, up to | up to 0.2mm | TBC | N/A |
| Target-Free Tech | ✔ | Yes | — |
| Color + Geometry Tracking |
✔ | Yes | — |
| Scanning Software |
Onboard Software | Artec Studio | Artec Metrology Kit Plugin for Artec Studio |
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | User-friendly portable 3D scanner with a built- in touchscreen and intuitive UI for easy 3D scanning. |
High-accuracy desktop 3D scanner for an automated, one-click solution for small to tiny objects. |
Photogrammetry kit w/ metrology-grade precision & volumetric accuracy for inspection, reverse engineering, and other industrial measurement applications. |
 |
|||
| Model | Artec Ray II | ||
| Starting Price | $88,000 | ||
| Scanner Type | Long-Range | ||
| Object Size | >50 cm (Large to XL) |
||
| Accuracy, up to | 1.9mm @ 10m | ||
| Resolution, up to | 3 / 6 / 12mm @ 10m |
||
| Target-Free Tech | ✔ | ||
| Color + Geometry Tracking |
✔ | ||
| Scanning Software |
Onboard Software Artec Remote App Artec Studio |
||
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
||
| Features | Powerful long-range laser 3D scanner for precise capture of massive objects with remarkable speed and high accuracy. |
* When comparing 3D scanners, keep in mind that price can be reflective of the number of convenient and useful features available, as well as the quality and speed of data capture. While you should consider your budget when looking at price, you should also consider if the technology has everything you need and if the workflow will serve you well in the long run.
What are the Technical Specifications of the Artec Eva Lite?
| GENERAL | |
|---|---|
| Technology | 3D Scanner |
| Type | Handheld |
| Product Dimensions (W × D × H) |
262×158×63mm (10.3"×6.2"×2.48") |
| Product Weight | 0.9kg (2lb) |
| ACCURACY & RESOLUTION | |
| 3D Point Accuracy | Up to 0.1 mm |
| 3D Resolution | Up to 0.5 mm |
| 3D Accuracy Over Distance | Up to 0.1 mm + 0.3 mm/m |
| ALGORITHMS | |
| Geometry Based Data Processing Algorithms; More modes and capabilities available on the Artec Eva |
|
| FIELD OF VIEW | |
| Working Distance | 0.4 – 1m |
| Volume Capture Zone | 61,000 cm³ |
| Linear Field of View H × W @ Closest Range |
214 × 148mm |
| Linear Field of View H × W @ Furthest Range |
536 × 371mm |
| Angular Field of View H × W |
30 × 21° |
| TEXTURE | |
| Ability to Capture Texture | No; Available on Artec Eva |
| CAPTURE RATE | |
| 3D Reconstruction Rate for Real-Time Fusion |
up to 16 fps |
| 3D Reconstruction Rate for 3D Video Recording |
up to 16 fps |
| Data Acquisition Speed | up to 2 mln points/s |
| 3D Exposure Time | 0.0002 s |
| 2D Exposure Time | 0.00035 s |
| LIGHT SOURCE | |
| 3D Light Source | Flashbulb |
| 2D Light Source | white 12 LED array |
| HARDWARE | |
| Display/Touchscreen | USB Streaming through external computer |
| Multi-Core Processing | On external computer |
| Interface | 1 × USB 2.0, 3.0 compatible |
| COMPUTER REQUIREMENTS | |
| Supported OS | Windows 7, 8, or 10 (x64) |
| Recommended Computer Requirements | Intel Core i7 or i9 32GB RAM GPU with 2 GB VRAM |
| Minimum Computer Requirements | Intel Core i5, i7 or i9 18GB RAM GPU with 2 GB VRAM |
| OUTPUT FORMATS | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, X_T |
| Measurements | CSV, DXF, XML |
| POWER SOURCE | |
| Power source | AC power Optional - External Battery (separate purchase) |
FAQ
Is there a brochure or leaflet for the Artec Eva Lite and all of Artec's 3D scanners?
Yes! You can download the leaflet for the Artec Eva Lite here and the brochure for all of Artec's 3D scanners here.
Do you offer demos, training, maintenance services, etc for this 3D scanner?
Yes! Request a quote and a sales representative can provide more information on these services.
Are there any special government or educational discounts for this 3D scanner?
Request a quote and our sales representative will get back to you on any special discounts and promotions that may be available for this 3D scanner.
What is the difference between the Artec Eva and Artec Eva Lite?
The main difference between Artec Eva and Eva Lite is that Eva Lite doesn’t capture the color of an object due to a disabled color camera. It can only capture the geometry of an object, and with less than half the 3D resolution, compared to Eva — 0.5 mm vs. 0.2 mm (in HD). Because color tracking is not available, it’s harder for Eva Lite to keep track of the surface while scanning, and it works best for objects that don’t have textured features, but unique or rich geometry instead. Also, there are a few differences in the software functionality. For example, Auto-continue from selected scans, Fine and Global Registration using texture information, and coloring (Texturing) the final model are among the features not available when using Eva Lite.
Is geometry tracking enough for my tasks when using Artec Eva Lite?
It very much depends on the task you want to accomplish, the size and the geometry of the object that you need to scan, and the results you want to achieve. Eva Lite doesn’t capture the color of an object unlike the other 3D scanners in Artec's catalog, so to scan it, the object itself must have unique and rich geometry so that the scanner can “see” and capture it from every angle. Make sure that the object you want to scan meets these criteria, and check other parameters that are essential for you, such as the scanner’s recommended object size, accuracy, and resolution.
Is it true that Artec Eva Lite is the best affordable 3D scanner?
It very much depends on what scanner/scanners you compare it to. Eva Lite is a budget version of Artec’s award-winning handheld 3D scanner Eva which is used by thousands of major companies worldwide. It features lots of the functionality of Eva, which is sufficient for a number of applications, including healthcare, education, and research. At any point, Eva Lite can be upgraded to Eva, which is capable of capturing a wider range of objects in color and at a higher resolution, sharpness, and quality (in HD Mode).
