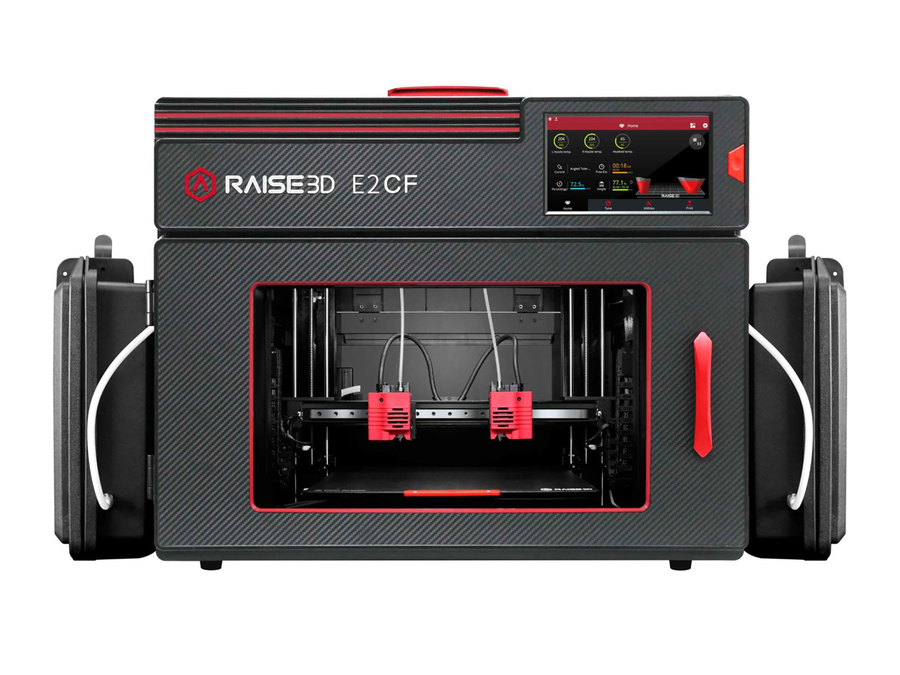

Raise3D Refurbished Raise3D E2CF Industrial 3D Printer *A Stock*

Deal

Improving upon the success of the E2 Industrial 3D Printer, The Raise3D E2CF 3D printer was engineered and optimized to consistently print carbon fiber and other fiber-reinforced filaments. Featuring several upgrades including an upgraded double-gear extrusion system, enhanced high-durability nozzles — designed for over 1000 hours of extrusion with PA12 CF filament — twin environmentally sealed filament dry boxes, and several quality of life improvements to the calibration systems and bed leveling operations the E2CF has raised the performance bar for what you can expect from an Industrial Desktop 3D Printer.

Please note: This product listing refers to a refurbished unit - see below for condition descriptions.

List Price: $4,499.00
Price: $3,915.48
Price: $...
Order Now: Ships calculating... MatterHackers Shipping Truck Free U.S. Shipping
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Qty
Request Quote
loading...
Product No. M-KLL-2MJ3

REFURBISHED A STOCK DESCRIPTION:

  • Fully functional printer, professionally inspected and tested
  • Used, like new condition: Like new condition refers to functionality, not appearance
  • Box may have some wear and tear
  • May contain minor cosmetic blemishes
  • Hotend and accessories may not be new, but fully functional
  • This listing does NOT include the two Raise3D Filament Dry Boxes
  • A nonessential item may be missing (thumb drive etc.)
  • Comes with a 6 month warranty and a 90 day warranty for LCD, LCD Logic Board, Motion Controller Board and Extruder Board

Please email support@matterhackers.com or call if you have questions regarding this machine.

FEATURES AT A GLANCE:

  • Build volume of 330 x 240 x 240 mm (single)
  • Removable spring steel build plate with BuildTak coating
  • Bed temperature up to 110C
  • Optical filament-out detector
  • Maximum nozzle temperature of 300C
  • Full network connections
  • Color touch screen
  • Quiet operation with only 50dB noise when operating
  • HEPA filter with activated charcoal for in-office use

Carbon Fiber 3D Printing Made Simple

The Raise3D E2 CF 3D printer was engineered and optimized to consistently print carbon fiber and other fiber-reinforced filaments. Its upgraded double-gear extrusion system and high durability components make the E2 CF an excellent choice for manufacturing, prototyping, and more.

  • Build Volume:
  • Prototype & create large end-use parts in-house
  • Print more parts at once
  • Beneficial for a wide variety of industries
Dentist Interview

HIGH DURABILITY NOZZLES AND FILAMENT FEEDING SYSTEM

Some of the most notable upgrades to the E2 CF include its new double-gear extrusion system, which features twice the feeding grip force when compared to the E2. This extrusion system is constructed from hardened components that are optimized for the increased wear and that occurs when printing with fiber-reinforced filaments. In addition to an improved extrusion system, the E2 CF comes equipped with a high durability nozzle and feeding system. These nozzles and extruders have been enhanced to withstand long-term usage — over 1000 Printing hours — of printing with Raise’s Industrial PA 12 CF filament.

Constructed with hardened components that are optimized for increase wear and tear, these upgraded extruders feature twice the feeding grip force when compared to the Raise E2 Industrial 3D Printer

TECHNICAL SPECIFICATIONS:

  • Build Volume (Single Extruder): 330 x 240 x 240 mm
  • Build Volume (Dual Extruder): 295 x 240 x 240 mm
  • Print Head Travel Speed: 30 – 150 mm/s
  • Layer Height: 0.1 – 0.25 mm
  • Nozzle Diameter: 0.4mm (0.6/0.8mm available)
  • Max Nozzle Temperature: 300 °C
  • Machine Size: 607 x 596 x 465 mm
  • Net Weight: 32.4 kg; 71.42 lbs
  • Connectivity: Wi-Fi, LAN, USB, live camera

WHAT'S INCLUDED WITH THE E2CF 3D PRINTER?

  • (5) Power Cable
  • (1) Set Hex Wrenches
  • (2) Spools Raise3D Filament
  • (1) Tweezers
  • (1) Set Heat Resistant Gloves
  • (1) Spatula
  • (2) Filament Guide Tube
  • (1) USB Storage
  • (1) Set Quick Connectors
  • (1) Set of Fuses
  • (1) Glue Stick
  • (1) 0.3mm Feeler Gauge

TECHNICAL SPECIFICATIONS:



What are the Raise E2 CF's printer properties?

  • Build Volume (W×D×H):
    • Single Extruder Print: 13×9.4×9.4 inch / 330×240×240 mm
    • Dual Extruder Print: 11.6×9.4×9.4 inch / 295×240×240 mm
  • Machine Size (W×D×H): 23.9×23.5×18.3 inch / 607×596×465 mm
  • Print Technology: FFF
  • Print Head System: IDEX Independent Dual Extruders
  • Filament Diameter: 1.75 mm
  • XYZ Step Size: 0.78125, 0.78125, 0.078125 micron
  • Print Head Travel Speed: 30–150 mm/s
  • Build Plate: Flexible Steel Plate with Buildtak
  • Max Build Plate Temperature: 110 ºC
  • Heated Bed Material: Silicone
  • Build Plate Leveling: Mesh-leveling with Flatness Detection
  • Filament Run-out Sensor: Available
  • Supported Materials: PA12 CF, PA12 CF Support, OFP Certified Third-Party Filaments
  • Layer Height: 0.1 – 0.25mm
  • Nozzle Diameter: 0.4 mm (Default), 0.6/ 0.8 mm (Available)
  • Hot End :V4P
  • Max Nozzle Temperature: 300 ºC
  • Connectivity: Wi-Fi, LAN, USB port, Live camera
  • Noise Emission (Acoustic): <50 dB(A) when building
  • Operating Ambient Temperature: 15-30 ºC, 10-90% RH non-condensing
  • Storage Temperature :-25 to +55℃, 10-90% RH non-condensing
  • Filter: HEPA filter with activated charcoal
  • Net Weight: 32.4 kg
  • Gross Weight (Carton Only): 36.7 kg
  • Gross Weight (Carton with Pallet): 45.4 kg
  • Power Supply Input: 100-240 V AC, 50/60Hz 230 V @ 2A
  • Power Supply Output: 24 V DC, 350 W



What is the software for the Raise E2 CF?

  • Slicing Software: ideaMaker
  • Supported File Types: STL/ OBJ/ 3MF/ OLTP
  • Supported OS: WINDOWS/ macOS/ Linux
  • Machine Code Type: GCODE



PRINTER CONTROLLER

  • User Interface: 7-inch Touch Screen
  • Network: Wi-Fi, Ethernet
  • Power Loss Recovery: Available
  • Screen Resolution: 1024×600
  • Motion Controller: Atmel ARM Cortex-M4 120MHz FPU
  • Logic Controller: NXP ARM Cortex-A9 Quad 1 GHz
  • Memory: 1 GB
  • Onboard Flash: 8 GB
  • OS: Embedded Linux
  • Ports: USB 2.0×2, Ethernet×1
