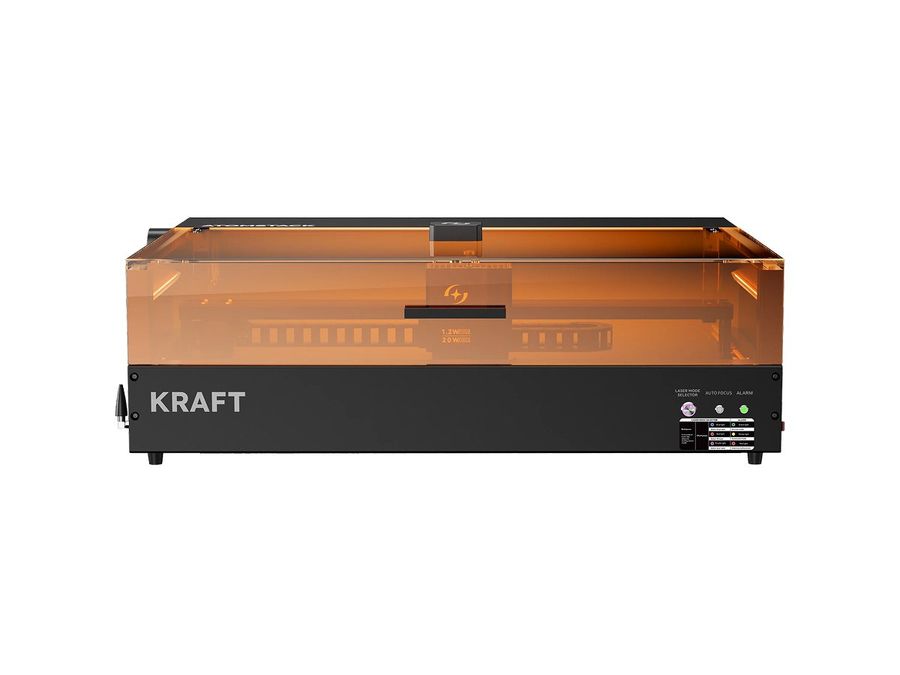

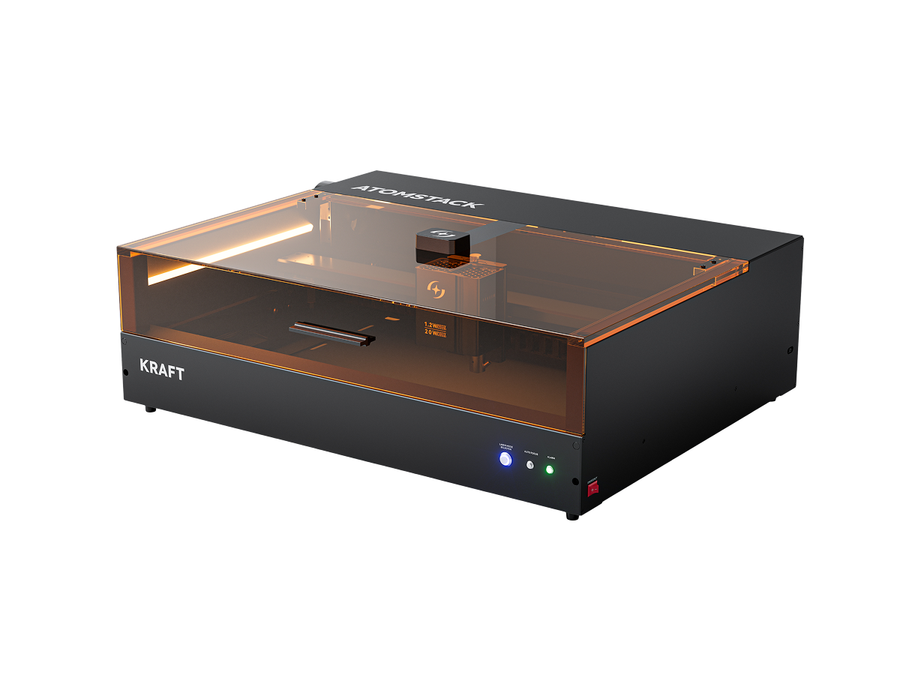

AtomStack Kraft Dual Laser Cutter - 20W Diode + 1.2W IR
Kraft Dual Laser Cutter is a versatile dual-source laser system featuring a 20W diode laser plus a 1.2W IR module for precise cutting and detailed engraving across a wide range of materials. Built for makers and small businesses, it delivers clean results, fine detail, and dependable performance for projects like signage, crafts, prototypes, and custom production—especially where both standard diode work and IR marking are needed.
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".
AtomStack Kraft Dual Laser Cutter – 20W Diode + 1.2W IR
Dual-laser versatility, crisp results—project after project
The AtomStack Kraft Dual Laser Cutter combines a powerful 20W diode laser with a 1.2W IR module to handle both efficient cutting and high-detail engraving across a broad range of materials. Built for makers and small shops, it’s designed to deliver clean edges, sharp detail, and reliable day-to-day performance—so you can take designs from concept to professional results with confidence.
Key Features of the AtomStack Kraft Dual Laser Cutter:
- 20W diode laser power for strong cutting performance and fast engraving on compatible materials
- 1.2W IR laser module for fine-detail marking/engraving on materials that benefit from IR precision
- High-precision motion system for clean lines, sharp details, and consistent repeatable output
- Ideal for a wide range of projects—signage, crafts, prototypes, personalization, and small-batch production
- Supports common design workflows for straightforward setup, file import, and job control
Dual Laser Power
Tackle more projects with diode and infrared lasers.
- 20W diode laser for fast cutting and efficient engraving
- 1.2W IR laser for fine-detail marking on specialty materials
- Dual Laser mode expands the material compatibility, with faster engraving and sharper results.
Safe and Reliable
Built-in flame detection monitors for flare-ups during operation and automatically alerts or stops the laser to help prevent damage and improve safety.
- Class 1 laser safety certified
- Enhanced exhaust system to clear smoke and reduce dust
- Auto laser shutdown when lid is opened, and an emergency switch to immediately stop the machine
Multi-material Compatibility
The AtomStack Kraft can engrave almost any material without interruptions or swapping lasers
- Works with a wide range of materials for cutting, engraving, and marking
- Automatic working mode switching to allow for continuous engraving
- Easily switch between modes with the click of a button
Add-ons:
Please Note: The AtomStack Kraft H4 Riser Base is required to give your Kraft the clearance needed for the following Add-ons.
- AtomStack R6 Rotary Roller - makes cylindrical engraving smooth and effortless (bottles and larger cylindrical objects)
- AtomStack R8 Rotary Chuck - allows for engraving on round or irregularly shaped objects (cups, mugs, or spheres)
- AtomStack R7 Pro Conveyor Feeder - expand the working area of your Kraft to 31.5 x 19.6 inches
| Technical Specifications | |
|---|---|
| Laser output | 20 W diode + 1.2 W infrared (IR) |
| Dimensions | 31.2 × 24 ×10.3 in (79.1 × 61 × 26.1 cm) |
| Working area | 19.6 × 12.6 in (50 × 32 cm) 31.5 × 19.7 in with R7 Pro Conveyor Feeder |
| Built-in camera | 16 MP resolution |
| Precision & speed | IR laser module: ~0.03 × 0.03 mm spot size Diode: ~0.08 × 0.12 mm Up to 600 mm/s speed |
| Safety certification | IEC 60825-1 Class 1 Laser Safety Certified |
| Safety features | Class 1 enclosure, fire extinguisher, emergency stop, lid open detection, tilt detection |
| Supported software | AtomStack Studio, AtomStack App, LightBurn, LaserGRBL |
| Supported file formats | DXF, JPG, PNG, BMP, SVG, GIF |
| Supported materials | Wood, leather, denim, ceramics, MDF, anodised aluminum, acrylic, dark glass, stone, jade, marble, aluminum, plastics, and more |
