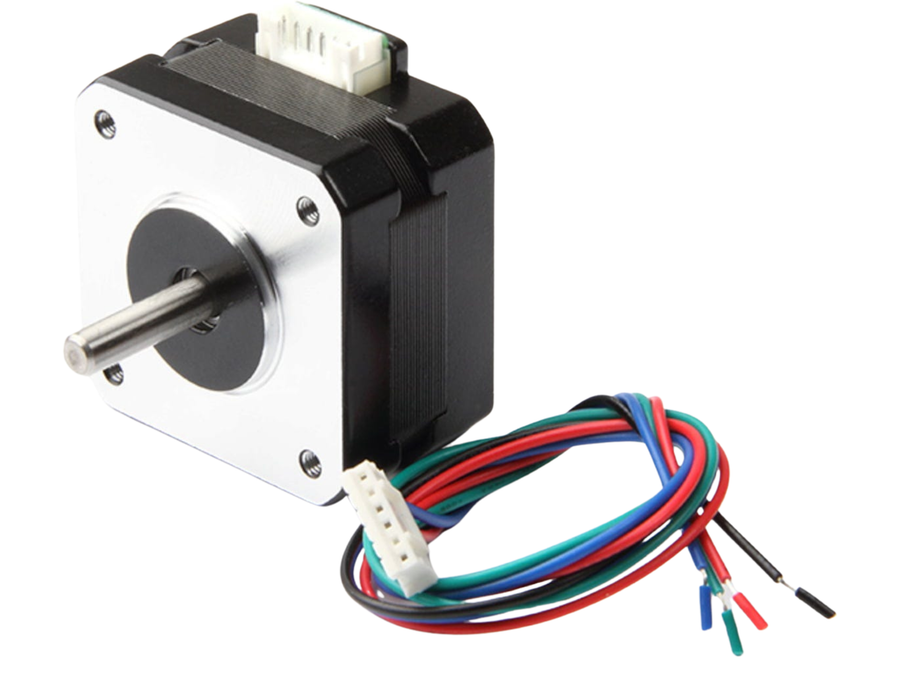

Bondtech Bondtech Nema17 Pancake Stepper 25mm
The Bondtech Nema17 Pancake Stepper Motor is a compact yet powerful solution for precise motion control. This high-resolution motor boasts a 1.8° step angle and a position accuracy of ±5%, ensuring meticulous attention to detail in every movement.
- 25mm motor length.
- Delivers robust power to handle demanding tasks effortlessly.
- Operates efficiently at temperatures up to 80°C.
- Comes with a 300 mm JST-PH6 cable for hassle-free connectivity.
| List Price: | $15.10 |
|---|---|
| Price: | $15.10 |
| Price: | $... |
| Order Now: | Ships calculating... |
Bondtech Nema17 Pancake Stepper 25mm
The Bondtech Nema17 Pancake Stepper Motor is the perfect blend of precision and power. With a 1.8° step angle and a position accuracy of ±5%, this high-resolution motor delivers exceptional performance for your 3D printing and CNC projects. The motor's 25mm length and high torque make it compact without compromising power. It features 2 phases and comes with a convenient 300 mm JST-PH6 cable for easy integration. Designed to withstand temperatures up to 80°C, the Bondtech Nema17 is your go-to choice for reliability and efficiency in demanding applications.
Technical Information
| Max Input current | 0.7 A per phase |
| Step angle | 1.8 deg. |
| Torque | 18 N/cm |
| Output shaft diameter | 5.0 mm |
| Hole for mounting | 31 mm, 4x M3 |
| Motor length | 25 mm |
| Weight | 153 g |
| Manufacturer Code | 42H25H-0704-002 |
