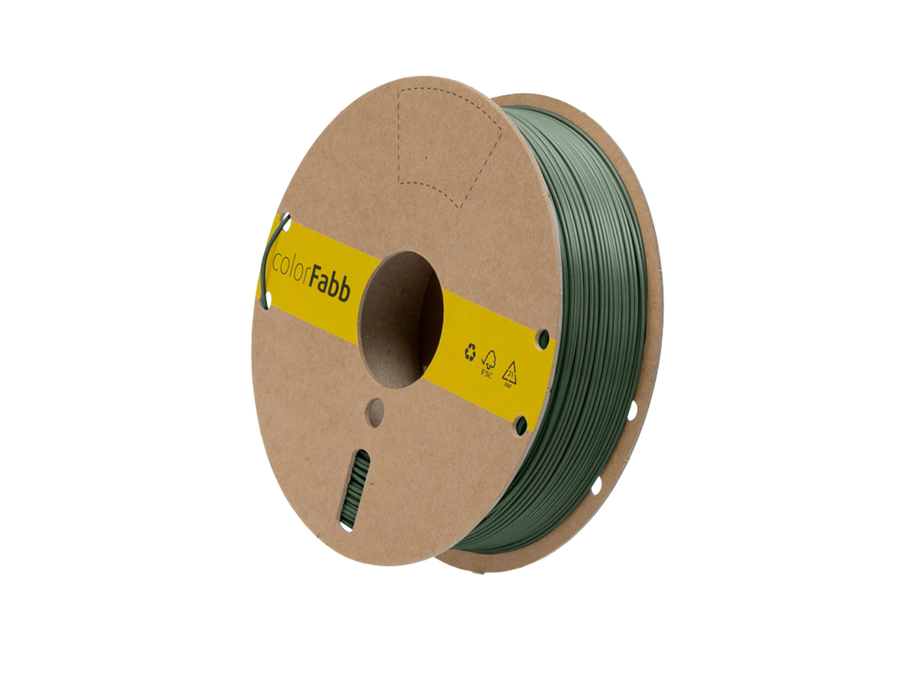

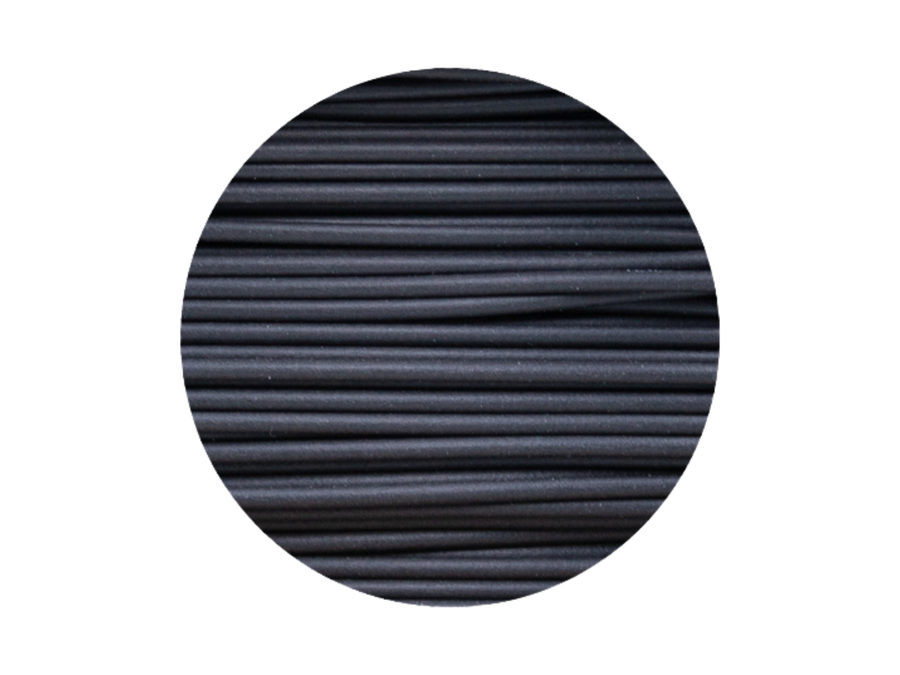

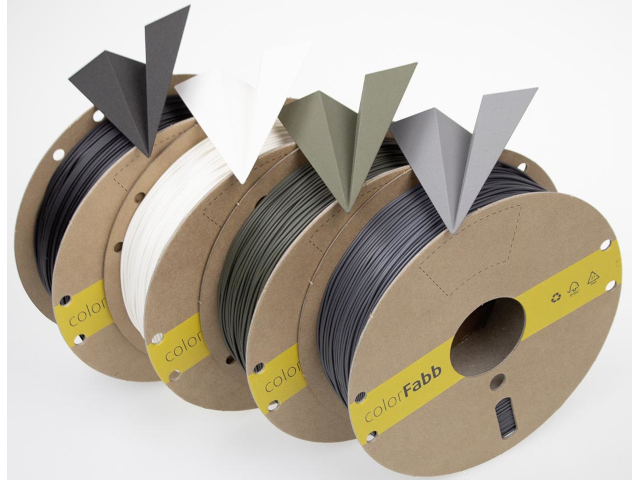

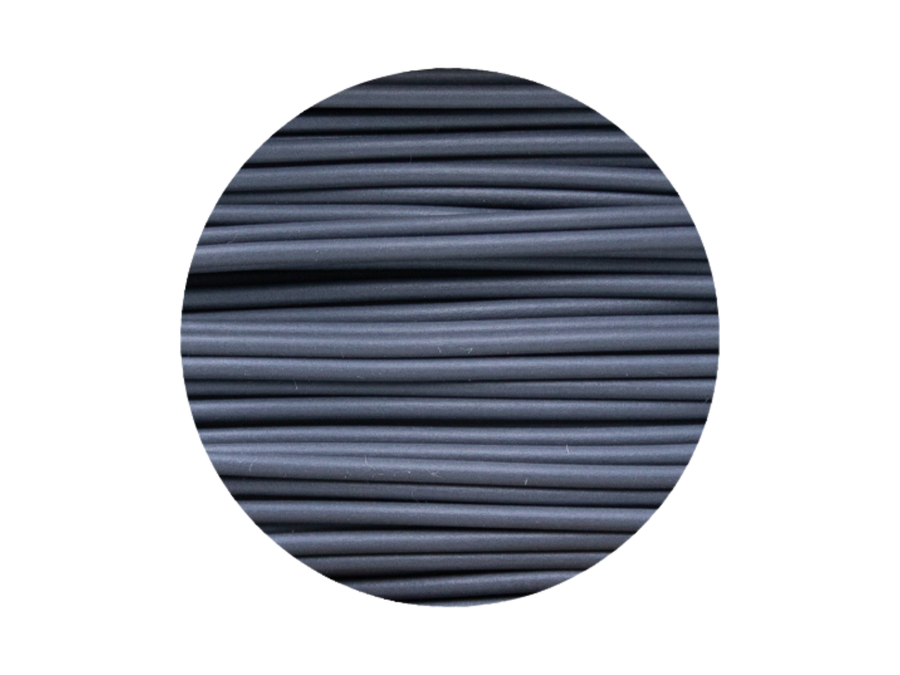

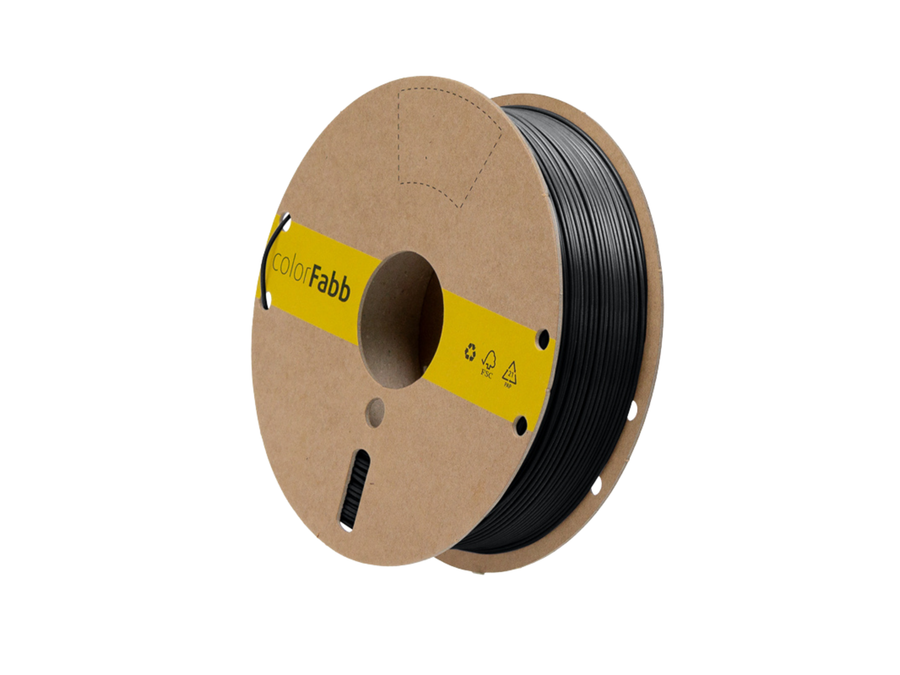

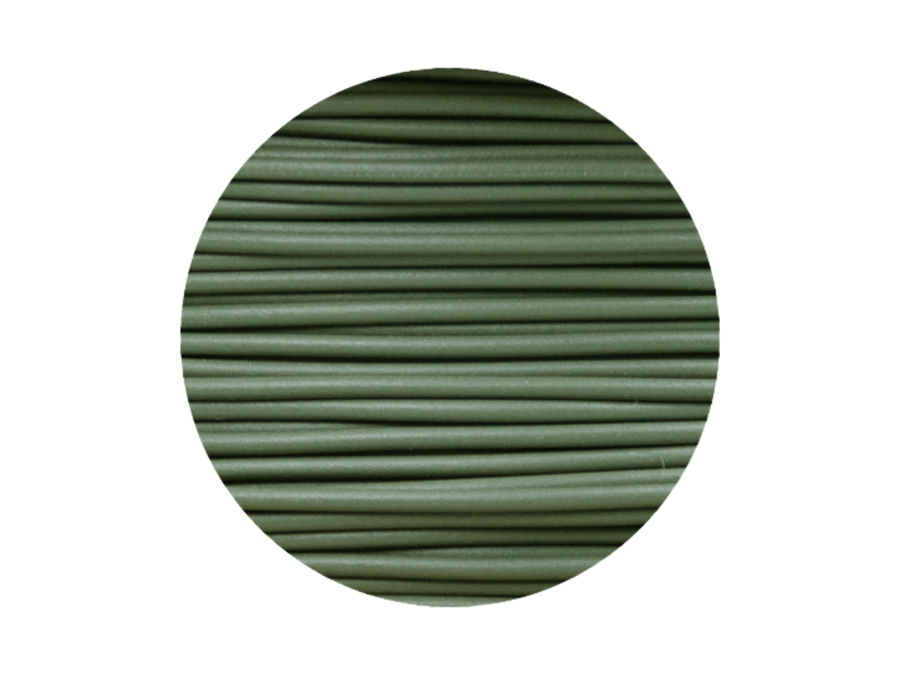

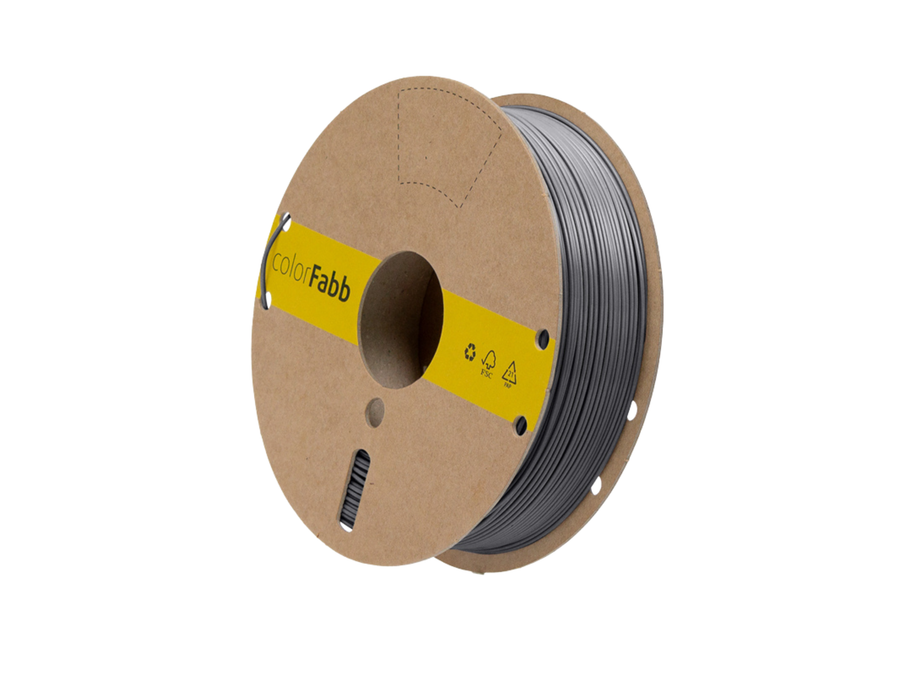

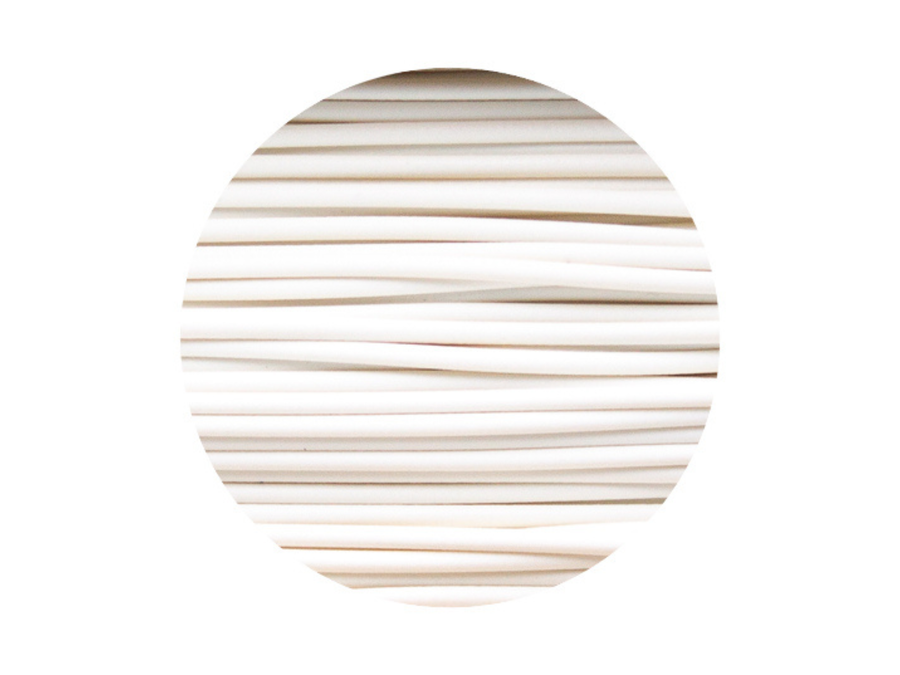

ColorFabb ColorFabb LW-PLA-HT - 1.75mm (4 pack)

LW-PLA-HT contains a foaming agent that activates at around 220 °C (depending on the other settings used). To calibrate your 3D printer settings, we developed a simple but effective 4-step process:

1. 3D print our calibration cubes.
2. Measure the wall thickness of the cubes.
3. Enter the values in our Excel file
4. Test print to confirm calculated values. Adjust the flow setting until the part has the strength you need.

Step 1.

You can download the files over at Printables, click here. Beware that our premade calibration file is for printing at 0.2mm layer height using a 0.4mm nozzle and 40 mm/s print speed. You can change these values to reflect your preferred settings.

Step 2.

After printing the calibration cubes, before removing them, label each cube with the printing temperature as reflected in your file settings. You need to measure the thickness of the perimeter line at each side of the cube and use our excel file to process the data.

Step 3.

Insert the values into the excel file included in our files (click here) and have a graph plotted of the average values per cube, for each printing temperature.

We also plotted a secondary graph, which shows you the relation between Material Flow [percentage] as a function of the printing temperature. In this graph, you can easily see which percentage of flow you would need at a minimum to achieve the expected perimeter wall thickness. For this graph, we used the following calculation: New Material flow = (100% Flow / (max perimeter width/perimeter width at 210°C))

Step 4.

Now you can select a part to test the calculated values you found for your setup.

Usually, the calculated flow value is lower than you would actually use for a sufficiently strong part. You might need to increase the flow rate by 5-10%. For RC planes, we found 230C - 0.2mm layer height - 50/60% flow to result in sufficiently strong prints on our Prusa MK3s

Keep in mind that if the pre-made files you bought have very different print speed or layer height values than what you’ve tested with our calibration file, the value for the flow percentage will deviate. It would be best to repeat the calibration file with the key settings, such as speed and layer height, the same as set in the files you bought.

Curious which values we found? Below you can find the values we found for the LW-PLA-HT colors.

LW-PLA-HT various colors - wall thickness vs print temperature. Sliced at 0.2mm layerheight / 40 mm/s / 0.4mm nozzle.

Calculating the theoretical material flow percentage needed for an extrusion width similar to the width when printed without foaming at 210°C:

New Material flow = (100% Flow / (max perimeter width/perimeter width at 210°C))

* Usually, the calculated flow value is lower than you would actually use for a sufficiently strong part. You might need to increase the flow rate by 5-10%. For RC planes, we found 230C - 0.2mm layer height - 50/60% flow to result in sufficiently strong prints on our Prusa MK3s

Keep in mind that if the pre-made files you bought have very different print speed or layer height values than what you’ve tested with our calibration file, the value for the flow percentage will deviate. It would be best to repeat the calibration file with the key settings, such as speed and layer height, the same as set in the files you bought.

If you don't want to go through the process of calibrating your printer, because you bought pre-made Factory files or G-codes, you can use the following tips & tricks to get a smooth transition to LW-PLA-HT.

If the RC plane you bought includes premade 3MF / Factory files, then you have the possibility to adjust all relevant settings. We suggest adjusting the following settings:

The first layer is partially stuck to the plate. To prevent these issues, we recommend the following settings.

• 1^st layer print temp – 200/210°C
• 1^st layer flow – 100% flow (we’re not activating the foaming agent at these temperatures)
• 1^st layer perimeter – 2 perimeters for additional strength.

Perfect flat part and is easy to remove. You can download the Simplify3D template file here: LW-PLA-HT template factory file.

If the plane you bought includes premade G-codes only, then you’ll have to adjust the flow rate manually using your 3D printer control panel. How much you need to increase the flow rate depends on the flow rate that has been set in the file. It’s expected that you need to increase anywhere between 10-20% increased flow rate. Try printing a small part and measuring the thickness of the extruded perimeter to see if this matches what it should be.
