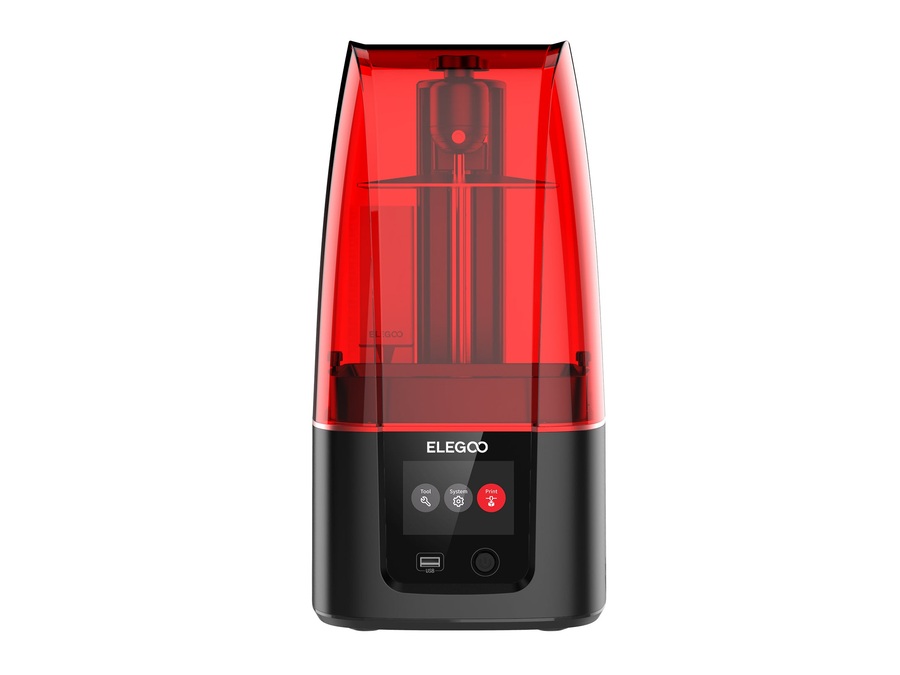

Elegoo Elegoo Mars 4 9K LCD Resin 3D Printer

The Mars 4 3D printer offers unparalleled precision with its 7-inch 9K mono LCD, achieving an 18μm XY resolution for exquisitely detailed models within a sizable 153.36x77.76x175 mm³ build area. It enhances user experience through a user-friendly interface, consistent COB lighting, a laser-carved build plate for superior adhesion, and an upgraded air purifier for reduced resin odor.

  • 7-inch 9K Mono LCD for detailed prints
  • Spacious 153.36x77.76x175 mm³ build volume
  • Uniform COB light source for accuracy
  • Enhanced adhesion with laser-carved build plate
  • Intuitive 3.5-inch touch screen user interface
  • Upgraded air purifier for odor reduction.
List Price: $309.00
Price: $259.00
Price: $...
Order Now: Ships calculating... MatterHackers Shipping Truck Free U.S. Shipping
Qty
loading...
Product No. M-UC7-M21M

Elegoo Mars 4 LCD Resin 3D Printer: Ultra-High-Definition 3D Printing and Advanced Features

The Mars 4 3D printer is a cutting-edge device that features a 7-inch 9K mono LCD, delivering an extremely high 8520x4320 resolution and a precise 18μm XY resolution for producing models with outstanding detail and clarity. It offers a generous build volume of 153.36x77.76x175 mm³, allowing ample room for a variety of projects without compromising on print quality. The printer is equipped with a COB light source that ensures a uniform 405nm wavelength exposure across the entire printing area, resulting in consistent and accurate prints. Its build plate is enhanced with a laser-carved surface to maximize adhesion, significantly increasing the likelihood of successful prints. User interaction is made simple and efficient with a 3.5-inch touch screen that includes a model preview and real-time progress tracking. Additionally, Mars 4 has been upgraded with a plug-in air purifier encased in a protective plastic cover, housing an activated carbon filter that effectively diminishes resin odors, making the printing process more pleasant.

  • 7-inch 9K LCD for fine details.
  • Large build volume with uniform exposure.
  • Intuitive UI, improved adhesion, odor control.

What are the Technical Specifications of the Elegoo Mars 4 LCD 3D Printer?

  • XY Resolution: 8520 x 4320 (18*18um)
  • Print Volume: 153mm x 78mm x 175mm
  • LCD: 7-inch 9K Mono LCD
  • Technology: MSLA 3D Stereo lithography
  • Layer Thickness: 0.01-0.2mm
  • Printing Speed: 30-70mm/h
  • Z Axis Accuracy: 0.02mm
  • Release Film: PFA release film
  • Slicing Format: Open-source GOO format
  • File Transfer Method: USB
  • Lightsource: COB, UV Integrated Light (wavelength 405nm)
  • Build  Plate: Laser etched surface
  • Slicing Software: Voxeldance Tango, Chitubox, Lychee, etc.
  • Air Purification: Supported
  • Weight: 11.46lbs(5.2kg)
  • Operation: 3.5 Inch Touch Screen
  • Power Requirements: 100-240V 50/60Hz 24V 3A
  • Printer Dimensions: 22.7cm(L)*22.7cm(W)*43.85cm(H)

What's Included with the Elegoo Mars 4 3D Printer?

  • Mars 4 3D Printer
  • Power Adapter
  • Build Platform
  • Resin Tank
  • USB Air Purifier
  • U Disk
  • Extra replacement assembly hardware
  • Scraper
  • Funnel
  • Set of Gloves
  • Mask
  • Tool Kit
  • Users Manual
