The Beam Air Fume Extractor utilizes advanced filtration technology to protect users from harmful fumes or particles when laser cutting or engraving. These components will require replacement over time, as such this kit was created to provide users with a full set of replacement filters - maximizing the uptime of your fume extractor.
HIGH-QUALITY COMPONENTS PROVIDE HIGH-QUALITY PROTECTION FROM FUMES AND OTHER PARTICULATES.

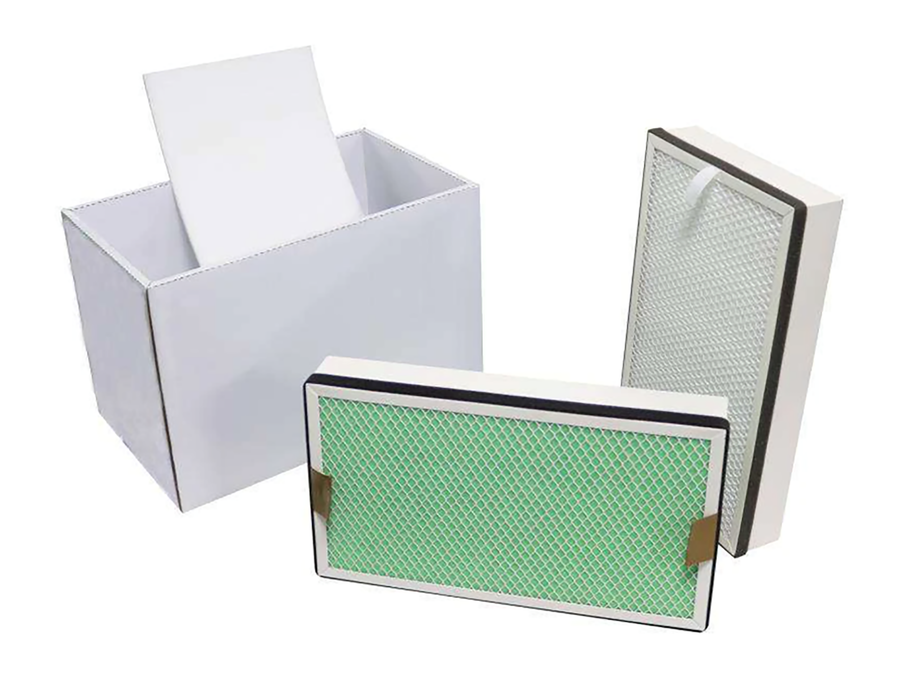

As with any piece of technology, it is important to follow the manufacturers' recommendations on maintenance in order to get the maximum use and performance out of a product. Users will need to replace the following Beam Air Fume Extractor components:
Pre-Filter: The first layer of protection included in the Beam Air. This filter is positioned on the very top of the machine and is responsible for preventing particulates, which are created during the laser engraving & cutting process from escaping out of the exhaust port of your machine. This filter will need to be replaced after 10 – 30 hours of use.
Medium Efficiency Filter: Positioned just below the pre-filter, the medium efficiency filter was designed to act as a buffer and to provide additional filtration for any particles that managed to pass through the pre-filter. To ensure maximum particle filtration the manufacturer recommends that this filter is replaced after 50 – 150 hours of use.
H13 HEPA Filter: At the center of the Beam Air Fume Extractor is the H13 HEPA Filter. This filter is designed to catch any few remaining particles that may have passed through the first two filters. The manufacturer recommends that this filter is replaced ever 100 – 200 hours of use.
Activated Charcoal Filter: The bottom and final filter of the Beam Air, this filter is designed to catch any particles that managed to make it past the first three. This filter is capable of eliminating almost all of the particulate generated during the laser cutting & engraving process. Very long lasting, the manufacturer recommends that this filter is replaced every 300 – 600 hours of use.
The Beam Air Fume Extractor is comprised of four main components: The pre-filter, Medium Efficiency Filter, H13 HEPA Filter, and the activated Charcoal Filter. It is important to follow the manufacturer's recommendations on component lifetime in order to ensure maximum air filtration & fume extraction.
