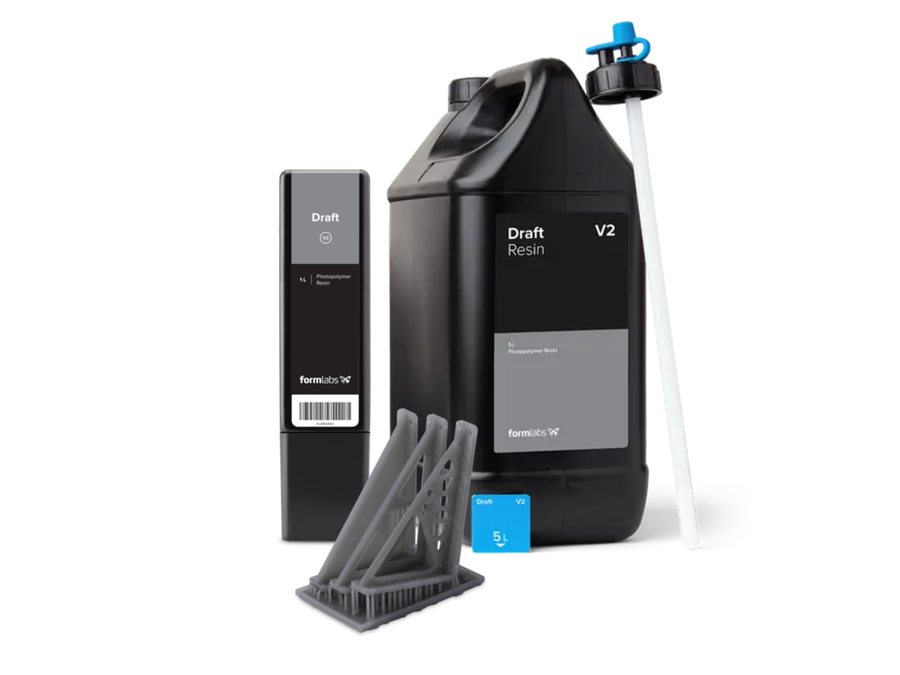

FormLabs Formlabs Draft Resin - 1L


Draft Resin enables printing at speeds up to four times quicker than Formlabs' standard offerings, positioning it as the go-to choice for early prototypes and swift iterative processes that accelerate product development.

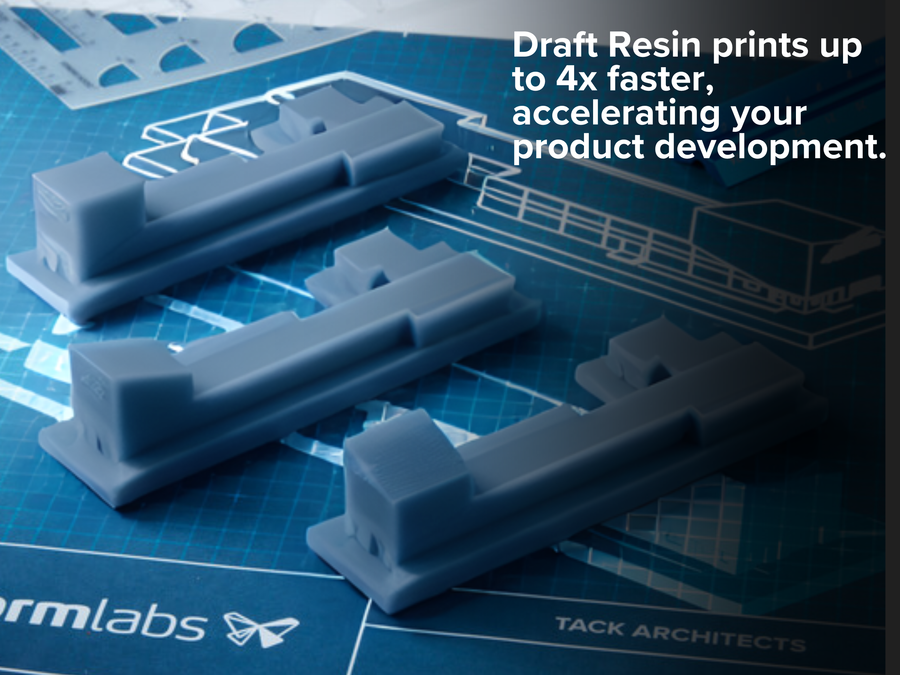

  • Prints up to 4x faster, accelerating prototype and product development

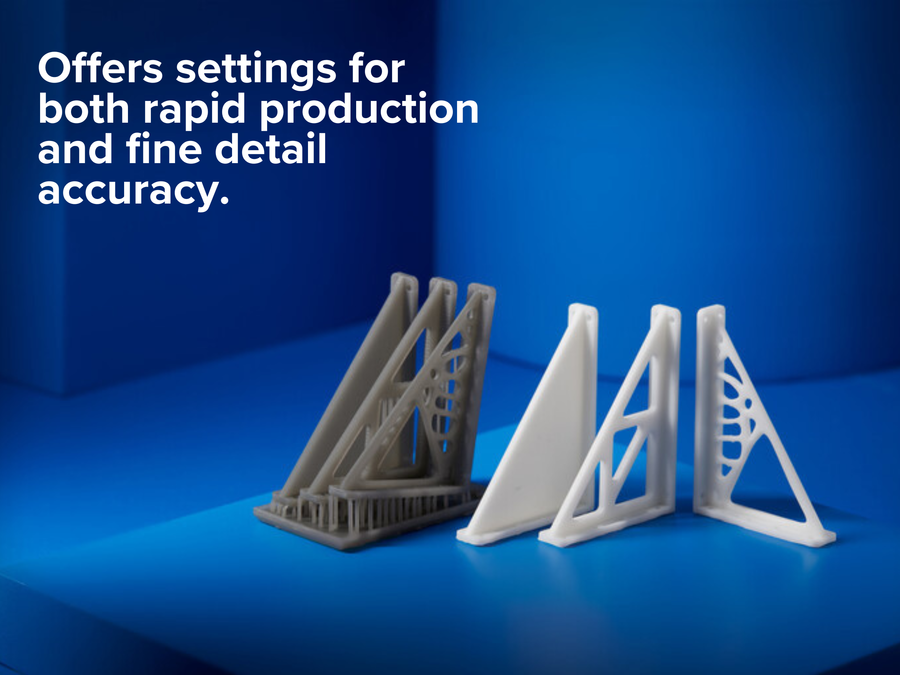

  • Offers settings for both rapid production and fine detail accuracy

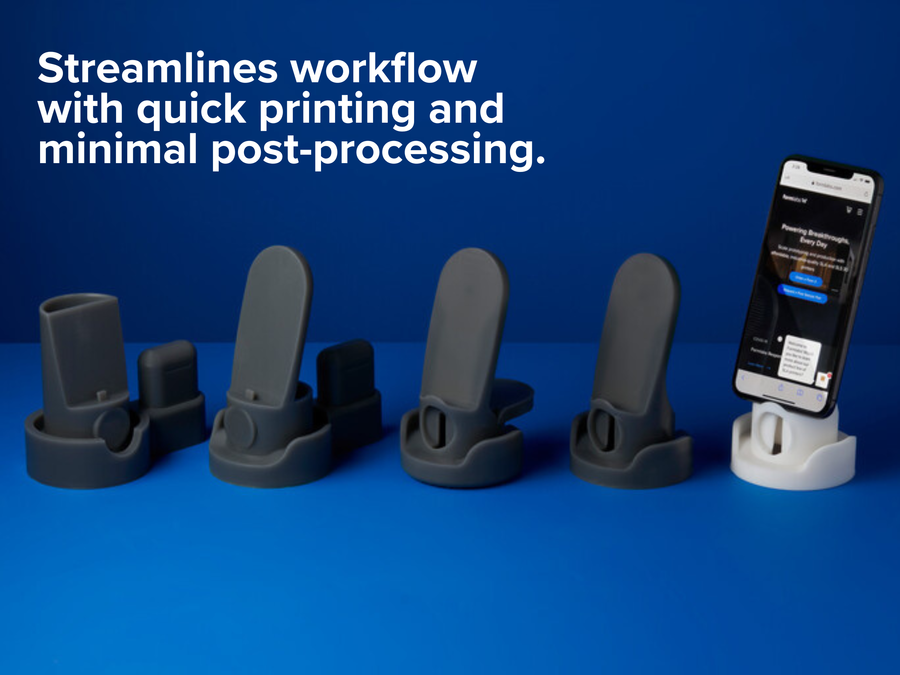

  • Streamlines workflow with quick printing and minimal post-processing
  • Improved version (V2) delivers better surface quality and ease of use

Please Note: 5L bottles of resin require the Formlabs Resin Pump to work.

Product No. loading...

Formlabs Draft Resins

Speed up your design and prototyping phase with Formlabs' Draft Resin, engineered for rapid printing without sacrificing quality. Ideal for initial prototypes and iteration processes, this resin helps bring your products to market faster by combining speed with precision.

Here are some top features of Formlabs Draft Resin:

  • Accelerates prototyping with printing speeds up to 4x faster than standard materials
  • Dual settings for speed and detail: choose 200 microns for fast prints or 100 microns for high-resolution details
  • Streamlined workflow: designed for efficiency from printing to post-processing, minimizing time spent on support removal, washing, and curing
  • Enhanced formulation provides a smooth grey finish, improved surface quality, and easier handling for a professional appearance
  • Please note: 5L bottles of resin require the Formlabs Resin Pump

Why Choose Formlabs Draft Resin?

Opt for Formlabs Draft Resin to significantly accelerate your prototyping and product development phases, without compromising on the quality of your prints.

  • Rapid Prototyping: Draft Resin is the ideal choice for those needing to produce initial prototypes or conduct multiple iterations quickly, with print speeds up to four times faster than standard resins.
  • Dual Detail Settings: Whether you're in a rush or need precision, Draft Resin offers 200-micron settings for speedy prints and 100-micron settings for capturing finer details, providing versatility in your prototyping process.
  • Efficiency Optimized: From printing to post-processing, Draft Resin is formulated for a streamlined workflow, reducing the time spent on support removal, washing, and curing, thus maximizing productivity.
  • Improved Formula: The latest version (V2) of Draft Resin boasts an enhanced surface finish and ease of use, ensuring not only faster results but also parts with a professional appearance and smoother handling experience.
  • Easy to Use: Draft Resin simplifies the prototyping process with its quick printing capabilities and minimal post-processing requirements, making it a user-friendly option for rapid development cycles.

Technical Specifications for Formlabs Draft Resins:

Please Note: 5L bottles of resin require the Formlabs Resin Pump to work.

Printer Compatibility:

  • Form 2
  • Form 3
  • Form 3+
  • Form 3B
  • Form 3B+
  • Form 3L
  • Form 3BL

Resin Tank Compatibility:

  • Form 2 LT Tank
  • Form 3/3B Resin Tank V2
  • Form 3/3B Resin Tank V2.1
  • Form 3L/3BL Resin Tank V1
  • Form 3L/3BL Resin Tank V2

Build Platform Compatibility:

  • Form 3 Build Platform
  • Form 3 Build Platform 2
  • Form 3 Stainless Steel Build Platform
  • Form 3L Build Platform
  • Form 3L Build Platform 2L

Material Properties:

  • Type: SLA
  • Application: General Purpose, Engineering, Dental
  • Print Resolutions: Supports 200 and 100 microns
  • Ultimate Tensile Strength: 52.0 MPa
  • Tensile Modulus: 2.3 GPa
  • Elongation at Break: 4%
  • Flexural Modulus: 2.3 GPa
  • Notched Izod: 26 J/m
  • Material properties may vary based on part geometry, print orientation, print settings, and temperature

Technical Data Sheet:
