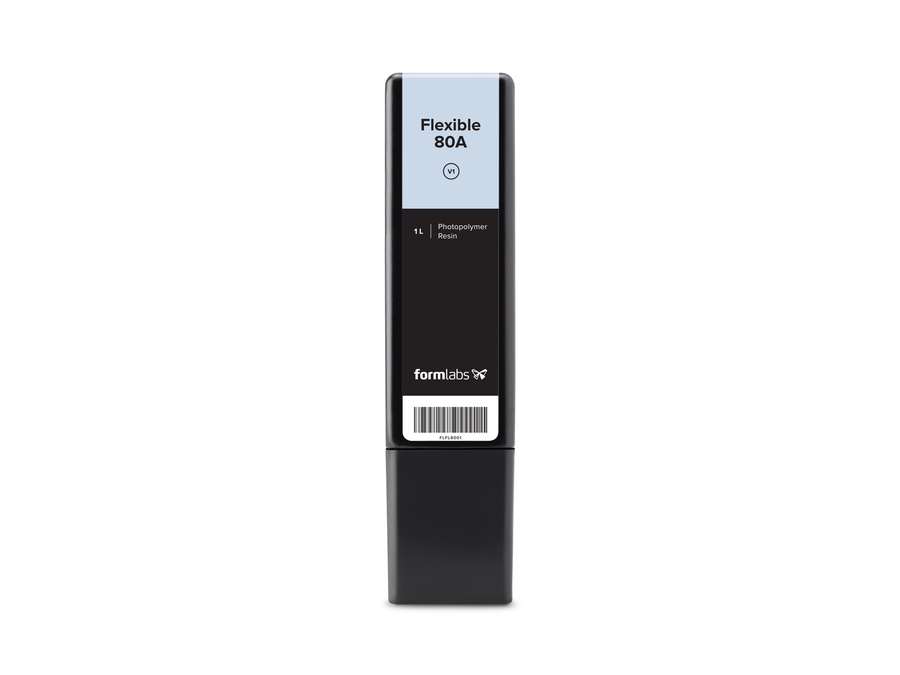

Formlabs Formlabs Form 3 Flexible 80A Resin V1 - 1L
Formlabs Flexible 80A Resin V1 is a stiff, soft-touch, translucent elastomer with an 80A Shore durometer that is ideal for prototyping rubber-like parts with the flexibility of harder rubber or TPU. Flexible 80A Resin V1 is compatible with Form 3 Series printers. Choose Flexible 80A Resin V2 on Form 4 Series printers for an improved formulation with 4x higher rebound, 2x higher tear strength and elongation at break, and improved printability, aesthetics, and aging.
- Mimics hard-rubber flexibility
- Bendable parts return to shape slowly
- Translucent for internal visibility, streamlines design
- Cartridge compatible with Formlabs Form 3
Formlabs Flexible 80A Resin V1
REPLICATE HARD RUBBER
Discover the versatility of Formlabs Flexible 80A V1 Resin, designed for crafting soft yet sturdy prototypes that endure bending and stretching. Its 80A Shore hardness ensures parts are flexible without sacrificing durability. Ideal for rapid in-house production of rubber-like parts, it's a transparent, cost-effective solution for seals, grips, and cushioning applications, streamlining development and enhancing design flexibility.
Key Features of the Formlabs Flexible 80A V1 Resin:
- Mimics hard-rubber or TPU flexibility
- Bendable parts return to shape slowly
- Withstands repeated bending, flexing, and compression
- Rapidly produce in-house for less outsourcing
- Translucent for clear visibility into internal structures
- Applications include grips, gaskets, cushioning absorption, tendon anatomy, and more
| Engineering Application |
SLA Technology |
Translucent |
| 8.9 MPa Ultimate Tensile Strength |
23.1 MPa Tensile Modulus |
120% Elongation at Break |
| COMPATIBILITY | ||
| Printer(s)* Form 4 / 4B Form 3L / 3BL Form 3+ / 3B+ Form 3 / 3B Form 2 |
Resin Tank(s) [RT] Form 4 / 4B RT Form 3L / 3BL RT V2 Form 3L / 3BL RT V1 Form 3 / 3B RT V2.1 Form 2 LT Tank |
Build Platform(s) [BP] Form 4 BP Flex Form 4 BP Form 3L BP Form 3 Stainless Steel BP Form 3 BP 2 Form 3 BP |
*The resin is compatible with these 3D printers. Please ensure you're selecting the correct cartridge compatibility at purchase as the Form 4 uses a different cartridge system from previous models. The listing you are currently on is for the Form 3 series / 2.
For the Form 4 series compatible cartridges, click here.
What are the Material Properties* of the Formlabs Flexible 80A Resin?
| Shore Hardness | 80A |
| Ultimate Tensile Strength | 7.2 MPa |
| Stress at 50% Elongation | 2.6 MPa |
| Stress at 100% Elongation | 4.5 MPa |
| Elongation | 1.35 |
| Tear Strength | 22 kN/m |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed on a Form 3 with 100 µm Flexible 80A settings, washed in a Form Wash for 10 minutes, and post-cured at 60°C for 10 minutes in a Form Cure.
Download the Formlabs Flexible 80A Technical Data Sheet
Download the Formlabs Flexible 80A Resin Safety Data Sheet
 |
 |
|---|---|
| FORM WASH SETTINGS | FORM CURE SETTINGS |
| Duration | Duration |
| 10 min + 10 min | 10 min |
| Temperature | |
| 60°C | |
| Notes | Notes |
| Wash parts printed in Flexible 80A Resin in two cycles, preferably using fresh solvent for the second wash. When washed in TPM, Flexible 80A Resin remains waxy when printed at any layer thickness and requires post-cure. Post-curing removes the waxiness. |
For parts printed in an engineering- focused resin (such as those in the Rigid, Tough & Durable, and Flexible families), post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. There is only one recommended post-curing time for Flexible 80A Resin. |
Maximize Your Savings
| Bulk Order Quantity (L) | Discount % |
| 1 | 0% |
| 30 | 15% |
| 60 | 20% |
| 120 | 25% |
| 240 | 30% |
| 1000 | 35% |
| 2000 | 40% |
| 3000 | 45% |
