Formlabs Formlabs Fuse Sift 120V
The Formlabs Fuse Sift is an all-in-one SLS 3D printing powder management system designed for efficiency and cleanliness. It features automated mixing of new and used powders, a negative air pressure system to minimize mess, modular build chambers for continuous operation, and includes a set of finishing tools. It significantly reduces waste by allowing up to 70% recyclability of used powder, streamlines workflow, and is compatible with an industrial vacuum (sold separately) for enhanced cleanup.
- Streamlines workflow, enables nonstop printing.
- Automates new/used powder mixing, up to 70% recycled use.
- Minimal mess with negative air pressure and HEPA filter.
| List Price: | $9,999.00 |
|---|---|
| Price: | $9,999.00 Financing starts at: $188 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Fuse Sift
COMPACT POWDER MANAGEMENT
Maximize your SLS 3D printing with Fuse Sift: the ultimate all-in-one powder recovery system. It streamlines your workflow by offering a mess-free post-processing experience, automated powder mixing for up to 70% recycled powder use, nonstop printing capabilities, and a complete toolkit for easy part cleaning. Reduce waste, mess, and downtime while increasing your production efficiency.
Key Features of the Formlabs Fuse Sift:
- All-in-one powder management
- Automatically mixes new and used powders
- Negative air pressure system keeps powder inside
- Modular build chambers for high print and sift uptime
- Finishing tools set included
- Industrial Vacuum available for separate purchase
CONVENIENT CONTAINMENT

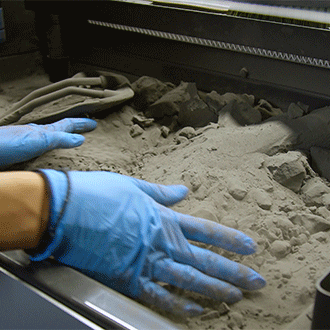

When post-processing SLS parts, mess is kept to a minimum thanks to the negative air pressure system and HEPA filter within the Formlabs Fuse Sift that keeps powder inside while enabling open access and easy cleanup.
LOW WASTE FOR HIGH SAVINGS
Fuse Sift efficiently collects unsintered powder and filters out debris for up to 70% used powder recyclability. It then automatically mixes this used powder with new ones, ready for your next print.
- Reduce waste
- Automatically mixes used and new powders
- Have next powder batch ready to go
KEEP IT MOVING
Minimize interruptions and keep your printing process flowing smoothly by easily swapping modular build chambers and powder cartridges between the Formlabs SLS 3D printer and Fuse Sift. This seamless exchange ensures a continuous, cyclical workflow.
What are the Technical Specifications of the Formlabs Form Sift?
| Printer Compatibility | Fuse Series SLS 3D printers |
| Dimensions (W × D × H) |
1015mm × 610mm × 1545mm (39.9" × 24" × 60.8") |
| Height When Open | 190 cm (75 in) |
| Fuse Sift Weight | 93 kg (without build chamber or powder) 205 lb (without build chamber or powder) |
| Build Chamber Dimensions (W × D × H) |
279mm × 342mm × 489mm(11.0" × 13.5" × 19.3") |
| Minimum Access Dimensions (W × D × H) |
2211mm × 1220mm × 2180mm (87.1" × 48.0" × 85.8") |
| Build Chamber Weight | 11 kg (17.6 kg, full with 20% packed powder) 24.3 lb (38.8 lb, full with 20% packed powder) |
| Build Volume | 165mm × 165mm × 300mm (with radiused corners) 6.5" × 6.5" × 11.8" (with radiused corners) |
| Fresh Powder Hopper Capacity | 17 liters |
| Used Powder Hopper Capacity | 18 liters |
| Operating Environment | 18 - 26 ºC 68 - 80 ºF ≤ 30% ambient humidity |
| Air Handling | Negatively pressurized hood with replaceable HEPA filter Independent venting system |
| Air Filtration | Replaceable HEPA medium |
| Power Requirements | w/ vacuum that draws < 6A (230 VAC) / 12A (120 VAC) US: 120 VAC, 15 A (dedicated circuit) EU: 230 VAC, 7.5 A (dedicated circuit) w/ vacuum that draws > 6A (230 VAC) / 12A (120 VAC) US: 120 VAC, 20 A (dedicated circuit) EU: 230 VAC, 10 A (dedicated circuit) |
| Vacuum Requirements | Auxiliary vacuum with static dissipative components that is grounded and bonded (e.g., a NFPA 652 compliant vacuum) |
| Connectivity | Wi-Fi (2.4 GHz) Ethernet (1000 Mbit) USB 2.0 |
| Ethernet Connectivity | RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T. |
| Wi-Fi Connectivity | Protocol: IEEE 802.11 b/g/n Frequency: 2.4 GHz Supported security: WPA/WPA2 |
| USB Connectivity | USB (rev 2.0) B port with a USB A-B cable |
| Sound Emission | Does not exceed 76.5 dB(A) |
| Fuse Sift Control | Interactive touchscreen, physical buttons |
| Included Accessories | 1 × Large Brush 2 × Small Brush 1 × Pipe Cleaners 1 × Dental Picks 1 × Gloves 1 × Dust Mask 1 × Safety Glasses 1 × Vacuum Brush Tool 1 × Vacuum Crevice Tool 1 × Lifting Straps |
