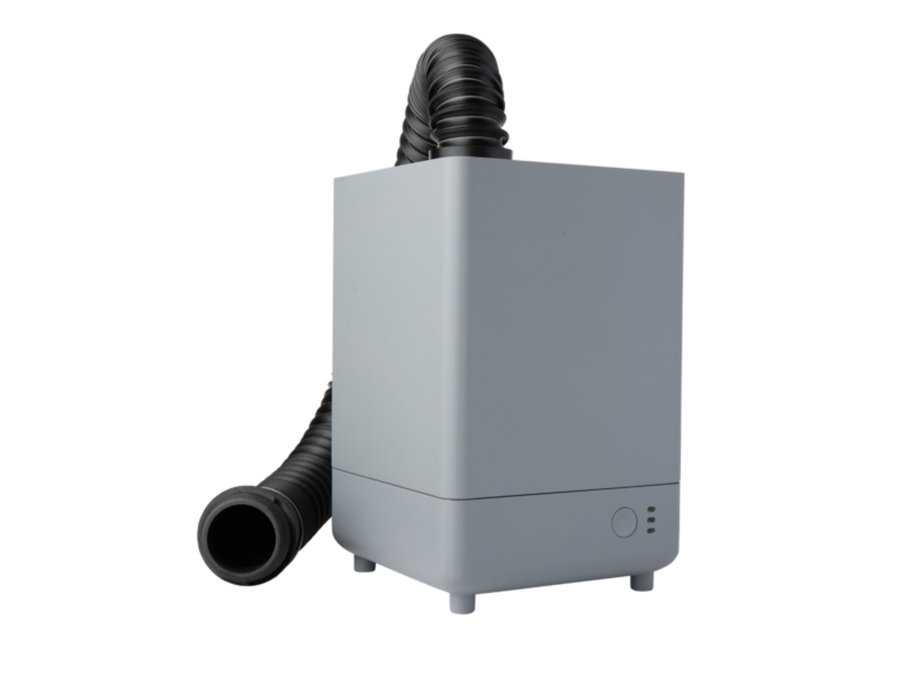

Formlabs Formlabs VOC Extractor
The VOC Extractor is a compact, add-on air filtration unit designed to reduce volatile organic compound (VOC) levels in your workspace while your Formlabs printer runs. Air is drawn through two replaceable carbon filters that last approximately 330 hours of print time and can be swapped out in seconds. With three adjustable fan speeds and compatibility with the Form 4 and Form Studio 1, it's a straightforward upgrade for a cleaner, safer print environment.
- Reduces volatile organic compound (VOC) levels during resin 3D printing.
- UL GREENGUARD Gold Certification applies to Form Studio 1 used with Alpha Resins.
- Compact form factor fits easily alongside your printer without taking up valuable workspace.
| List Price: | $179.00 |
|---|---|
| Price: | $179.00 |
| Price: | $... |
Formlabs VOC Extractor
Filtered Air for Form Studio 1
To pull resin vapors away from your desk while you print, the VOC Extractor connects to the exhaust port on the back of Form Studio 1 and filters the air through a pre-filter and two activated carbon filters. It also fits the exhaust port on Form 4 and Form 4B.
Key Features of the Formlabs VOC Extractor:
- UL GREENGUARD Gold With Alpha Resins: Alpha Resins printed on Form Studio 1 with the VOC Extractor at fan speed 2 are certified for low chemical emissions during printing.
- Fan Speed for the Job: Speed 1 runs about 5 dBA quieter than speed 2, and speed 3 makes up for a long or bent hose.
- Replaceable Filters: The pre-filter and both carbon filters swap out, and the VOC Extractor Replacement Kit includes four pre-filters and two carbon filters.
- One Touch Button: Turn it on and pick a fan speed when a print starts.
Connects to the Back of the Printer
To set it up, remove the exhaust plug from the back of Form Studio 1 and connect the hose adapter. Keep the hose short with as few bends as you can, since long or kinked runs cut airflow.
Turn the VOC Extractor on when a print starts and off when it ends, which makes the filters last longer.
UL GREENGUARD Gold, and What It Covers
To print with UL GREENGUARD Gold certified low emissions, run Alpha Resins on Form Studio 1 with the VOC Extractor at fan speed 2. That is the only certified setting. The certification covers printing, not washing, so choose and ventilate your wash solvent with the same care.
All resins release VOCs, and Formlabs notes that long use in enclosed rooms with poor airflow and no filtration can lead to allergies. Gloves stay on whenever you handle liquid resin.
Fan Speeds
| Fan speed | Use it when |
| 1 | You want quieter running, about 5 dBA below speed 2 |
| 2 | You print Alpha Resins on Form Studio 1. This is the only UL GREENGUARD Gold certified setting |
| 3 | The hose is fully extended or has several bends |
Product Specifications
| Works With | Form Studio 1, Form 4, Form 4B | Not Compatible | Form 4L (different port size) |
| Filters | 1 pre-filter, 2 activated carbon filters | Replacement Kit | VOC Extractor Replacement Kit (RP-VOC-FILTER-01): 4 pre-filters, 2 carbon filters |
| Controls | Touch button for power and fan speed | Power | Power adapter with interchangeable regional plugs |
Pick the right speed
| Fan speed | Use it when |
|---|---|
| 1 | You want quieter running, about 5 dBA below speed 2 |
| 2 | You print Alpha Resins on Form Studio 1. This is the only UL GREENGUARD Gold certified setting |
| 3 | The hose is fully extended or has several bends |
VOC Extractor specifications
Compatibility
- Works with
- Form Studio 1, Form 4, Form 4B
- Not compatible
- Form 4L (different port size)
Filters and controls
- Filters
- 1 pre-filter, 2 activated carbon filters
- Replacement kit
- VOC Extractor Replacement Kit (RP-VOC-FILTER-01): 4 pre-filters, 2 carbon filters
- Controls
- Touch button for power and fan speed
- Power
- Power adapter with interchangeable regional plugs
