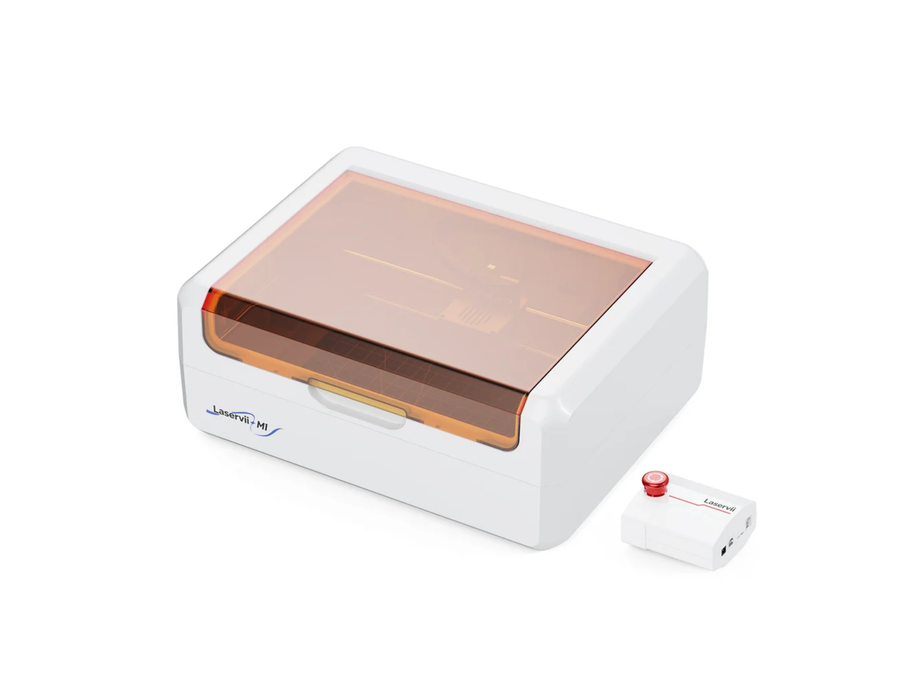

Two Trees TwoTrees Laservii M1 Laser Engraver - IR 2W
The Laservii M1s is a fully enclosed diode laser engraver and cutter built for safe, efficient use in home studios and maker spaces. Its enclosed design contains laser light and fumes, making it a responsible choice for indoor environments. Whether you're engraving personalized gifts or cutting custom materials, the M1s combines speed and safety in a compact, user-friendly package.
- Fully enclosed design contains laser emissions and smoke for safer indoor operation
- High-speed diode laser cutting and engraving optimized for home studio workflows
- Compact form factor fits comfortably in home offices, workshops, and creative spaces
TwoTrees Laservii M1 Laser Engraver
High-Speed Diode Laser Performance
Powered by a capable diode laser module, the M1s delivers fast cutting and engraving speeds without sacrificing precision. Whether you're producing detailed artwork or cutting through materials for functional parts, the M1s keeps up with your creative pace. Spend less time waiting and more time making.
Key Features of the TwoTrees Laservii M1 Laser Engraver:
- High-speed engraving reduces project turnaround time.
- Diode laser delivers consistent, precise results across supported materials.
- Optimized for efficient home studio production workflows.
Versatile Compatibility

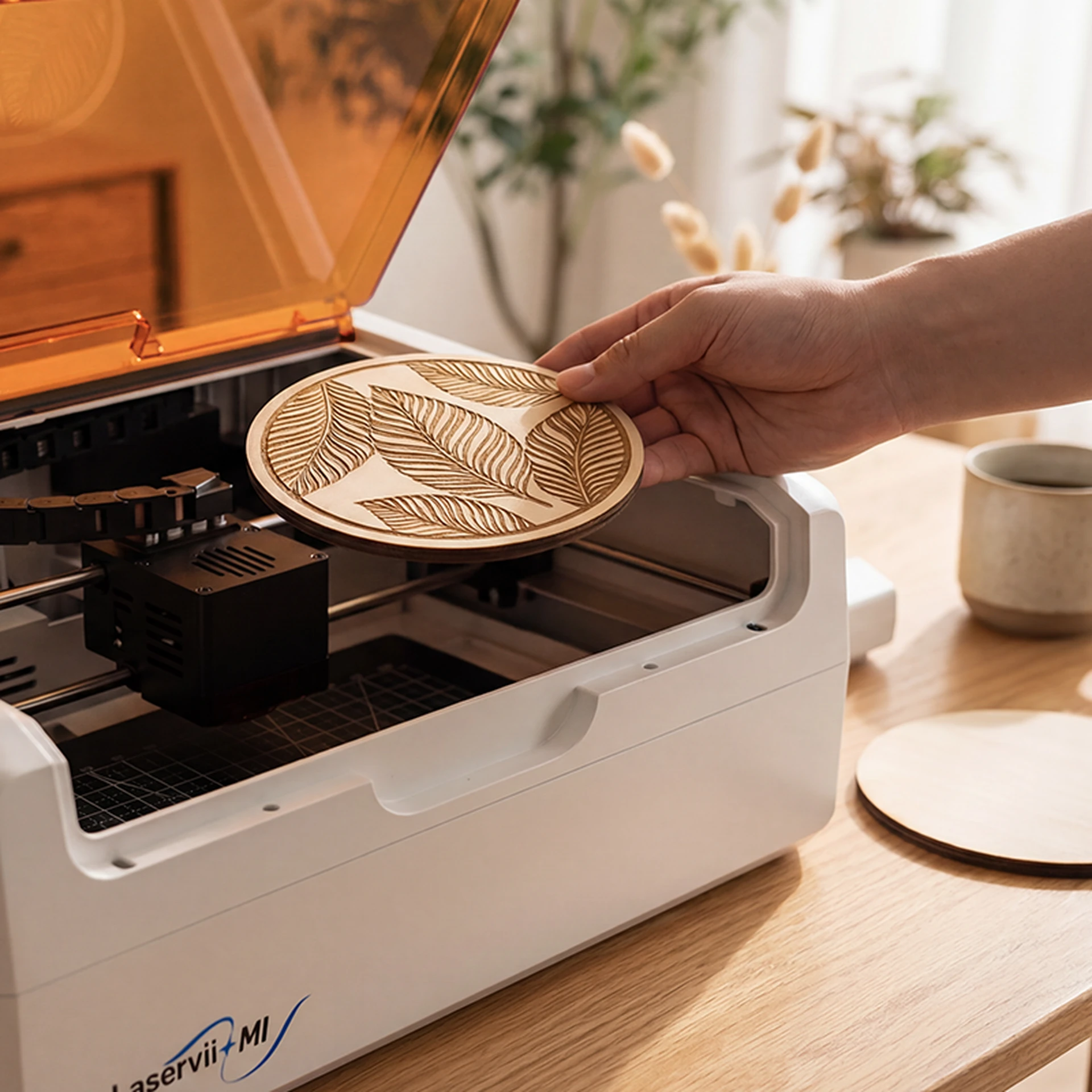

The Laservii M1s is engineered to work across a broad range of materials commonly used in DIY and craft projects, from wood and leather to acrylic and coated metals. This versatility makes it an excellent all-around tool for personalized gifts, custom signage, hobby projects, and small-batch production runs.
- Compatible with wood, acrylic, leather, and select coated metals
- Great for personalized gifts, signage, and decorative projects
- Supports both cutting and engraving modes for maximum creative flexibility
Product Specifications
| M1s 24W | M1s IR 2W | |
|---|---|---|
| Processing Capability | ||
| Best for | Higher specified blue-diode optical output for compatible non-metal projects | Fine marking on listed metals and opaque acrylic |
| Laser module | 24W blue-diode module | IR 2W infrared module |
| Working area | 285 × 205 mm / 11.2 × 8.1 in | 285 × 205 mm / 11.2 × 8.1 in |
| Supported workpiece height | 0–50 mm | 0–50 mm |
| Maximum engraving speed | 36,000 mm/min | 36,000 mm/min |
| Compatible materials | Plywood, MDF, solid wood, paper, kraft paper, coated metal, leather, selected laser-safe plastic and bamboo | Stainless steel, titanium, iron, aluminum, copper, brass, zinc and opaque acrylic |
| Accuracy & Laser | ||
| Laser type | Blue diode | Infrared |
| Wavelength | 450 ± 5 nm | 1064 ± 1 nm |
| Specified laser output | 24W ± 10% (continuous output) | 2W ± 10% (laser power) |
| X/Y positioning accuracy | ±0.1 mm | ±0.1 mm |
| Spot shape | Rectangular array of light spots | Circular light spot |
| Spot size | 0.08 × 0.1 mm | Focal spot size D ≤ 45 µm |
| Focus distance | 21 ± 0.5 mm | 21 ± 0.5 mm |
| Connectivity & Software | ||
| Firmware | LAS_MKS_LSESP32_COREXY_V1.0.24_20260130 | LAS_MKS_LSESP32_COREXY_V1.0.24_20260130 |
| Compatible software | Weaver, LaserMakerSpace, LightBurn, LaserGRBL, etc. | Weaver, LaserMakerSpace, LightBurn, LaserGRBL, etc. |
| Machine program files | .NC/.Gcode/.GC | .NC/.Gcode/.GC |
| Wi-Fi | Supported | Supported |
| USB data port | Supported | Supported |
| TF-card storage | Supported | Supported |
| Bluetooth | Not supported | Not supported |
| USB flash drive | Not supported | Not supported |
| Operating system listed | Windows / iOS | Windows / iOS |
| Machine & Power | ||
| Product dimensions | 485 × 375 × 200 mm / 19.1 × 14.8 × 7.9 in | 485 × 375 × 200 mm / 19.1 × 14.8 × 7.9 in |
| Body material | ABS + PC | ABS + PC |
| Body color | White / amber | White / amber |
| Control-board input voltage | 24V | 24V |
| Rated electrical power | 120W | 96W |
| Power adapter | 100–240V~50/60Hz 2.5A, 24V–4A | 100–240V~50/60Hz 2.5A, 24V–5A |
| Net weight | 7.2 kg / 15.9 lb | 7.2 kg / 15.9 lb |
| Package & Accessories | ||
| Package dimensions | 532 × 425 × 255 mm | 532 × 425 × 255 mm |
| Gross weight | 12.2 kg | 12.2 kg |
| Optional accessories | Risers, air assist, camera and TR3 rotary | Risers, air assist, camera and TR3 rotary |
| Safety & Compliance | ||
| Certifications/standards listed | CE-MD, CE-RED NB, FCC SDoC, FCC ID, EN 60825-1, FDA III, IEC 62368-1, CAN/CSA 62368-1 | CE-MD, CE-RED NB, FCC SDoC, FCC ID, EN 60825-1, FDA III, IEC 62368-1, CAN/CSA 62368-1 |
| Safe-use requirement | Ventilation, material screening, supervision, and a fire-safe workspace are still required | Ventilation, material screening, supervision, and a fire-safe workspace are still required |
