xTool xTool WonderPress Heat Press
The xTool WonderPress is a versatile modular machine that combines auto-pressure heat pressing, vacuum forming, and craft baking, capable of handling materials up to 100 kg. It features a generous 7.5 cm clearance, making it suitable for thick materials.
- Precision settings adjustable down to every degree and kilogram.
- Uniform pressure delivery ensures even results from edge to edge.

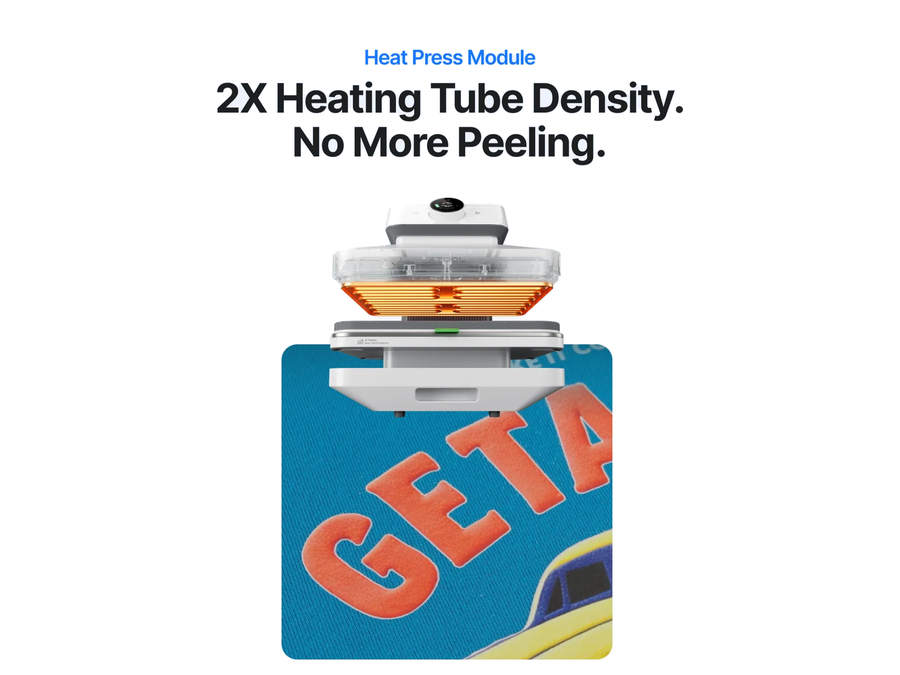

- Consistent heating eliminates cold spots, with a density of heating tubes that is twice the standard.
- Increased height with a three-inch clearance allows for a variety of creative projects.

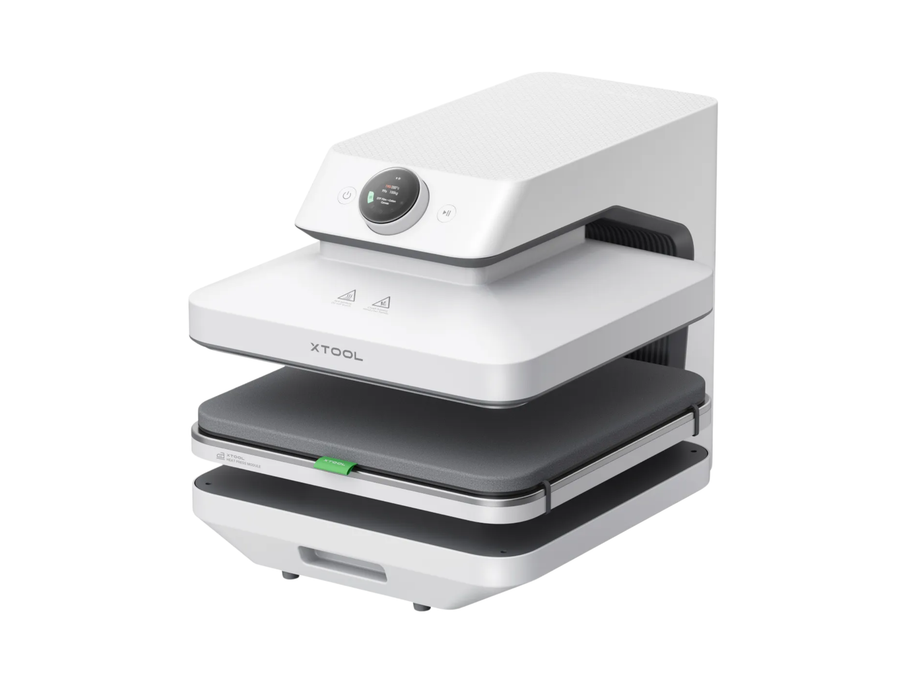

xTool WonderPress Auto Heat Press Machine
One Machine. Endless Possibilities.
The xTool WonderPress is a powerful, all-in-one modular heat press designed for serious makers and small businesses. With 100kg of automatic pressure, a generous 7.5cm clearance, and the ability to function as a vacuum former and craft oven, this single machine replaces multiple tools in your workspace. Whether you're pressing thick hoodies, blankets, or creating dimensional transfers, the WonderPress adapts to your workflow with ease.
Key Features of the xTool WonderPress Auto Heat Press Machine:
- 100kg automatic pressure system for consistent, professional-grade results every press.
- 7.5cm vertical clearance accommodates thick materials like hoodies, blankets, and layered substrates.
- Modular 3-in-1 design functions as a heat press, vacuum former, and craft oven.
- No manual adjustments needed due to auto-pressure technology, removing the guesswork.
- Designed for both hobbyists and small-business production environments.
- Compatible with a wide range of heat transfer materials and substrates.
- Streamlines your workspace by combining multiple machines into one compact unit.
Flawless Heat Transfers

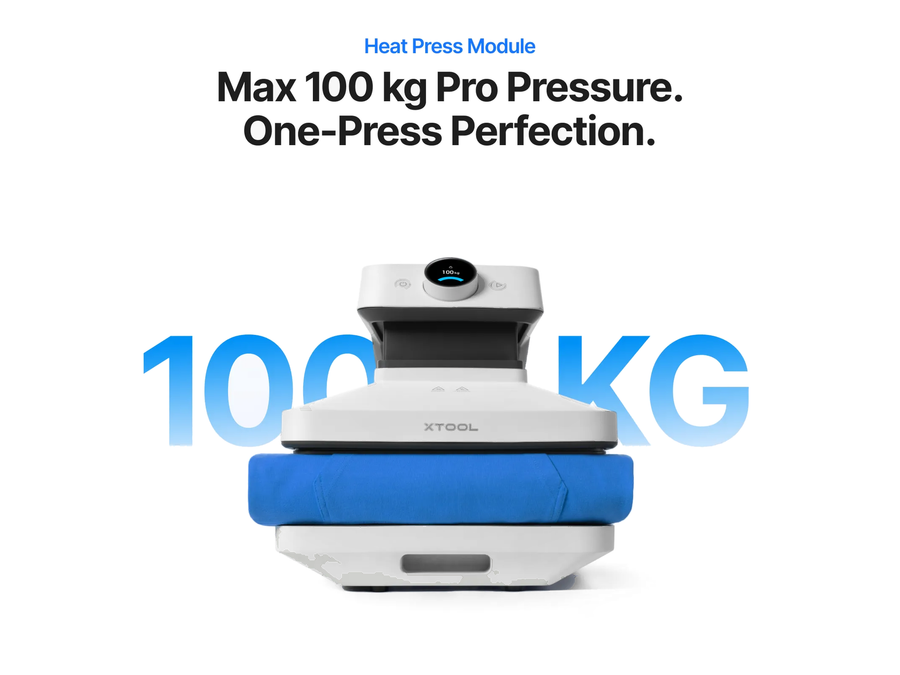

The WonderPress eliminates inconsistent results by automatically applying a precise 100kg of pressure across your entire platen. No more manual knob adjustments or uneven transfers! The machine does the work, so every press comes out perfectly bonded and professional-looking.
- Consistent 100kg pressure applied automatically on every press.
- Eliminates operator error from manual pressure settings.
- Ideal for high-volume production where consistency matters.
Built for Bulk
Unlike standard heat presses that struggle with thick or multi-layered items, the WonderPress features a generous 7.5cm throat clearance. Press full-zip hoodies, heavy blankets, and oversized garments without compression issues or uneven contact.
- 7.5cm vertical clearance for thick hoodies, blankets, and multi-layer substrates.
- Sustained contact is maintained across thick and uneven surfaces.
- Expand beyond flat, thin materials.
Modular 3-in-1 Design
The WonderPress is engineered to grow with your creativity. Its modular architecture allows it to switch between heat pressing, vacuum forming for dimensional projects, and craft oven applications. Thus replacing multiple single-purpose machines and saving valuable studio space.
- Swappable modular configurations for heat pressing, vacuum forming, and baking.
- Consolidates multiple machines into one compact, versatile unit.
- Future-proof design supports expanding your craft capabilities over time.
What's in the Box?
| Heat Press Standalone | Heat Press + Craft Oven Module | Heat Press + 3D Form Module | All-in-One Bundle | Efficiency Boost Deluxe Bundle | |
| Heat Press Module | ✔ | ✔ | ✔ | ✔ | ✔ |
| Heat-Resistant Cloth | ✔ | ✔ | ✔ | ✔ | ✔ |
| Safety Instructions | ✔ | ✔ | ✔ | ✔ | ✔ |
| Quick Starter Guide |
|
|
|
|
|
| Craft Oven Module | ✔ | ✔ | ✔ | ||
| Mesh Tray | ✔ | ✔ | ✔ | ||
| Sealing Frame | ✔ | ✔ | ✔ | ||
| Heat Insulation Pad | ✔ | ✔ | ✔ | ||
| Sublimation Shrink Wrap | 2 | 2 | 2 | ||
| Sublimation Paper | 2 | 2 | 2 | ||
| Heat Resistant Gloves | ✔ | ✔ | ✔ | ✔ | |
| 3D Form Module | ✔ | ✔ | ✔ | ||
| Vacuum Forming Pressing Frame | ✔ | ✔ | ✔ | ||
| Vacuum Sublimation Upper Frame | ✔ | ✔ | ✔ | ||
| Vacuum Sublimation Lower Frame | ✔ | ✔ | ✔ | ||
| Metal Mesh Plate | ✔ | ✔ |
✔ |
||
| Silicon Plugs | ✔ | ✔ | ✔ | ||
| Hex Key | ✔ | ✔ | ✔ | ||
| Material Pack |
|
|
|
||
| Heart-shaped Mold | ✔ | ✔ | ✔ | ||
| Badge Jig | ✔ | ✔ | ✔ | ||
| Dual-Station Base | ✔ | ||||
| Stabilizing Stand | ✔ | ||||
| Thumb Screw |
|
||||
Technical Specifications
| Heat Press Module (Main Unit) | |
| Heat Platen Size | 15" × 15" (380 mm × 380 mm) Large Platen |
| Temperature Range | 80–210 °C (176–410 °F) |
| Pressure Range | 44–220 lbs (20–100 kg) Precision Control |
| Time Range | 1–999 s |
| Input Voltage & Rated Power | AC 100–120 V, 1150–1650 W, 50/60 Hz |
| Physical Dimensions & Weight | 16.5" × 21.6" × 16.5" (418 mm × 549 mm × 410 mm) | 48.5 lbs (22 kg) |
| 3D Form Module | |
| Suction Power | Max. −90 kPa (Industrial-Grade Vacuum) |
| Vacuum Forming Area | Up to 8" × 10" (203 mm × 254 mm) Film Sheets |
| Max. Forming Height | Up to 3.5" (90 mm) |
| Max. Sublimation Area | Up to 4.8" × 9" (122 mm × 229 mm) Objects |
| Physical Dimensions & Weight | 20.5" × 16.1" × 4.2" (522 mm × 410 mm × 108 mm) | 15.9 lbs (7.2 kg) |
| Craft Oven Module | |
| DTF Curing Area | Up to 17" × 17" (432 mm × 432 mm) DTF Films |
| Chamber Dimensions (W × D × H) | 15.6" × 6.2" × 3.1" (398 mm × 158 mm × 80 mm) |
| Air Filtration | Built-In 3-Layer Filter (H11 + Carbon + H13 HEPA) |
| Physical Dimensions & Weight | 18.3" × 18.3" × 5.5" (465 mm × 465 mm × 140.7 mm) | 9.7 lbs (4.4 kg) |
| Smart Control & Safety | |
| Display & Controls | 1.8" (45.7 mm) Vivid Screen + Intuitive Rotary Knob |
| Software Support | xTool Studio App (Massive Cloud Presets Library) |
| Built-In Custom Presets | 35 Smart Built-In Custom Presets for Instant Offline Creation |
| Safety Features | Auto-Standby, Slide-Out Design (Away from Heat Source) |
| Appearance & Storage | |
| Body Material | PC/PBT |
| Color | White |
| Storage Temperature | −4 °F to 140 °F (−20 °C to 60 °C) |
