Bambu Lab changed what people expect from a 3D printer: fast, precise, and ready to work almost straight out of the box. Now it's bringing that approach to laser fabrication. The Bambu Lab R1 Laser Engraver & Cutter is a 55W CO2 laser built for makers, small businesses, classrooms, and anyone who has looked at a sheet of plywood or acrylic and thought, "I could make something with that."

If you already run a Bambu Lab printer, the R1 will feel familiar from day one. If you don't, it's a strong place to start.

Shop the Bambu Lab R1 at MatterHackers

The R1 at a Glance

  • Laser: 55W CO2

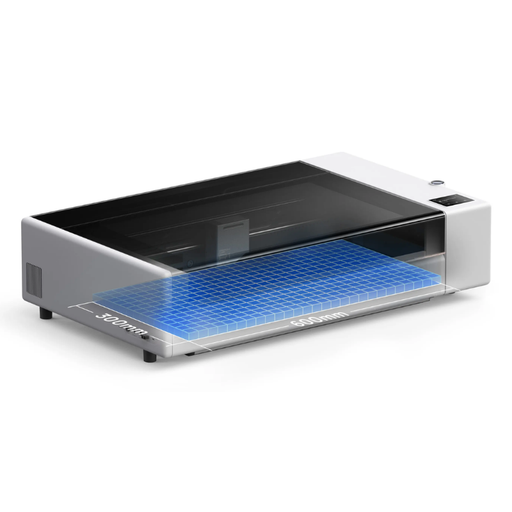

  • Work area: 600 x 300 mm, or up to 600 x 3,000 mm with the conveyor accessory
  • Top speed: 1,000 mm/s
  • Cutting capacity: 20 mm acrylic and 15 mm black walnut plywood with the standard lens, or up to 18 mm walnut with the optional medium- or long-focus lens
  • Accuracy: Positioning within 0.2 mm; motion accuracy under 0.1 mm over 600 mm with the optional Vision Encoder
  • Automation: Automatic laser alignment, autofocus, and automatic material recognition
  • Safety: Fully enclosed Class 1 laser in its standard configuration
  • Software: Bambu Suite for Windows and macOS
  • Connectivity: Dual-band Wi-Fi and USB

Cut and Engrave More Than You'd Expect

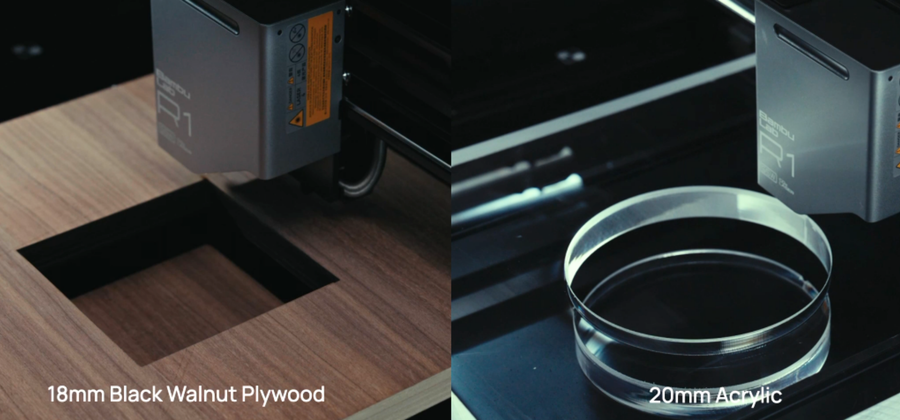

Many desktop lasers can engrave well but have trouble with thick material. The R1's 55W CO2 source handles both. It cuts 20 mm acrylic in a single pass and up to 18 mm black walnut plywood with an optional focus lens, and it's just as comfortable putting detailed engraving on leather, fabric, and paper.

Materials the R1 can work with:

  • Cut and engrave: wood, acrylic (including clear), leather, fabric, paper, EVA foam, shell
  • Engrave only: glass, ceramic, and coated metal (bare metal can't be engraved)

Stock up on sheet goods in our project wood and materials section so the R1 has something to cut the day it arrives.

Setup That Takes Minutes

Traditional CO2 lasers are known for tedious mirror alignment. The R1 does it for you. Auto Laser Alignment uses motorized mirrors to align the beam path in about a minute, a feature Bambu Lab says is exclusive to the R1. That means less time adjusting the machine and more time making things.

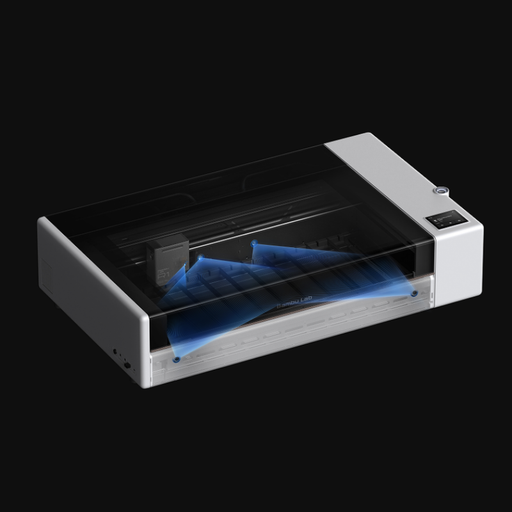

The TriSense System handles positioning. It combines three things:

  • A BirdsEye camera that gives you an overhead view of the whole bed for placing designs
  • A toolhead camera for close-up detail
  • A Pinpoint laser and XY-axis encoders to keep every job exactly where you put it

Together they let you place a design on scrap or an oddly shaped offcut and trust the result. Fully automatic laser ranging handles focus, and the R1 also supports curved surface and cylinder processing.

Cleaner Cuts, More Consistent Engraving

Two features address the most common laser quality problems:

  • Vibration Compensation reduces the ragged edges that can appear when the toolhead changes direction quickly.
  • Speed-Synced Laser Power adjusts laser output as the toolhead speeds up and slows down, so photos and gradients engrave with an even tone from edge to edge.

For production work, that means fewer rejected parts and less wasted material.

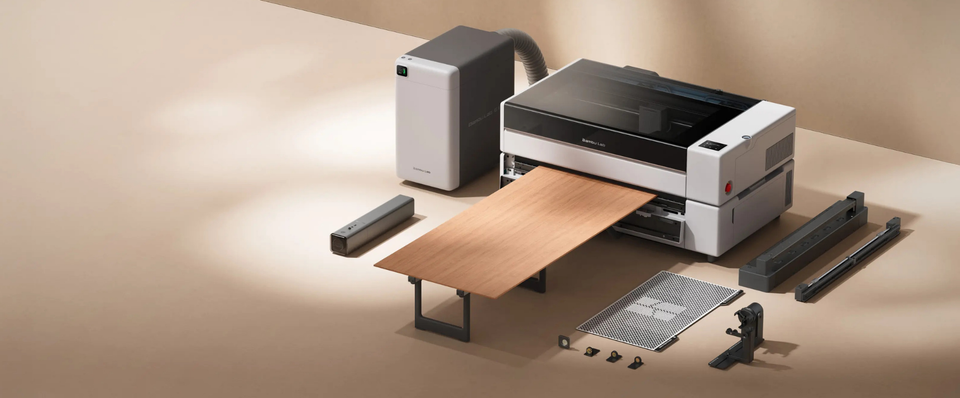

Go Bigger With the Long Material & Rotary Bundles

Most desktop lasers limit you to whatever fits on the bed. With the riser base and conveyor, the R1's working area grows from 600 x 300 mm to 600 x 3,000 mm. That opens up long signs, wall panels, furniture parts, and other large projects most desktop lasers can't handle. Plan for floor space: long stock extends out the front and back of the machine as it feeds through.

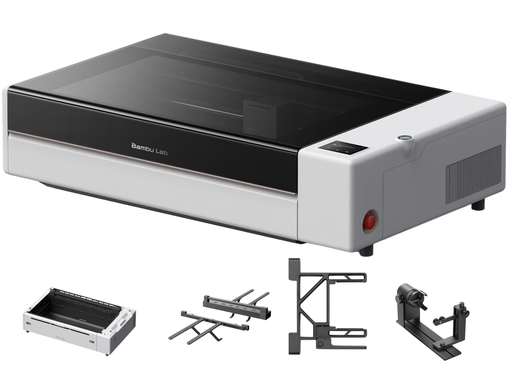

MatterHackers offers the R1 in three configurations:

The Riser Base also adds clearance for taller objects, and it's required for both the Conveyor and the Rotary Attachment.

Important safety note: With the Riser Base or Conveyor installed, the enclosure is no longer fully closed. The R1 then becomes a Class 4 laser that requires CO2 laser-safety eyewear and is intended for professional use by trained operators.

Built for the Shop, the Classroom, and the Spare Room

The R1 is a fully enclosed Class 1 laser, so the beam stays inside the machine during normal operation. It also has a lid-open stop, flame detection, a safety key, and an emergency stop. Crossflow ventilation pulls fresh air in one side and exhausts smoke out the other. It ships with a ventilation hose and fan for venting smoke outdoors.

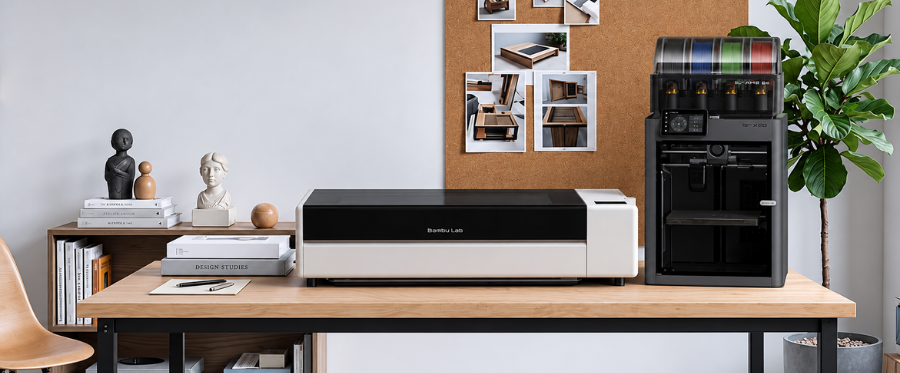

One Ecosystem From Filament to Plywood

The R1 uses the same Bambu Lab account, the same MakerWorld project library, and the Bambu Suite software as the rest of the lineup. Print a part on your Bambu Lab 3D printer, cut a matching acrylic panel or wood enclosure on the R1, and manage both from one place.

Want 3D printing and laser work in a single machine instead? The Bambu Lab H2C 40W Laser Combo combines both. If you need a dedicated laser with a larger bed and more power, the R1 is the better fit.

Who the R1 Is For

  • Small businesses and Etsy sellers producing personalized gifts, signage, and product runs
  • Woodworkers and furniture makers who need precise joinery, inlays, and panels
  • Schools, libraries, and makerspaces that need an enclosed Class 1 laser students can learn on quickly (in the standard, machine-only configuration)
  • Designers and prototypers iterating on packaging, enclosures, and displays
  • Bambu Lab printer owners ready to add a second fabrication process

What's in the Box

  • Bambu Lab R1 laser engraver and cutter
  • Power cord and smoke ventilation kit (hose and fan)
  • Maintenance supplies: anti-freeze, lubricant grease, and lubricant oil
  • Safety key, Allen key, funnel, alignment sensor, material pin, and calibration board
  • Sample materials: clear acrylic sheet and basswood plywood

Why Buy Your R1 From MatterHackers

You can buy a laser from a lot of places. MatterHackers also supports you after the sale.

  • Real people who know lasers. Our team works with laser cutters and engravers every day and can help you choose, set up, and troubleshoot. Contact our support team with questions.
  • Free U.S. shipping. The R1 ships free within the U.S.
  • Extended warranty options. Add 2-year or 3-year coverage when you order.
  • Launchpad setup assistance. Add optional Launchpad assistance when you order.
  • Rewards on every order. Earn MatterHackers rewards back on your R1 purchase.
  • Built for business and education. Buying for a school, company, or government agency? Use the Request Quote button on the R1 page or call us at (800) 613-4290. Explore our training and services or professional services.
  • One partner for your whole shop. From Bambu Lab printers and filament to lasers and materials, MatterHackers can supply your entire digital fabrication setup.

Final Thoughts

The R1 brings Bambu Lab's ease of use to laser cutting. Alignment is automatic, placement is camera-guided, quality features are built in, and it runs on software many makers already use. Whether you're launching a side business, outfitting a classroom, or adding capability to a busy shop, the R1 is one of the easiest ways to start.

Have questions before you buy? Talk to the MatterHackers team. We'll help you decide whether the R1 is right for your work.
