3DMakerPro 3DMakerPro Eagle Scanner

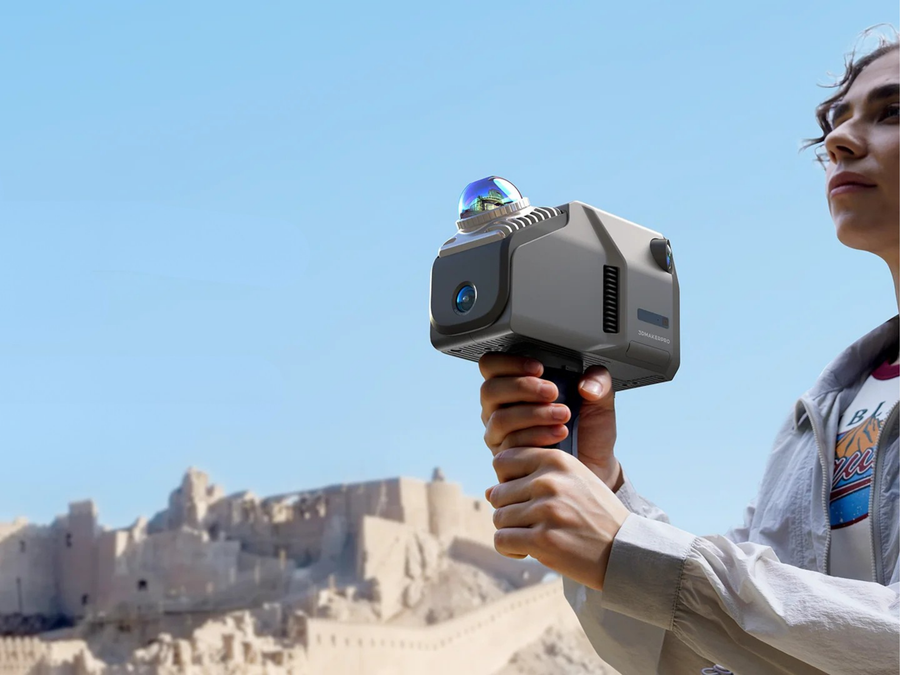

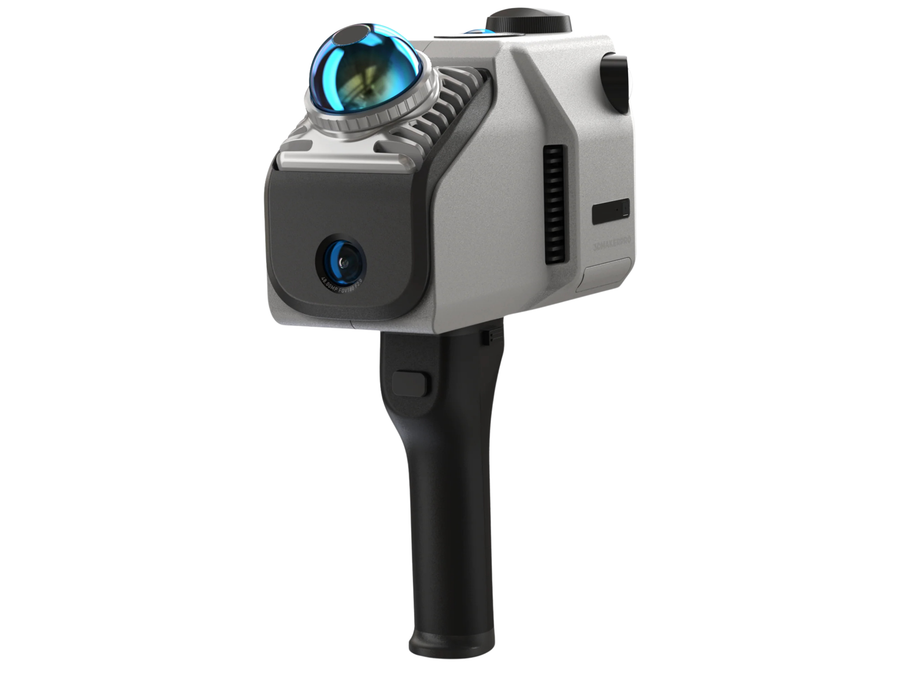

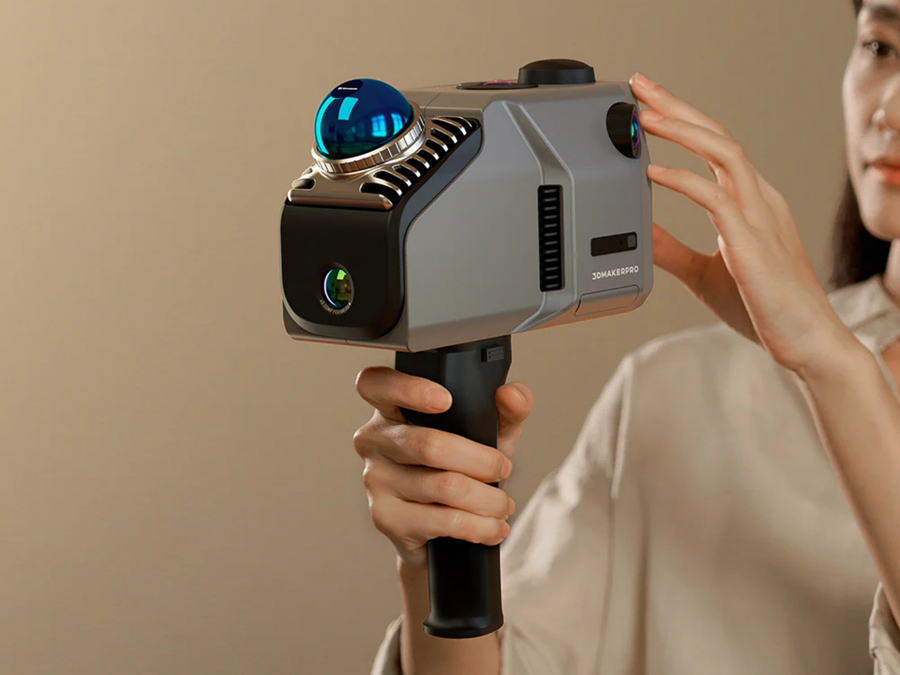

The 3DMakerPro Eagle scanner revolutionizes professional spatial scanning by combining advanced LiDAR technology with 8K ultra-high resolution imaging. With an impressive 140-meter scanning range and 360° field of view, this all-in-one scanner captures entire environments with exceptional detail and 2cm accuracy at 10 meters. Perfect for film production, game development, virtual reality, and professional 3D modeling applications.
- Advanced LiDAR technology with up to 140m scanning range and 2cm accuracy at 10m
- 360° × 59° field of view captures entire rooms with a single rotation
- 8K ultra-imaging with up to four 48MP cameras for sharp, lifelike detail

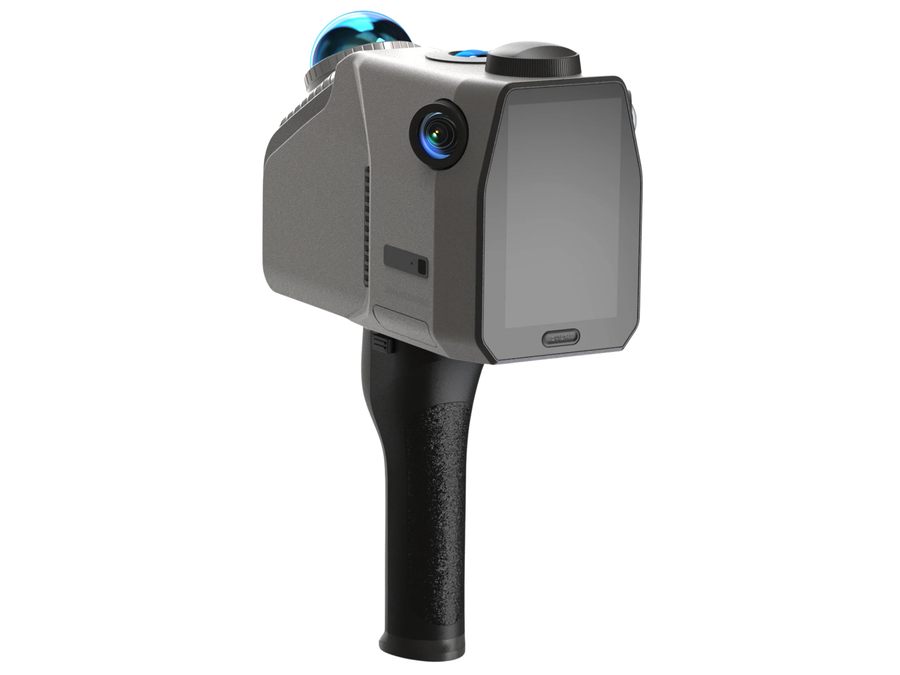

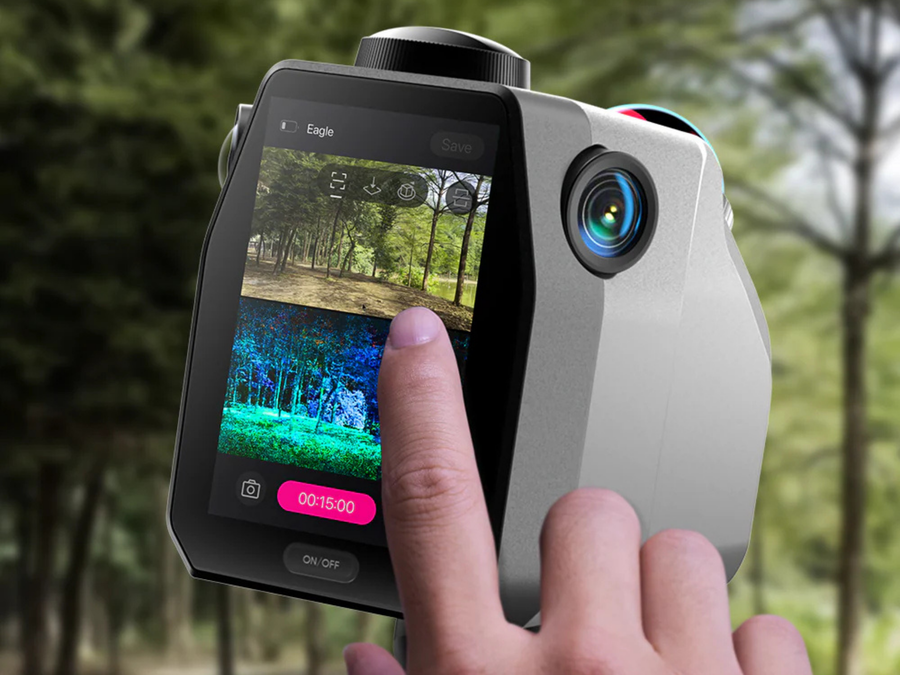

- Built-in 3.5-inch screen with real-time viewing modes for immediate feedback
- All-in-one workflow design - ready to use out of the box with no complex setup
- Professional-grade performance for film production, game development, and VR applications
- Complete environment capture with exceptional spatial accuracy and visual fidelity
3DMakerpro Eagle LiDAR 3D Scanner
Professional-Grade Spatial Scanning
3DMakerPro Eagle LiDAR scanner delivers 140m range scanning with 8K imaging and 360° field of view. Professional spatial scanning for film, gaming, and VR.
Key Features of the 3DMakerpro Eagle LiDAR 3D Scanner:
- Advanced LiDAR technology offers a 140m scanning range and 2cm accuracy at 10m.
- Its 360° × 59° field of view captures entire rooms in one rotation.
- 8K imaging with up to four 48MP cameras delivers sharp detail.
- With a built-in 3.5-inch screen for real-time viewing, this all-in-one device is ideal for film production, game development, VR, and 3D modeling.
- Ready to use out of the box, and comes in Standard (1 camera) and Max (4 cameras) configurations.
Soaring Scanning Success
Experience professional-grade scanning with cutting-edge LiDAR technology that delivers up to 140 meters of scanning range with impressive 2cm accuracy at 10 meters. This advanced system ensures precise spatial measurements for demanding professional applications where accuracy is critical.
- 140m maximum scanning range for large environments.
- 2cm accuracy at 10m distance for precise measurements.
- Professional LiDAR system for reliable spatial data.
Please Note: The accessories depicted above are not included in the Standard or Max version.
Eagle Eyed Environment Capture
Capture entire rooms and environments with a single rotation using the Eagle's 360° × 59° field of view. This comprehensive coverage eliminates the need for multiple scanning positions, dramatically reducing workflow time while ensuring complete spatial documentation.
- 360° × 59° field of view for complete coverage.
- Single rotation captures entire rooms.
- Eliminates multiple scanning positions.
Sharp 8K Ultra-Imaging
Four integrated 48MP cameras deliver stunning 8K ultra-imaging that captures sharp, lifelike visual detail alongside spatial data. This high-resolution imaging system ensures your scanned environments maintain photorealistic quality for professional film, gaming, and VR applications.
- 8K ultra-high resolution imaging capability.
- Up to four 48MP cameras for maximum detail.
- Photorealistic quality for professional applications.
What's Included
- 1 x Eagle LiDAR Scanner
- 1 x Handle
- 1 x PD Power Adapter
- 1 x 1.5M Dual-Ended Type-C Cable
- 1 x TF Card 128G
- 1 x USB-C to USB-A Adaptor
Technical Specifications
| Accuracy | 2cm@10m; 3cm@20m; 5cm@40m |
| Scan Radius | 40–70m (measured at >10% or >80% reflectivity) |
| Scan Range |
80–140m |
| Scan Angle | Horizontal 360°, Vertical 59° |
| Point Cloud Frequency | 200,000 points/second |
| Laser Light Source | 905nm |
| Eye Safety | Class 1 (IEC60825-1:2014) |
| HDR Mode | Supports 3–5 EV |
| Color Texture | Max Edition:4×48MP fisheye cameras;Standard Edition:1×48MP fisheye camera |
| Image Quality Output | 8K Panoramic Color Output |
| Data Interface | USB-Type C ×2 |
| Network Support | Wi-Fi5 |
| Screen | 3.5" |
| Output Formats | 3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ); 3D Panoramic Tour Data (OBJ) |
| Built-in Battery | 12,000mAh (supports 1 hour of work; external power supply supported) |
| Dimensions | 115 × 181 × 106 mm |
| Weight | 1.5 kg |
| Configuration | 8 Cores @ 2.4GHz, 32GB (TF card expansion supported) |
| Recommended Configuration |
|
| Minimum Configuration |
*Note: Gaussian Splatting is only supported on NVIDIA GPUs.
|
