3DMakerPro 3DMakerPro Mole 3D Scanner - Premium Bundle
The 3DMakerPro Mole 3D Scanner delivers professional-grade scanning with exceptional 0.05mm accuracy and fast 10FPS capture speeds. Its advanced markerless technology and optical anti-shake modules ensure complete, detailed models of any object, while NIR compatibility makes it perfect for scanning dark or black surfaces that other scanners struggle with.
- Ultra-high precision scanning with accuracy up to 0.05mm for capturing fine surface details
- Fast 10FPS scanning speed with 200×100mm single capture range for efficient workflow
- Markerless scanning technology eliminates need for reference stickers or markers
- Optical anti-shake modules with visual tracking algorithms for stable, complete models
- Compact ergonomic design with quiet cooling fan for comfortable extended use
3DMakerPro Mole 3D Scanner
High Precision Accuracy
3DMakerPro Mole 3D Scanner delivers 0.05mm accuracy and 10FPS speed. Features markerless scanning, optical stabilization, and NIR compatibility for all objects. Outputs to standard 3D file formats: OBJ, STL, and PLY for immediate use!
Key Features of the 3DMakerPro Mole 3D Scanner:
- High-precision scanning with an accuracy of up to 0.05mm.
- Wide capture range of 200*100mm and fast scanning speed up to 10FPS.
- Compatibility with NIR for clear visibility of black objects.
- Optical anti-shake modules and visual tracking algorithms ensure complete and accurate models with every scan.
- Markerless scanning is enabled by visual tracking technology and AI algorithms.
- Equipped with optical anti-shake modules for smooth and stable scanning.
- Compact and ergonomic design with a quiet internal cooling fan for comfortable and extended operation.
Professional Scanning Precision
Achieve exceptional detail capture with 0.05mm accuracy that rivals industrial scanners. The Mole's high-precision sensors and advanced algorithms ensure every surface detail is captured accurately, making it perfect for reverse engineering, quality control, and detailed modeling projects.
- 0.05mm scanning accuracy for professional results.
- The 200×100mm capture range covers medium-sized objects.
- 10FPS scanning speed for efficient workflows.
Advanced Stability and Compatibility
Built-in optical anti-shake modules and NIR compatibility solve common scanning challenges. The system maintains stability during handheld operation while NIR technology enables clear scanning of black objects that traditional scanners can't capture effectively.
- Optical anti-shake modules for stable handheld scanning.
- NIR compatibility for scanning dark and black objects.
- Ergonomic design with quiet cooling for extended use.

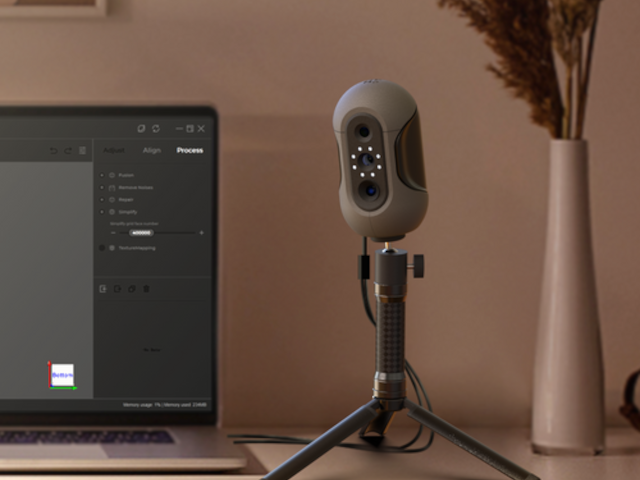

User-Friendly Design
Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly while effectively reducing the temperature, allowing Mole to operate for extended periods of time.

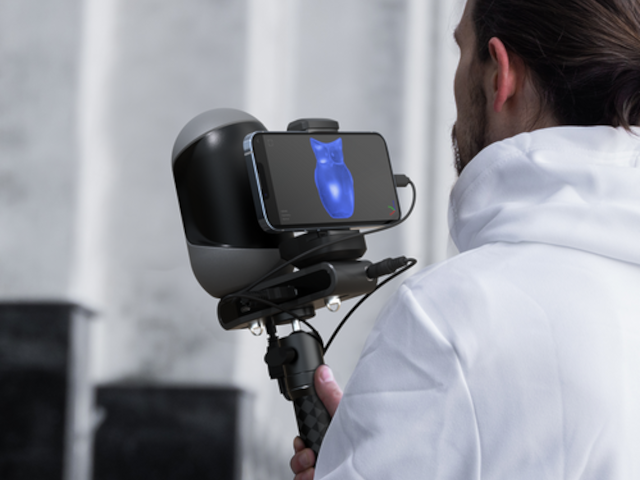

Adding CONNECT transforms MOLE into a portable scanner. 3DMakerpro Connect is designed for portable and stable scanning actions. With zero limitations, enjoy the freedom of scanning anywhere and anytime.
- Powerful graphics chip: 3DMakerpro Connect image processing chip connects Mole to your mobile phone, ensuring high-quality scans even when scanning outdoors.
- Simple and reliable: 3DMakerpro Connect quickly connects Mole, tripod, phone, and power supply, making it ready to go anytime you need it.
Note: Connect requires a power bank with a 12V PD 22.5W type C interface.
Software Features
Android | iOS
JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. When paired with Connect, you can now scan and obtain any 3D model you desire, no matter where you are.
Windows | MacOS
JMStudio, 3Dmakerpro's exclusive software, handles multi-mode data acquisition, high-definition preview, texture mapping, and 3D model generation for scanning equipment. It provides comprehensive support for Windows and MacOS platforms.
Case Studies

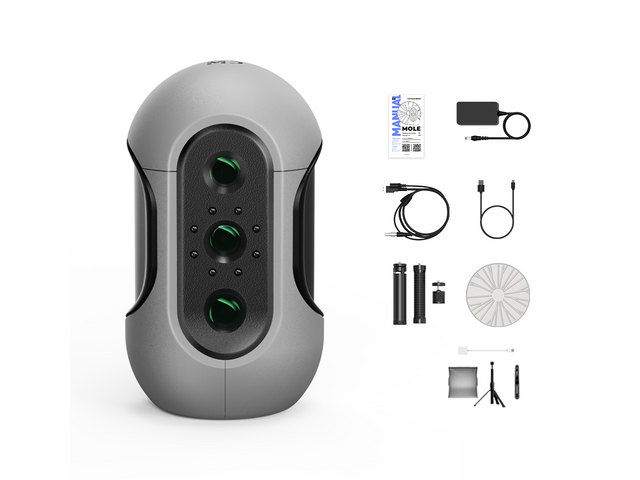

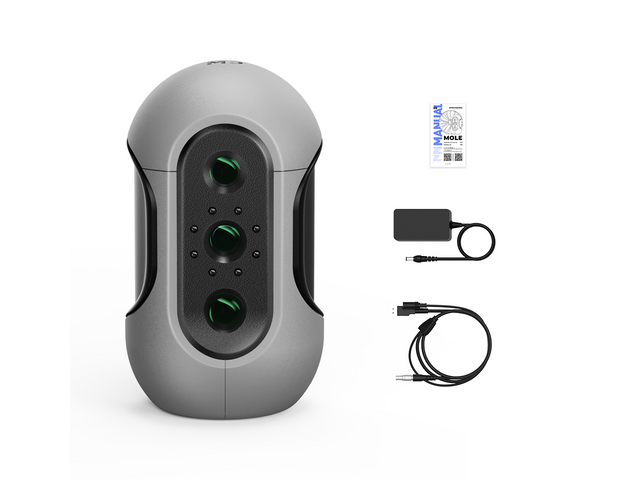

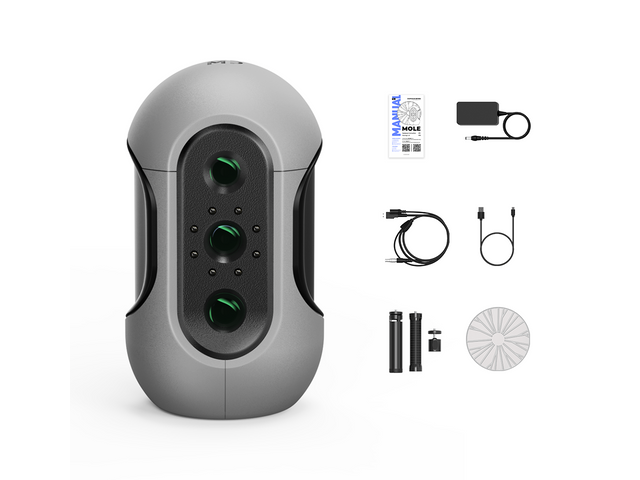

What Comes with the 3DMakerPro Mole Scanner?
|
STANDARD BUNDLE |
PREMIUM BUNDLE |
LUXURY BUNDLE |
|
|
|
3DMakerPro Mole 3D Scanner Technical Specifications
|
Scan Performance Parameters |
|
| Accuracy | 0.05mm |
| Resolution | 0.1mm |
| Frame Rate | 10fps |
| Tracking Mode | Visual Tracking |
| Work Distance | 150-400mm |
| Single Capture Range | 200x100mm |
| Typical Object Sizes | 15-1500mm |
| Software System Requirements | |
| Output Format | OBJ/STL/PLY |
| Compatible System |
|
| Compatible Mobile |
|
| Minimum Computer Requirements | Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM |
| Recommended Computer Requirements | Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM |
| Hardware Parameters | |
| Light Source | NIR |
| Color Texture | Extended Support |
| USB interface | USB2.0 |
| Dimensions | 141x80x80mm |
| Weight | 390g |
