BigRep BigRep ONE.5X 3D Printer
New
The next evolution in large-format 3D printing has arrived. With a massive build volume and robust components, the new BigRep ONE.5X builds on a legacy of strength, precision, and reliability, once again setting the standard for industrial 3D printing.
- Spacious build volume of one cubic meter.
- Automated calibration and adaptive leveling ensure accurate, repeatable results.
- High-speed extrusion for faster, more consistent 3D prints.
- Advanced algorithms improve extrusion accuracy, especially at edges and corners.
| List Price: | $69,800.00 |
|---|---|
| Price: | $69,800.00 Financing starts at: $1284 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Ships via Freight - some fees may apply. |
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Request Quote
loading...
Product No. M-NH2-6N75

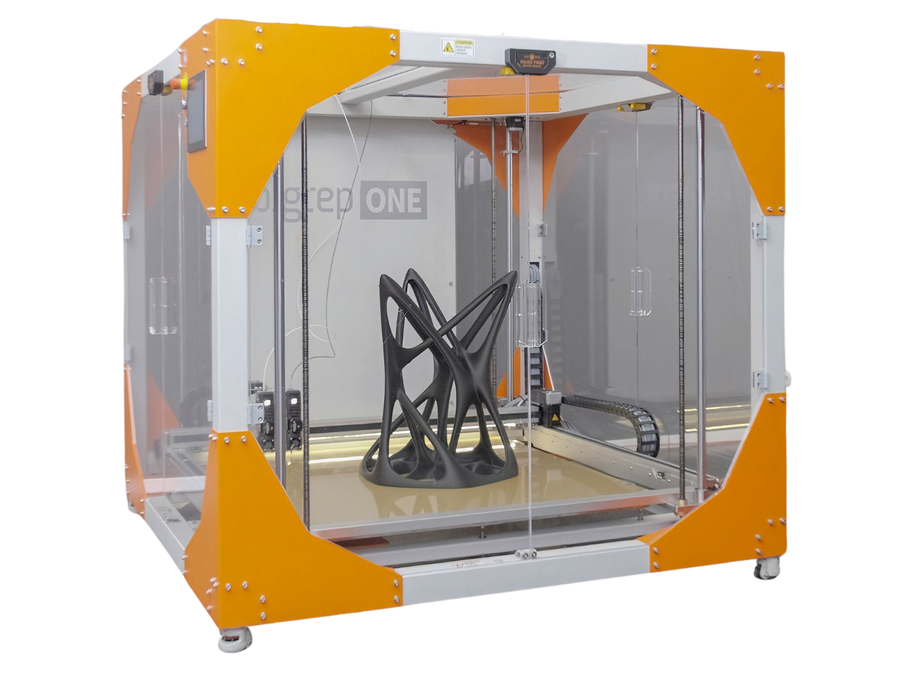

BigRep ONE.5X 3D PRINTER
ACCESSIBLE LARGE FORMAT 3D PRINTING - NOW EVEN SMARTER
The BigRep ONE is an award-winning large-format 3D printer with a 1 m³ build volume, offering reliable, full-scale production at an accessible price. Trusted worldwide, it features dual PEX2 extruders with interchangeable nozzles for both high-detail and high-flow applications.
Key Features of the BigRep ONE.5X 3D Printer:
- Massive Build Volume: 1005mm × 1005mm × 1005mm.
- Automated calibration and adaptive leveling ensure accurate, repeatable results with minimal manual setup.
- The new dual PEX2 extruders deliver speed and reliability with flexible configurations, including Single, Dual, or Twin Mode.
- The new user interface balances maximum ease of use with full control.
- The removable SWITCHPLATE print bed ensures strong adhesion across different materials and easy part removal.
- The Keep-Dry Box protects filament from moisture and dust for optimal material handling.
- Durable diamond nozzles and an advanced hotend deliver fast heating and long-lasting performance.
Workflow Simplified by Large-Format
The BigRep ONE.5X's 1005 x 1005 x 1005 mm build volume is the ideal balanced solution for demanding and geometrically complex applications and large parts in full scale. 3D Print large prototypes, architectural models, and functional parts as single pieces instead of breaking them into smaller segments.
- One-cubic-meter build volume enables full-scale 3D printing.
- Large designs can be printed as a single part.
- Reduces post-processing and assembly time.
- Automated calibration ensures accurate results with minimal setup.
What are the Differences Between BigRep Large-Format 3D Printers?
 |
 |
 |
 |
|---|---|---|---|
| Model | ONE.5X | STUDIO | PRO |
| Ideal Application | Entry into large-format 3D printing for full-scale industrial applications in bio and standard materials | Cost-effectively transition from desktop to large-format industrial 3D printing for those large-scale projects | Powerhouse prototype-to-production 3D printer engineered to produce accurate parts quickly and at lower costs |
| Build Volume (L×W×H) | 1005 × 1005 × 1005mm (39.5" × 39.5" × 39.5") |
1000 × 500 × 500mm (39.4" × 19.7" × 19.7") |
1020 × 970 × 985mm (40" × 38" × 38.5") |
|
Machine Volume (L×W×H) |
1850 × 2250 × 1725mm (72.8" × 88.6" × 67.9") |
1715 × 1170 × 1765mm (67.5" × 46" × 69.5") |
1950 × 2500 × 2105mm (77" × 98" × 70") - w/ tower |
| Printer Weight | 460 kg (1014 lb) |
550 kg (1213 lb) |
2160 kg (4762 lbs) |
| Power | 208 V – 240 V 16 A, 50 / 60 Hz |
208 V – 240 V 16 A, 50 / 60 Hz |
3 Phase 400V AC PE, 16 A, 50 / 60 Hz |
| Extruder |
Power Extruder |
Studio Dual Extruder (SDX) | Advanced Capability Extruder (ACE 2.0) |
| Material Storage | Keep Dry Chamber (Optional) |
Keep Dry Chamber | Keep Dry Chamber |
| Print Speed | 1x | 1x | 1.5×* |
| Out of Filament Sensor | ✔ | ✔ | ✔ |
| MXT® Print Quality | ✔ | ✔ | |
| MXT® Adaptive Bed Leveling | ✔ | ✔ | |
| MXT® XYZ Calibration | ✔ | ✔ | |
| MXT® Dual Extrusion Calibration | ✔ | ✔ | |
| SWITCHPLATE® Flex Bed | ✔ | ✔ | |
| High-Res Nozzle (0.6mm) | ✔ | ✔ | ✔ |
| Versatile Nozzle (1.0mm) | ✔ | ✔ | |
| High Flow Nozzle (2.0mm) | ✔ | ||
| Portal | BigRep Original | BigRep BLADE + BigRep CONNECT Remote Monitoring | BigRep BLADE + BigRep CONNECT Remote Monitoring |
| Achievable Part Accuracy | ±0.3mm or ±0.004mm/mm (whichever is greater)* |
±0.25mm or ±0.003mm/mm (whichever is greater)* |
±0.2mm or ±0.002mm/mm (whichever is greater)* |
MATERIAL COMPATIBILITY
| BIO, STANDARD | |||
| PLA | ✔ | ✔ | ✔ |
| PLX | ✔ | ✔ | ✔ |
| PRO HT | ✔ | ✔ | ✔ |
| HI-TEMP | ✔ | ✔ | ✔ |
| PETG | ✔ | ✔ | ✔ |
| ENGINEERING | |||
| PA6/66 | ✔ | ✔ | |
| ASA | ✔ | ✔ | |
| TPU | ✔ | ✔ | ✔ |
| HI-TEMP CF | ✔ | ✔ | ✔ |
| PA12-CF | ✔ | ||
| SOLUBLE | |||
| BVOH | ✔ | ✔ | ✔ |
* Accuracy depends on part geometry and material used
Technical Specifications
| Materials | |
| Compatible Materials | Open material system, supports third-party filaments |
| Supported Materials | BigRep materials with BLADE slicing profiles: BVOH, HI-TEMP, HI-TEMP CF, PLX, PRO HT, rPETG, rPLA, TPU 98A |
| Key Features | |
|
Build Volume |
X 1005, Y 1005, Z 1005 mm (X 39.5 Y 39.5 Z 39.5 in) |
| Print Bed Temperature | Up to 80 °C (176 °F ) |
| Print Bed Surface | SWITCHPLATE Prime / Classic |
| Dimensions | X 1848, Y 1668, Z 2070 mm (X 72.8, Y 65.7, Z 81.5 in) |
| Weight | Approx. 635 kg (1,400 lbs ) |
| Extrusion System | |
| Extruders | Dual Power Extruder 2 (PEX2) |
| Nozzle Temperature | Up to 280 °C (536 °F ) |
| Nozzle Sizes | 0.6 / 1.0 / 2.0 mm |
| Layer Height | 0.3 / 0.6 / 1.0 mm (Custom heights supported in BLADE) |
| Throughput | Up to 200 g/h |
| Filament Diameter | 2.85 mm |
| Nozzle Type | Dianoz diamond nozzle |
| Automation | ✔ |
| Out-Of-Filament Detection | ✔ |
| Pause and Resume Print | ✔ |
| Relay Mode (Backup Function) | ✔ |
| Adaptive Mesh Bed Leveling | ✔ |
| Automated Calibration | ✔ |
| Auto-Sequential Printing | ✔ |
| Additional Features | |
| Material Storage | Optional Keep-Dry Box |
| Power | 208–240 V, 16 A, 50/60 Hz |
| Certifications | CE compliant (Machinery Directive 2006/42/EC) |
