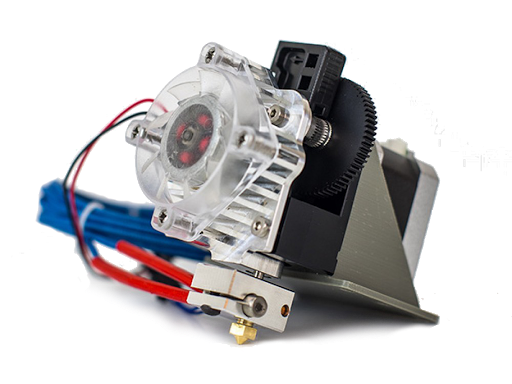

The E3D Titan Aero combines the Titan Extruder and the V6 Hotend into one super-compact package. Available in 1.75 and 3mm, 12v and 24v as well as standard and mirrored varieties perfect for dual extrusion 3D printers. Mount a standard Aero next to a mirrored model for compact and easy to manage dual extruders.
|Order Now:||Ships calculating... Free U.S. Shipping|
Compact & Rigid design
The magic of the Aero is combining the hotend and extruder, producing a very slim profile. Upgrading to a Titan Aero allows for an additional 25mm of vertical (Z-axis) build volume thanks to it's small size. A compact design also makes the Aero extremely rigid and capable of printing faster than other hotends.
Easy to install and maintain
Mounted using the standard NEMA17 pattern, the Titan Aero is ready to be installed in a wide variety of existing 3D printers. Incorporating Titans engineering and proven extrusion system makes Aero a highly reliable and feature rich component. Loading and unloading filament, manual extrusion, adjusting idler tension and clearing debris are effortless with this simple design. The use of Titans 3:1 gearing allows for smaller motors and a lighter weight carriage, improving the long term reliability of your 3D printer as a whole.
All metal hotend built from the E3D V6
Built on the legendary E3D V6 all metal hotend, the Titan Aero reliably prints any filament at temperatures up to and beyond 300°C. With the V6 heatbreak, you can interchange components with any E3D parts. Choose your own temperature sensor, heater cartridge or nozzle, including any Volcano products.
The complete Titan Aero
Ultra responsive, excels with flexible material
The slim profile of the Titan Aero means the shortest possible filament path, making Aero the perfect extruder and hotend combo for printing flexible material. 3D printing flexible filament is challenging because the filament can bend and jam between the extruder and nozzle, a situation all but eliminated due to the tiny space between those two areas on the Titan Aero. This feature extends to standard filament as well, yielding improved responsiveness of the extruder. Start, stop and retract faster and with greater accuracy than any other hotend, providing more accurate, cleaner prints.
The new heat sink minimized filament path, making flexible filament easier to feed
What's in the box?
- Titan Aero Heatsink
- Heatsink Cooling Fan
- V6 Heatbreak
- V6 Heater Block
- v6 Heater Block Silicone Sock
- 30w Heater Cartridge
- V6 0.4mm Nozzle
- Titan Body
- Idler Lever
- 1.75mm Filament Guide
- 2.85mm Filament Guide
- All required assembly hardware and electronics
Includes all the necessary assembly tools
