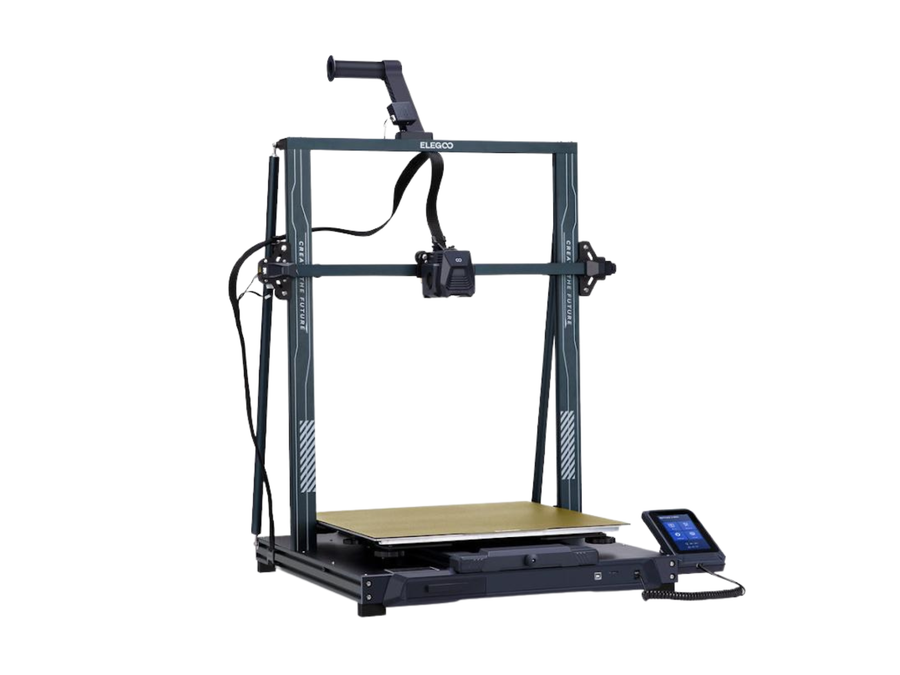

Elegoo Elegoo Neptune 4 Max 3D Printer

The Elegoo Neptune 4 Max 3D Printer offer a maximum print speed of up to 500mm/s with pre-installed Klipper firmware. These models also include a 121-point auto bed leveling system, gantry LED light strip, filament sensor, and more. The Neptune 4 Pro features an intelligent segmented heatbed and all-metal guide rails.

  • Fast print speed up to 500mm/s
  • Print Volume of 420 x 420 x 480mm3
  • Max print temperature of 300C
  • 121-Point Auto Bed Leveling
  • Pre-installed Klipper firmware
Neptune 4 Printers
List Price: $478.00
Price: $439.99
Price: $...
Order Now: Ships calculating... MatterHackers Shipping Truck Free U.S. Shipping
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Qty
loading...
Available Add-ons (4)
Price: $20.87 $19.32 View Addon »
Price: $21.98 View Addon »
Price: $26.99 View Addon »
Price: $79.31 View Addon »
Show More Addons
Product No. M-A70-8MT0

ELEGOO NEPTUNE 4 MAX

EQUIPPED WITH KLIPPER

The Elegoo Neptune 4 Maxcranks up print speed and efficiency with pre-installed Klipper firmware on the 3D printer, allowing users to reach fast maximum print speeds of up to 500mm/s.

Key Features of the Elegoo Neptune 4 Max 3D Printer:

  • Max Print Speed: Up to 500mm/h
    • Recommended Print Speed: Up to 250mm/h
  • Max Hotend Temperature: 300°C
  • Pre-installed with Klipper firmware
  • 121-Point Auto Bed Leveling
  • Gantry LED light strip
  • Overheat protection switch
  • Neptune Max features the following:
    • Intelligent segmented heatbed
    • All-metal guide rails
  • Three Options of Print Volume:
    • Neptune 4 and Neptune 4 Pro: 225×225×265mm3 (8.8×8.8×10.4in3)
    • Neptune 4 Plus: 320 x 320 x 385mm (12.6 x 12.6 x 3.4in3)
    • Neptune Max 420mm x 420mm x 480mm3 (16.5×16.5×18.9in3)


FAST PRINTING WITH KLIPPER

The Elegoo Neptune 4 Max 3D printer , featuring a Klipper motherboard and ARM 64-bit processor, offers lightning-fast printing speeds up to 500mm/s and improved print quality via input shaping and pressure advance.

  • Klipper firmware pre-installed
  • Max Print Speed: 500mm/s
    • Recommended: 250mm/s
  • Supports input shaping and pressure advance
Quickly print your models on the Elegoo Neptune 4 and Elegoo Neptune 4 Pro 3D printer which have Klipper firmware pre-installed

The Elegoo Neptune 4 and Elegoo Neptune 4 Pro 3D printers come with a direct drive extrusion setup that can handle materials up to 300C and includes a 4x4020 cooling fan for excellent heat dissipitation

UPGRADED EXTRUSION SETUP

The Elegoo Neptune 4 Max maintains excellent print quality and heat dissipation, and smooth filament extrusion for a variety of materials, even at high speeds, by utilizing a lightweight dual-gear direct extruder, extended hotend, and multiple cooling fans.

  • Lightweight Direct Drive Extruder
  • Max Hotend Temp: 300°C
  • Rapid omnidirectional cooling via:
    • Side: 2 x 4015 fans
    • Back: 4 x 4020 fans

SMART SEGMENTED HEATED BED

The Elegoo Neptune 4 Max offers an efficient and safe printing experience with a segmented heated bed that has overheat protection and customizable temperature control for different model sizes.

  • Smart segmented heated bed adds efficiency and saves energy
  • Overheat protection switch reduces chances of heated bed damage or fire
  • Customize heated bed settings based on model size
    • 100W bed for models < 120x120mm2
    • 250W bed for models >120x120mm2
The Elegoo Neptune 4 Pro 3D printer has a smart segmented heated bed that can manually be adjusted to heat only a small portion of the bed for models less than 120x120 in size

The Elegoo Neptune 4 and Elegoo Neptune 4 Pro 3D printers still bring quiet, precision, and stability, even at high speeds

QUIET, STABLE PRECISION

Experience quiet and precise 3D printing on the Elegoo Neptune Max with its silent drivers, smooth POM V-guide wheels, and a dual lead screw design for enhanced accuracy and stability.

  • Frame: CNC-machine Aluminum
  • Operation Noise: Below 50db
  • Z-Axis: Dual lead screw + dual motor
  • Neptune 4 Pro: All-metal guide rails

ENJOYABLE PRINTING EXPERIENCE

Printing is a pleasant experience with the Elegoo Neptune 4 series which offers a variety of practical features that add convenience and efficiency to your workflow.

  • Power Loss Recovery
  • Filament Sensor
  • Gantry LED light strip
  • Removable touchscreen
  • Magnetic Bed
The Elegoo Neptune 4 and Elegoo Neptune 4 Pro 3D printers offer a pleasant 3D printing experience with a variety of convenient features

What are the Differences Between the Elegoo Neptune 4 series?

Elegoo Neptune 4 3D Printer Elegoo Neptune 4 Pro 3D Printer Elegoo Neptune 4 Plus 3D Printer Elegoo Neptune 4 Max 3D Printer
Model Neptune 4 Neptune 4 Pro Neptune 4 Plus Neptune 4 Max
Price $259 $279 $350 $470
Print Volume
(L × W × H)
225 × 225 × 265mm3
(8.85 × 8.85 × 10.43in3
225 × 225 × 265mm3
(8.85 × 8.85 × 10.43in3)
320 × 320 × 385mm3
(12.6 × 12.6 × 15.16in3)
420 × 420 × 480mm3
(16.54 × 16.54 × 18.9in3)
Intelligent Segmented Heatbed
Overheat Protection Switch
All-Metal Guide Rails

What are the Technical Specifications of the Elegoo Neptune 4 and Neptune 4 Pro 3D Printer?

Neptune 4 Neptune 4 Pro Neptune 4 Plus Neptune 4 Max
GENERAL
Technology FDM FDM FDM FDM
Assembly Fully-Assembled Fully-Assembled Fully-Assembled Fully-Assembled
Machine Volume
(L × W × H)
475 × 445 × 515mm3
(18.7 × 17.5 × 20.3in3
475 × 445 × 515mm3
(18.7 × 17.5 × 20.3in3
533 × 517 × 638mm3
(21 × 20.4 × 25.1in3
658 × 632 × 740mm3
(25.9 × 24.9 × 29.1in3
Made in China China China China
PRINTING PARAMETERS
Print Volume
(L × W × H)
225 × 225 × 265mm3
(8.85 × 8.85 × 10.43in3
225 × 225 × 265mm3
(8.85 × 8.85 × 10.43in3)
320 × 320 × 385mm3
(12.6 × 12.6 × 15.16in3)
420 × 420 × 480mm3
(16.54 × 16.54 × 18.9in3)
Filament Diameter 1.75mm 1.75mm 1.75mm 1.75mm
Nozzle Diameter 0.4mm 0.4mm 0.4mm 0.4mm
# of Extrusions Single Single Single Single
Extruder Dual Gear Direct Drive Dual Gear Direct Drive Dual Gear Direct Drive Dual Gear Direct Drive
Max Nozzle Temperature 300°C 300°C 300°C 300°C
Max Bed Temperature 110°C 110°C 110°C 110°C
Max Print Speed 500mm/s 500mm/s 500mm/s 500mm/s
Recommended Print Speed 250mm/s 250mm/s 250mm/s 250mm/s
Min Print Speed 30mm/s 30mm/s 30mm/s 30mm/s
ADDITIONAL FEATURES
Frame CNC-machine Aluminum CNC-machine Aluminum CNC-machine Aluminum CNC-machine Aluminum
All-Metal Guide Rails
Overheat Protection Switch
Intelligent Segmented Heated Bed
Build Surface PEI (textured) Plate PEI (textured) Plate PEI (textured) Plate PEI (textured) Plate
Magnetic Bed
Auto Bed Leveling
Auxiliary (Manual) Leveling
Pre-installed Klipper
Filament Sensor
Power Loss Recovery
Gantry LED Light Strip
Nozzle LED Light
Removable Touch Screen
COMMUNICATION
Display 4.3" Touch Screen 4.3" Touch Screen 4.3" Touch Screen 4.3" Touch Screen
UI Language English, French, German, Russian,
Italian, Spanish, Japanese, Chinese
English, French, German, Russian,
Italian, Spanish, Japanese, Chinese
English, French, German, Russian,
Italian, Spanish, Japanese, Chinese
English, French, German, Russian,
Italian, Spanish, Japanese, Chinese
Connectivity USB, WLAN USB, WLAN USB, WLAN USB, WLAN
File Transfer TF Card, Online Printing TF Card, Online Printing TF Card, Online Printing TF Card, Online Printing
SOFTWARE
Compatible Slicers Creality Slicer, Cura,
Repetier-Host, Simplify3D
Creality Slicer, Cura,
Repetier-Host, Simplify3D
Creality Slicer, Cura,
Repetier-Host, Simplify3D
Creality Slicer, Cura,
Repetier-Host, Simplify3D
Supported File Format(s) STL, OBJ, AMF STL, OBJ, AMF STL, OBJ, AMF STL, OBJ, AMF
POWER
Input 100 - 240V 50/60Hz 100 - 240V 50/60Hz 100 - 240V 50/60Hz 100 - 240V 50/60Hz
WARRANTY
Warranty Period 1 Year 1 Year 1 Year 1 Year
