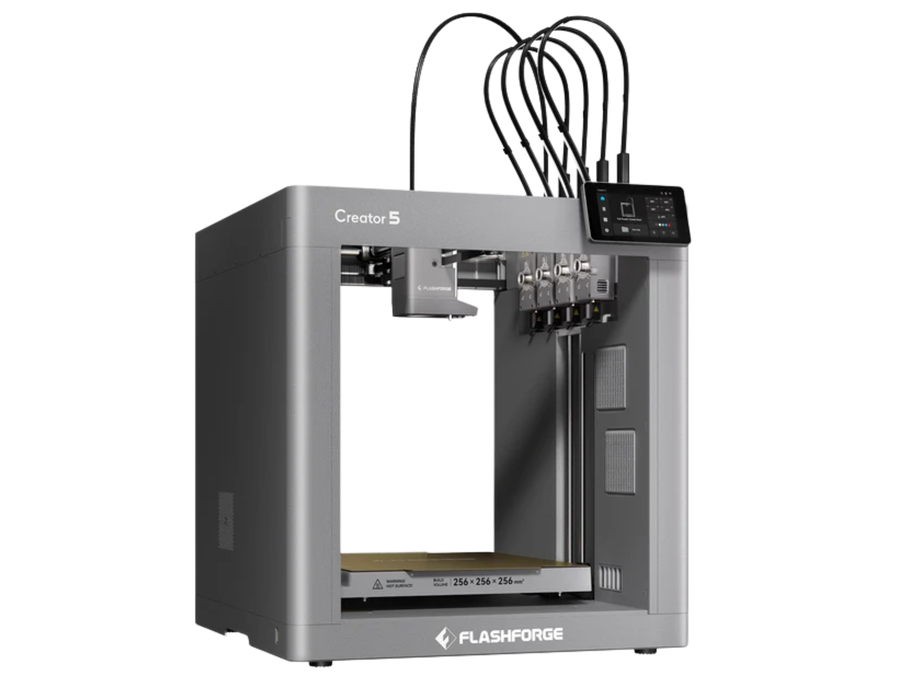

Flashforge Flashforge Creator 5 Pro 4-Toolheads Multi-Color 3D Printer
The Flashforge Creator 5 revolutionizes 3D printing with its innovative 4-toolhead design, enabling true multi-color and multi-material printing without waste. With speeds up to 600mm/s and fully automatic calibration, this printer delivers professional-grade results 500% faster than traditional methods.
- 4 independent toolheads for simultaneous multi-color and multi-material printing
- Zero purge waste technology eliminates material waste during color changes
- Ultra-fast 600mm/s printing speed for 500% faster production
- Fully automatic calibration system for consistently perfect first layers
- True multi-material capability supports various filament types simultaneously
- Professional-grade precision with simplified operation
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".
Flashforge Creator 5 4-Toolheads Multi-Color 3D Printer
Zero Purge Waste
Experience 500% faster printing with zero waste and multi-color capabilities. Flashforge Creator 5 multi-color 3D printer features 4 independent toolheads for 600mm/s printing speed with zero purge waste and automatic calibration.
Key Features of the Flashforge Creator 5 4-Toolheads Multi-Color 3D Printer:
- Multi-color 3D printing up to 500% faster with speeds up to 600mm/s and an acceleration up to 30,000mm/s².

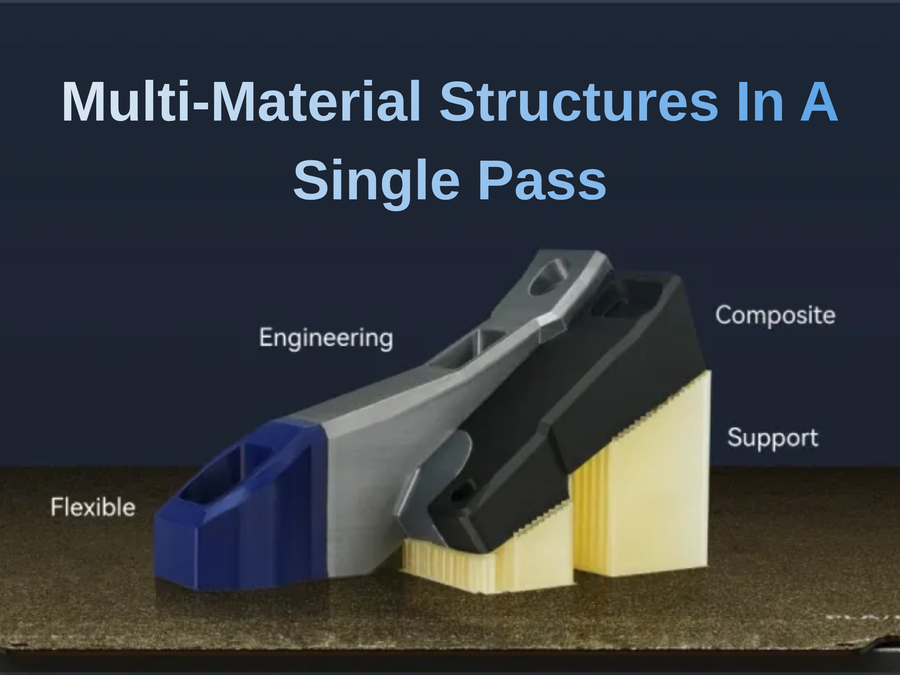

- Zero purge waste during material switching, resulting in multi-material structures in a single pass.
- 4 fully automatic multi-tool heads with offset calibration.
- The fully enclosed design provides safe, quiet, and stable 3D printing controls fumes and reduces noise from 65dB to 55dB.
- Rapidly heats to 65°C with precise control, ensuring perfect dimensional accuracy.
- Continuous airflow is perfect for PLA, TPU, PETG & PLA-CF.

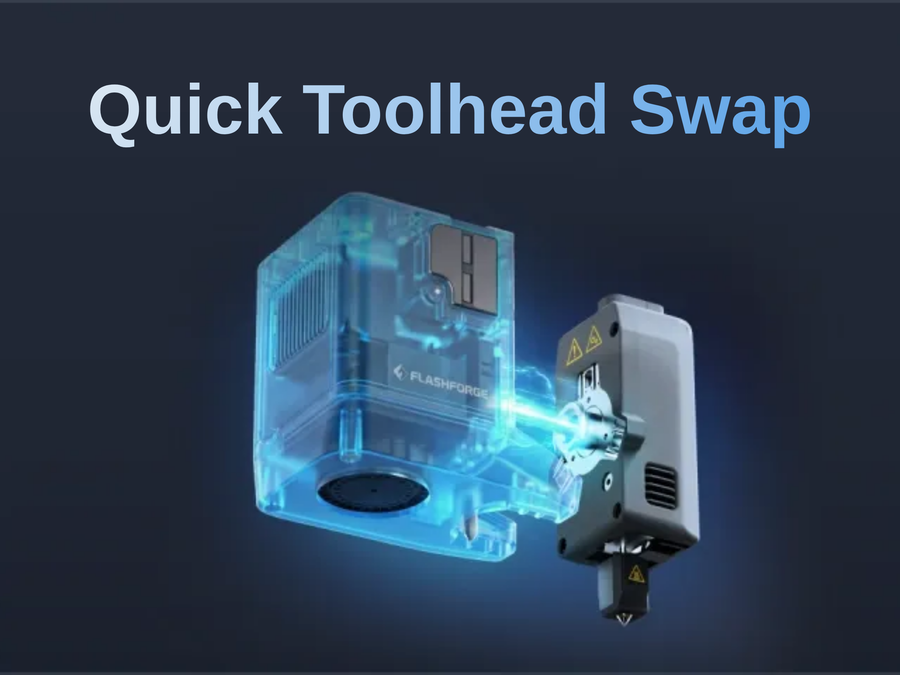

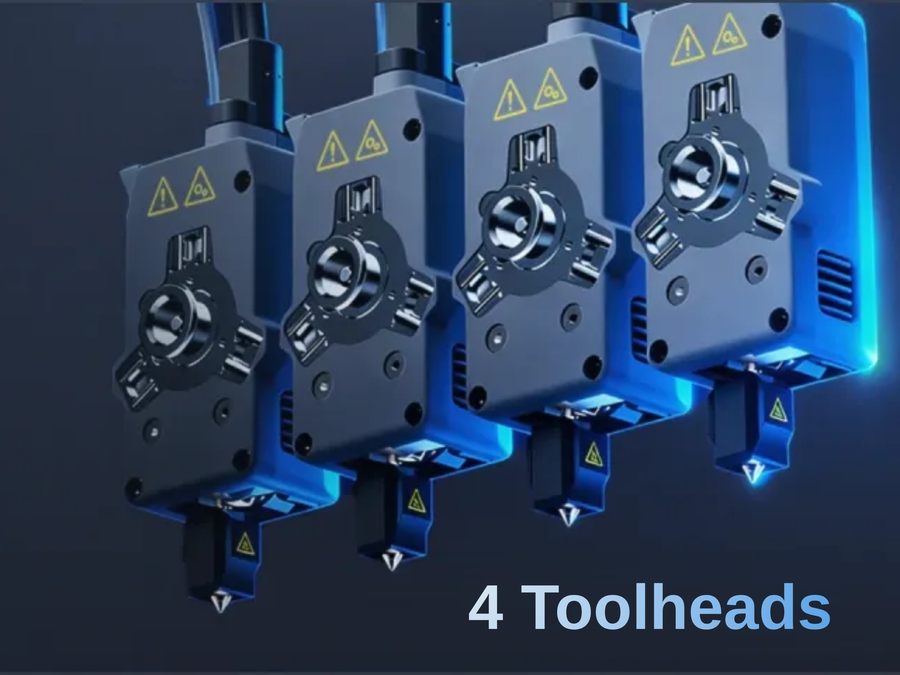

Revolutionary 4-Toolhead System
Four independent toolheads work together to enable true multi-color and multi-material 3D printing. Each toolhead operates independently, allowing for complex geometries and color combinations that were previously impossible. This breakthrough design eliminates the need for support material removal in many multi-color applications.
- Independent toolhead operation for complex 3D prints.
- Simultaneous multi-material compatibility reduces the total 3D print time.
- Reduced post-processing requirements.
Zero Waste Printing Technology
The innovative design of the Creator 5 eliminates purge waste. This not only saves money on materials but also reduces the environmental impact caused by filament purge. All while maintaining perfect color separation and 3D print quality.
- Complete elimination of purge tower waste.
- Significant savings on filament usage.
- An environmentally conscious 3D printing solution.
Ultra-High Speed Performance
With 3D printing speeds up to 600mm/s, the Creator 5 delivers results 500% faster than conventional 3D printers without sacrificing quality. The automatic calibration system ensures every 3D print starts perfectly, while the advanced motion system maintains precision at high speeds.
- 600mm/s maximum 3D printing speeds.
- Features a fully automatic calibration system.
- Consistent quality at high speeds.
Go Pro and Upgrade

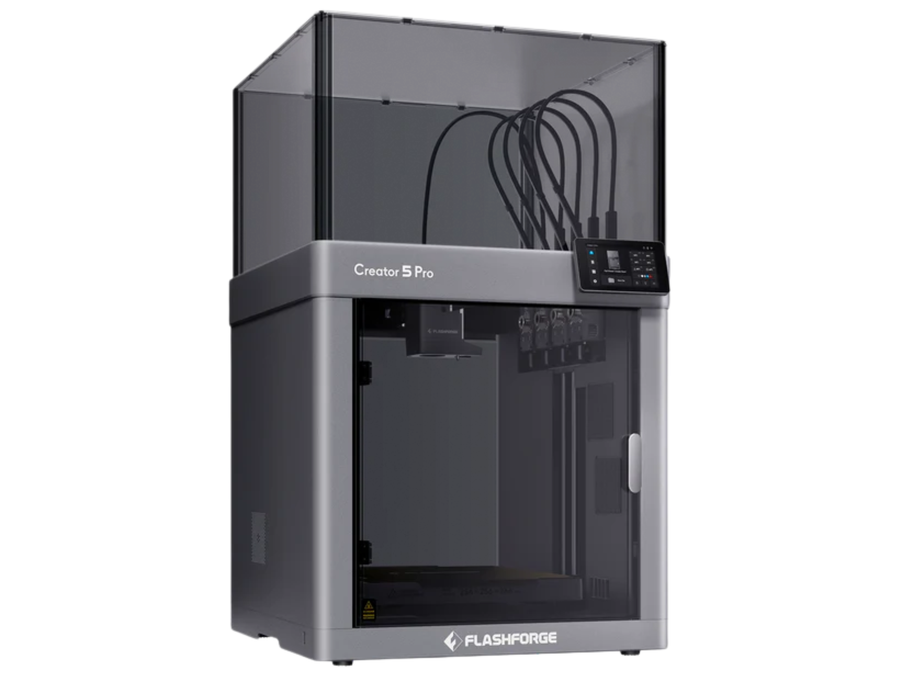

Professional Enclosed Environment
The fully enclosed heated chamber for the Flashforge Creator 5 Pro maintains optimal 3D printing conditions at 65°C while the integrated HEPA filtration system ensures clean operation. This professional-grade environment delivers consistent results and makes the 3D printer suitable for office and educational environments.
- 65°C heated chamber for stability.
- HEPA filtration for clean air.
- Office-friendly enclosed design.
Printer Only vs. Printer Pro Comparison
 |
 |
|
| Flashforge Creator 5 | Flashforge Creator 5 Pro | |
|
500% Faster Multi-Color 3D Printing |
Yes | Yes |
| Zero Purge Waste | Yes | Yes |
|
High-Speed Performance (600 mm/s) |
Yes | Yes |
|
Fully Automatic Calibration & Leveling |
Yes | Yes |
|
Flawless 3D Print Quality with Smart Compensation |
Yes | Yes |
|
Multi-Material Capability in One 3D Print |
Yes | Yes |
|
Fully Enclosed, Rigid Frame for Maximum Stability |
No | Yes |
|
Active Heated Chamber up to 65°C |
No | Yes |
|
Advanced Air Filtration with HEPA & Carbon |
No | Yes |
|
Continuous Airflow System for Stable 3D Printing |
No | Yes |
What's in the Box

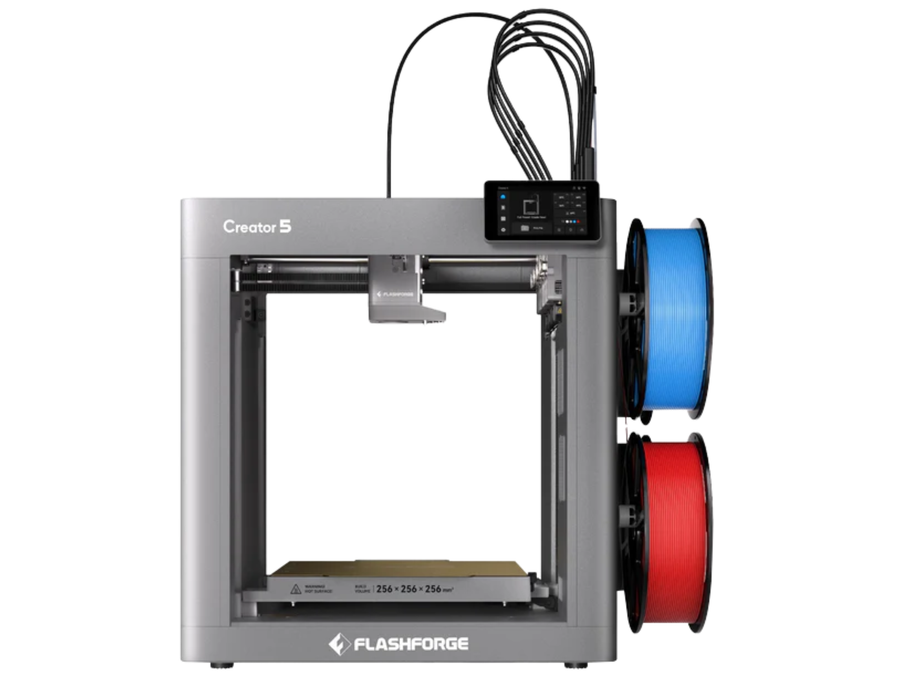

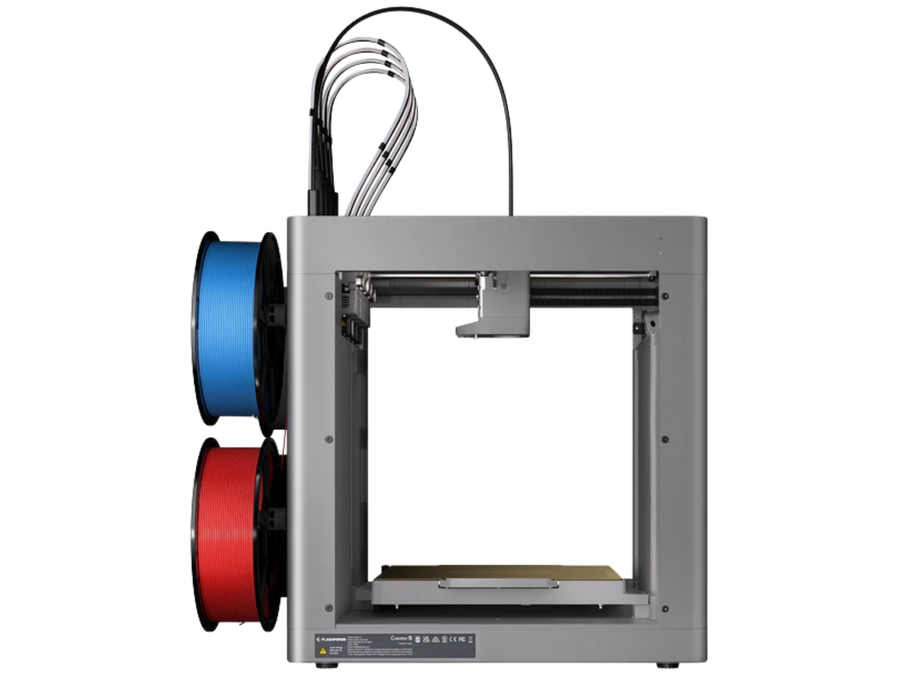

Creator 5
The Creator 5 3D printer includes the following:
 |
Creator 5 |  |
Filament - 10g (4) |
 |
Buildplate |  |
Powercord |
 |

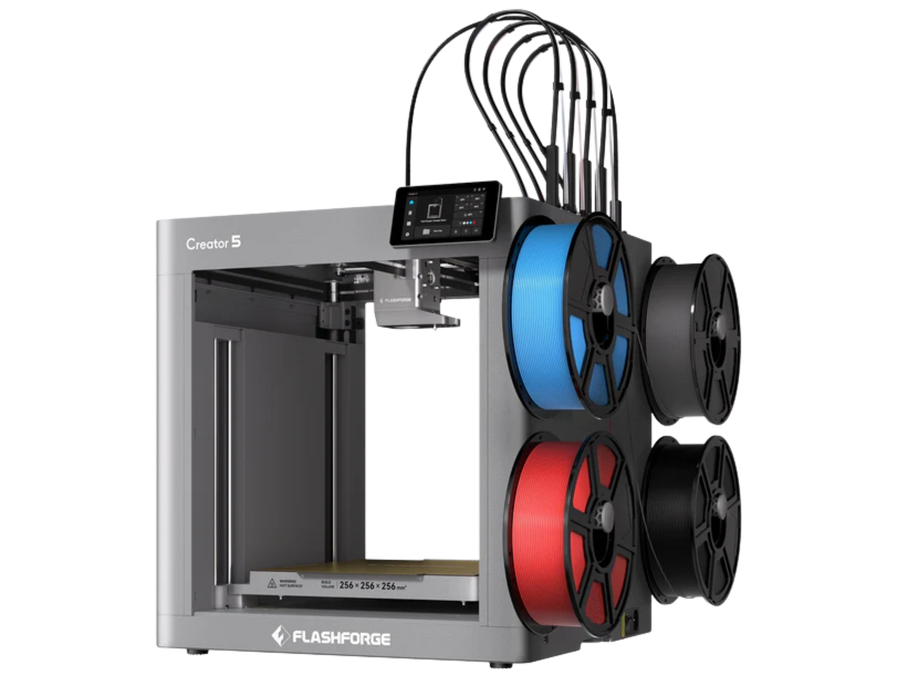

Spool Holder |  |
Display Screen |
 |
Nozzle Blocker (4) |  |
Extruder Dock Module |
 |
Allen Wrench |  |
Grease |
 |
M3 x 14 (4) M3 x 6 (2) |
 |
ST 2.9 x 9.5 (2) |
 |
M3 x 6 (2) |  |
Quick Start Guide |

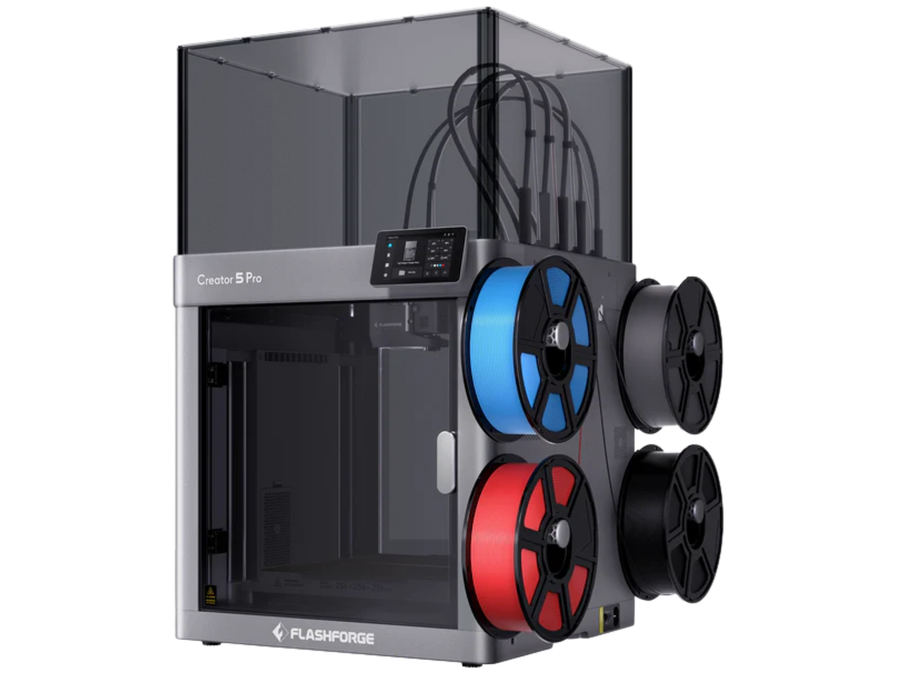

Creator 5 Pro
In addition to the aforementioned items, excluding the Creator 5, the Creator 5 Pro 3D printer also includes the following:
 |
Creator 5 Pro (replaces the Creator 5) |  |
Top Cover Lid |
 |
Top Cover Pillar (4) |  |
Top Cover Front & Rear Panels |
 |
Top Cover Left & Right Panels | ||
Technical Specification
| Extruder Quantity | 4 Independent Toolheads |

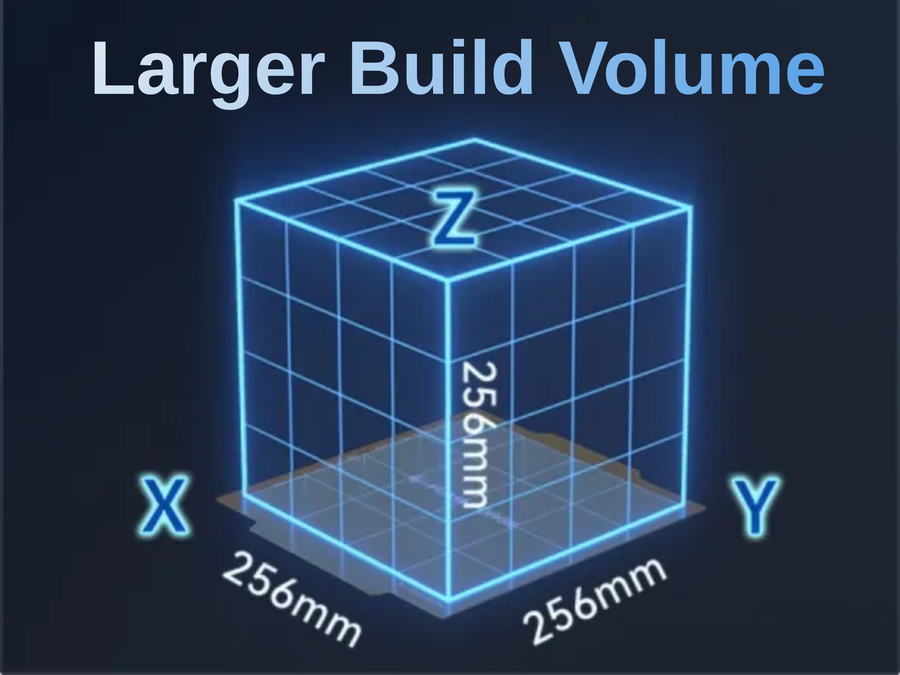

| Build Volume | 256 × 256 × 256 mm |
| Layer Thickness | 0.1 – 0.4 mm |
| Maximum Flow Rate | 32 mm³/s |
| Nozzle Diameter | 0.4 mm (Standard) 0.25 mm / 0.6 mm / 0.8 mm |
| Display |
|
| Recommended Filaments | PLA, PETG, TPU (90-95A/64D), PLA-CF, PETG-CF, PET, SILK, PVA, BVOH, S-Multi, S-PATH |
| Supported Filaments with Enclosure | ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF(GF), ABS-CF(GF), PPA-CF(GF), PC, PA, PC-ABS, PPS-CF |
| Travel Speed | Max. 600 mm/s |
| Print Speed | Max. 300 mm/s |
| Acceleration |
Max. 30,000 mm/s² |
| Connectivity | USB / WiFi |
| Compatible Slicing Software | Orca-Flashforge, OrcaSlicer |
| Printer Size |
Printer Only:
Pro Only:
|
| Input |
Printer Only Input:
Pro Printer Only Input:
|
| Max Bed Temp |
Max. 120 °C |
| Build Plate |

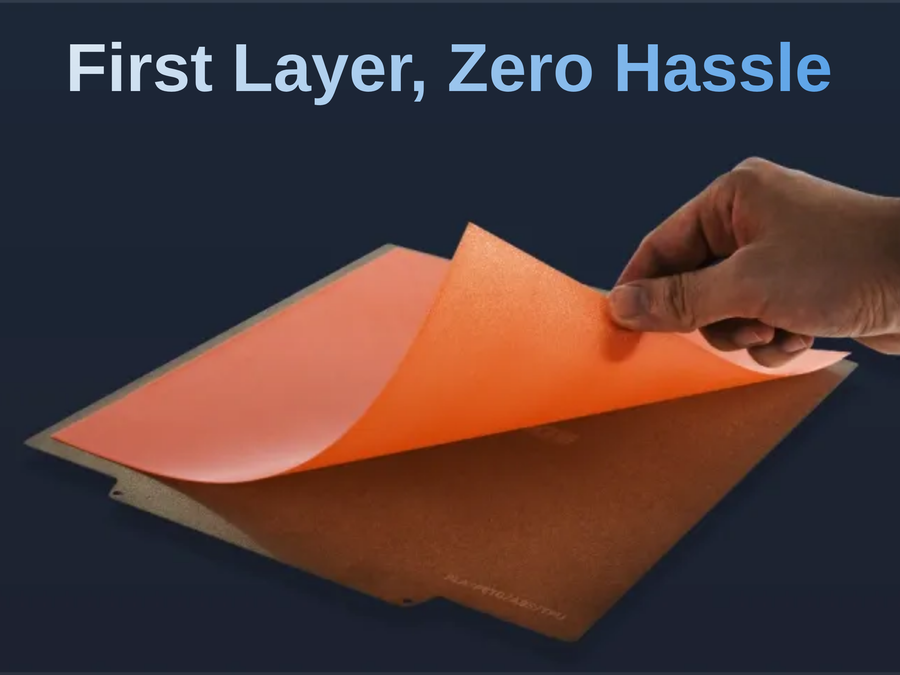

PEI Flexible Steel Build Plate (Textured) |
| Auto Leveling |
Yes (Automatic) |
| Max Extruder Temp |
320 °C |
| Removable Nozzle | Yes |
| Dynamic Flow Calibration | Yes (Auto PA Calibration) |
| Filament Detection | Yes (Run-out Sensor) |
| Power Outage Recovery | Yes |
| Chamber Lighting | Yes |
| Remote Monitoring | Yes (Built-in Full HD Camera, 1920 × 1080 @ 30 fps) |
|
Multi-Printer Management
|
Yes |
| WiFi | 2.4 GHz / 5 GHz Wi-Fi |
| One-Touch Power On/Off | Yes |
| Weight |
Printer Only:
Printer Pro
|
| Structure |
|
| Active Chamber Heating (Pro Only) | Supported (Max 65 °C) |
| Air Filtration (Pro Only) | HEPA13 Filter + Activated Carbon |
| Door Detection (Pro Only) | Supported (Front Door & Top Cover) |
| Auxiliary Cooling (Pro Only) | Supported (Auxiliary Cooling Fan) |
