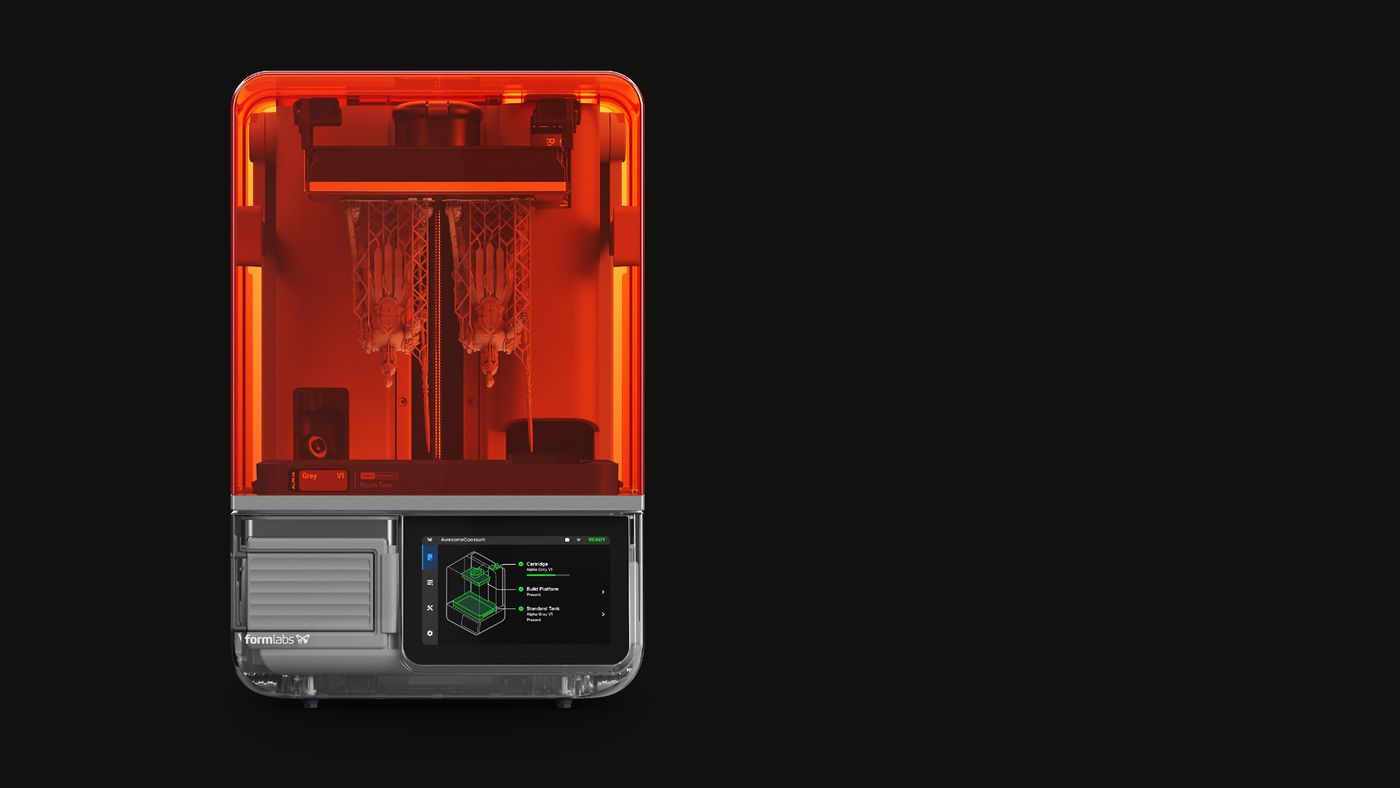

Form Studio1
Pro Resin Printing for Anyone
Starting at$699
Learn to print in10 minutes
Most prints finish in under two hours. Engineered for speed.
A custom lens array and 28 LEDs deliver a uniform, highly collimated 6 mW/cm² light field that cures resin quickly and evenly. Release Texture V2 and a flexible film tank reduce peel forces for faster printing without compromising surface finish or fine detail.
print speed
-
40 mm/hrAverage speed
- 28 LEDsCustom lens array
- 6 mW/cm²Uniform light field
- 75,000Layers per resin tank
Average speed at 100 µm layer height. Tank lifetime with Formlabs materials.
Razor-sharp details, smooth surfaces, and parts that fit together as designed.
-
Subpixel detail
35 µm pixels and finely tuned anti-aliasing capture subpixel detail.
-
Smooth, clean surfaces
Lower peel forces and light-touch supports leave smooth, clean surfaces.
-
±0.15% XY tolerance
Every material setting is calibrated for dimensional accuracy, so assemblies fit together as designed.
Alpha Resins. Next-generation general purpose resins for stunning, precise parts.
Open: print with any resin
Start with validated Formlabs resins for reliable results out of the box, or branch out to third-party resins with no license fee.

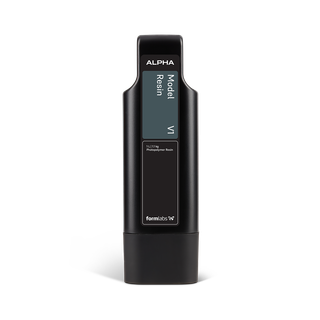

Alpha Model ResinA deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully.

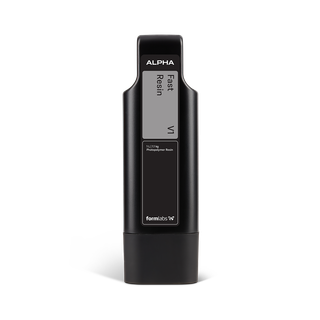

Alpha Fast ResinPrototype and iterate faster with print speeds up to 130 mm/hr, for components in minutes or entire build volumes in less than 2 hours.

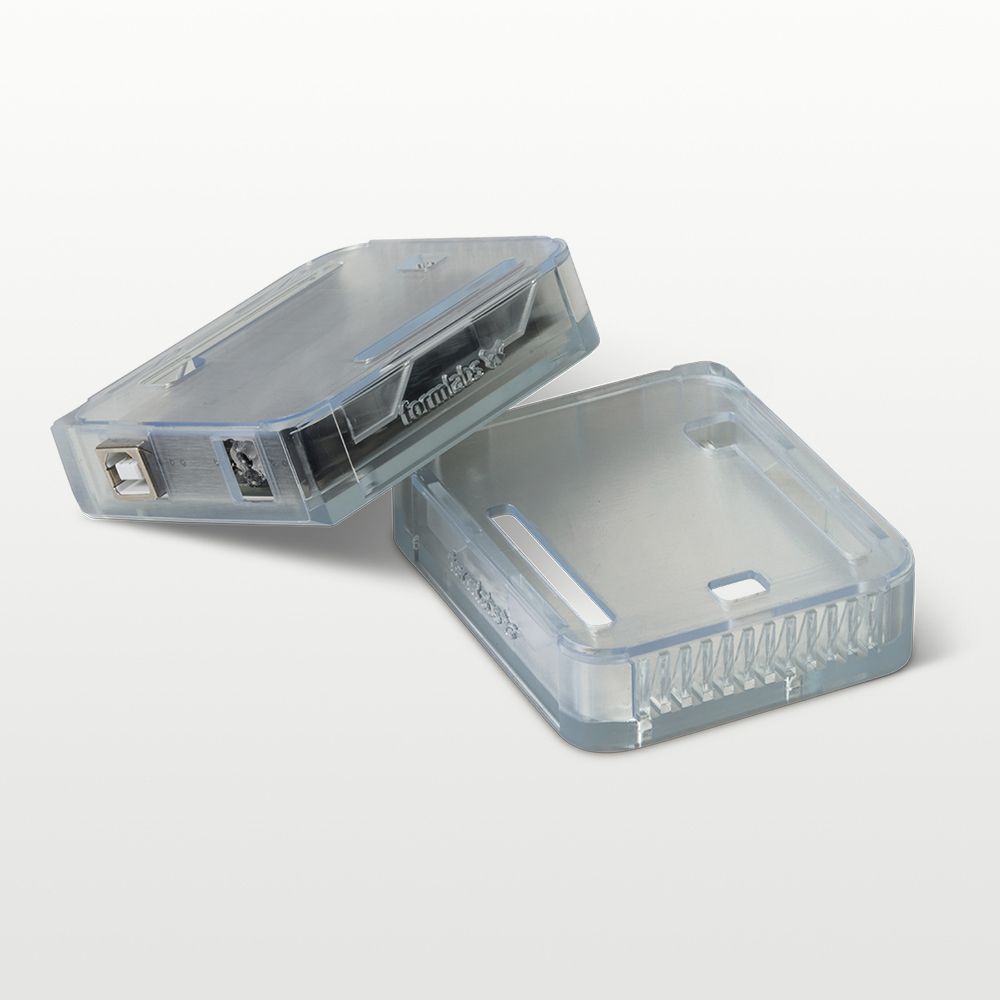

Alpha Clear ResinOptical clarity, crisp fine features, and smooth, dimensionally accurate surfaces for see-through parts that fit together.

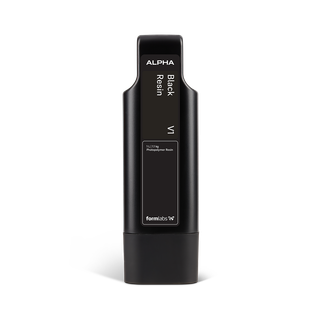

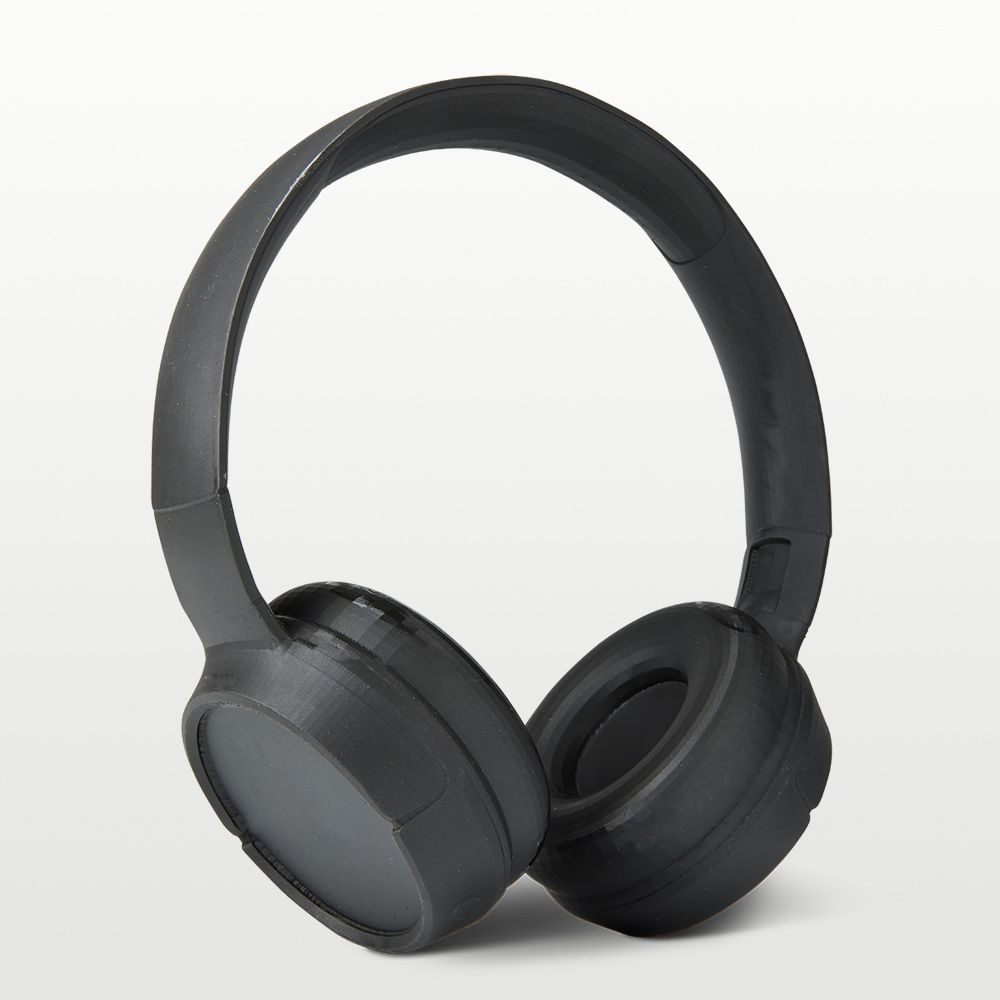

Alpha Black ResinRich matte color, crisp fine features, and smooth, dimensionally accurate surfaces for parts that are display-ready and fit together.

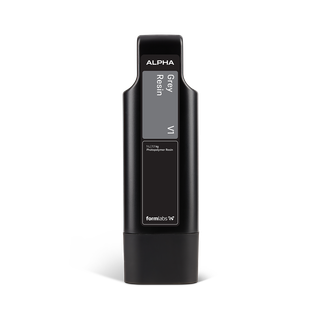

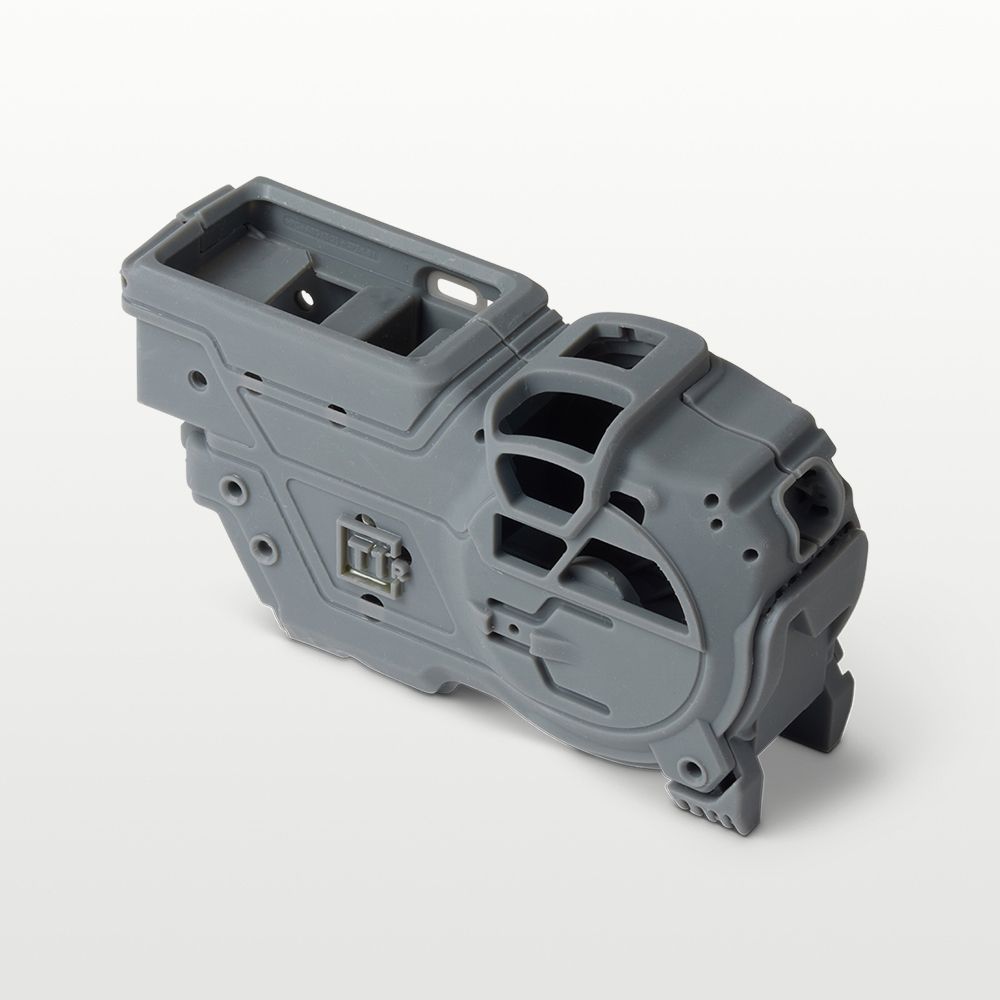

Alpha Grey ResinRich matte color, crisp fine features, and smooth, dimensionally accurate surfaces for parts that are display-ready and fit together.

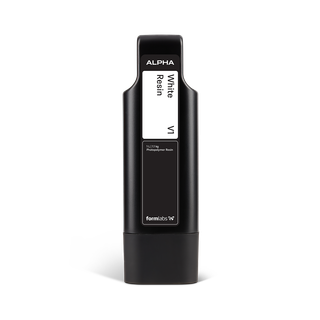

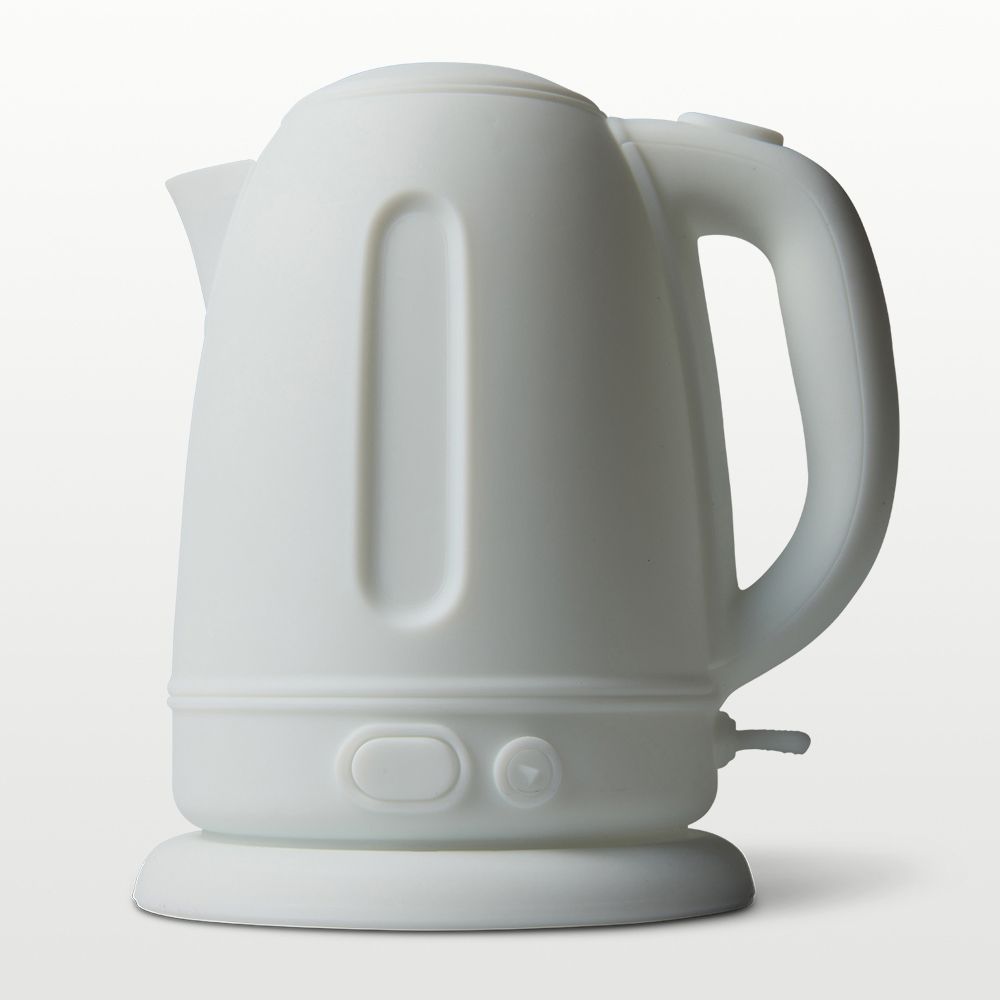

Alpha White ResinRich matte color, crisp fine features, and smooth, dimensionally accurate surfaces for parts that are display-ready and fit together.
98% print success. Validated settings and intelligent monitoring on every print.

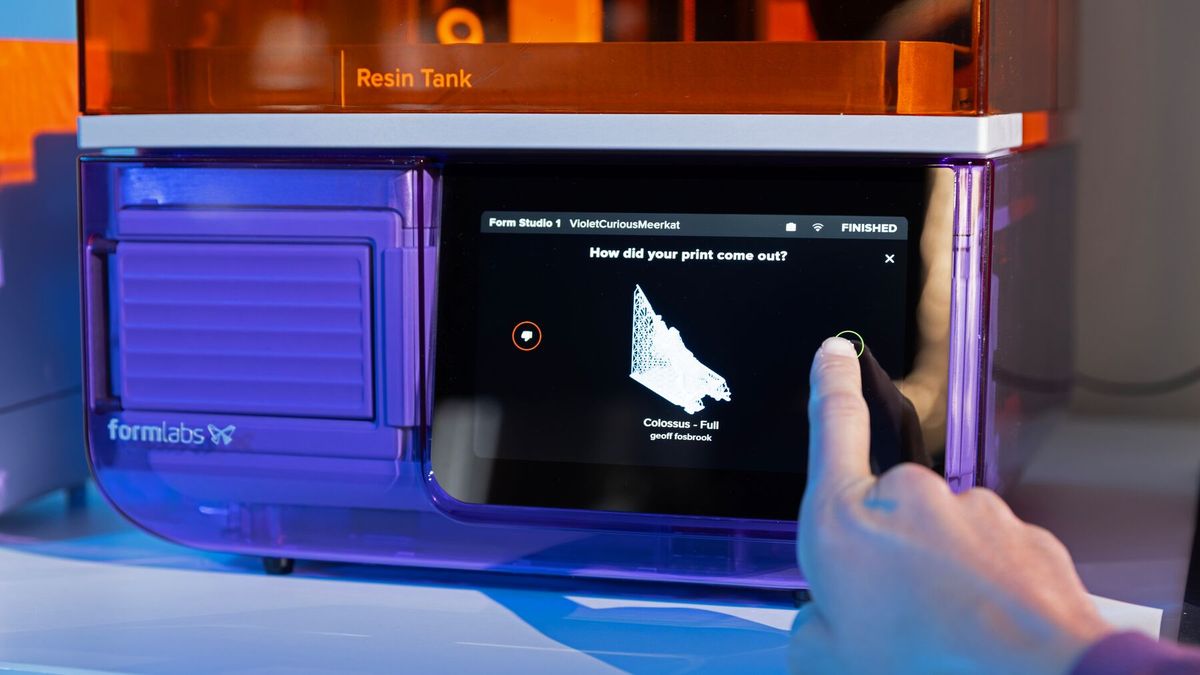

Every material comes with validated print settings, tuned on hundreds of test parts. During each print, intelligent control systems monitor resin temperature, resin level, print forces, and leveling, and an integrated camera shows progress remotely in the Form Mobile App.
A resin printer that’s safe to use wherever you work.
-
Low VOC emissions
Low-odor Alpha Resins are the first to achieve UL GREENGUARD Gold*, an independent standard certifying low VOC emissions for homes, offices, schools, and other indoor environments.
-
Skin-safe parts
Alpha Resins are certified to ISO 10993 for long-term (>30 days) skin contact when printed on Form Studio 1 and post-processed per Formlabs guidelines. Printed parts are non-cytotoxic, non-irritating, and non-sensitizing.
-
Minimize risks
Liquid resin scores as a non-skin irritant under OECD 439, a standard commonly used in the cosmetics industry, to minimize the risks from incidental skin contact.
*When printed on Form Studio 1 using VOC Extractor.
Learn to print in 10 minutes. Everything you need to go from design to finished part.
-
Pro resin printing, made accessible: most prints finish in under two hours.
-
01
Select a material
Load a validated Formlabs resin cartridge and print with validated settings tuned for that material.
-
02
File set up

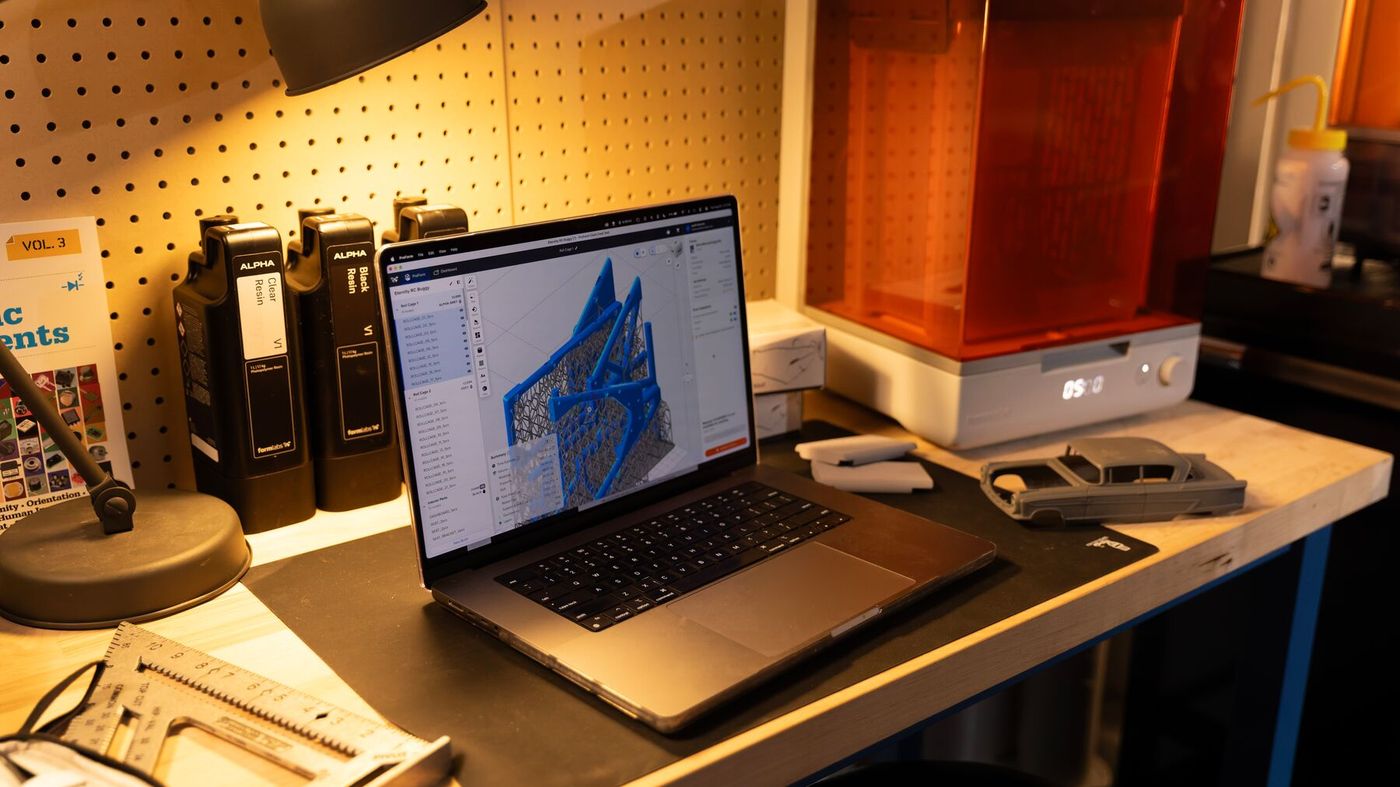

Import your model into the print preparation software, PreForm, and set up your print with one click, or orient and add supports yourself. Real-time printability checks flag issues before you hit print.
-
03
Print
Insert a cartridge, tank, and build platform, and automatic resin dispensing handles the rest. Confirm your setup and start, queue, or track prints remotely from the Form Mobile App or free Dashboard software.
-
04

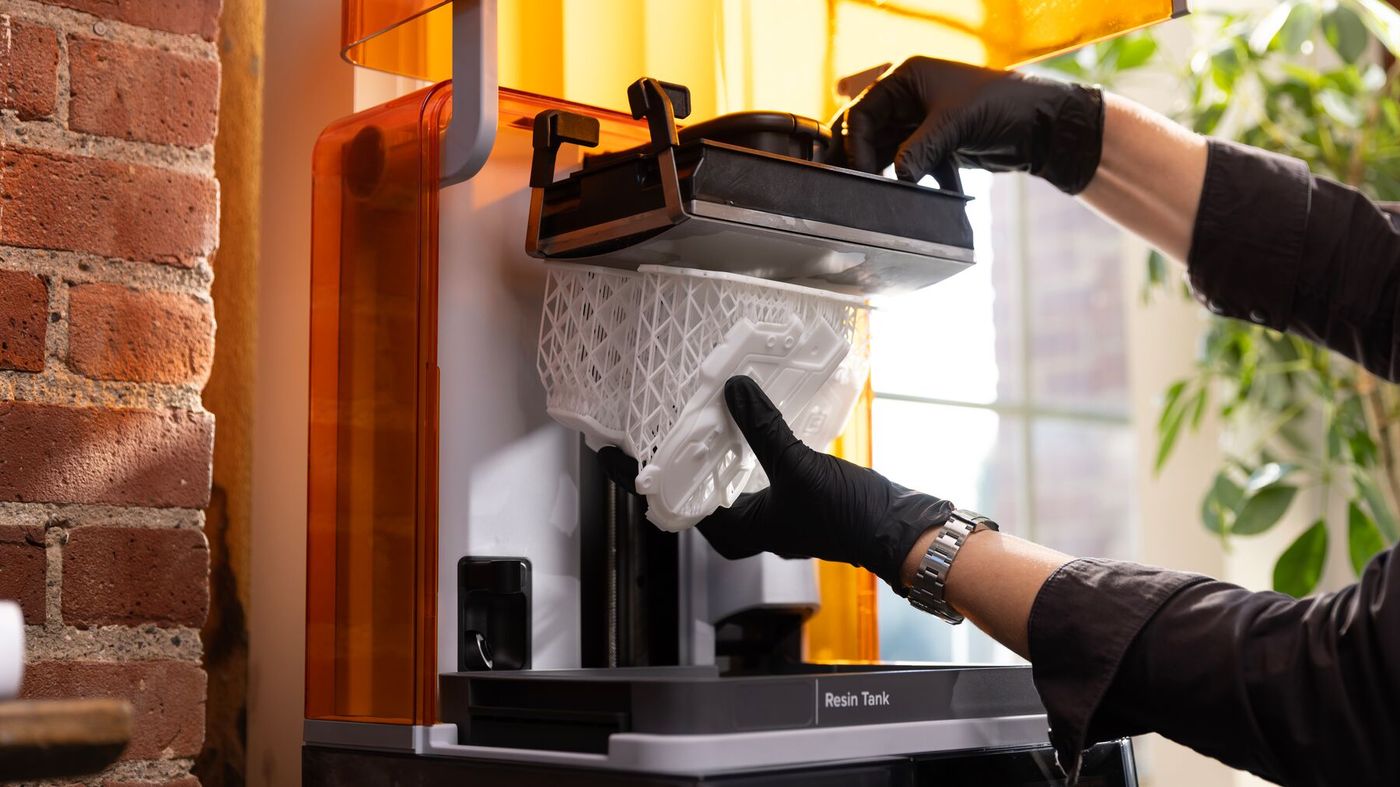

Wash

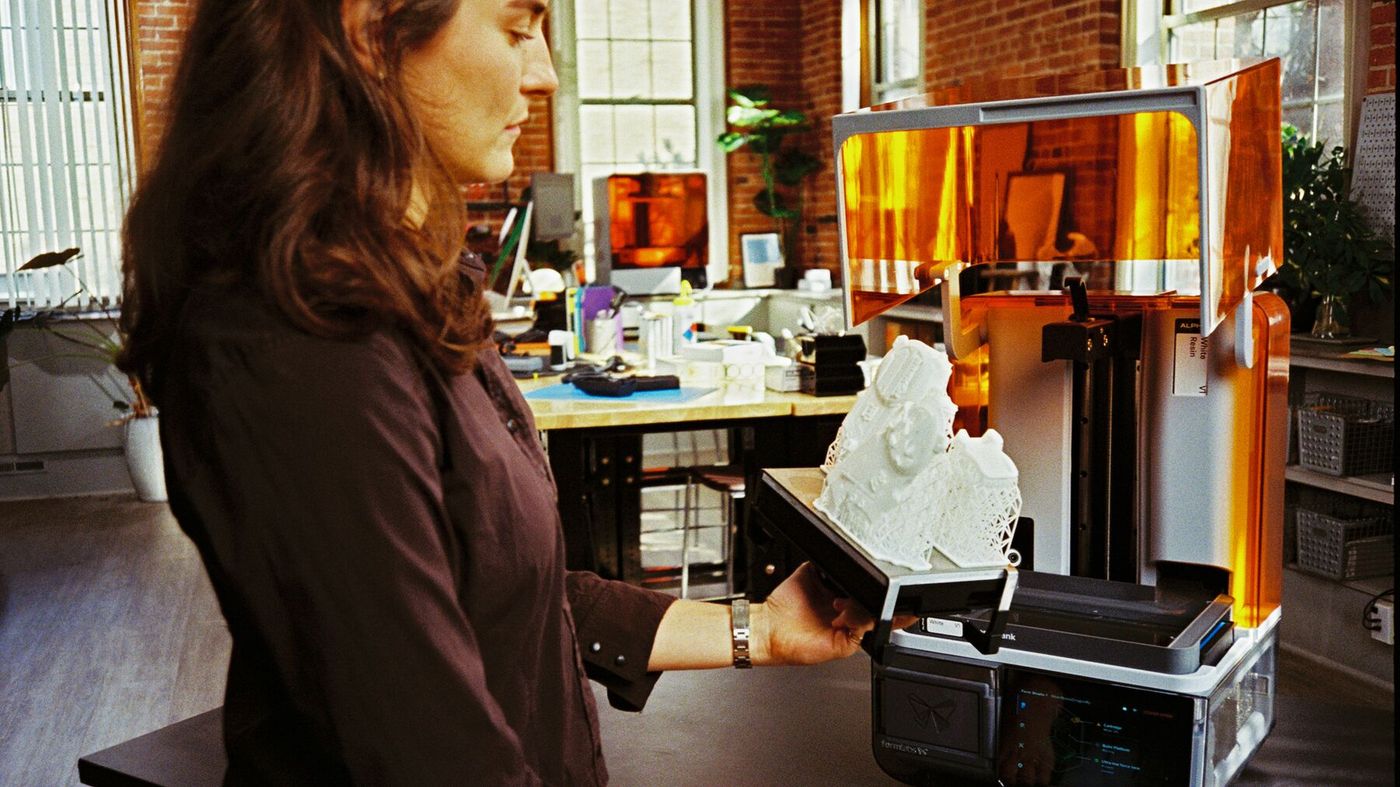

Wash parts on or off the build platform in the Form Studio 1 Wash+Cure. When you are ready to remove them, a quick flex of the quick-release build platform pops parts free with no scraping. Let parts air dry completely before curing.
-
05
Cure
Remove light-touch supports by hand, then slot the turntable into the Form Studio 1 Wash+Cure to cure your parts. Curing brings each part to its final mechanical properties, ready to use as is or to sand, coat, and paint.
See Form Studio 1 from every angle. Drag to rotate, scroll to zoom, or pick a feature below.
Loading the 3D model…

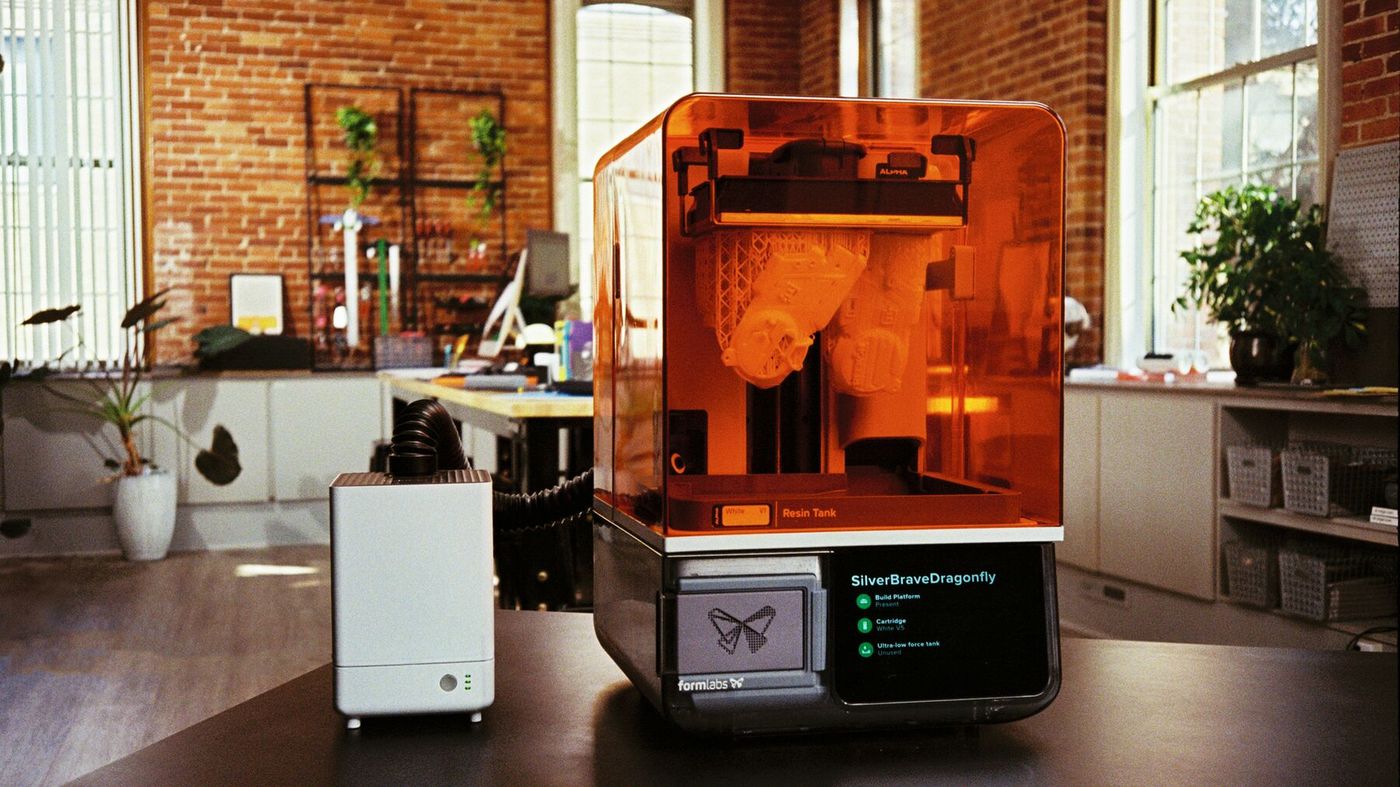

Masked stereolithography with the Low Force Display (LFD) print engine: a 20.0 × 12.5 × 23.5 cm build volume in a printer that measures 34.2 × 31.5 × 50.2 cm.
Office, home, studio, workshop… pro resin printing for anyone.

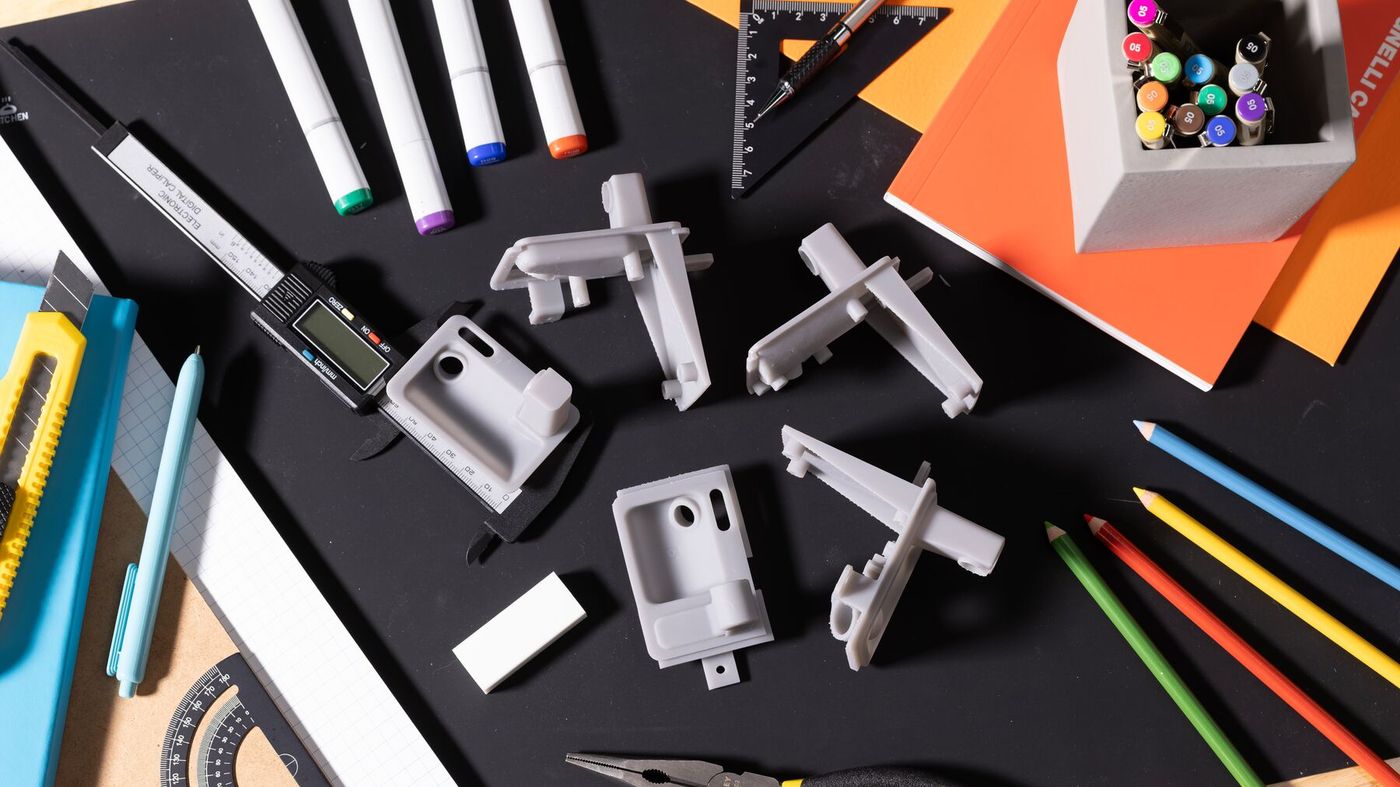

Prototypes that fit
Office

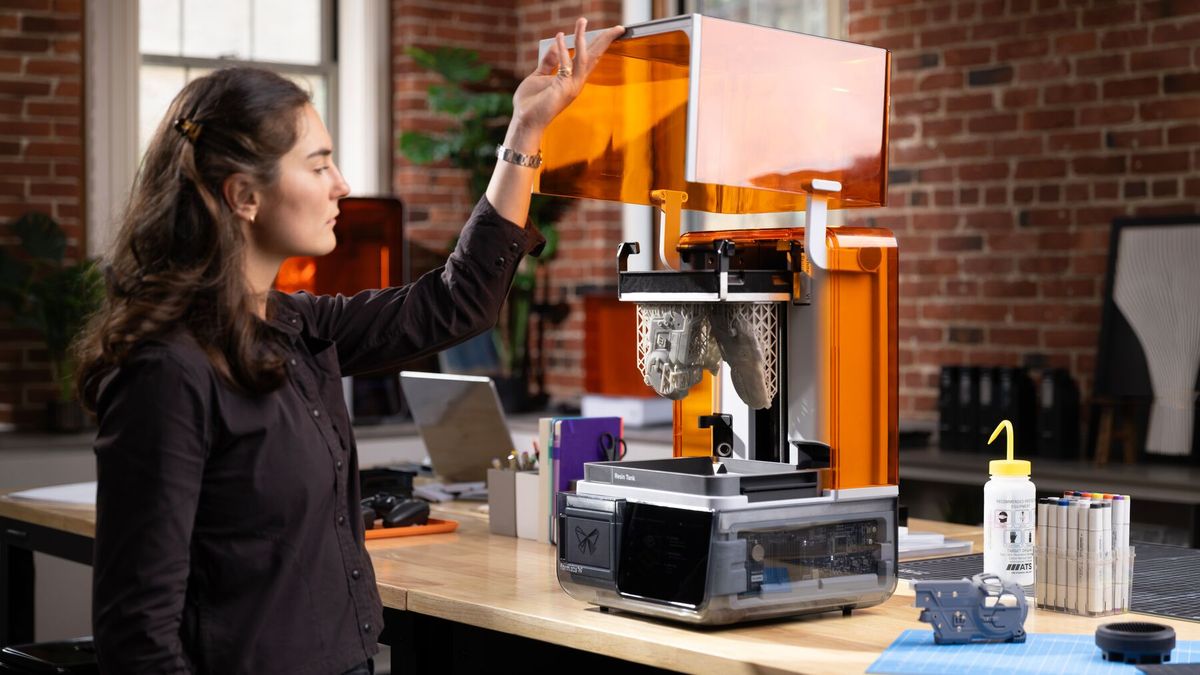

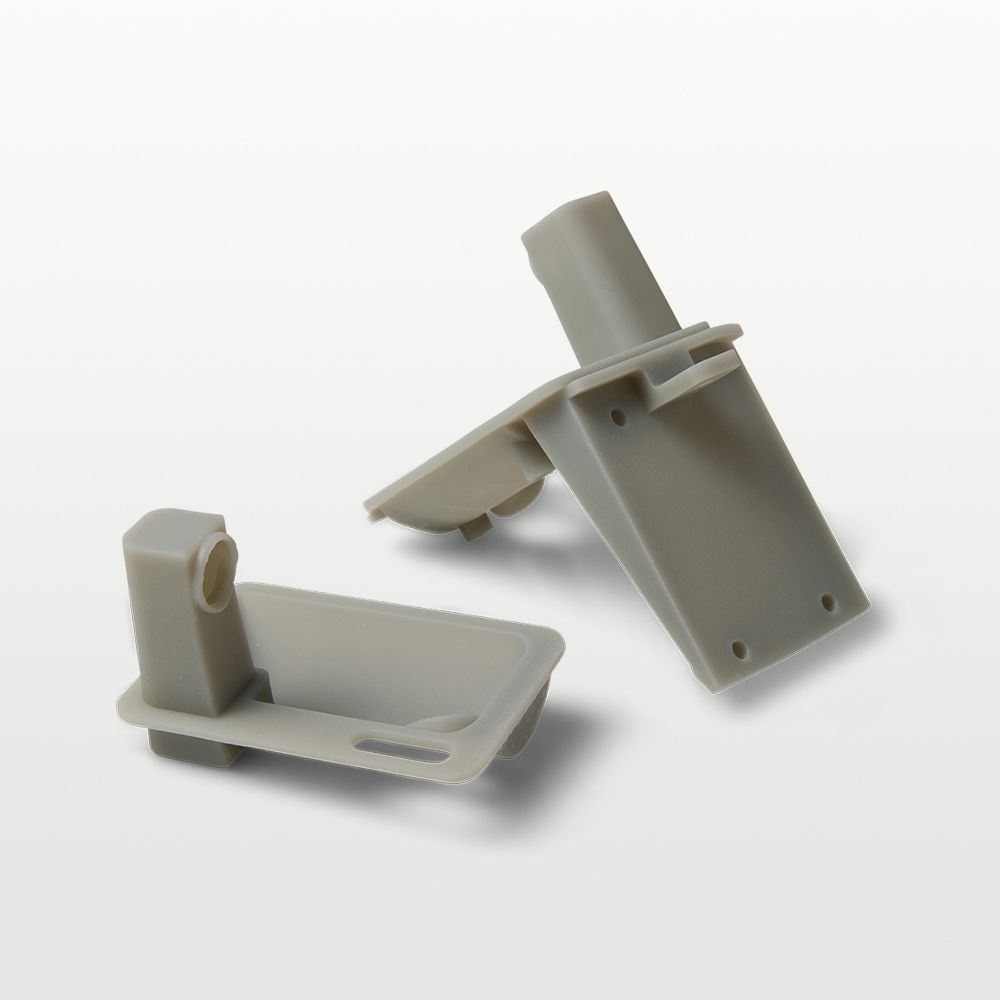

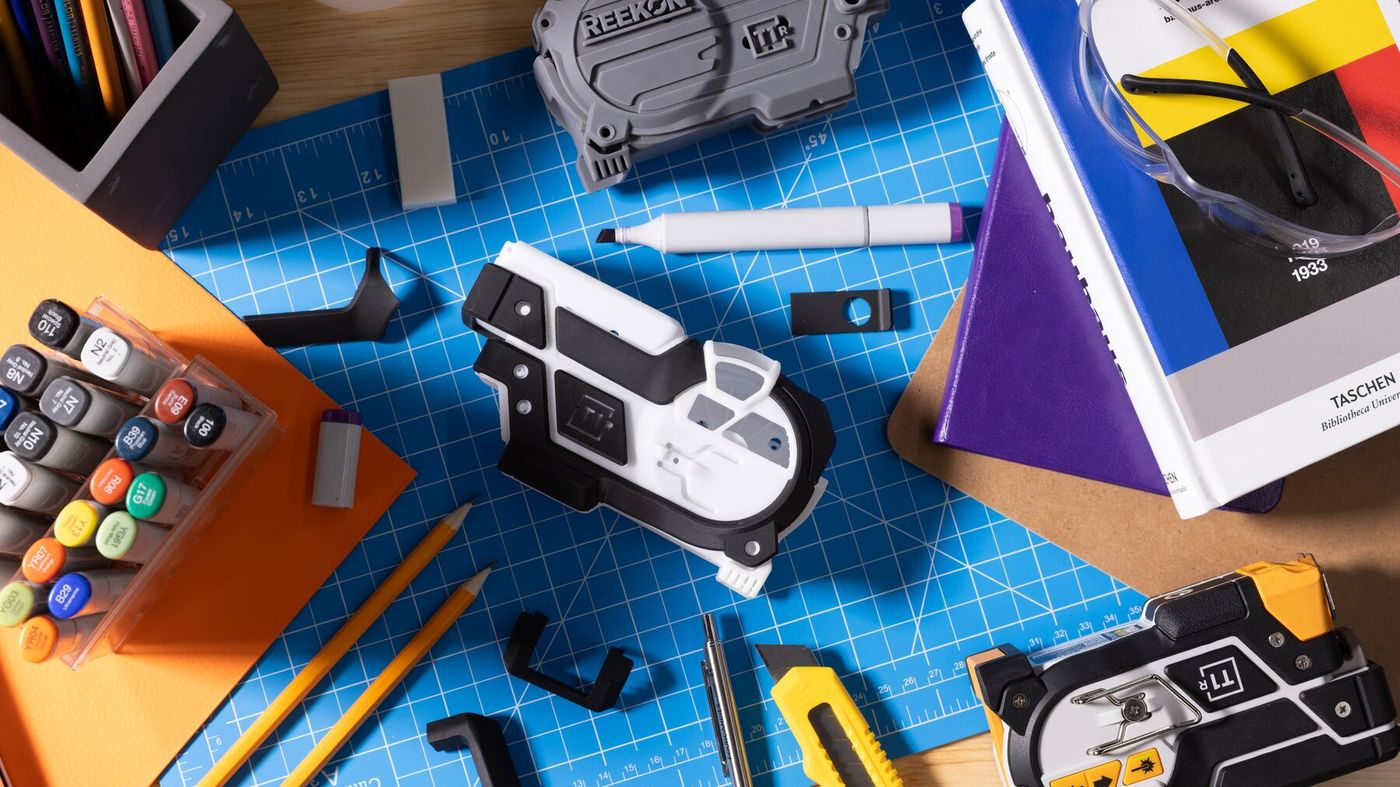

Open STEP, SOLIDWORKS, Creo, or CATIA files directly in PreForm and print housings, brackets, and assemblies at your desk. Most prints finish in under two hours, so you can test a fit the same day you design it.
- ±0.15%
- XY tolerance
- < 2 hours
- Most prints
Every detail, ready to paint
Studio

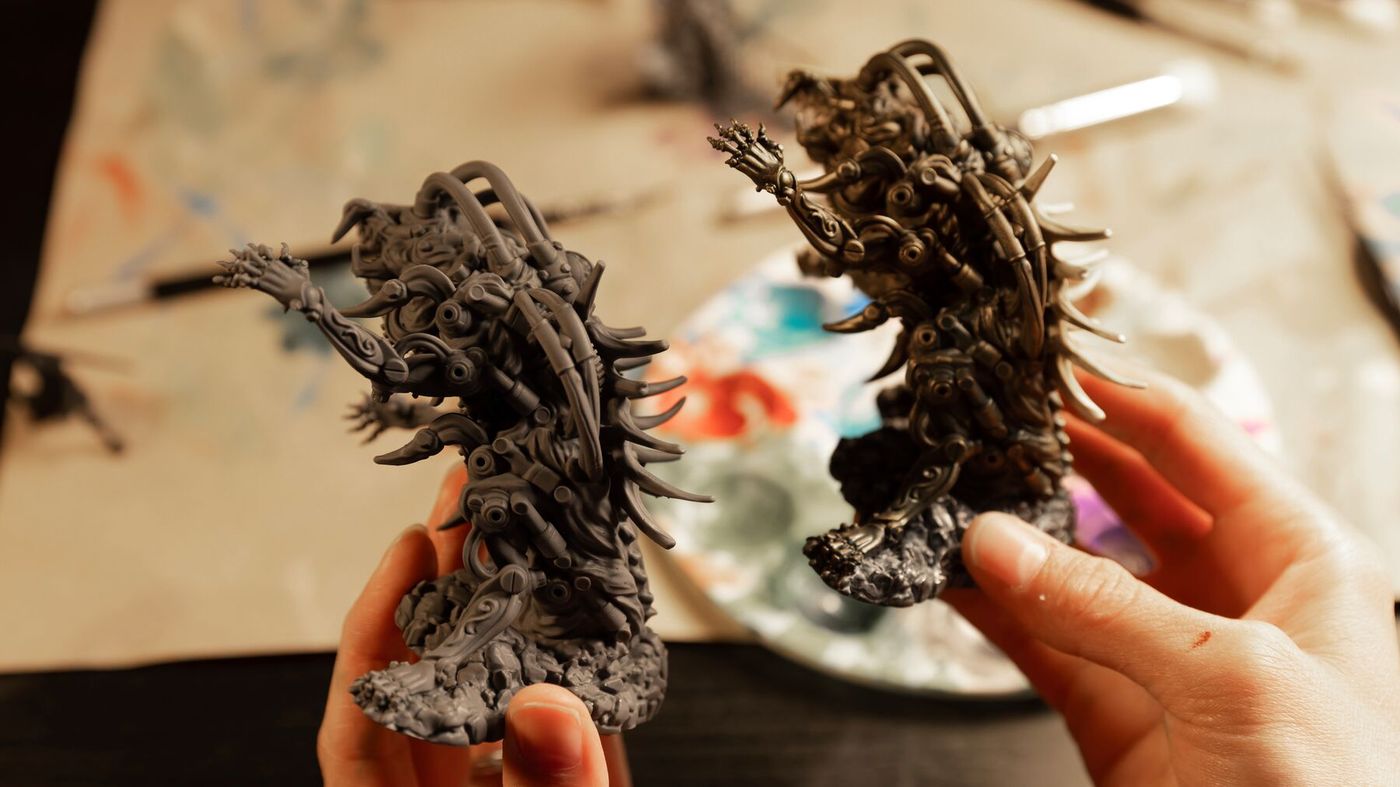

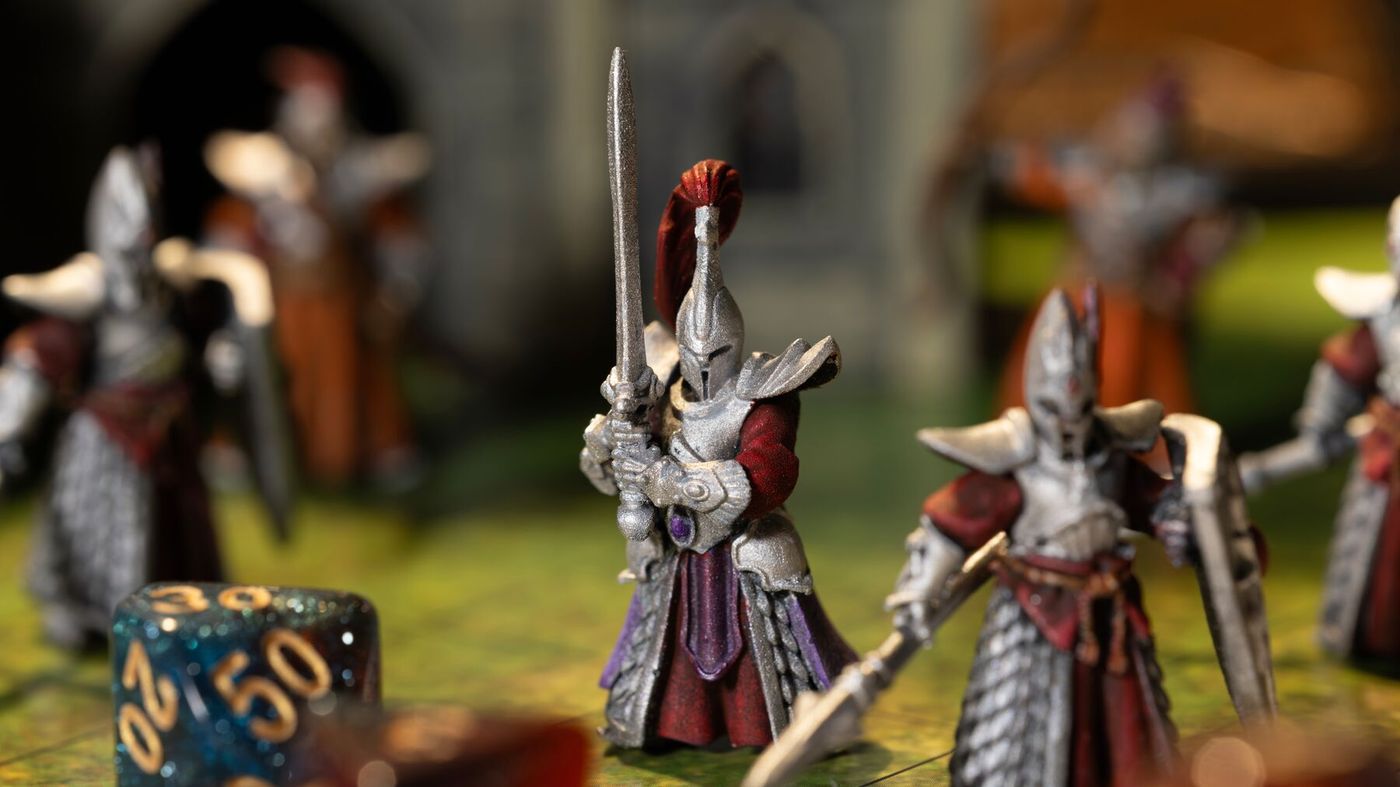

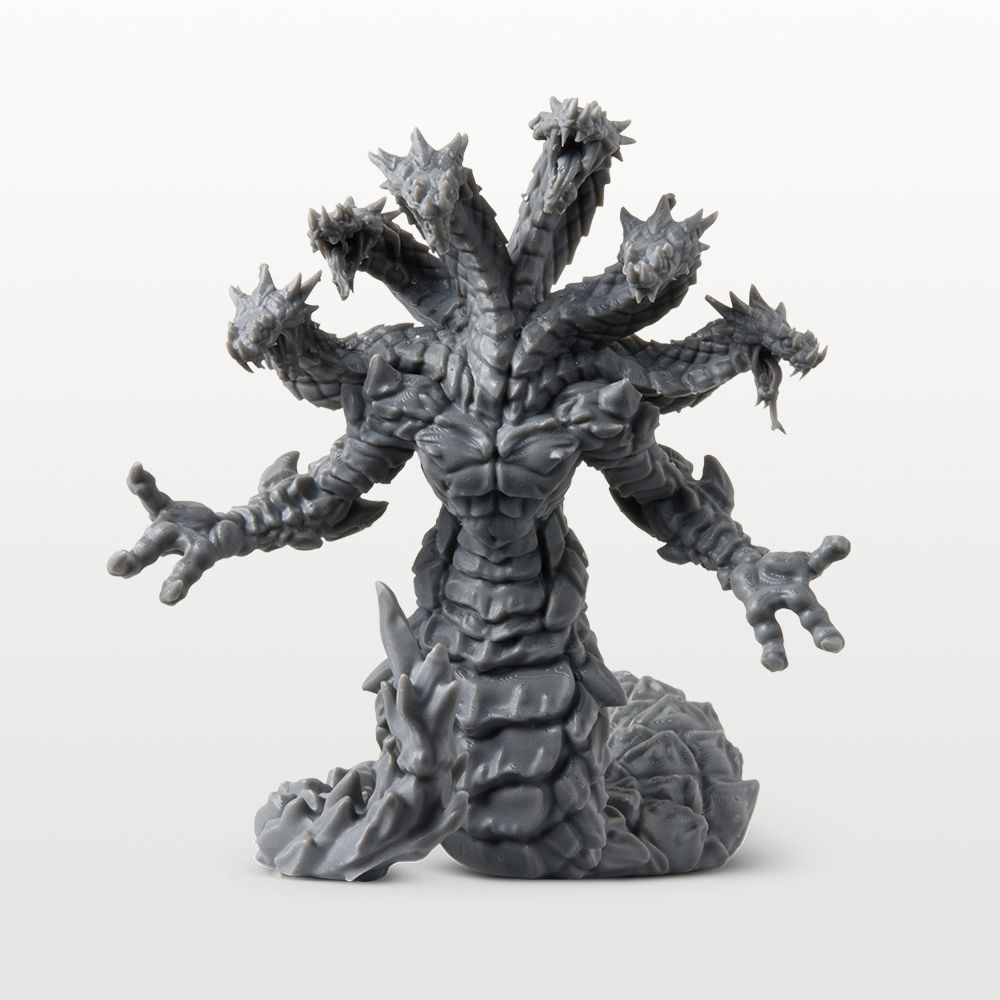

Fine pixels and pretuned anti-aliasing capture the smallest crevice and texture on figures and terrain. Alpha Model Resin’s deep, fully matte, neutral surface paints beautifully.
- 35 µm
- XY resolution
- Matte
- Alpha Model Resin surface
Functional parts for real builds
Workshop

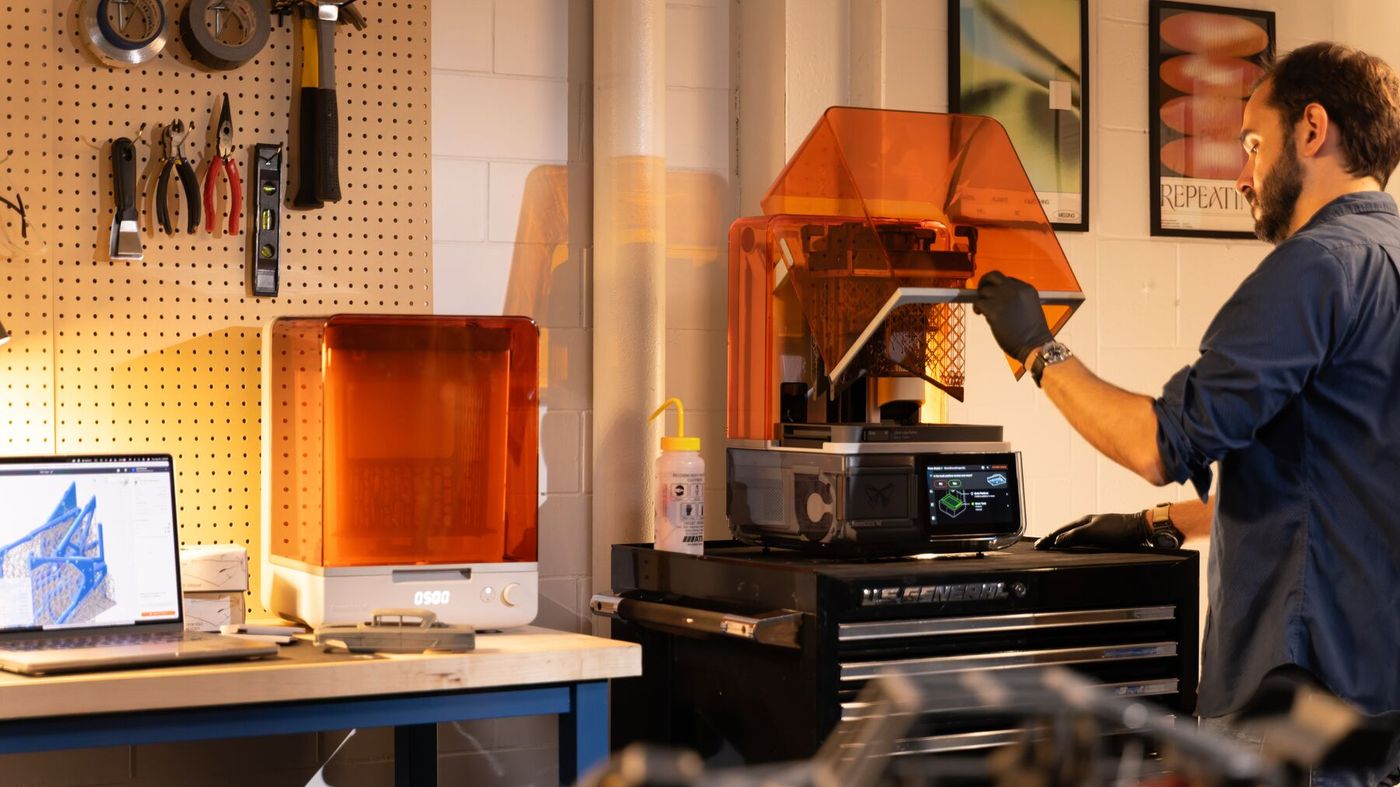

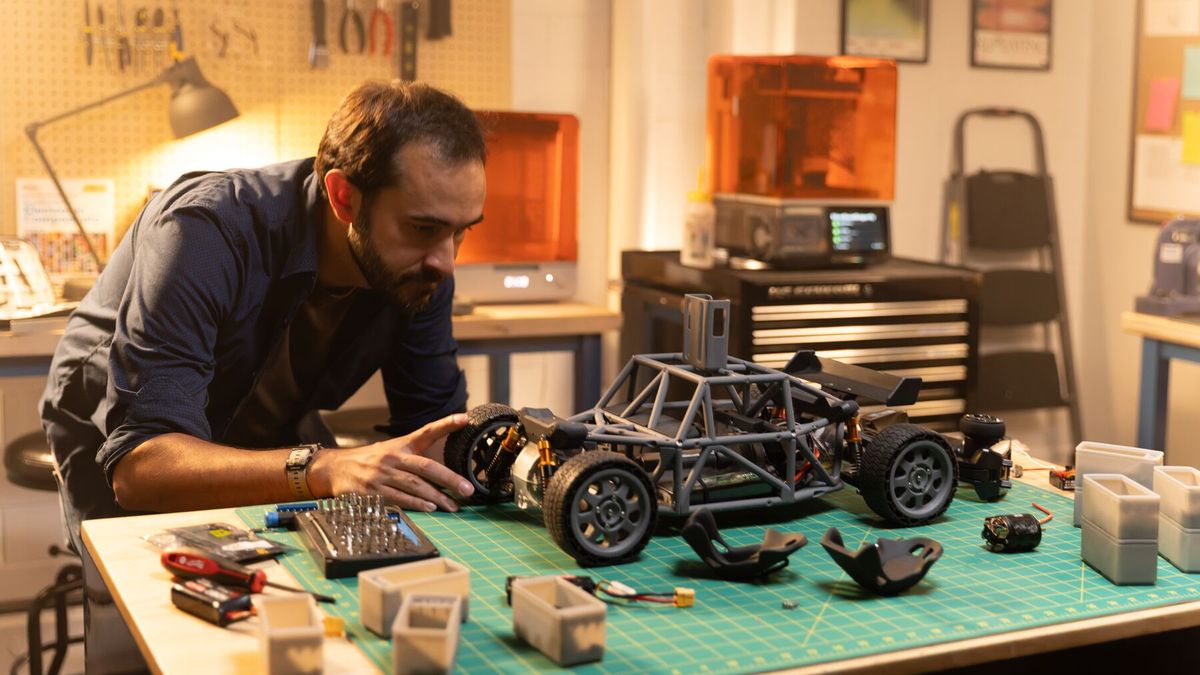

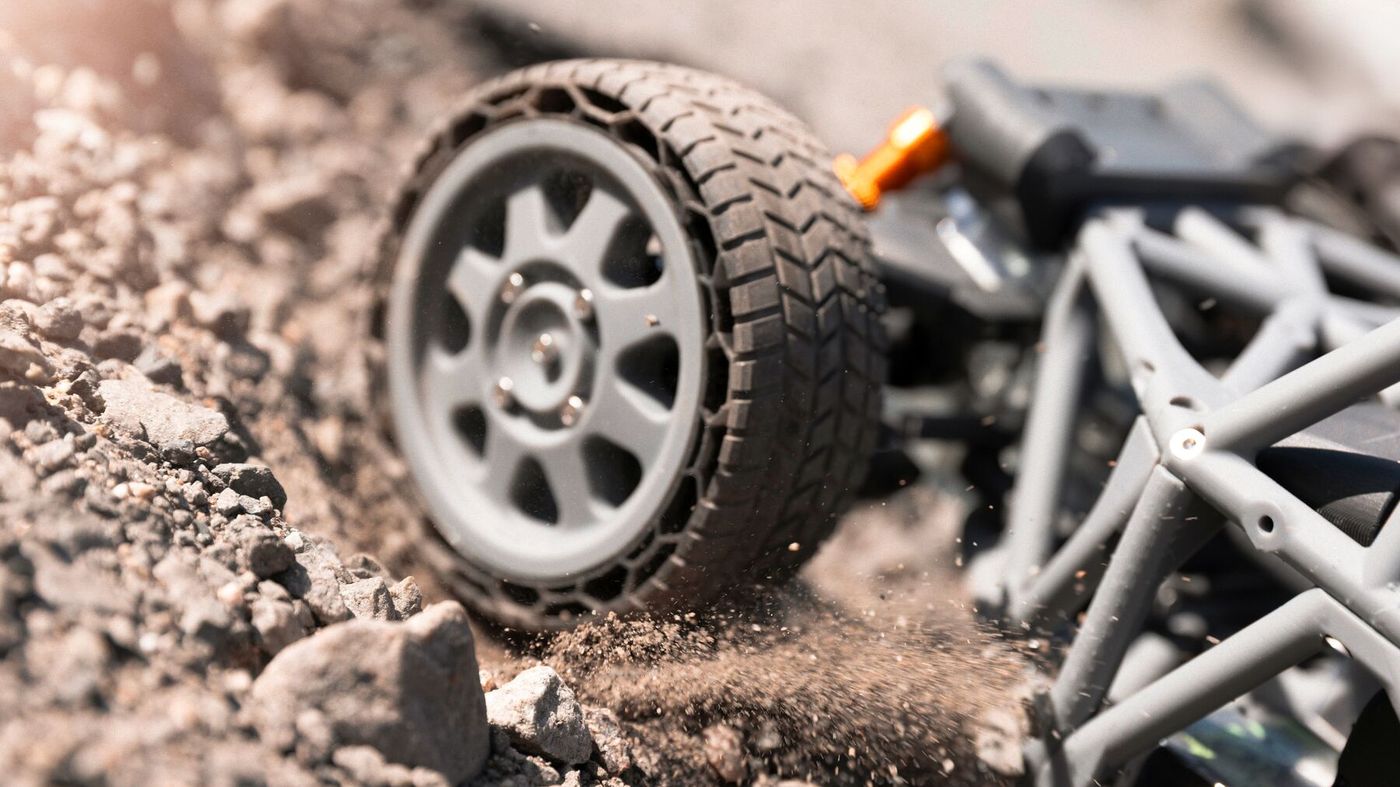

Print wheels, frames, and mounts with engineering-grade performance in Alpha Black, Grey, or White Resin. Every material setting holds ±0.15% XY tolerance, so parts fit together as designed.
- Engineering-grade
- Alpha Black, Grey, and White
- Light-touch
- Supports come off by hand
Tech specs
- Technology
- Masked Stereolithography (MSLA)
- Print engine
- Low Force Display (LFD)
- Build volume (W × D × H)
- 20.0 × 12.5 × 23.5 cm
7.9 × 4.9 × 9.3 in - Layer thickness
- 25–250 µm
0.001–0.010 in - XY resolution
- 35 µm
- Average print speed
- 40 mm/hr (100 µm layer height)
- Maximum print speed
- 130 mm/hr
- Light source
- 28 LEDs, 405 nm, 6 mW/cm² at the print plane
- Resin tank lifetime
- 75,000 layers with Formlabs materials
- Resin dispensing
- Automated, from 1 cartridge
- Connectivity
- Wi-Fi (2.4, 5 GHz), Ethernet (100 Mbit), USB
- Camera
- Integrated, 1920 × 1080 (2 MP)
- Printer dimensions (W × D × H)
- 34.2 × 31.5 × 50.2 cm
13.5 × 12.4 × 19.8 in - Clearance with cover open (W × D × H)
- 36 × 33 × 79 cm
14.2 × 13 × 31.1 in - Printer weight
- 14.3 kg | 31.5 lb
- Power
- 100–240 VAC, 50/60 Hz, 300 W
- Software compatibility
- macOS 10.12 and up
Windows 10, 64-bit (version 1809) and up - Files accepted
- Mesh: STL, OBJ, 3MF
STEP: STEP, STP, STPZ
SOLIDWORKS: SLDPRT, SLDASM
PTC Creo: PRT, ASM
Jupiter Tessellation: JT
CATIA V5: CATPart, CATProduct - Warranty and service
- One-year warranty included. Paid service and extended warranty options available.

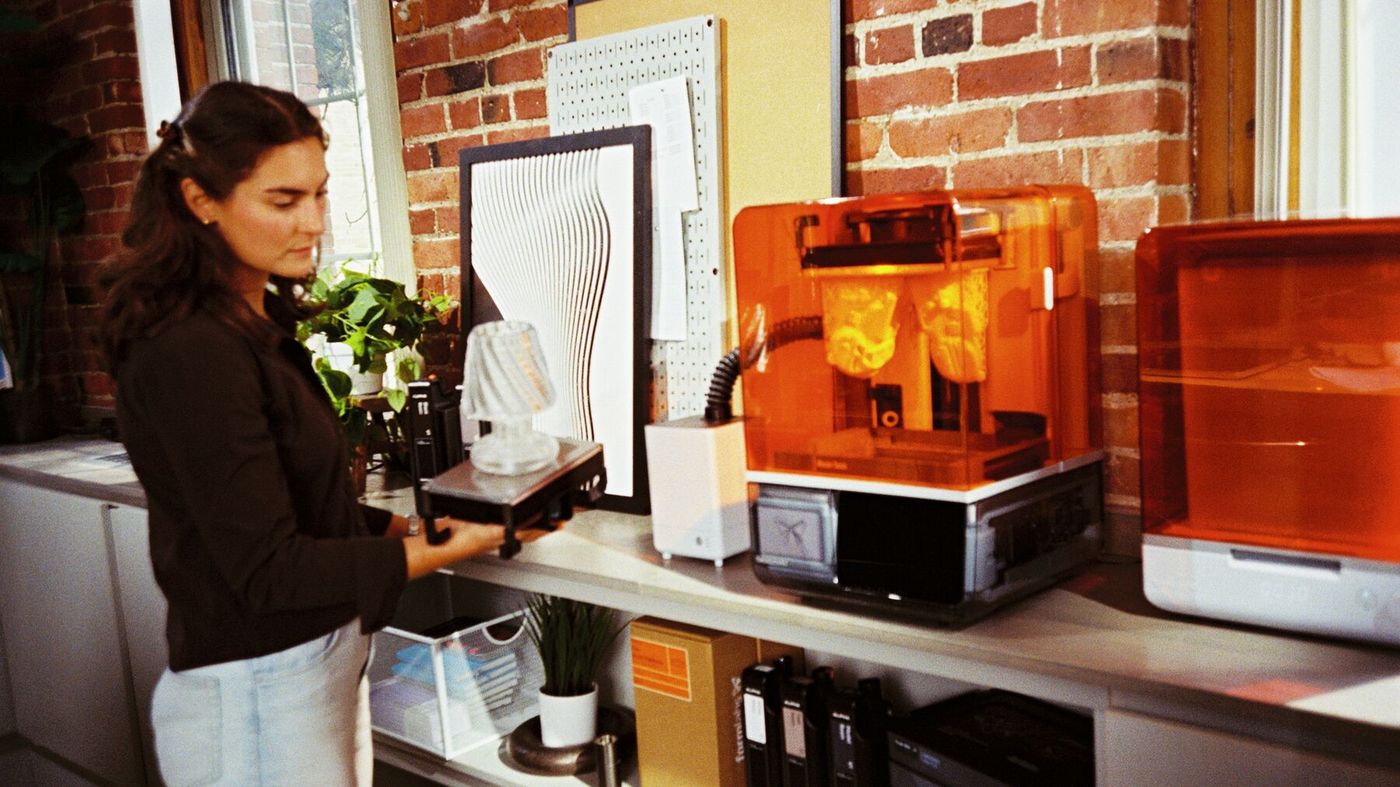

Complete the workflow. Wash, cure, and ventilate with the Form Studio ecosystem.

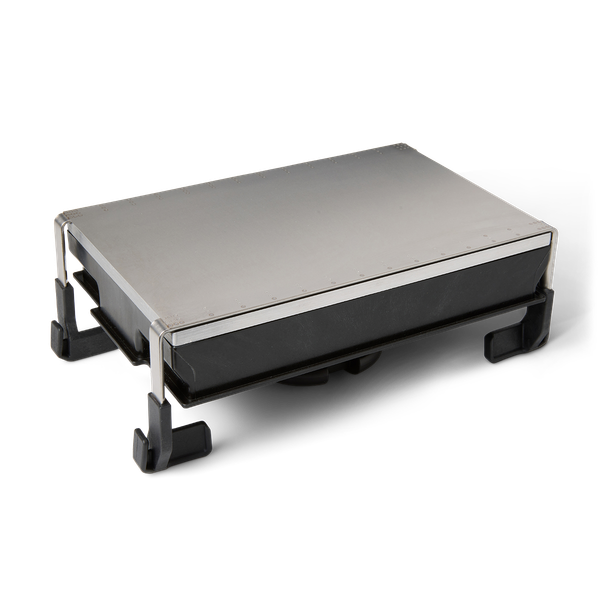

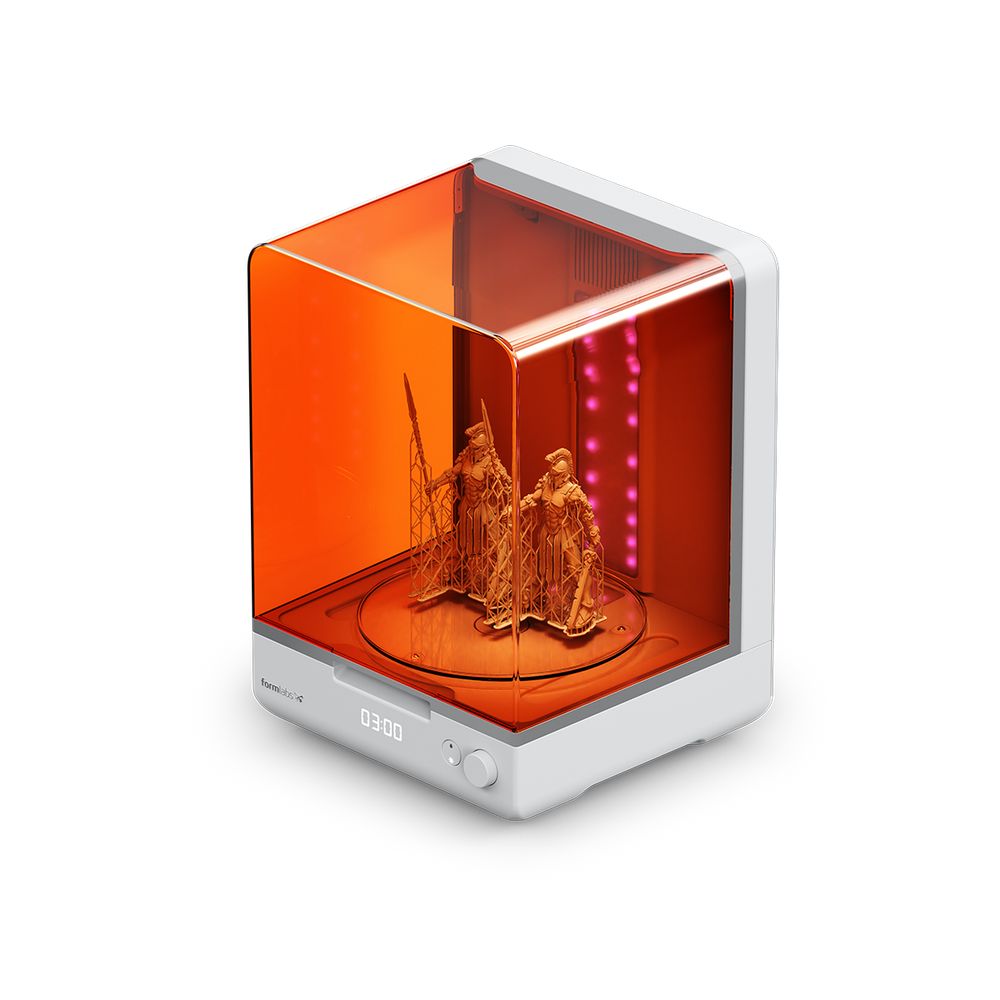

Form Studio 1 Wash+Cure
Finish your prints in one place. Wash parts on or off the build platform, then slot in the turntable to cure them.

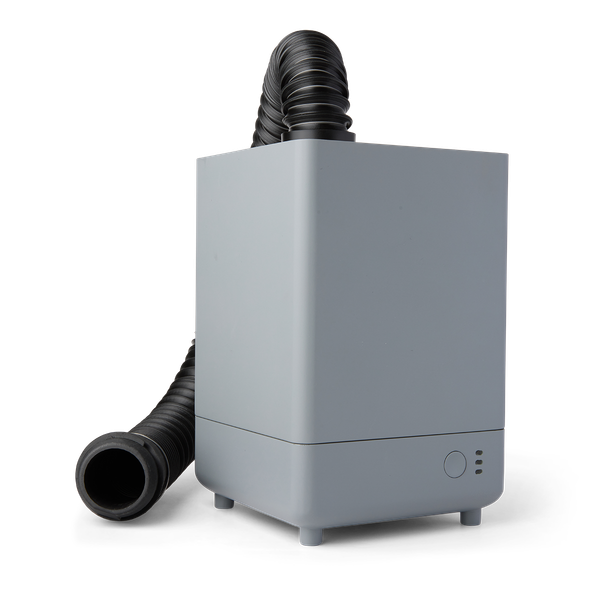

VOC Extractor
Alpha Resins are UL GREENGUARD Gold certified for low VOC emissions when printed on Form Studio 1 using VOC Extractor.
Build Platform Flex
A quick flex of the quick-release build platform pops parts free with no scraping.

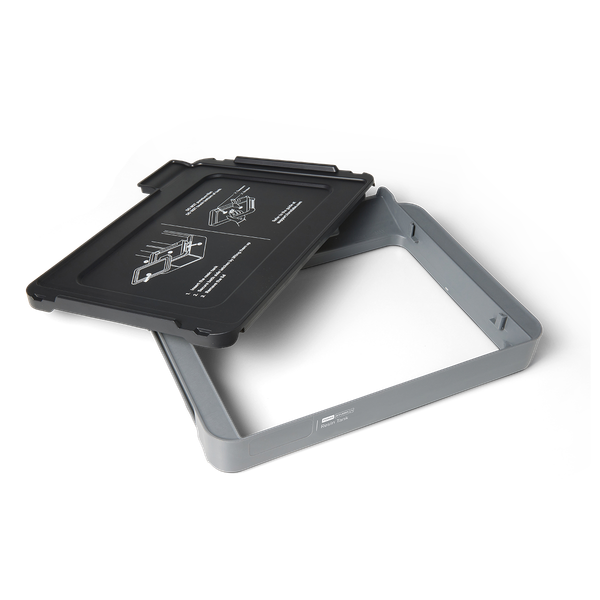

Resin Tank
A flexible film tank with Release Texture V2 reduces peel forces. Lasts 75,000 layers with Formlabs materials.
