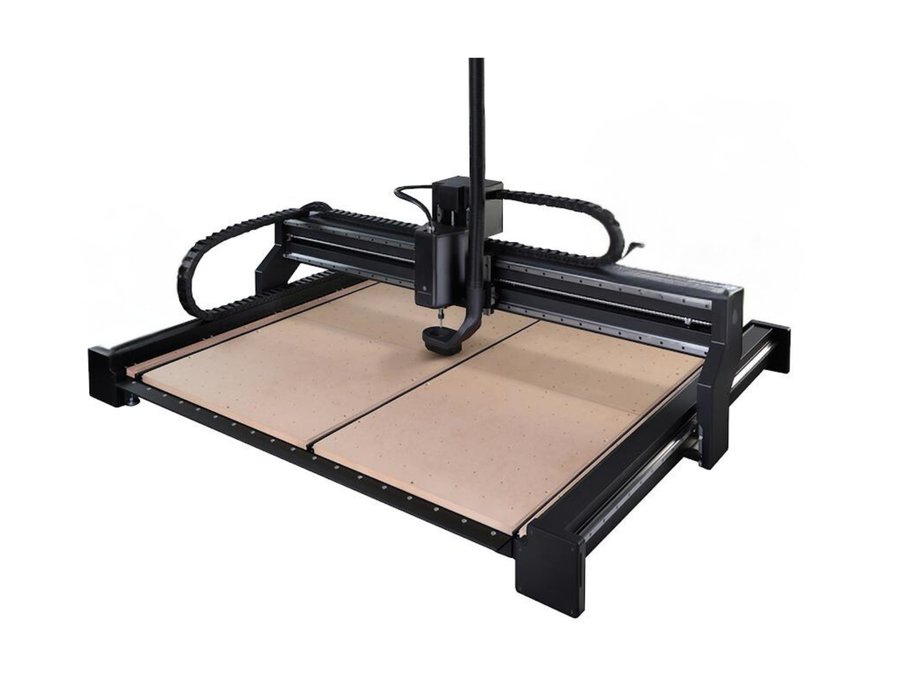

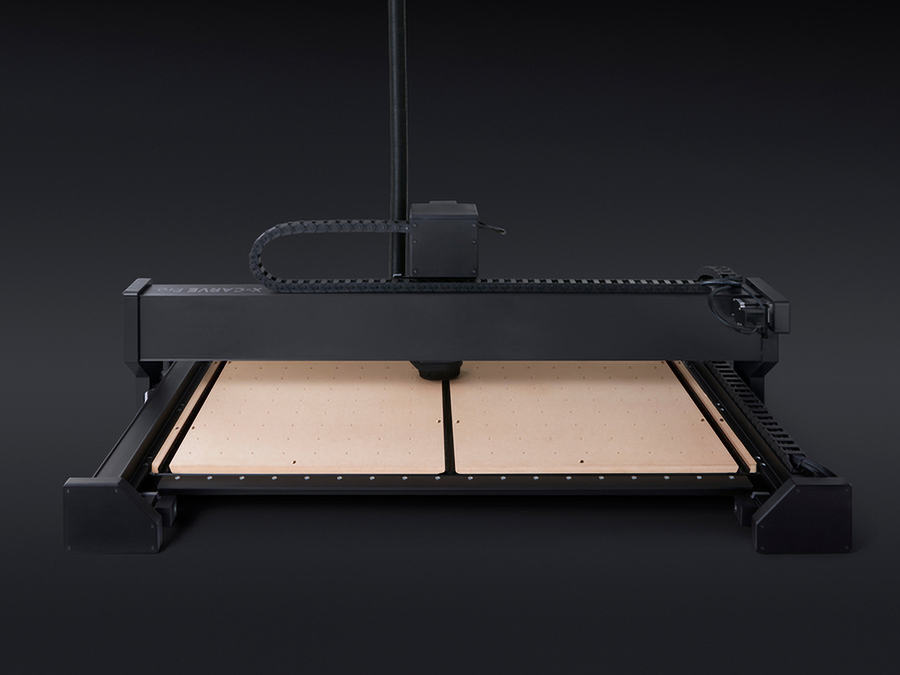

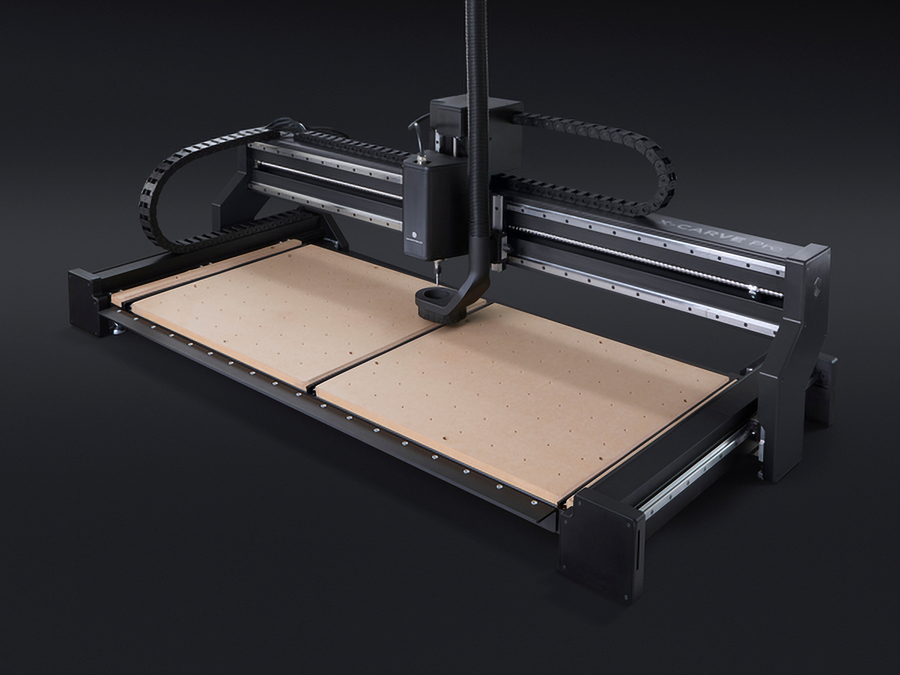

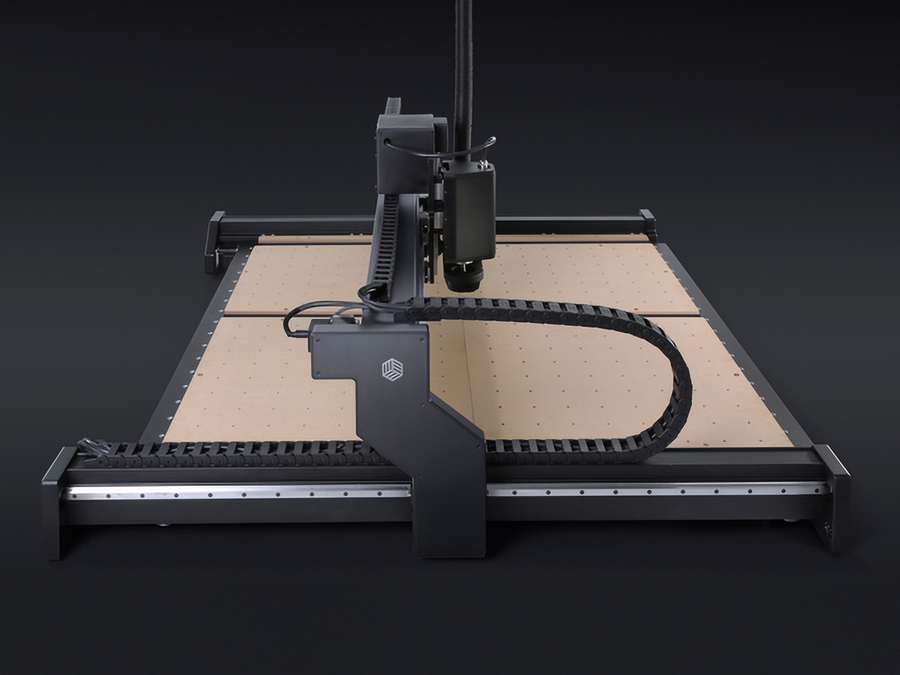

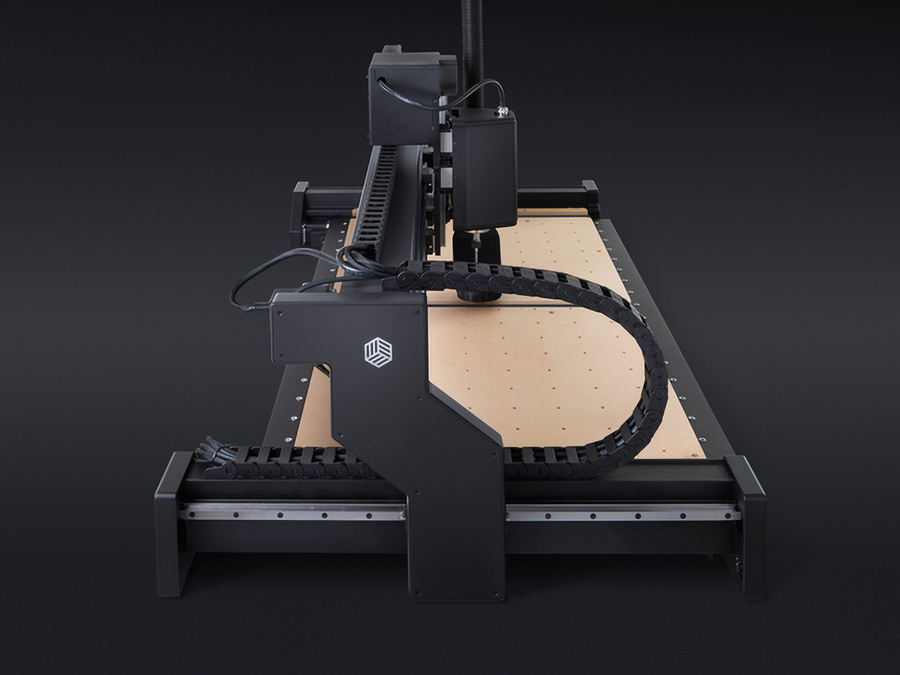

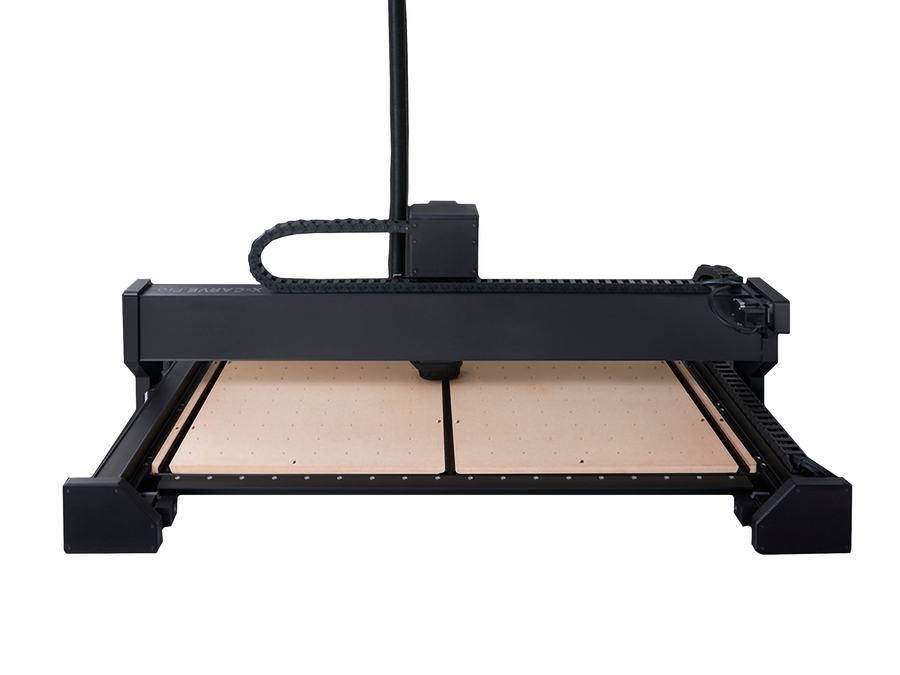

Inventables Inventables X-Carve Pro CNC System 4x4

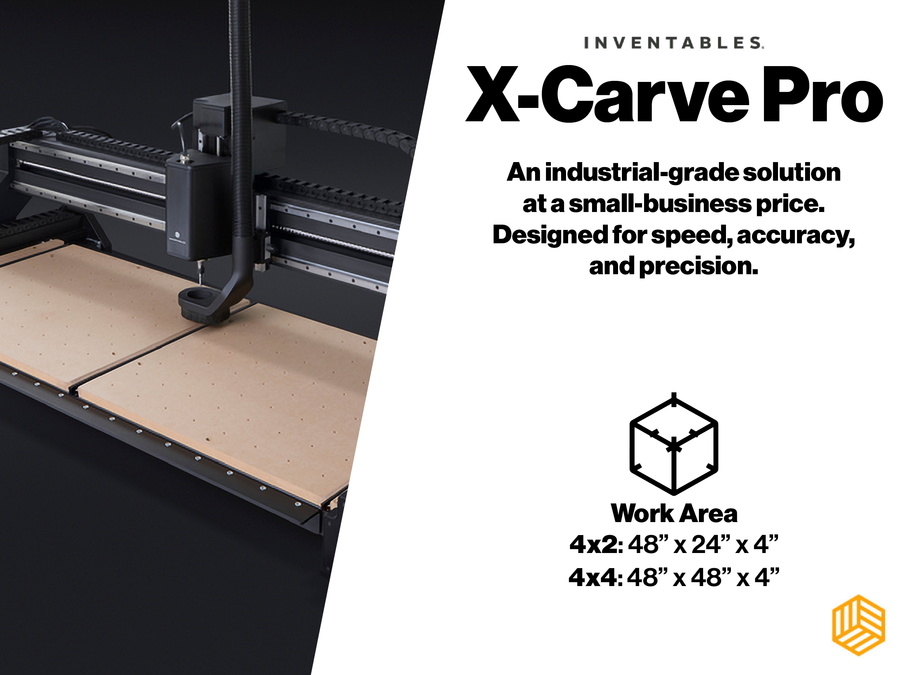

The Inventables X-Carve Pro CNC System is the industrial-grade solution that delivers speed, accuracy, and rigidity at a small-business price. Go from concept to commerce in minutes (not months) with a quick <2 hour assembly time and intuitive CNC workflow.

  • Available in 4x2 and 4x4 sizes
  • Get the CNC machine, bits, dust collection system
  • 4x4 can carve 4x8 sheets
loading...
Product No. loading...

INVENTABLES X-CARVE PRO

Increase Profits. Decrease Production Time

The Inventables X-Carve Pro is a high-speed, precise, and durable industrial-grade solution that features a 1.5kW air-cooled spindle and additional accessories that cover your standard CNC workflow needs—all available at a small-business price.

Key Features of the Inventables X-Carve Pro CNC System:

  • Two Sizes Available: 4x4 or 4x2
    • Save workspace with the 4x2 size
    • Carve full 4x8 sheets on the 4x4 cutting area

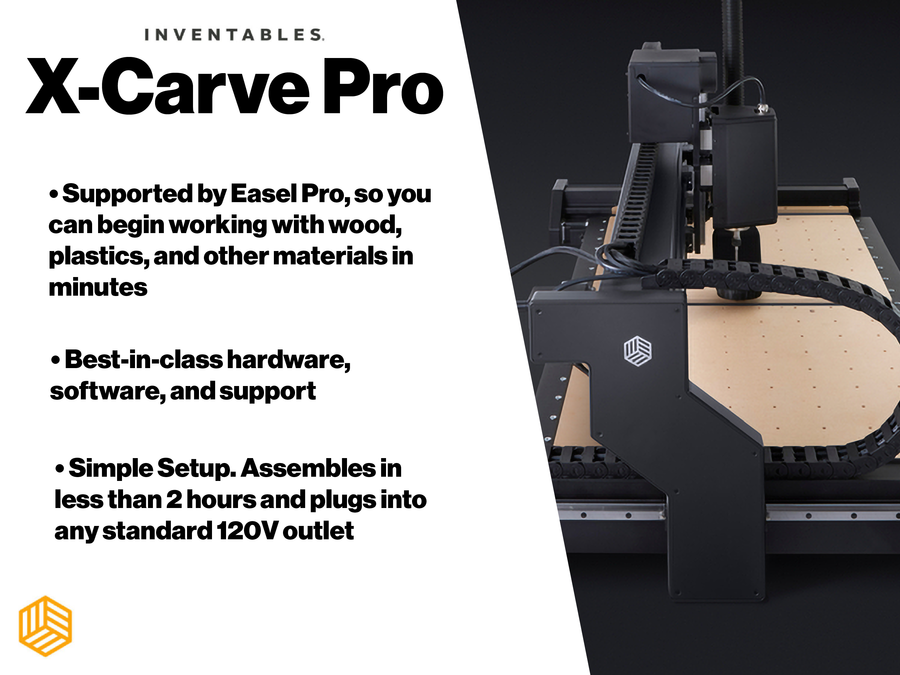

  • Simple Setup—assembly is <2 hours
  • Compatible with any standard 120V outlet
  • Features: 1.5kW air-cooled VFD spindle, 25mm Ball Screws, and Linear Guides

Scale Your Business Fast

The Inventables X-Carve Pro is a complete, versatile CNC solution for cabinet, furniture, and built-in design that can be assembled quickly in less than 2 hours. Enable professional-level design and increase production with this easy-to-assemble system thanks to the following features:

  • 4-ft. workable width for bigger, faster, and deeper carving

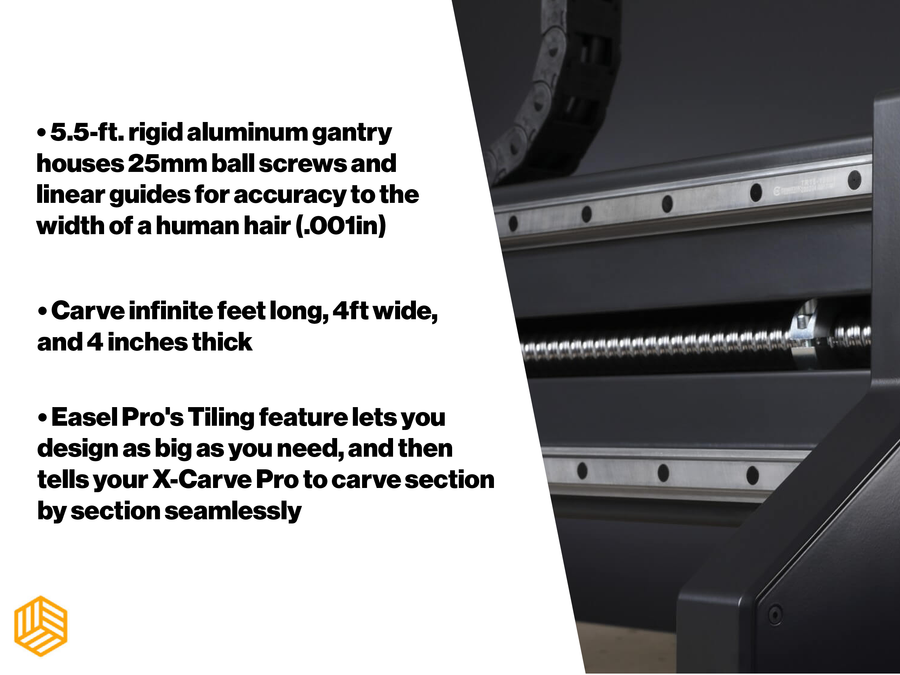

  • Rigid aluminum gantry houses 25mm ball screws and linear guides for .001" accuracy

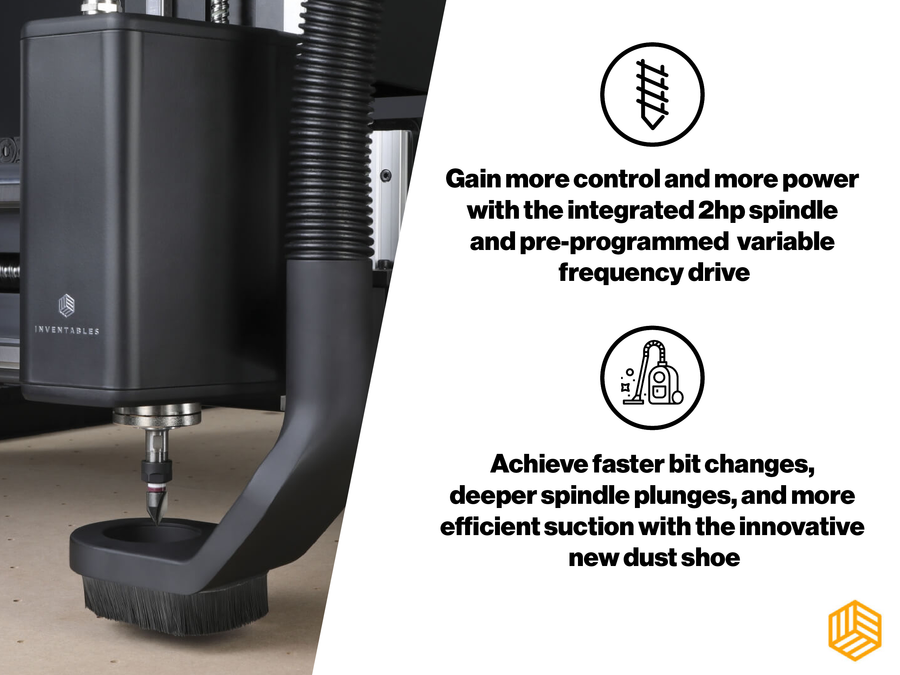

  • Integrated 2hp (1.5kW) spindle and pre-programmed VFD (variable frequency drive) for more power and control

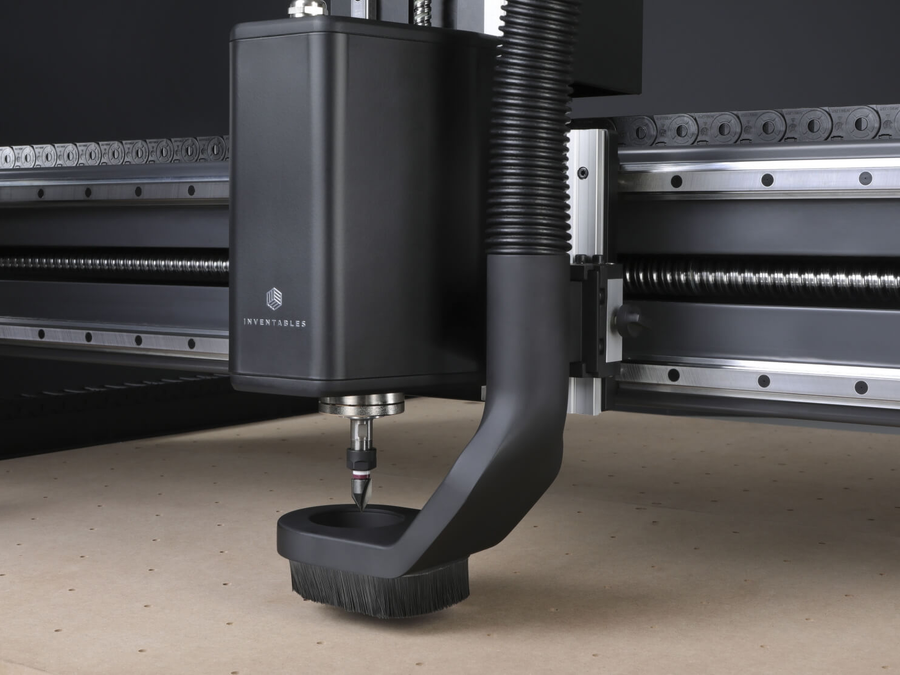

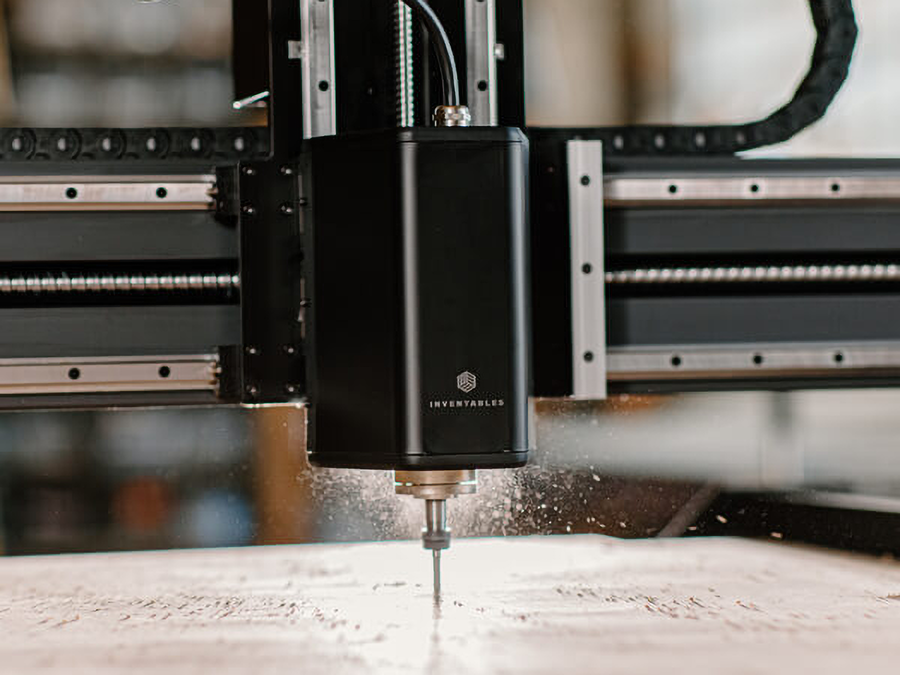

Image of spindle on the Inventables XCarve Pro CNC Machine

Image of someone using the Inventables Easel Pro CNC Software to generate a file that will guide the carving toolpaths on the Inventables X Carve Pro CNC Machine

Drag and Drop Designing

Inventables Easel Pro, the world's easiest CAD/CAM software is designed to get you carving without the learning curve. An assortment of intuitive tools and templates are available to create digital renderings of your products. Easel Pro will auto-generate optimal CNC toolpaths to efficiently and accurately produce your products.

  • 3-Years Easel Pro Subscription available as an Add-on
  • Easel Pro imports existing G-Code, SVG, and DXF Files
  • Optimized for the Inventables X-Carve series
  • Compatible with +30 types of CNC machines

Carve Big With A Small Footprint

Save precious floorspace with Tiling, Easel Pro's software feature that lets you design as big as you need by telling your X-Carve Pro to carve section by section seamlessly.

  • 4x2 Footprint: 65.75 x 31.6 x 25in3
  • 4x4 Footprint: 65.75 x 55.75 x 25in3
    • Carve infinite feet long, 4ft wide, and 4inches thick
  • Dust shoe whisks away dust and debris for a well maintained, contained operating area
Dentist Interview

Thermoformed Braces

Bigger, Faster Jobs

The X-Carve Pro enables you to take on bigger projects and complete them faster than ever.

  • Carve pieces bigger than the footprint of the X-Carve Pro using the Easel Pro's Tiling
  •  Air-cooled spindle with ER16 collet is compatible with bits up to 3/8" in
  •  Max cutting speed of 300" in/min

What are the Differences Between the Inventables X-Carve and X-Carve Pro?

Inventables XCarve CNC Machine Inventables XCarve Pro CNC Machine
Model X Carve X Carve Pro
Price $1395 $4250 / $5995
Cutting Area 29.5 x 29.5in2 48 x 24in2 / 48 x 48in2
Machine Footprint 41 x 52 x 22in3 65.75 x 31.6 x 25in3 /
65.75 x 55.75 x 25in3
Machine Weight ~100 lbs ~275lbs / ~300 lbs
Optimized for • Beginner makers
• Small business startups
• Aspiring established businesses
• Established businesses scaling
   up production
Project Applications Small Signs, Home Decor, Art Furniture, Cabinets, Built-Ins,
Large Signs
Accuracy ~0.005" ~0.001"
Spindle 1.25hp (800W)
Makita router
2hp (1,500W) spindle run by
a pre-programmed VFD
Spindle RPM Range 10,000 - 30,000 RPM 12,000 - 24,000 RPM
Gantry Belt drive with Delrin V-wheels X
and Y Precision linear bearings
with acme leadscrew Z
High-precision 25mm ball screws
on X and Y axes linear guides on
all axes, 2x on X and Z axes
Assembly

Unassembled Kit

Semi-Assembled Kit
(Gantry is pre-assembled)
Assembly Time 16 - 18 hrs 2 hrs

What Materials Can I Carve With the Inventables X-Carve Pro?

The Inventables X-Carve Pro is equipped with a powerful 2hp (1.5kW) spindle and pre-programmed VFD (Variable Frequency Drive). This enables X-Carve Pro to carve a wide variety of different materials.

Here is a list of the materials compatible with X-Carve Pro.

Wood & Wood Composites Plastics Non-Ferrous Metals1
Plywood HDPE Aluminum
Hardwoods Delrin®️ Brass
Softwoods Polycarbonate Copper
MDF Acrylic
Corian®️

1 For optimal results in aluminum and non-ferrous metals, lubrication and tools specifically designed for metals are required.

Note: In order to achieve optimal results when carving, proper cut settings and chip removal are required. Inventables continues to test and refine cut settings for materials and will provide updated recommendations in Easel when available.



WHAT'S INCLUDED WITH THE INVENTABLES X-CARVE PRO 4x4?

HARDWARE SOFTWARE OPTIONAL ADD-ONS

• X-Carve Pro CNC Router 4x4
• Controller and Cables
• HMI Control SYSTEM with
   Pause, Resume, and Reset
   Button Controls, Z-Probe
   Connection point, and E-Stop
• Dust Control System
    Dust Shoe
   ◦ Hose Arm
• Z-Probe
• Clamp Set (x2)
• Bits for Planing

• Not Included


TOOLS


• Assembly Tools (8)
     4' ft level
     Allen key set (1.5mm to 6mm)
     Torque wrench
     Metric hex bit set
     Metrick socket set
     17mm wrench
     Square

• Easel Pro 3-Year Subscription

• Fein Vacuum - incredibly
   quiet, lightweight, robust,
   powerful and versatile. Much
   quieter than a standard shop
   canister vacuum, making it
   ideal for cabinet shops,
   makerspaces, libraries and
   homes.
• Dust Deputy - prevents
   filter clogging and suction
   loss by removing dust and
   debris before it ever reaches
   your system’s vacuum or
   filter. Extend the life of your
   vacuum, and save valuable
   time and money!
• Wood Clamp Set

Bits for Cutting and 3D Carving


WHAT'S INCLUDED WITH THE INVENTABLES X-CARVE PRO 4x2?

HARDWARE SOFTWARE OPTIONAL ADD-ONS

• X-Carve Pro CNC Router
• Controller and Cables
• HMI Control SYSTEM with
   Pause, Resume, and Reset
   Button Controls, Z-Probe
   Connection point, and E-Stop
• Dust Control System
    Dust Shoe
   ◦ Hose Arm
• Z-Probe

• Not Included


TOOLS


• Assembly Tools (8)
     4' ft level
     Allen key set (1.5mm to 6mm)
     Torque wrench
     Metric hex bit set
     Metrick socket set
     17mm wrench
     Square

• Easel Pro 3-Year Subscription

• Fein Vacuum - incredibly
   quiet, lightweight, robust,
   powerful and versatile. Much
   quieter than a standard shop
   canister vacuum, making it
   ideal for cabinet shops,
   makerspaces, libraries and
   homes.
• Dust Deputy - prevents
   filter clogging and suction
   loss by removing dust and
   debris before it ever reaches
   your system’s vacuum or
   filter. Extend the life of your
   vacuum, and save valuable
   time and money!
Wood Clamp Set

Bits for Cutting and 3D Carving

WHAT ARE THE TECHNICAL SPECIFICATIONS OF THE INVENTABLES X-CARVE PRO?

TECHNICAL SPECIFICATIONS

4x4:

  • Work Area (X Y Z):48in x 48in x 4in
  • Footprint: 65.75in x 55.75in
  • Weight:300lbs (approx)

4x2:

  • Work Area (X Y Z)48in x 24in x 4in
  • Footprint65.75in x 31.6in
  • Weight275lbs (approx)

FINISH

  • Powder-coated aluminum

SPINDLE & COOLING

  • Spindle Power2hp (1.5kW)
  • VFDPre-Programmed
  • CoolingAir cooled
  • RPM: From 1.5 kW spindle at 8000 - 24000 RPM
  • ColletER16-A with ⅛" and ¼" collets integrated
  • Accuracy: 0.001in

GANTRY

  • Drive SystemHigh-precision 25mm ball screws with linear guides
  • MotorsNEMA-23 with 292 oz-in
  • Gantry Clearance5in

DUST CONTROL

  • IncludesDust shoe, hose, arm
  • Connects ToMost standard vacuum systems

CONTROL

  • ConnectivityUSB
  • ControllerEncased to minimize dust exposure; separate machine interface with Pause, Resume, and Reset button controls, Z-Probe connection point, and E-Stop capabilities

POWER

  • 120VAC +/-10% @ 60Hz +/-5%
  • Not compatible with GFI/GFCI outlets

OPTIONAL SOFTWARE

  • Easel Pro
  • Subscription Length: 3 years
  • Tiling: Seamlessly carve larger than the carvable area
  • Graphics Library: 2 million+ royalty-free graphics

SOFTWARE COMPATIBILITY

  • Fusion360, SolidWorks, AutoCad, VCarve Pro, Aspire, Photoshop, InDesign, Illustrator

CARVABLE MATERIALS

  • Wood/Wood CompositesHardwoods, softwoods, MDF, plywoods, etc.
  • PlasticsHDPE, Delrin®️, polycarbonate, acrylic, Corian®️, etc.
  • Non-Ferrous Metals**Aluminum, brass, copper, etc.
  • Import File TypesG-Code, SVG, or DXF files from any software

FAQ


Hardware


What is the footprint of the X-Carve Pro?

  • 4x4 model: 65.75 x 55.75 x 25in3
  • 4x2 model: 65.75 x 31.6 x 25in3

What is the weight of the X-Carve Pro?

  • 4x4 model: Approx. 300lbs
  • 4x2 model: Approx. 275lbs

Is there an expander kit to turn my 4x2 into a 4x4?

Currently there is no offering for an expander kit to turn your 4x2 into a 4x4.

Is there an expander kit to turn my X-Carve into and X-Carve Pro?

Currently there is no offering for an expander kit to turn your X-Carve into an X-Carve Pro.

  • The X-Carve and X-Carve Pro are two very different CNC machines. The X-Carve uses a router and belt drive system, while the X-Carve Pro has an included spindle and uses ball screws and linear guides. While it’s not possible to expand your X-Carve to an X-Carve Pro, many customers are looking forward to running both machines out of their shop.

What is the maximum size material that can be carved (length, width, thickness)?

The maximum size material that can be carved is infinite feet long, 4ft wide, and 4 inches thick.

Can I carve metal with it?

You can carve aluminum and other non-ferrous metals.

  • For optimal results in aluminum and non-ferrous metals, lubrication and tools specifically designed for metals are required.

What materials can I carve?

The Inventables X-Carve Pro can carve plywood, hardwoods, softwoods, and MDF. It can carve plastics, including HDPE, Delrin®️, polycarbonate, acrylic, and Corian®️.* It can also carve Non-ferrous metals, including aluminum, brass, copper, etc.

  • For optimal results in aluminum and non-ferrous metals, lubrication and tools specifically designed for metals are required. *In order to achieve optimal results when carving, proper cut settings and chip removal are required. Inventables continues to test and refine cut settings for materials and will provide updated recommendations in Easel when available.

How is the spindle cooled?

The spindle is air-cooled for easy setup and use.

Can I use my own spindle?

We do not recommend or support the use of your own spindle. The included 2hp (1.5Kw) spindle arrives ready to work with pre-programmed VFD (variable frequency drive).

Can I attach a laser?

Inventables does not have any plans down the line to support anything besides a router head for X-Carve Pro.

  • There are some people making these modifications to their machines but they are considered unsupported upgrades, are not covered by and will likely void the 1-year limited warranty that comes with X-Carve Pro.


Software


Can I import files from another program?

Yes, as long as your program can export standard G-Code, SVG, or DXF files, the X-Carve Pro will work with other CAD/CAM software options.

Can I run Easel Pro on multiple machines?

Yes. With the Machine Profiles feature, you can move your computer from machine to machine.

Do I need Internet access to use Easel and X-Carve Pro?

Internet access is required to load and save Easel projects. Internet access is not required to work with a project once loaded or to connect to your machine and carve a project. If you do make changes to an Easel project while working offline, you will need to re-connect to the Internet to save them before closing the tab/window that the project is running in.

Will I be automatically billed after my 3-year upgrade to Easel Pro runs out?

No, you will not be automatically billed. Instead, we will send you a reminder so you can update your payment method and avoid disrupting your subscription.

What happens to my Easel Pro account after 3 years?

When your 3 years of included Easel Pro runs out, you will need to have a valid payment method stored on your account for it to renew. Otherwise, your account will become an Easel Free account. We do not delete or destroy any projects, so if that happens (accidentally or on purpose), you'll just need to enter a valid payment method to be restored to an Easel Pro experience again.

Can I test out Easel Pro before purchasing the X-Carve Pro?

A free 30-day trial of Easel Pro can be accessed via sign up here.


Shipping & Setup


How will the X-Carve Pro be delivered?

It will ship via LTL freight in several boxes on a pallet with lift gate service included through our carrier. The size of the pallet is estimated around 72" x 48" x 50".

How much will shipping cost?

Shipping for the X-Carve Pro alone has a flat rate of $480.52 for the lower 48 states. Shipping to Alaska is $1205.16 and Hawaii is $1012.30. Additional shipping fees will apply for US Territories.

What size workbench do you recommend for the machine?

We recommend 6’x6’ for the 4x4 and 6’x3’ for the 4x2.

What is included with my X-Carve Pro order?

Your X-Carve Pro bundle includes 1 year limited warranty, controller, external controller (with start, stop, pause buttons), dust control system (hose, shoe, and arm), Z-probe, (2), a planing bit, and assembly tools (4ft level, allen key set, torque wrench, metric hex bit set, metric socket set, 17mm wrench, square).

How long does it take to assemble the X-Carve Pro?

It takes less than 2 hours to assemble the X-Carve Pro.


Billing



I need a different payment method (purchase order, split payments, etc.). What other options do you offer?


Please contact support@matterhackers.com to inquire about other payment methods we may accept.


What if I order and need to cancel?


Please email us at support@matterhackers.com or call us at (800) 613-4290 (Mon - Fri, 9AM - 5PM PST) and our Customer Success team will assist you with your order.


Do you offer discounts for purchasing multiple X-Carve Pros?


Please contact support@matterhackers.com to inquire about any bulk purchase, EDU, military, government, etc. discounts we may offer on particular products.


When will my credit card be billed?


Your credit card will be billed once you place your order.


Where can this be shipped?


Currently we only ship to US addresses, including US territories and military bases.


Could I add an extended warranty later?


Extended warranties can be added no later than 10 months from the date of purchase for the X-Carve Pro.
