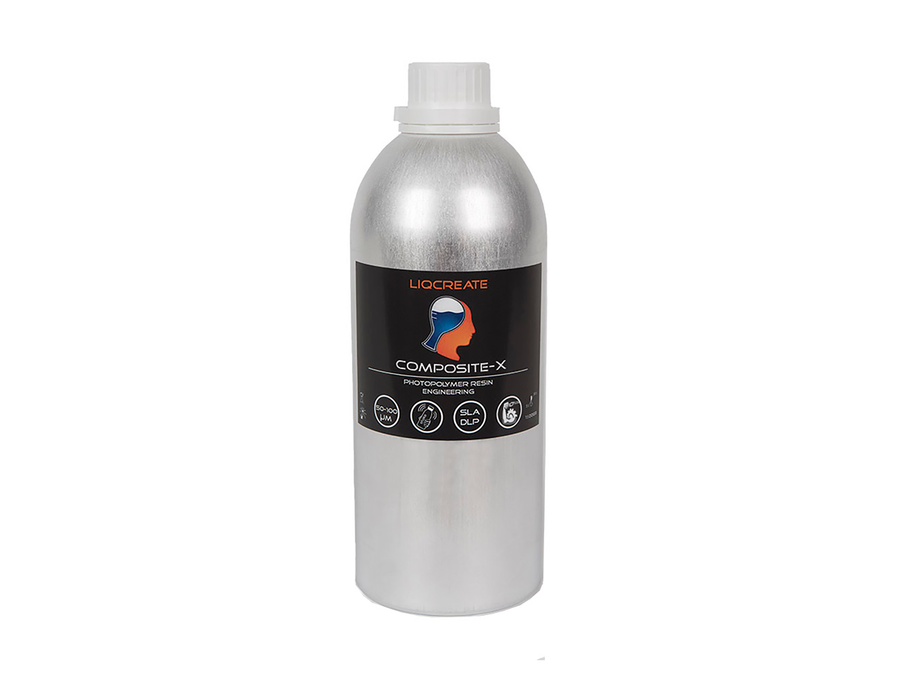

Liqcreate Liqcreate Resin for SLA / DLP / MSLA 3D Printers - Composite-X (1.5kg)
Liqcreate Composite-X is an extremely rigid, high-performance nano-micro composite resin designed for demanding engineering applications. With a flexural modulus exceeding 9000 MPa and excellent chemical resistance, this material delivers professional-grade strength for rapid tooling, wind tunnel testing, and industrial prototyping on SLA, DLP, and LCD 3D printers.
- Exceptional stiffness with flexural modulus over 9000 MPa for demanding structural applications.
- High flexural strength of 150-170 MPa ensures durability under mechanical stress.
- Nano-reinforced composite formula provides superior strength-to-weight ratio.
Liqcreate Composite-X
Nano-Reinforced Composite Resin
Liqcreate Composite-X engineering resin delivers exceptional strength with 9000+ MPa flexural modulus. Perfect for rapid tooling and industrial 3D printing.
Key Features of the Liqcreate Composite-X:
- Compatible with SLA, DLP, and LCD/MSLA printers using 385-420nm wavelengths.
- Excellent chemical resistance for harsh industrial environments.
- Low shrinkage formula maintains dimensional accuracy in precision parts.
- Enhanced properties available through optional thermal post-curing.
Ultra-High Stiffness Performance
With a flexural modulus exceeding 9000 MPa, Composite-X ranks among the stiffest 3D printing resins available. This exceptional rigidity makes it ideal for structural components, tooling, and applications where dimensional stability under load is critical.
- 9000+ MPa flexural modulus outperforms standard resins.
- Maintains shape under mechanical stress and temperature variations.
- Perfect for load-bearing components and precision tooling.
Nano-Reinforced Composite Technology
The advanced nano-micro composite formula combines high strength with excellent chemical resistance. This reinforced structure delivers professional-grade performance while maintaining the precision and surface quality expected from resin 3D printing.
- Nano-reinforced particles enhance mechanical properties.
- Superior chemical resistance for industrial environments.
- Low shrinkage maintains dimensional accuracy.
Versatile Industrial Applications
Engineered for demanding professional use cases, including rapid tooling, wind tunnel testing, and industrial prototyping. The material's exceptional properties make it suitable for functional parts that must withstand real-world operating conditions.
- Ideal for rapid tooling and manufacturing aids.
- Excellent for wind tunnel models and aerospace applications.
- Suitable for functional prototypes requiring high strength.
HOW TO USE
- Shake the bottle for at least 60 seconds before use.
- Allow the resin to rest for 10 minutes after shaking to let air bubbles escape before pouring it into the resin vat.
Note: This resin can be poured back into the bottle after use; however, it is important to check for residual pieces of polymer before doing so. Always take protective measures when handling Liqcreate resins. For more details on safety, please check the attached Technical Data Sheet.
TECHNICAL SPECIFICATIONS
- Container: Bottle
- Net weight: 1.5kg
- Wavelength: 385 - 420nm
- Density: 1.52 g/cm3
- Applications:
- Aerospace & other aerodynamic applications
- Rapid tooling
- Industrial parts
- Functional parts
COMPATIBILITY
The following compatible 3D printers and settings are available for Liqcreate resins, which are internally tested by Liqcreate and industrial partners:
- atum3D DLP Station 5
- Shining3D AccuFab-L4K
- Ackuretta Freeshape 120
- Prusa SL1
- 3DWare Zeta 4K
- Anycubic Photon
- Anycubic Photon Mono
- Anycubic Photon Mono 4K
- Anycubic Photon Mono SE
- Anycubic Photon Mono X
- Anycubic Photon M3
- Anycubic Photon M3 Plus
- Anycubic Photon D2
- Elegoo Mars
- Elegoo Mars 2
- Elegoo Mars 3
- Elegoo Saturn
- Elegoo Saturn 2
- Elegoo Saturn 3
- Phrozen Sonic Mini 4K
- Phrozen Sonic Mighty 4K
- Phrozen Sonic Mini 8K
- Peopoly Phenom L
- Zortrax Inkspire
- Zortrax Inkspire 2
- Peopoly Phenom Prime
- Creality Halot-Sky
- Creality LD-002H
- Nexa3D XiP
- Asiga Freeform PICO
- Asiga Max UV & Pro 4K
- 385 – 420nm MSLA, SLA & DLP printer
