High definition 3D printing

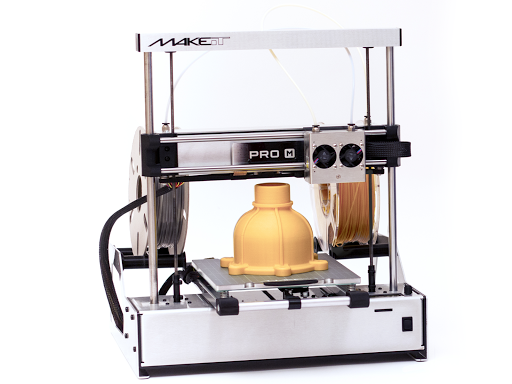

The MAKEiT PRO-M is the ultimate high definition, dual extrusion 3D printing machine. We've used the original PRO model for almost a year and are very excited to offer the new PRO-M to our customers. Using the MAKEiT PRO, our print solutions team achieved some of the lowest layer heights in printed parts that we have ever seen. We have successfully printed at 50 microns, which takes definition and detail to a new level. Take a look at the printed frog below which was printed on the MAKEiT PRO at .05mm.
Frog printed at 50 microns (layers are almost invisible!)
The ability to create anything
The MAKEiT PRO-M has a build area of 9.5x8x13 inches. This printer excels at printing objects which cannot normally be printed on FFF and FDM 3D printers. Take a look at the printed threaded screw below which is much smaller than the size of a quarter.
Don't Lose Valuable Production Time
Are you ready to be a MAKEiT PRO-M owner? Your MAKEiT PRO-M includes one year of downtime coverage, which means if your printer goes down, MAKEiT will cover any lost print time by printing your parts until you are back online-- you cover material costs only. But wait, there is more...your MAKEiT PRO-M purchase comes with a one month subscription to MAKEiT Factory Support, which includes remote file setup and optimization, personal training, and overflow manufacturing services.
What's New in the PRO-M?
- New steel Y-axis bearing mounts replace 3D printed ABS plastic for enhanced durability and precision.
- New CNC machined aluminum Z-Axis rod/motor mounts replace 3D printed PETG for enhanced durability and precision.
- 3D printed polycarbonate parts replace 3D printed PETG parts in the feeder housing.
- Premium quality Misumi shaft and bearing on key locations for smoother, quieter motion and enhanced precision.
- Improved heat bed with stronger magnets and dual-circuit heater system for faster heating and lower energy consumption.
- Changed build plate from nickel-plated steel to spring stainless steel to allow strong hold and some flexibility of the plate to remove prints.
- Increased modularity and accessibility of components to aid in easier maintenance and operation.
Fast Facts
- Build Area: 200mm x 240mm x 330mm (7.9" x 9.5" x 13")
- Print quality / layer height: ≥50 microns (0.05mm or 0.002")
- Positioning precision: X axis: 10 microns (0.0003937", 0.01mm)
- Filament diameter: 1.75 mm (0.069")
- Nozzle size: factory default 0.4 mm (0.015").
- MAKEiT printers work with nozzle sizes ranging 0.25mm -1 mm.
- Build platform: heated platform made of cast aluminum with embedded magnets
- Tested printing materials: ABS, PLA, HIPS, Laywood, T-glass, Nylon, Laywood, NinjaFlex
- Display: 4 x 20 character LCD display
- Chassis: powder coated 1/8” thick aluminum
- X, Y, and Z Axis bearings: linear axis ball bearings
- Stepper motors: 1.8° step angle
- Extruder module: exchangeable magnetic snap-on module
- Build plate: removable zinc coated steel plate with BuildTak film
- Product weight:7.26 kg (16 lbs)
- Product dimensions: 41 x 33 x 45cm (16.14 x 13 x 17.72in)
- Moving platform: 21 x 37cm (8.27 x 14.57in)
- Software: MatterControl
- Operating systems: Windows, OSX, Linux
- Connectivity: USB, SD card
- AC input: 100-240v, 50-60 hz
- Built-in power supply: 450W power output, 80 plus bronze level efficiency
- Assisted bed leveling: The printer will probe and determine what adjustments are to be made by the user to calibrate in X, Y, and Z.
Why Buy From MatterHackers
At MatterHackers we pride ourselves on offering friendly service, advice and support. Our prices are always the lowest in the industry when you factor in our free shipping for every item on the MatterHackers site (including 3D printers). Most of all, our staff is friendly and knowledgeable. They have been 3D printing for several years now and are happy to answer your 3D printing questions. Have a question about the amazing capabilities of your new MAKEiT PRO-M? No problem. Feel free to give us a call. Additionally, each MAKEiT printer ships with MatterControl Pro - AKA the best 3D printing software you can find. MatterControl is the most intuitive, feature rich 3D printing software and includes MatterSlice - the fastest and most accurate slicing engine on the market. MatterControl Pro comes with lifetime phone and email service and support.
In short, buying a 3D printer from MatterHackers is a holistic experience. We are here to partner with you through every step of your 3D printing journey. Additionally, we have all of the PLA, ABS, and Specialty Filament that you could ever need to design anything you can imagine.
Questions about your MAKEiT PRO-M? Check out our forum!
