Revopoint Revopoint INSPIRE 2 Standard Edition
The Revopoint INSPIRE 2 combines infrared structured light and an infrared multi-line laser in one 190 g handheld scanner. Structured light captures faces, bodies, and detailed objects marker-free and in full color, while laser mode reads shiny and dark surfaces without scanning spray. It reaches up to 0.05 mm single-frame accuracy on objects from 20 mm to 2 m, and scans from a laptop or a phone, indoors or in shaded daylight.
- Two scanning technologies in one scanner: infrared structured light and 11-line infrared laser
- Up to 0.05 mm single-frame accuracy and 0.03 mm precision
- Full-color capture with a 1280 x 800 RGB camera
- Marker-free face, body, and feature-rich object scanning
- Outdoor scanning up to 20,000 lux in shaded areas, with free Revo Scan 6 for PC, Mac, Android, and iOS
Jump To:
Two Scanning Technologies, One 190 g Scanner
The Revopoint INSPIRE 2 combines infrared structured light and an infrared multi-line laser in a single handheld scanner, so you are not stuck picking one technology and living with what it cannot do. Structured light captures faces, bodies, and feature-rich objects marker-free and in full color. Laser mode takes over on the parts structured light struggles with: shiny, dark, and reflective surfaces, scanned without spray.
It reaches up to 0.05 mm single-frame accuracy on objects from 20 mm up to 2 m, weighs 190 g, and runs from a laptop over USB-C or Wi-Fi 6, or from your phone with the mobile kit. Outdoor filters let it work in shaded daylight up to 20,000 lux, which most desktop scanners cannot do at all.
| 0.05 mm Single-frame accuracy |
0.03 mm Single-frame precision |
190 g Handheld weight |
Full color RGB texture capture |
20,000 lux Outdoor scanning |
Scan Modes
Switch modes in software to match the object in front of you.
| Mode | What it does | Best for | Speed |
|---|---|---|---|
| Infrared Structured Light | Full-field capture with color texture, marker-free on objects with surface features | Faces, bodies, sculptures, shoes, and detailed organic shapes | 18 fps |
| Infrared Multi-Line Laser | 11 parallel laser lines that read surfaces structured light cannot | Shiny, dark, and reflective parts, scanned without spray | 90 fps with GPU, 40 fps with CPU |
Laser mode tracks using markers. Structured light mode also tracks surface features, so many objects scan marker-free.

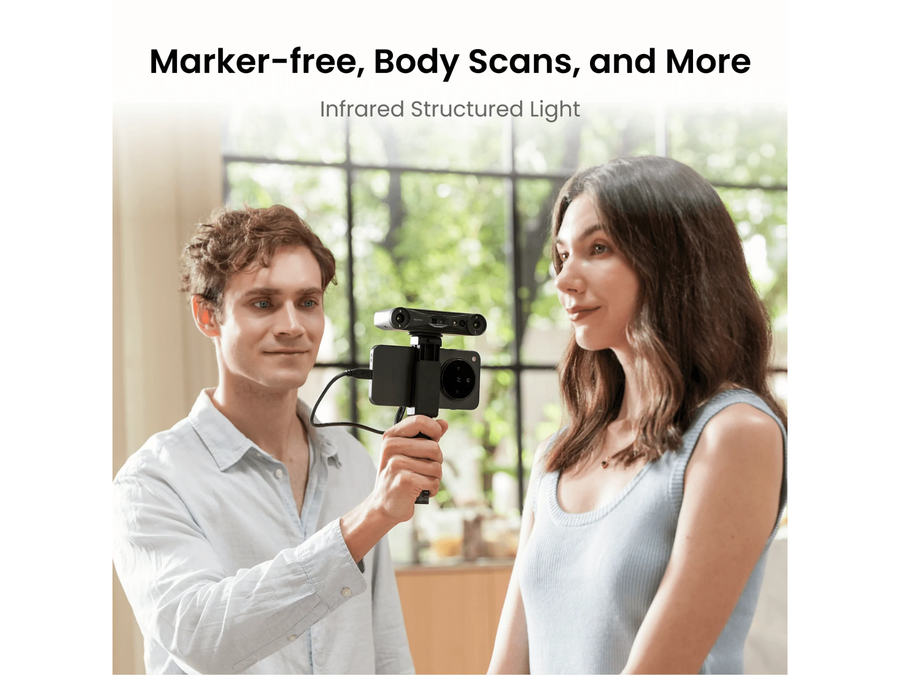

Color Capture and Marker-Free Scanning
A 1280 x 800 RGB camera records true-to-life color alongside the geometry, so scans arrive ready for 3D printing in color, game assets, or archival records rather than as bare grey meshes. On objects with enough surface detail, feature tracking handles alignment on its own, which means no markers to place and no markers to remove from the final model.
- 1280 x 800 RGB camera for full-color texture
- Feature, marker, and global marker tracking
- Marker-free scanning of faces, bodies, and detailed objects
- Photorealistic 3DGS modeling and AI-powered post-processing in Revo Scan 6

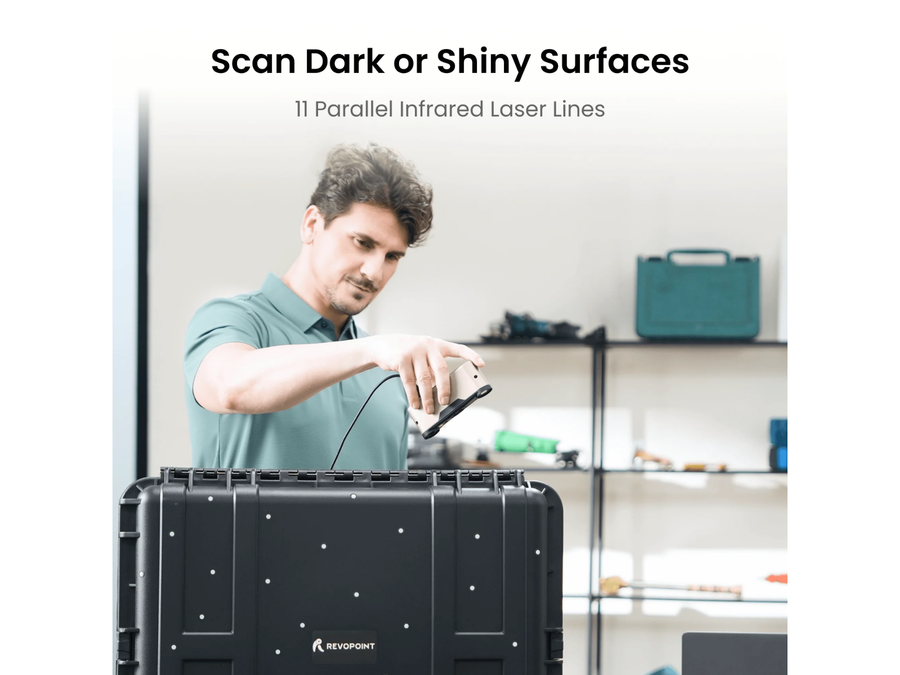

Laser Mode for Shiny and Dark Parts
Black plastic, machined metal, and glossy finishes are where most affordable scanners give up and reach for developer spray. The INSPIRE 2's 11-line infrared laser reads those surfaces directly, so a difficult part goes straight from the bench to the scan without a coating that has to be cleaned off afterward.
- 11 infrared parallel laser lines
- Scans reflective and dark surfaces without spray
- Up to 90 fps with GPU acceleration

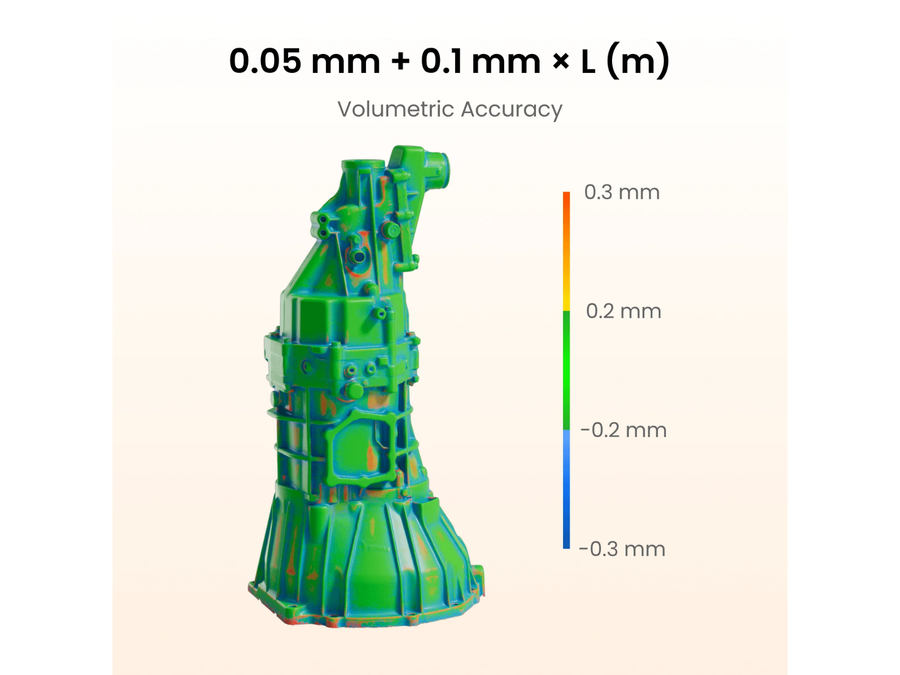

- Volumetric accuracy of 0.05 mm + 0.1 mm x L (m)

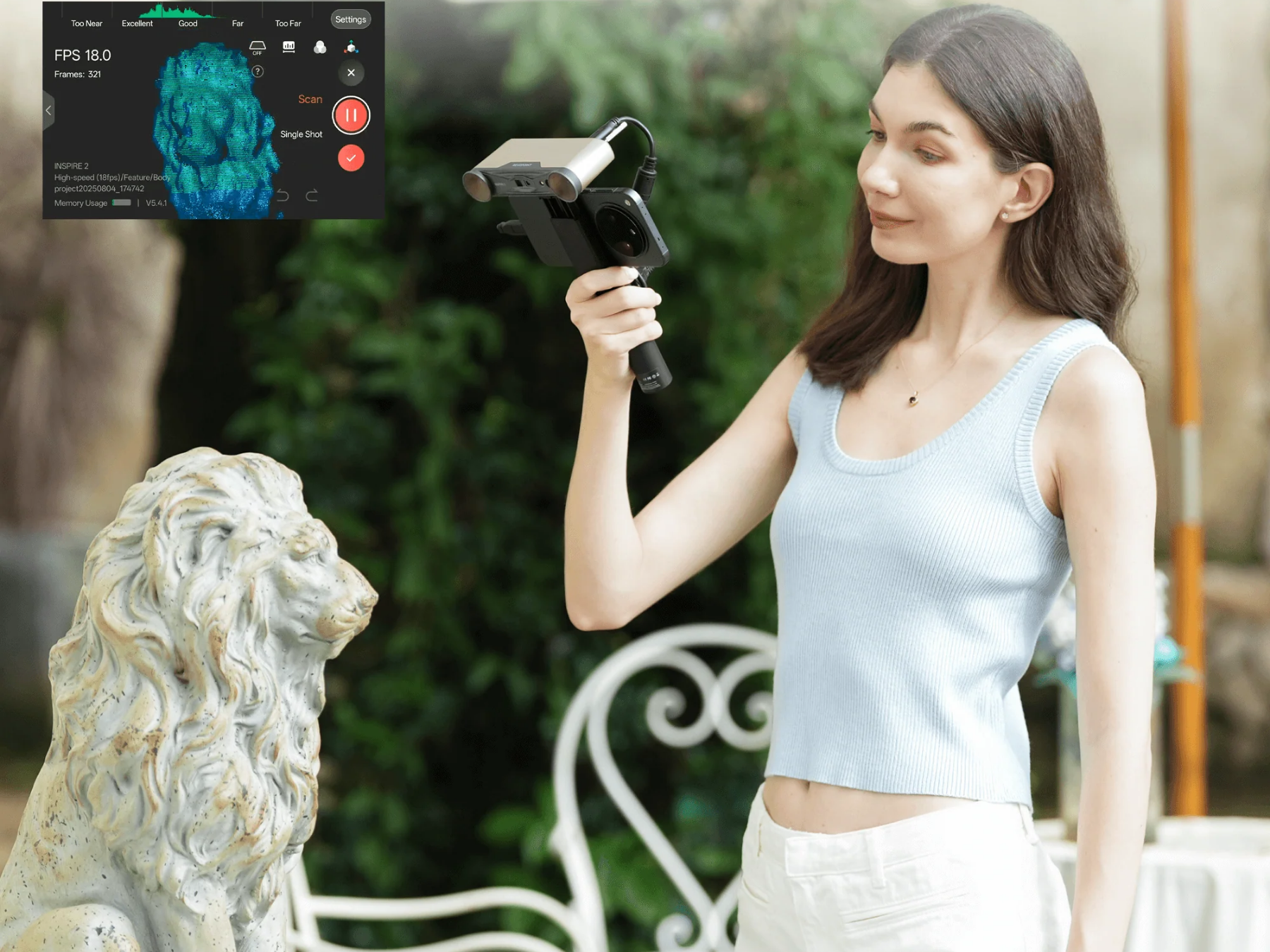

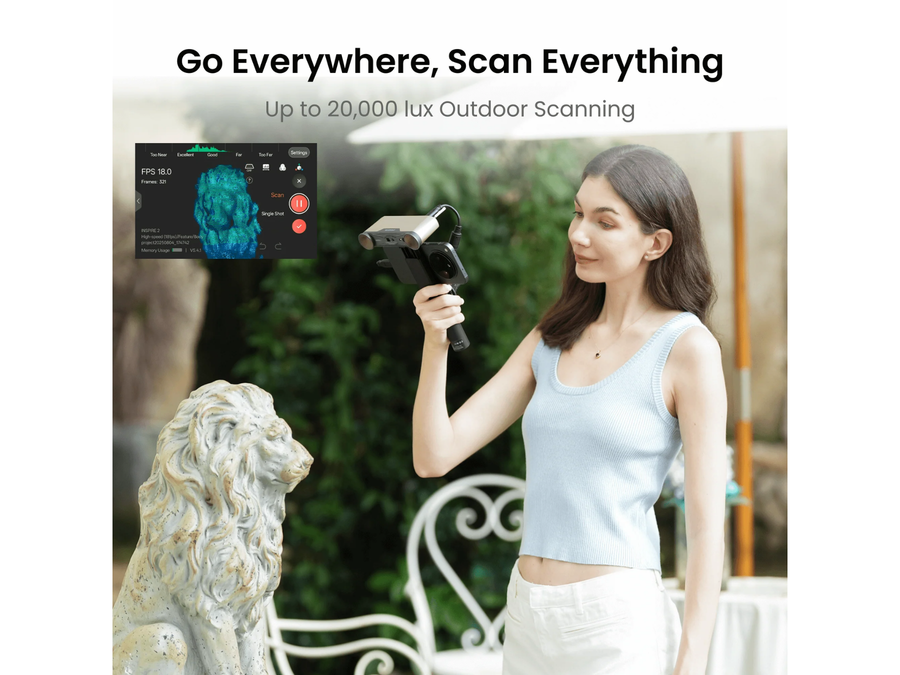

Take It Outside
Included outdoor filters let the INSPIRE 2 work in shaded daylight up to 20,000 lux, so you can scan a motorcycle part in the driveway or a sculpture in a courtyard instead of carrying it back to a controlled room. Pair it with a phone and power bank using the mobile kit and the whole setup fits in a bag.
- Outdoor scanning in up to 20,000 lux, in shaded areas
- Outdoor working distance of 150 to 250 mm
- Outdoor filters included

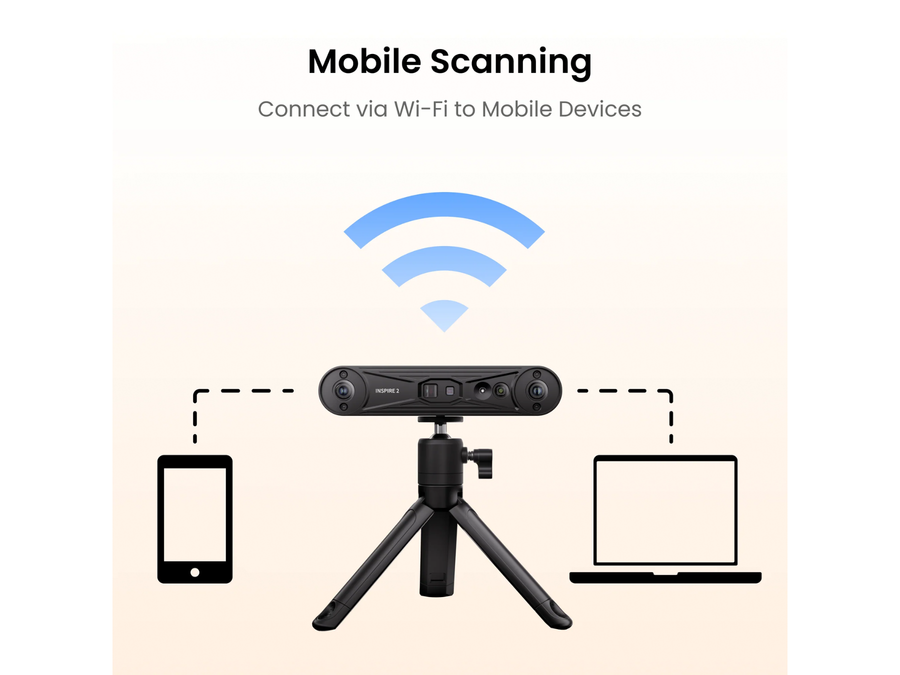

- Runs from a phone with the mobile kit, or from a laptop over Wi-Fi 6
Revo Scan 6, on Desktop or Phone

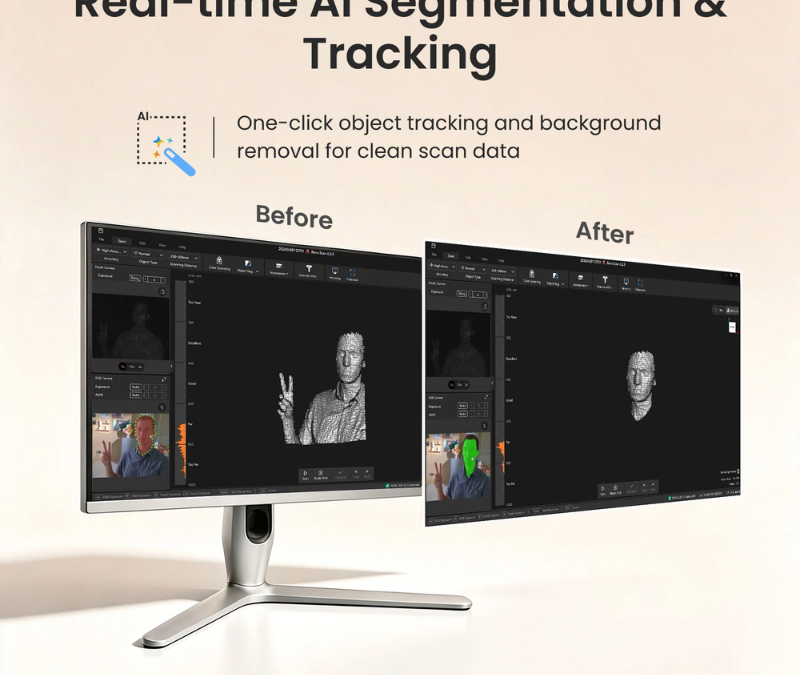

Revo Scan 6 is free and runs on Windows, macOS, Android, and iOS, so you can scan tethered to a workstation or entirely from a phone. One-click AI tracking isolates your subject and filters out background clutter, and Revo Mirror casts the PC scanning view to your phone so you can watch coverage while you move around the object. Export to PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, or Splat.
- Free Revo Scan 6 for Windows, macOS, Android, and iOS
- One-click AI tracking removes background clutter
- Revo Mirror screen casting from PC to phone
- 1.5x and 2x optical zoom, with a 30% larger field of view than the original Inspire
Standard or Premium?
Both editions include the same scanner. Premium adds the mobile kit, so you can scan away from a computer.
|

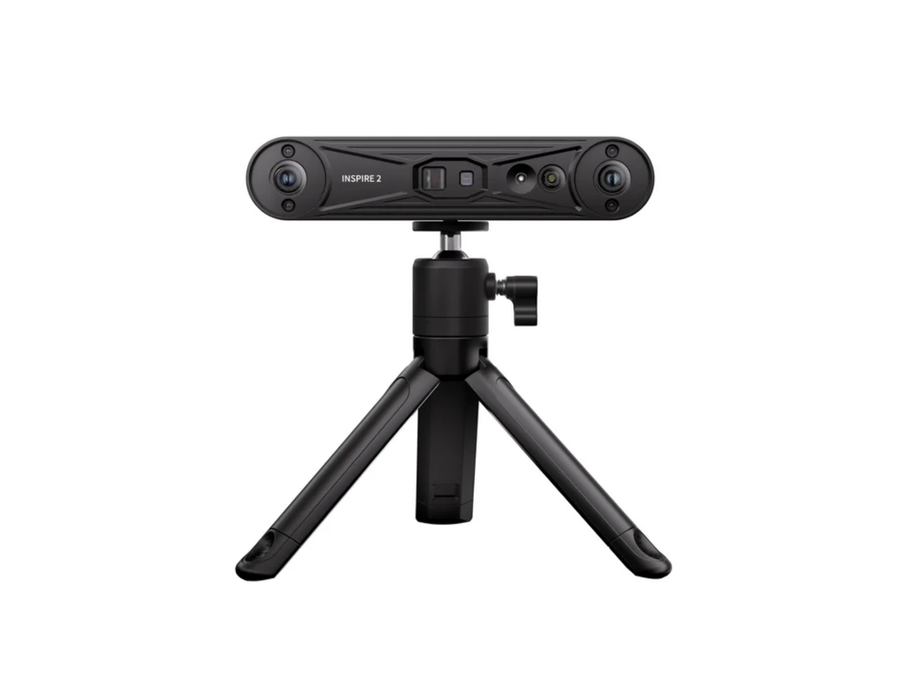

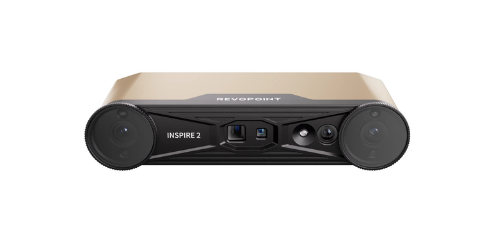

Standard Edition INSPIRE 2 scanner, tripod, mini turntable, USB-C cable (2 m), 200 reflective markers, outdoor filters, and calibration board. Best for desktop and bench scanning. |

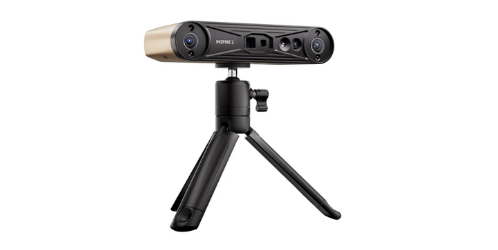

Premium Edition Everything in Standard, plus Mobile Kit (II): phone holder, 4000 mAh power bank, and quick release plate, with a 2-in-1 mobile cable. Best for scanning on the move and outdoors. |
Both editions are also available bundled with a 1-year license of Revo Design, Revopoint's scan-to-CAD software, if you plan to turn scans into editable CAD models.
Frequently Asked Questions
What size objects can it scan?
From 20 x 20 x 20 mm up to 2 x 2 x 2 m, at a working distance of 200 to 400 mm indoors or 150 to 250 mm outdoors.
Do I need markers?
Laser mode tracks using markers, and 200 reflective markers are included. Structured light mode also tracks surface features, so objects with enough detail scan marker-free.
Can it scan people?
Yes. Structured light mode is built for marker-free face and body scanning. Follow Revopoint's guidance for laser mode, and note that laser safety goggles are available as an accessory.
Does it capture color?
Yes, with a built-in 1280 x 800 RGB camera.
Can it scan shiny or black parts?
That is what laser mode is for. It reads reflective and dark surfaces without scanning spray, which structured light alone cannot do reliably.
Can I use it outdoors?
Yes, in shaded areas up to 20,000 lux, using the included outdoor filters.

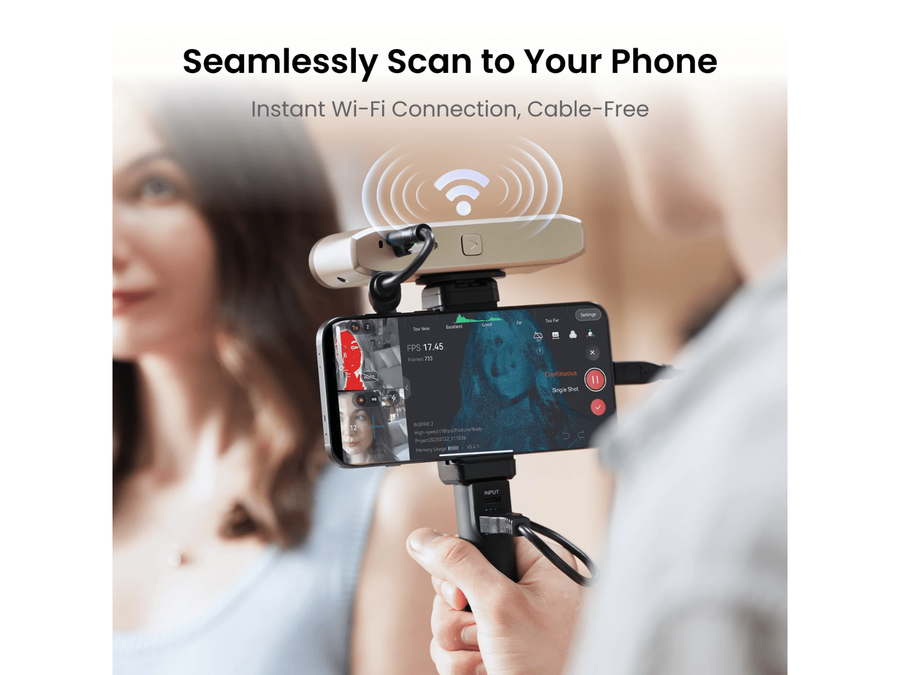

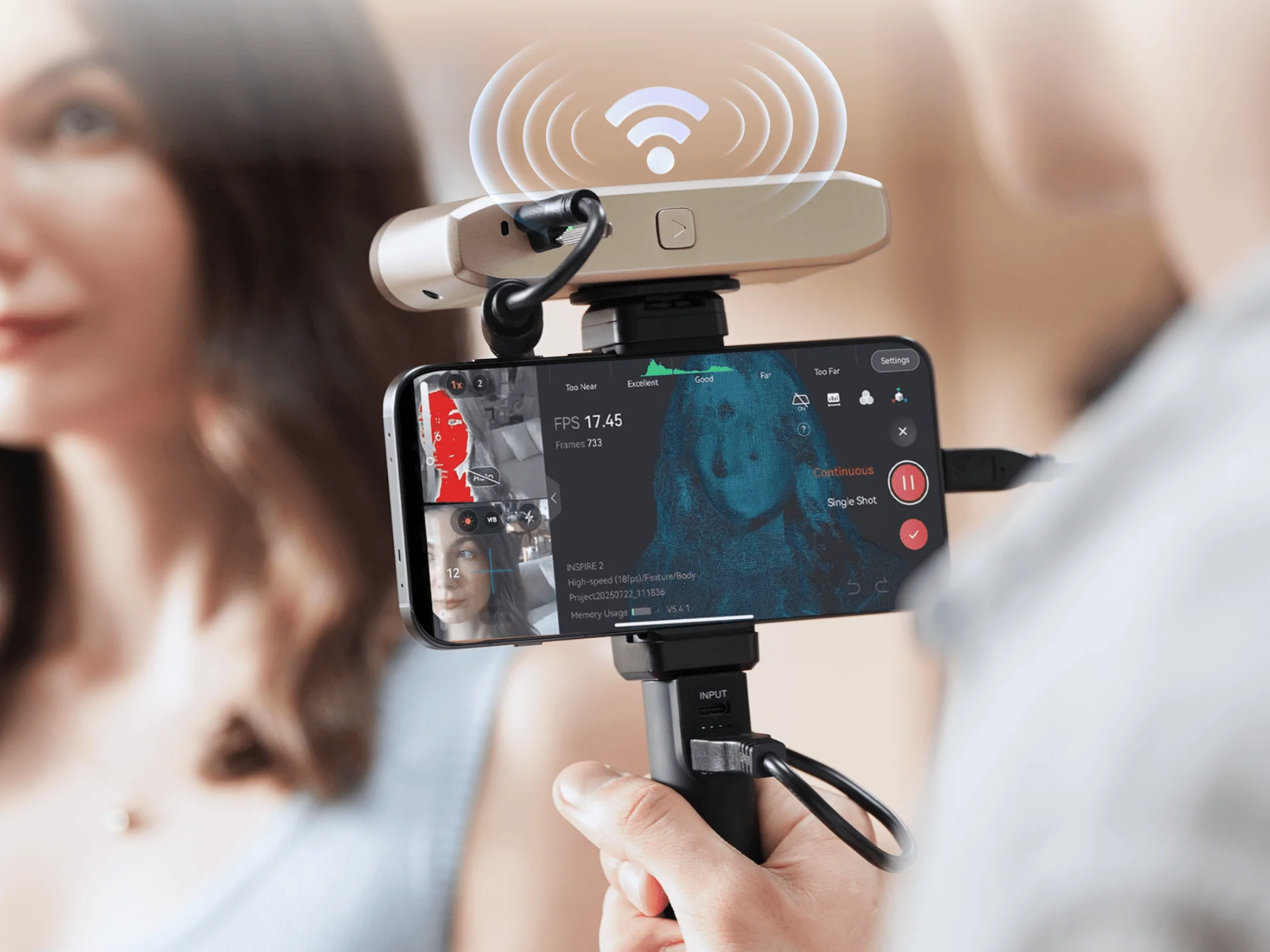

Can I scan with my phone?
Yes. Revo Scan 6 runs on Android 11 or later and iOS 14 or later. Android phones need a Snapdragon 8 Gen 1, Dimensity 9000, or Kirin 9000S class processor with 12 GB of RAM. On iOS, iPhone X or newer with 4 GB of RAM works, and iPads from the 10th generation. The Premium Edition's mobile kit holds the phone and powers the scanner.
What computer do I need?
For Windows, Revopoint lists a minimum of an Intel i7 13th Gen or AMD Ryzen 7 5800 with 16 GB of RAM and an NVIDIA RTX 3060 (8 GB). For macOS, an M1 Pro, Max, or Ultra with 16 GB. More RAM and a stronger GPU speed up processing noticeably.
Does it have a battery?
The scanner draws power over USB-C at DC 5V 1A from your computer or a power bank. The Premium Edition includes a 4000 mAh power bank.
Technical Specifications
| Specification | Details |
|---|---|
| Technology | Dual-camera infrared structured light and infrared multi-line laser |
| Single-frame accuracy | Up to 0.05 mm |
| Single-frame precision | Up to 0.03 mm |
| Volumetric accuracy | 0.05 mm + 0.1 mm x L (m) |
| Fused point distance | Up to 0.1 mm |
| Scan speed | Structured light 18 fps; laser 90 fps with GPU, 40 fps with CPU |
| Working distance | 200 to 400 mm indoors, 150 to 250 mm outdoors |
| Single capture area | 130 x 129 mm at 200 mm, up to 293 x 257 mm at 400 mm |
| Field of view | 43° x 35°, with 1.5x and 2x optical zoom |
| Scan object size | 20 x 20 x 20 mm to 2 x 2 x 2 m |
| RGB camera | 1280 x 800 |
| Tracking | Feature, marker, and global marker |
| Ambient light | Up to 20,000 lux outdoors, in shaded areas, with outdoor filters |
| Connectivity | USB-C for data and power, Wi-Fi 6, Bluetooth 4.1 |
| Power | DC 5V 1A over USB-C, from a computer or power bank |
| Software | Revo Scan 6 (free) for Windows, macOS, Android, and iOS |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
| Dimensions | 53 x 27 x 132 mm |
| Weight | 190 g |
Recommended Computer
- Windows minimum: Intel i7 13th Gen or AMD Ryzen 7 5800, 16 GB RAM, NVIDIA RTX 3060 (8 GB)
- Windows recommended: Intel i9 12th Gen or better, 64 GB RAM, NVIDIA RTX 4060 (8 GB) or better
- macOS minimum: M1 Pro, Max, or Ultra with 16 GB RAM; M2 or M3 Pro, Max, or Ultra with 24 GB recommended
