Revopoint Revopoint Revo Measure Personal Edition (1 PC) 1-Year License
Revo Measure is professional 3D metrology and GD&T software that compares scan data against your CAD model and reports the result. Align a point cloud or mesh, map deviation in color, check 23 GD&T controls, and export a PDF or JSON inspection report. Its accuracy is verified by PTB, Germany's national metrology institute, and it works with Revopoint scanners and third-party scan data.
- 23 GD&T and measurement controls, including flatness, position, and runout
- Color-mapped deviation analysis and cross-section measurement
- One-click feature recognition and template measurement for repeat parts

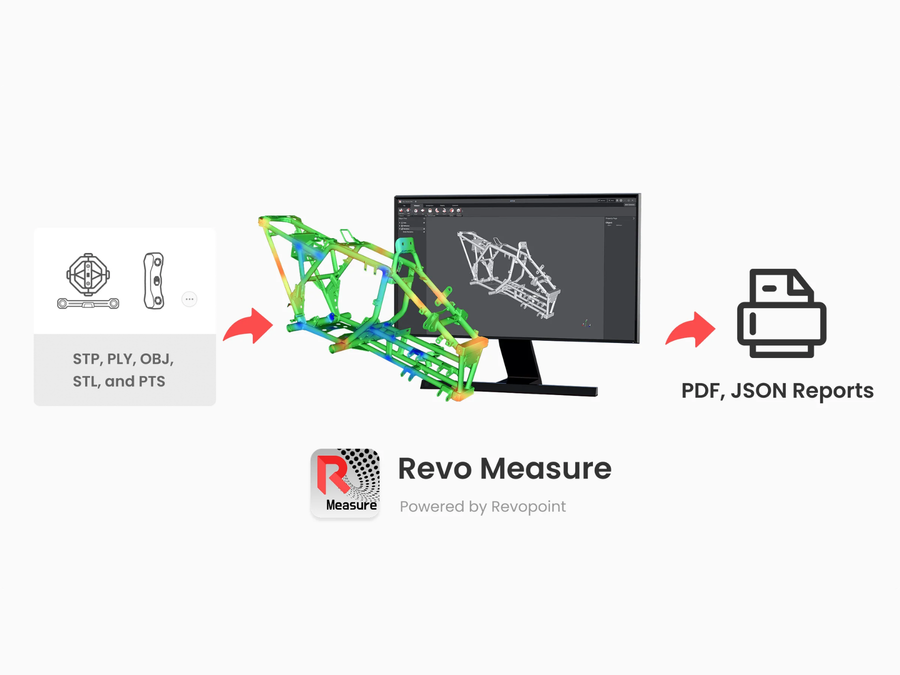

- Imports point clouds, meshes, and 20+ CAD formats including STEP, IGES, SolidWorks, and CATIA
- Exports PDF reports for customers and JSON for your own systems
Jump To:
Turn Scan Data Into Inspection Results
Revo Measure is professional 3D metrology software that answers the question every scan eventually raises: is this part in tolerance? Import a point cloud or mesh, align it to the original CAD model, and Revo Measure reports the deviation, checks your GD&T callouts, and exports a report you can hand to a customer or file with the job.
Its accuracy has been verified by PTB, Germany's national metrology institute. It reads scan data from Revopoint scanners and from third-party scanners that export PLY, and it opens native CAD files from SolidWorks, CATIA, Inventor, Solid Edge, and more, along with neutral formats like STEP and IGES.
| 23 GD&T controls |
PTB Verified accuracy |
20+ CAD import formats |
PDF + JSON Report export |
15 days Free trial |
See Every Deviation at a Glance

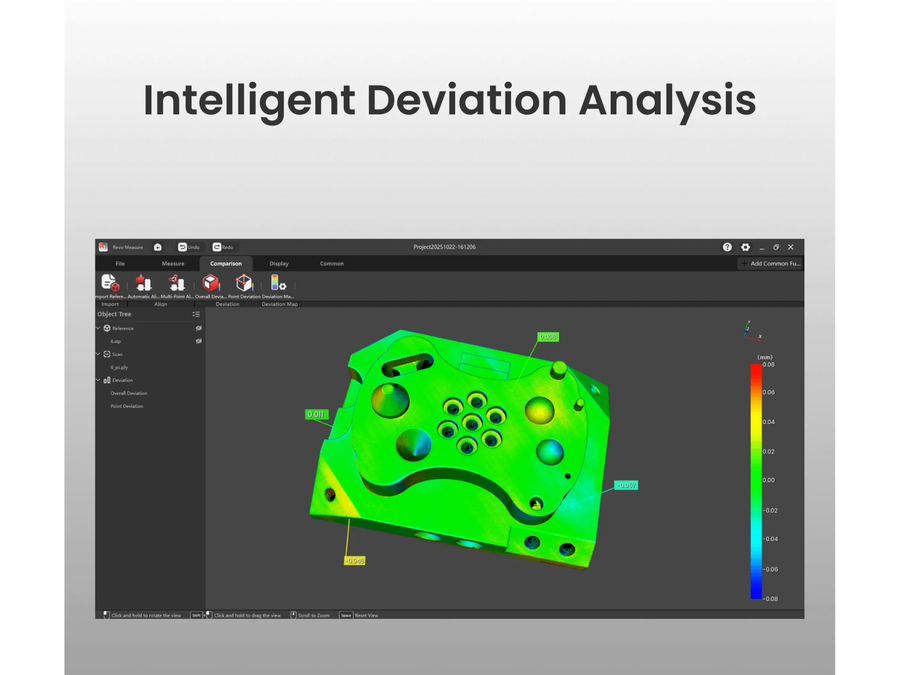

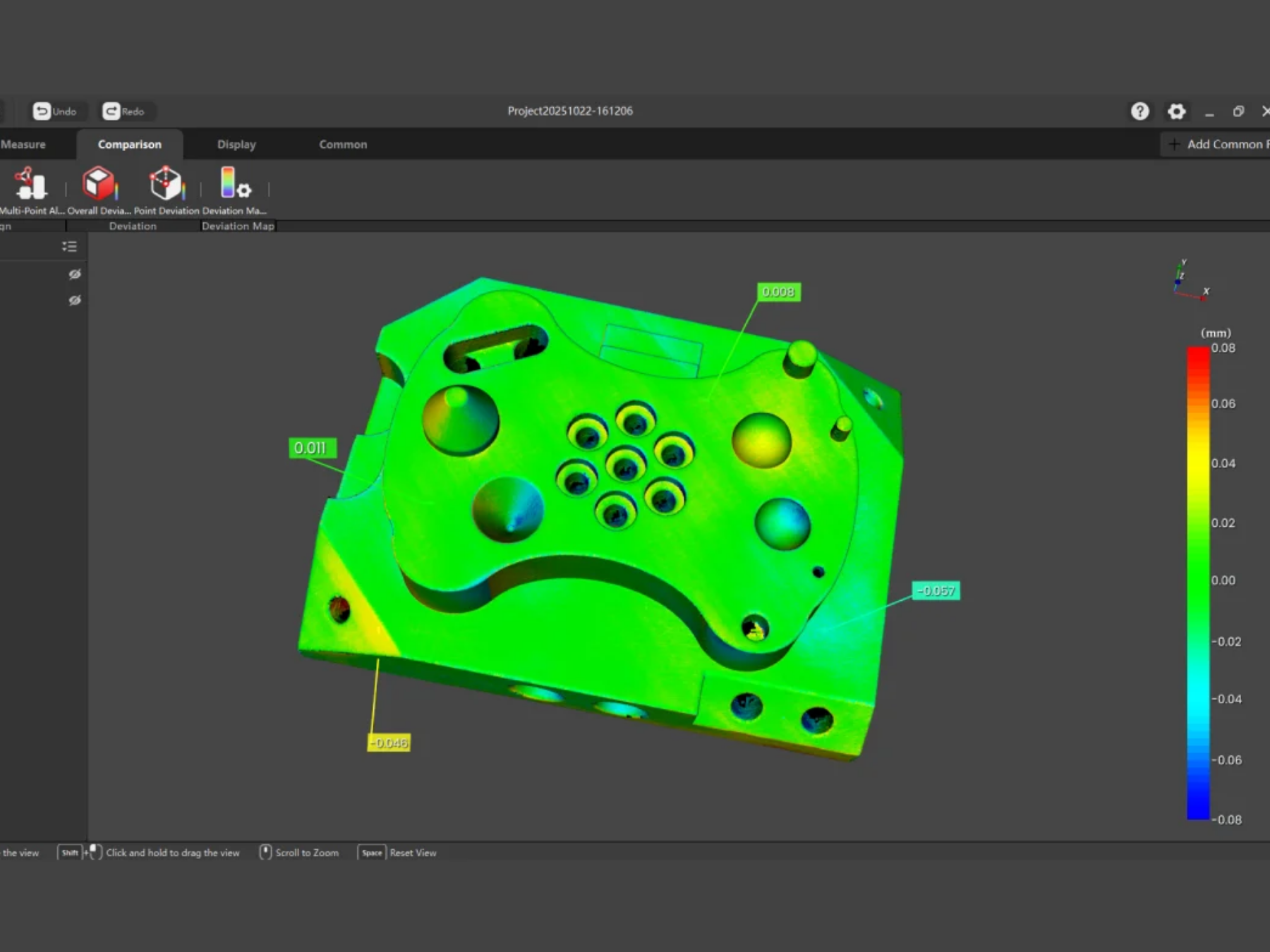

Align your scan to the reference model and Revo Measure maps the difference in color across the whole part, so warped surfaces, shrinkage, and machining errors show up immediately instead of hiding between spot checks. Cut a cross section anywhere to inspect wall thickness and internal geometry, and measure directly on that section.
- Intelligent deviation analysis with color-mapped error visualization

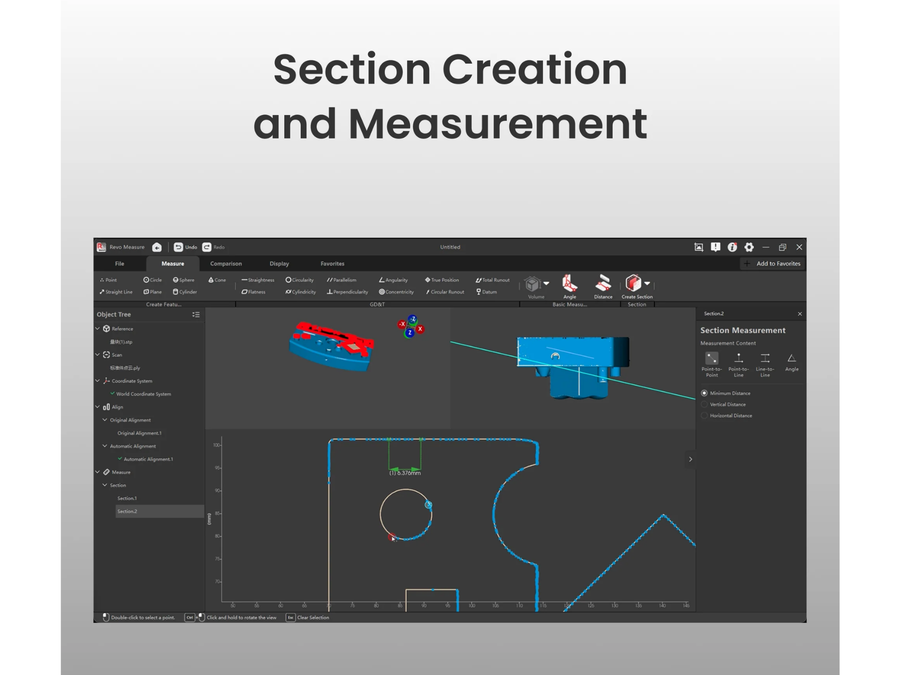

- Cross-section creation and measurement for internal structures

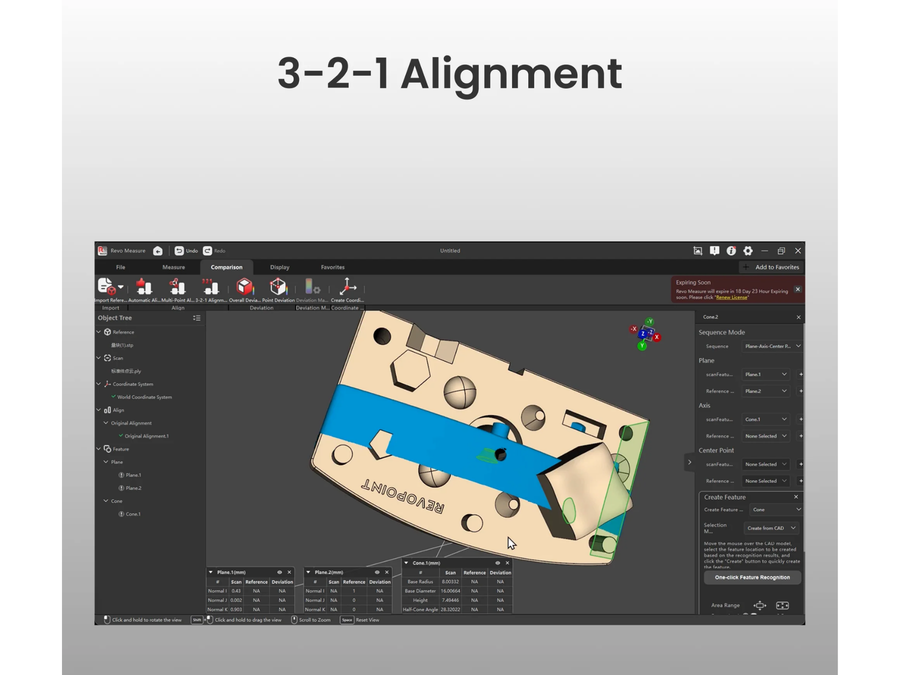

- Automatic, manual N-point, and 3-2-1 alignment methods

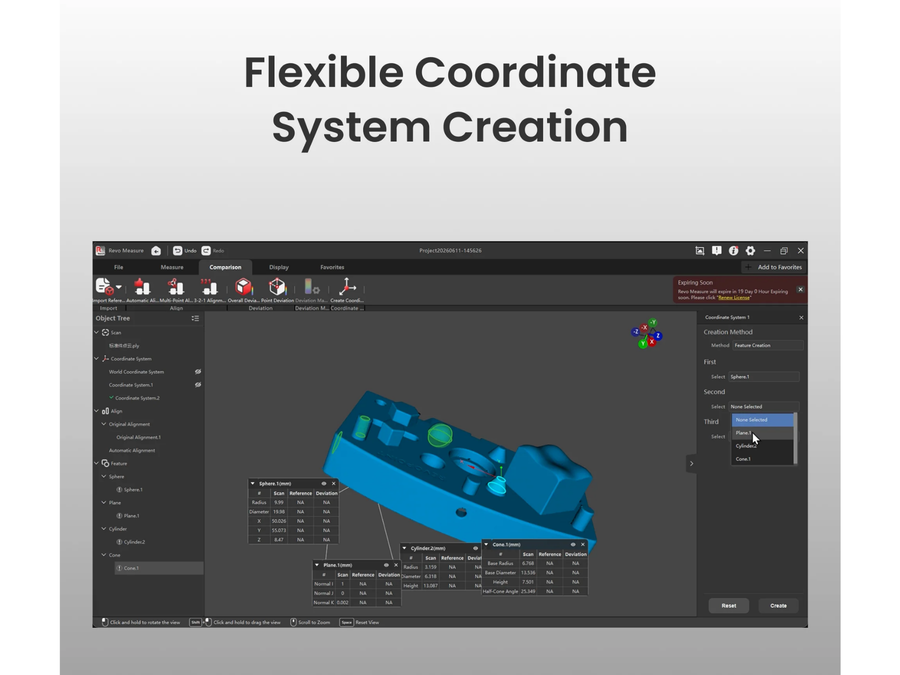

- Flexible coordinate system creation for part-specific datums
Full GD&T, Not Just Dimensions

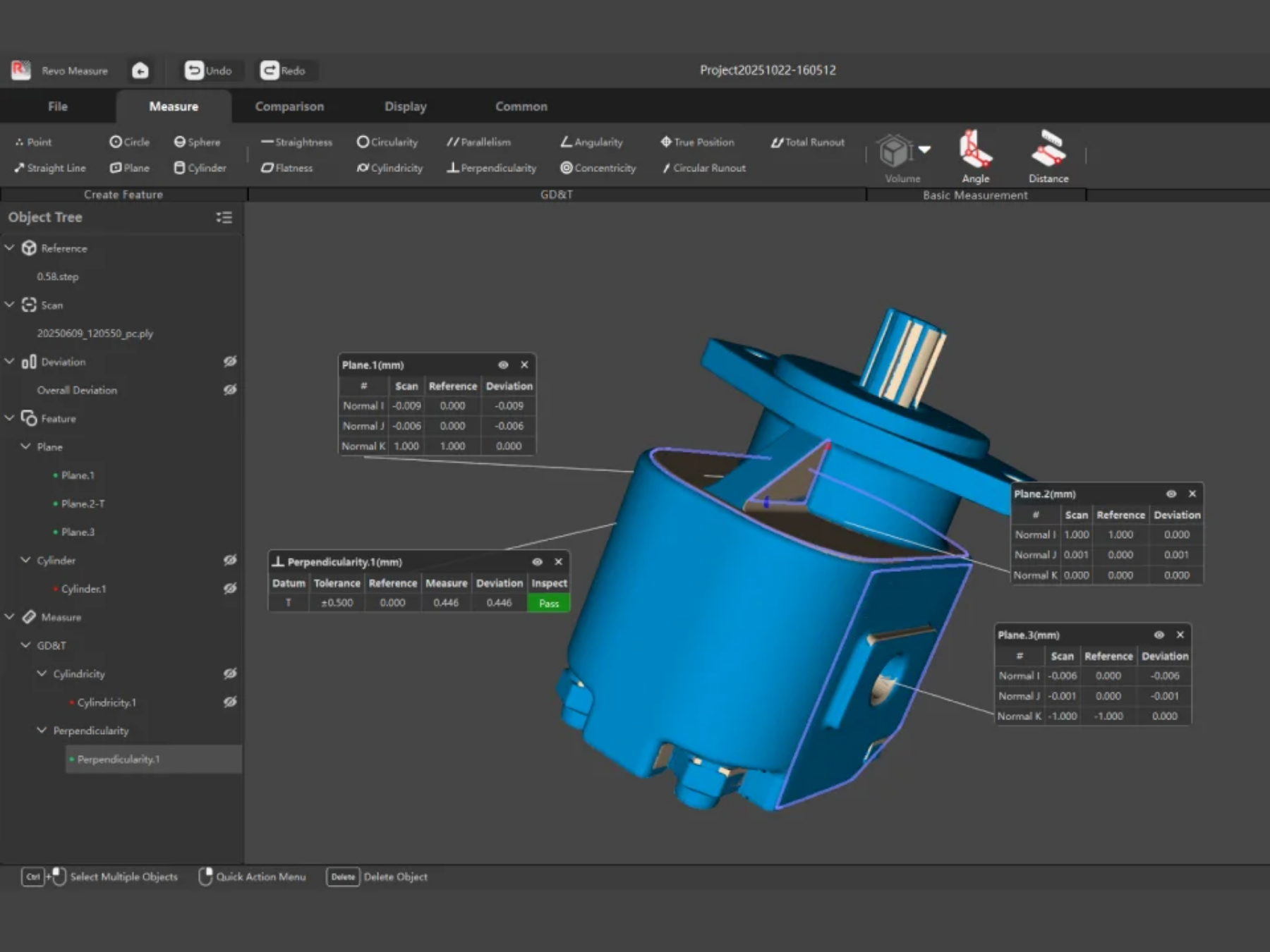

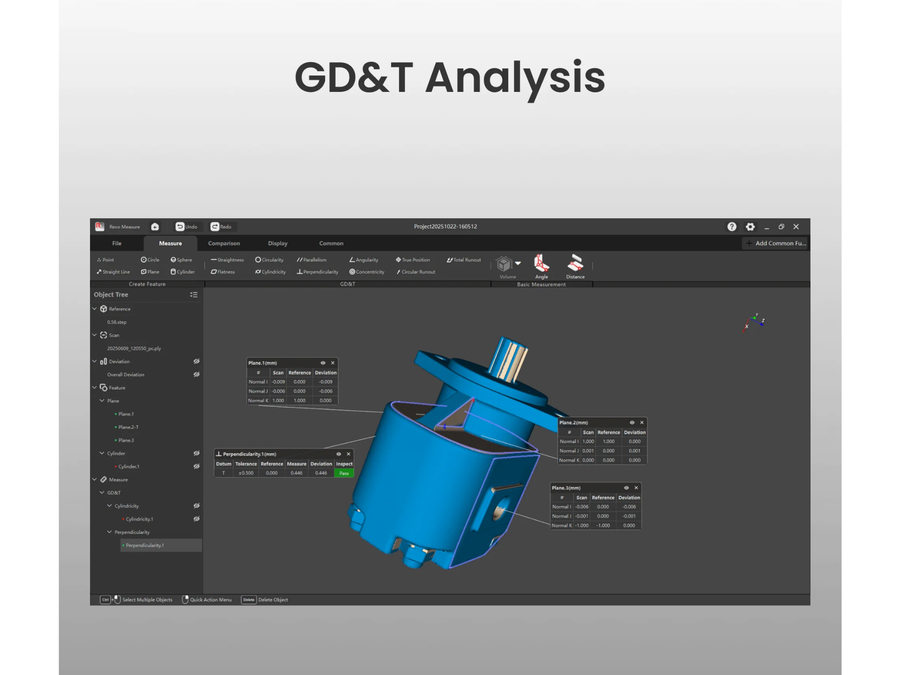

Revo Measure covers 23 measurement and GD&T controls, including flatness, roundness, cylindricity, concentricity, position, parallelism, perpendicularity, angularity, and both circular and total runout. One-click feature recognition finds points, lines, planes, circles, cylinders, spheres, and cones in your scan data, so you spend your time evaluating results instead of constructing geometry by hand.
- 23 GD&T and measurement controls
- Automatic feature recognition and creation
- Point, line, plane, circle, cylinder, sphere, and cone features

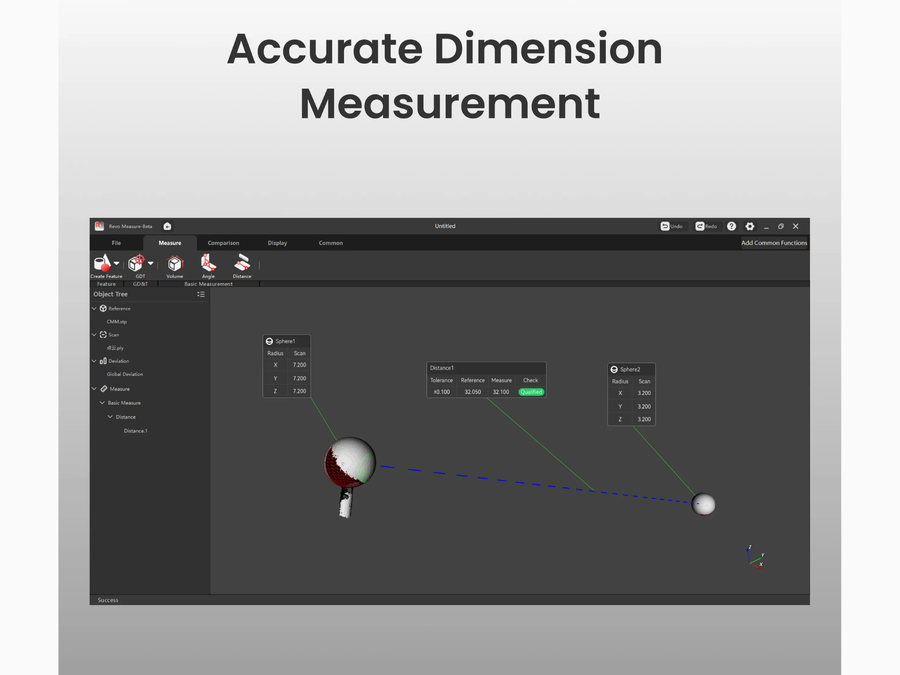

- Distance, angle, and volume measurement
Measure the First Part, Then the Next Hundred

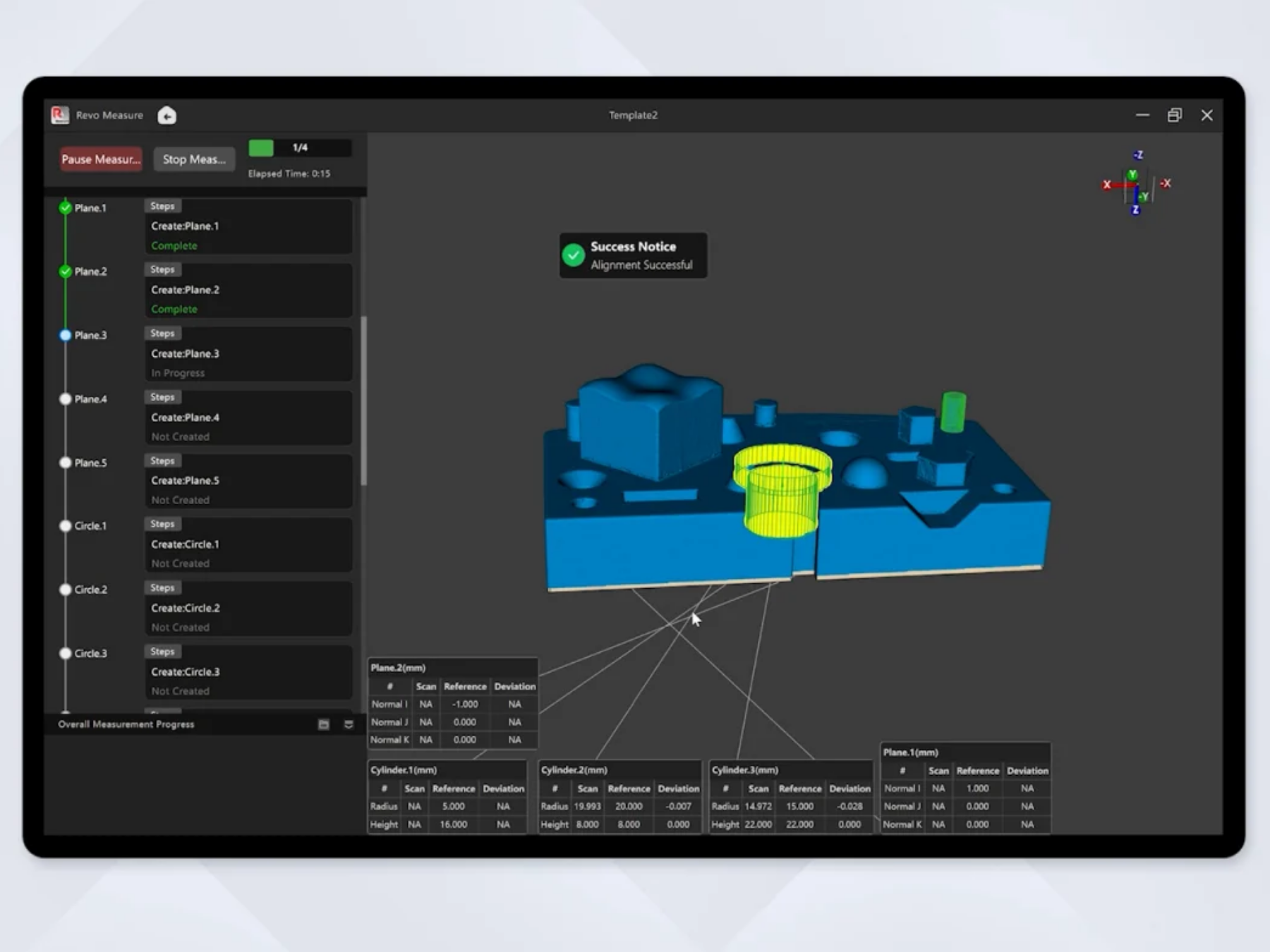

Set up your measurement plan once and save it as a template. One-click template measurement applies that plan to every matching part, and real-time file monitoring detects new scan files and measures them automatically as they arrive. For production inspection, that turns a repetitive manual process into a step that runs itself.
- One-click template measurement for repeat parts
- Real-time file monitoring measures new scans automatically
- Consistent results across operators and shifts

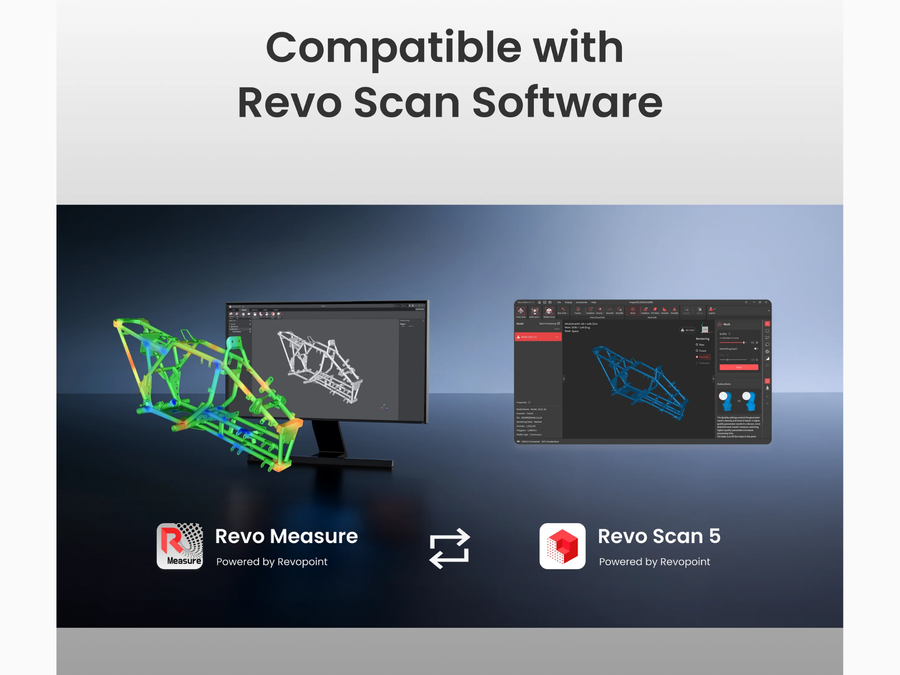

- Works directly with data captured in Revo Scan
Reports Your Customers Can Read

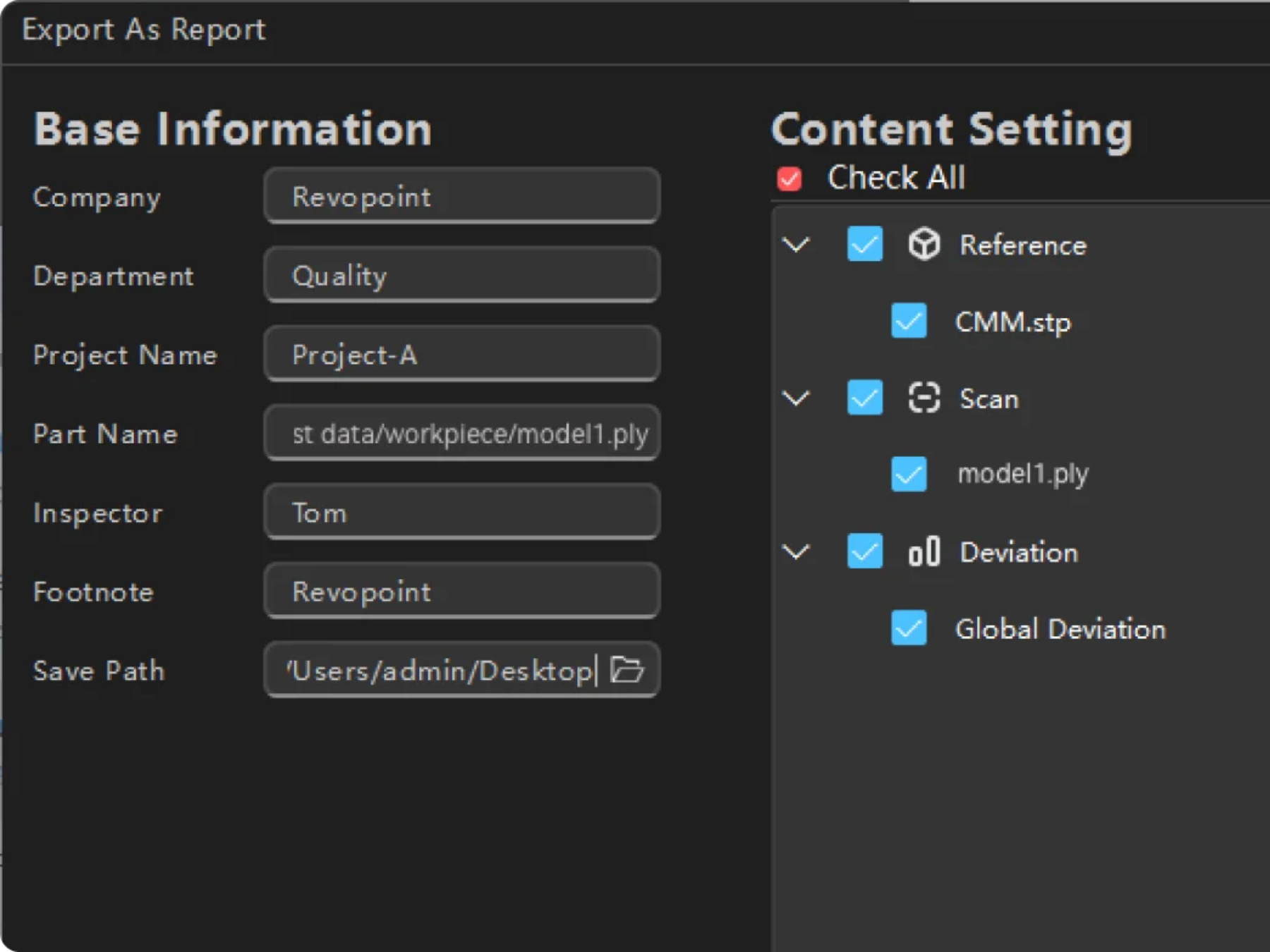

Export standardized reports as PDF, with measurement values, deviation graphs, and color maps laid out for review and sign-off. JSON export sends the same results into your own systems, so quality data can feed a database, a dashboard, or a custom workflow rather than sitting in a folder of documents.
- PDF reports with measurements, deviation graphs, and color maps
- JSON export for integration and secondary development
- Texture mapping visualization for context in reports
- Repeatable formatting across every inspection
What You Can Measure
| Category | Included |
|---|---|
| Form | Straightness, flatness, roundness, cylindricity |
| Orientation | Parallelism, perpendicularity, angularity |
| Location | Position, concentricity |
| Runout | Circular runout, total runout |
| Dimensional | Distance, angle, volume |
| Features | Point, line, plane, circle, cylinder, sphere, cone |
| Analysis | Deviation color maps, cross sections, alignment to CAD |
Editions and Licensing
All editions include the same measurement tools. The edition sets how many computers the license covers, and the term sets how long it runs.
| Edition | Computers covered | Best for |
|---|---|---|
| Personal | 1 PC | A single inspector or engineer |
| Professional | 3 PCs | A small quality or engineering team |
| Team | 10 PCs | Multi-station QC and shared workstations |
- Terms available: Monthly, 1-year, 3-year, and permanent with 3 years of free updates
- No auto-renewal: Licenses do not renew automatically when the term ends
- Try before you buy: A 15-day free trial is available from Revopoint
Frequently Asked Questions
Do I need a Revopoint scanner to use Revo Measure?

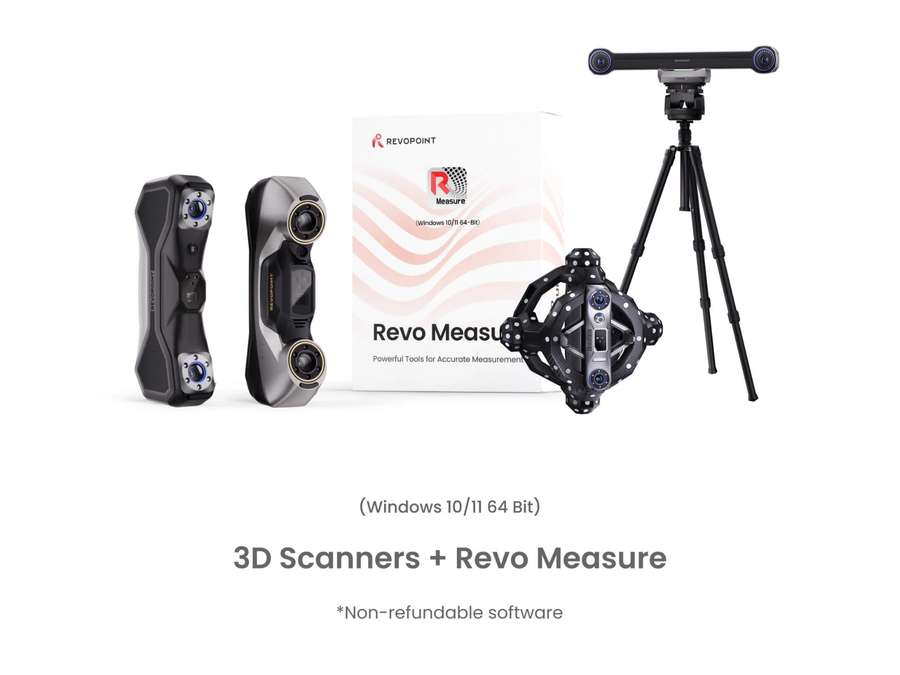

No. Revo Measure integrates directly with Revo Scan, but it also works with data from other 3D scanners as long as the scan exports to a supported format such as PLY.
What can I import?
Point clouds (PLY, PTS, XYZ, CSV, ASC, TXT), meshes (PLY, STL, OBJ, 3MF), and CAD files including STEP, IGES, SolidWorks, CATIA, Inventor, Solid Edge, JT, Parasolid, and more.
How do I get results out?
Export a formatted PDF report for review and sign-off, or JSON if you want to pull measurement data into your own software.
Is the accuracy certified?
Revo Measure's accuracy has been verified by PTB, Germany's national metrology institute. Note that this covers the software. Your overall measurement accuracy also depends on the scanner, the setup, and the operator.
What computer do I need?
Windows 10 or 11 (64-bit), a CPU with at least 8 cores and 16 threads at 2.4 GHz or higher, 32 GB of RAM, and an NVIDIA RTX 3050 (8 GB) or better. Metrology datasets are large, and underpowered machines slow down noticeably.
Does it need an internet connection?
An internet connection is used for activation and updates. Day-to-day measurement work does not require one.
System Requirements and Supported Formats
| Specification | Details |
|---|---|
| Operating system | Windows 10 or 11 (64-bit) |
| Processor | 8 cores or more, 16 threads or more, 2.4 GHz base or higher |
| Memory | 32 GB or more |
| Graphics | NVIDIA GeForce RTX 3050 (8 GB) or better recommended |
| Internet | Needed for activation and updates |
| Point cloud import | PLY, PTS, XYZ, CSV, ASC, TXT |
| Mesh import | PLY, STL, OBJ, 3MF |
| CAD import | STEP, STP, STPZ, IGES, IGS, X_T, X_B, SAT, SAB, JT, PRC, IFC, VDA, 3DXML, IPT, IAM, CATPART, CATPRODUCT, SLDPRT, SLDASM, PAR, PSM, ASM, PRT, MODEL |
| Report export | PDF, JSON |
| Alignment | Automatic, manual N-point, 3-2-1 |
| Certification | Accuracy verified by PTB (Germany) |
