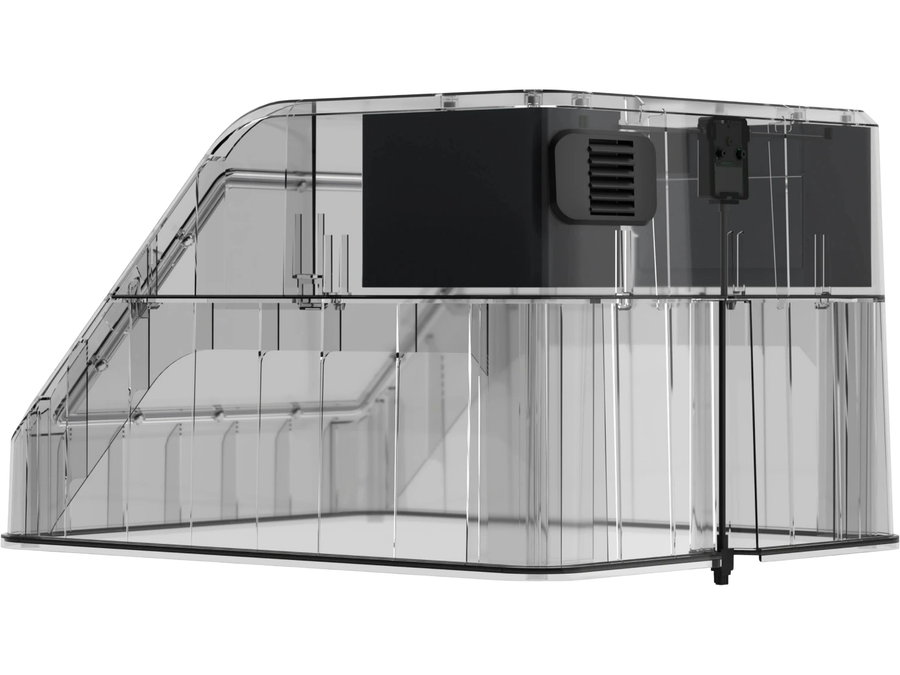

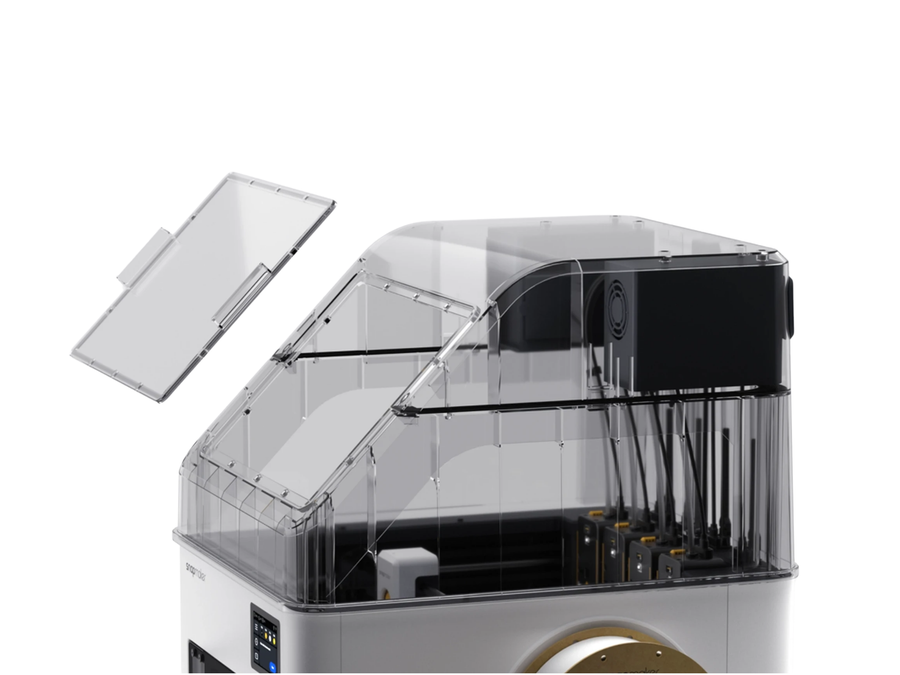

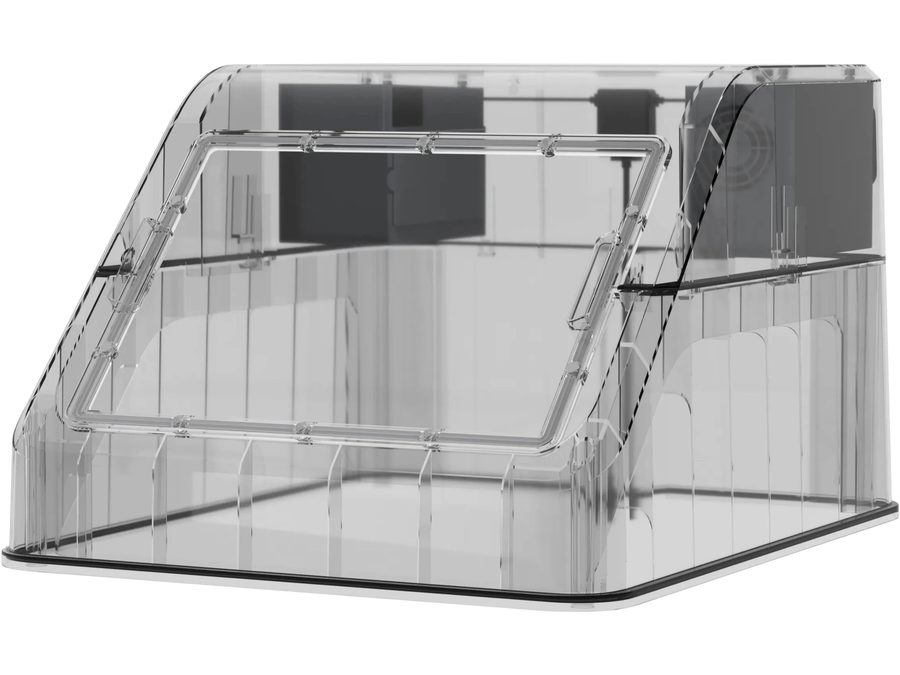

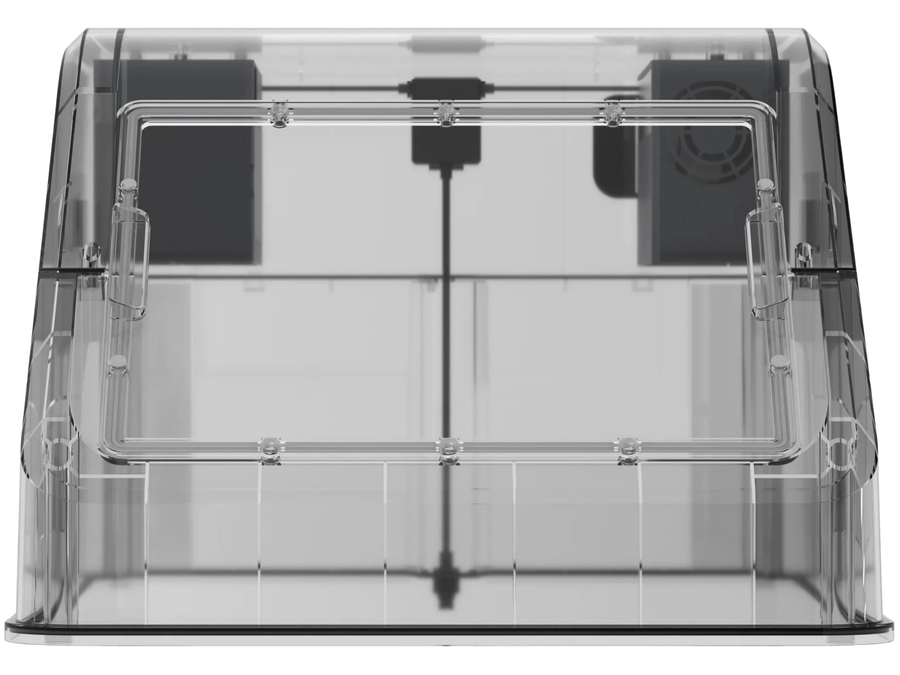

Snapmaker Snapmaker U1 Top Cover
The Snapmaker U1 Top Cover transforms your U1 printer into a fully enclosed printing environment, designed to enhance print quality and air safety. With built-in 50°C passive heating, it maintains a stable chamber temperature ideal for engineering-grade filaments, while the 3-layer filtration system captures particles and fumes for a healthier workspace. Automatic temperature switching makes the experience seamless, letting you focus on your prints rather than your settings.
- 50°C passive heating maintains a stable chamber temperature for better adhesion and reduced warping.
- 3-layer filtration system captures fine particles, VOCs, and odors for a cleaner workspace.
- Automatic temperature switching adjusts conditions based on your print needs.
| List Price: | $149.00 |
|---|---|
| Price: | $149.00 |
| Price: | $... |
| Order Now: | Ships calculating... Free U.S. Shipping |
Snapmaker U1 Top Cover
Quieter and Cleaner
Snapmaker U1 Top Cover features 50°C passive heating, 3-layer filtration, and auto-temp switching for quieter, cleaner 3D printing.
Key Features of the Snapmaker U1 Top Cover:
- Print quieter and cleaner with integrated enclosure heating and advanced air filtration.
- Designed specifically for the Snapmaker U1 for a precise, seamless fit.
- Reduces ambient noise for a quieter printing experience.
- Helps unlock compatibility with temperature-sensitive engineering filaments.
Better 3D Print Results
The U1 Top Cover maintains a consistent 50°C chamber temperature via passive heating, creating an ideal thermal environment that helps 3D printing materials retain their shape and layer adhesion. This stable enclosure heat is especially beneficial when working with ABS, ASA, and other engineering-grade filaments that demand controlled ambient conditions.
- Retains shape and layer adhesion on temperature-sensitive filaments.
- Passive heating design requires no additional power draw.
- Supports a wider range of printable materials.
Healthier 3D Printing Environment
Built-in 3-layer filtration actively works to remove ultrafine particles, VOCs, and unpleasant odors generated during 3D printing, making it safer to operate your printer in shared or enclosed spaces. The filtration system runs quietly in the background so your workspace stays clean without interrupting your workflow.
- Captures ultrafine particles and potentially harmful fumes.
- Reduces odors from common 3D printing materials like ABS and resin-adjacent filaments.
- Ideal for home offices, studios, or classrooms.
Effortless Operation
The U1 Top Cover features intelligent auto-temperature switching that adapts the enclosure environment to your current 3D print job without manual intervention. This smart functionality ensures optimal conditions are always maintained, streamlining your 3D printing process from start to finish.
- Automatically adjusts temperature settings based on 3D print requirements.
- Reduces the need for manual monitoring and intervention.
- Works seamlessly with the Snapmaker U1 ecosystem.
What's in the Box?
- 1x Upper Housing
- 1x Lower Housing
- 1x Magnetic Front Door
- 1x U1 Glass Door Seal Kit
- 1x User Guides
- 1x Desiccant Pack
Technical Specifications
| General Information | |
|---|---|
| Housing Material | PC |
| Dimensions (Top Cover) | 424 mm × 510 mm × 307 mm |
| Dimensions (U1 + Top Cover) | 584 mm × 510 mm × 753 mm |
| Weight (Top Cover) | 3.6 kg |
| Weight (U1 + Top Cover) | 21.8 kg |
| Printing Parameters | |
| Chamber Temperature Type | Passive Chamber Temperature Management |
| Supported Materials (U1 + Top Cover) | PLA, PETG, TPU, PVA, PET, ABS, ASA, PA, PC |
| Operating Temperature | 0–30°C |
| Air Filtration | |
| Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 |
| Activated Carbon Filter Type | Coconut Shell Activated Carbon |
| VOC Filtration | Supported |
| Particulate Matter Filtration | Supported |
