The Virtual Foundry Sintering Kiln

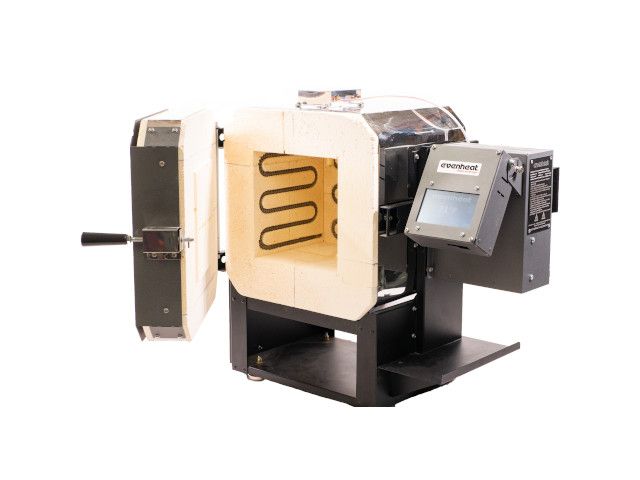

The Virtual Foundry Sintering Kiln allows users to sinter printed metal, ceramic, and glass objects with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C/2350°F.

This system allows users to sinter a number of The Virtual Foundry 3D printed materials including Pyrex, Bronze, Copper, 316L Stainless Steel, 17-4PH Stainless Steel, Inconel 718, and more!

Top Virtual Foundry Sintering Kiln Features:
• Features a maximum temperature of 1288°C/2350°F.
• Can be controlled using a built-in touchscren; Jobs can be monitored via phone or computer
• Custom made for use with The Virtual Foundry Filamet

Product No. M-FNZ-2FLM
Price: $2,980.00
Price: $...
Order Now: Processed Immediately
Qty

THE VIRTUAL FOUNDRY SINTERING KILN

PRINT, DEBIND, AND SINTER AT HOME, IN THE LAB, OR IN YOUR MAKERSPACE

The Virtual Foundry Sintering Kiln allows users to sinter printed metal, ceramic, and glass objects with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C/2350°F.

This system allows user to sinter a number of The Virtual Foundry 3D Printing filaments including Pyrex, Bronze, Copper, 316L Stainless Steel, 17-4 Stainless Steel, Inconel 718 and more.

Here are the key features of the virtual Foundry Sintering Kiln:

  • Max Temperature 1288°C/2350°F

  • Kiln has CE Designation

  • Easily control settings from TAP control touchscreen.

  • Program and monitor jobs with your phone or computer

  • Solid-State output

  • Made to order. Estimated lead time of 14-weeks.

Note: Proper ventilation is required while operating the kiln. Kilns operate at a very high temperature, please use with extreme caution.

THE VIRTUAL FOUNDRY SINTERING KILN TECHNICAL SPECIFICATIONS:

  • Electrical: 120v, 12A , 1440w
  • Max Temperature: 1288°C/2350°F
  • CE: Has CE designation

HARDWARE:

  • Sintering Area / Chamber Volume:WxDxH 7.5" x 7.5" x 7.5" WxDxH / 191mm x 191mm x 191mm
  • Kiln Outer Dimensions: WxDxH 22.25" x 18" x 21.25" / 565mm x 457mm x 540mm
  • Shipping Weight: 50lbs

WHAT DO I NEED TO DEBIND AND SINTER 3D PRINTED PARTS?

  • Kiln
  • Heat resistant gloves
  • Crucible
  • Al₂O₃ and Sintering Carbon for Bronze and Copper Filamet
  • Steel Blend and Sintering Carbon for Stainless Steel 316L, Stainless Steel 17-4 and Inconel® 718-34 Filamet

Note: Filamet debinds with only heat so there is no extra debinding equipment needed.

Sintering can be done in any kiln that can reach and hold the sintering temperature.

WHAT IS THE SINTERING PROCESS LIKE?

Two things need to happen to be successful while sintering:

The printed part shape will need to be supported, and oxygen will need to be prevented from reaching the part.

Supporting the shape of your printed part is solved by using a refractory ballast: Al2O3 (for copper and bronze) or Steel Blend (for the steels).

The oxygen exposure part is solved with Sintering Carbon.

If you have the oxygen problem solved with shielding gas and/or vacuum, you can ignore any reference to Sintering Carbon in the instructions.

You will still need to manage part shape support, however, the crucible and Al2O3 or Steel Blend will still be needed.

Simply bury your part in the refractory ballast in a crucible. Then, add Sintering Carbon to the top. Place the crucible in your kiln, set the time and temperature program, press go and you’re all set.

INSTRUCTIONS FOR DEBINDING AND SINTERING COPPER AND BRONZE FILAMET

Items Needed:

  • Kiln / Sintering Furnace
  • Refractory Container (Crucible)
  • Sintering Refractory Ballast: AI₂O₃ & Talc
  • Sintering Carbon

Pack:


BC1: Place AI₂O₃ refractory in the crucible
BC2: Bury the print in the AI₂O₃, centered in the crucible
BC3: Tamp down and pat the sides of the crucible
BC4: Part should be surrounded by refractory
BC5: Keep at least 15mm between the part and the crucible walls and top of refractory
BC6: Put the crucible in the kiln

Debind:


BC7: Ramp furnace at a rate of 55.6°C (100°F) per hour to 482°C (900°F)
BC8: Hold at 482°C (900°F) for 4 hours*
BC9: Let furnace cool to room temperature

Apply Sintering Carbon:


BC10: Turn off the kiln and unplug it to cut the power
BC11: Remove the part and refractory from the crucible
BC12: Place Talc refractory in the now empty crucible
BC13: Bury the part in the Talc, centered in the crucible, leaving at least 25mm empty at the top of the crucible
BC14: Tamp down and pat the sides of the crucible
BC15: Part should be surrounded by refractory
BC16: Keep at least 15mm between the part and the crucible walls and top of refractory
BC17: Fill up the whole 25mm of space on the top with the Sintering Carbon
BC18: If possible, place a cover over the crucible – Don’t seal it (the cover can be tool wrap, ceramic or kiln paper. It is used to preserve Sintering Carbon.)
BC19: Put the crucible back in the kiln

Sinter:


BC20: Ramp furnace at a rate of 111.1°C (200°F) per hour to the Sinter Temp (chart below)
BC21: Hold at the Sinter Temp for 5 hours

Cool Down:


BC22: Program ends – let furnace cool to room temp from Sinter Temp

*Hold times listed are ideal for a part that is less than a 50mm cube. Hold longer for larger or very thick parts and/or larger crucibles.
Experiment with hold times if the parts are not sintered correctly.

INSTRUCTIONS FOR DEBINDING AND SINTERING STAINLESS STEEL 316L, STAINLESS STEEL 17-4, AND INCONEL 718

Items Needed:

  • Kiln / Sintering Furnace
  • Refractory Container (Crucible)
  • Sintering Refractory Ballast: Steel Blend
  • Sintering Carbon

Pack:


S1: Place Steel Blend refractory in crucible
S2: Bury the print in the Steel Blend
S3: Tamp down, don’t pack or smoosh
S4: Leave about 40mm of room on top
S5: Part should be surrounded by refractory
S6: Keep at least 15mm between the part and the crucible walls and top of refractory
S7: Fill that 40mm of room at the top of the crucible with Sintering Carbon
S8: Put the crucible in the kiln

Debind:


S9: Ramp furnace to 204°C (400°F) over the course of 2 hours.
S10: Hold at 204°C (400°F) for 2 hours*
S11: Over the course of 2 hours, ramp to 427°C (800°F)
S12: Hold at 427°C (800°F) for 2 hours*

Sinter:


S13: Over the course of 1.5 hours, ramp to 593°C (1100°F)
S14: Hold at 593°C (1100°F) for 2 hours*
S15: Over the course of 2 hours, ramp to Sinter Temp (chart below)
S16: Hold at Sinter Temp for 4 hours*

Cool Down:


S17: Over the course of 6 hours, ramp down to 593°C (1100°F) – do not hold
S18: Program ends. Let furnace cool to room temp from 593°C (1100°F)

*Hold times listed are ideal for a part that is less than a 50mm cube. Hold longer for larger or very thick parts and/or larger crucibles.
Experiment with hold times if the parts are not sintered correctly.

GENERAL SETTINGS AND CRUCIBLE COMPATIBILITY CHART:

  Crucible Type
  Alumina Graphite Stainless Steel Refractory Debind Temp Ramp Time Sub Sinter Temp Sinter Temp
Bronze Recommended Good Good Al2O3 & Talc
Sintering Carbon
482°C (900°F) 7.635 Hours
(Step BC20)
885°C (1625°F)
(Step BC20)
Copper Recommended Good Good Al2O3 & Talc
Sintering Carbon
482°C (900°F) 9.46 Hours
(Step BC20)
1052°C (1925°F)
(Step BC20)
316L Recommended Good Not Recommended Steel Blend
Sintering Carbon
427°C (800°F)   593°C (1100°F)
(Step S14)
1260°C (2300°F)
(Step S15)
Inconel Recommended Good Not Recommended Steel Blend
Sintering Carbon
427°C (800°F)   593°C (1100°F)
(Step S14)
1260°C (2300°F)
(Step S15)
17-4 Recommended Good Not Recommended Steel Blend
Sintering Carbon
427°C (800°F)   593°C (1100°F)
(Step S14)
1232°C (2250°F)
(Step S15)

SANDING AND POLISHING YOUR GREEN PRINT

Manipulating prints: When exposed to heat, Virtual Foundry metal filament becomes clay-like. It can be carved, and re-sculpted, pieces can be added and seams smoothed. Soldering irons or wood-burning tools work well for this. For best results, use a tip that won’t be used for soldering/wood-burning and set the temperature to 200-235°C (392-455°F).

How to avoid melting when sanding metal filament: Important! Constant movement to different areas of the part is necessary when sanding to avoid unintentional melting. Experimenting is worthwhile.

Needle file: To make print lines vanish, sand the surface even. The loose particles from sanding are smashed into the print line gaps with the heat from the friction, fixing them in place. This step is complete once the entire print’s surface is smooth and even.

Sandpaper or 3M Radial Disc: Start with 120 grit sandpaper or 80 grit 3M Radial Disc, and go over every part of the print. The matte surface will become shiny as finer grits are used. Complete the entire surface of the print before moving to the next grit. The Virtual Foundry recommends using 4 grits with 3M and 6 or 7 grits with sandpaper. A nice shine can be achieved with less, but the mirror shine comes closer to the 7, ending around 3000 grit. After sanding, rub the print down with some flannel or a sunshine cloth to clean off loose particles. A mirror shine should be evident at this phase, even before the last step.

Sewn Buffing Wheel and Zam: Place sewn buff on a rotary tool, then liberally apply zam to the buff and to your print. The print will melt if it gets too hot, so it is critical to keep the buffer moving and continue to apply zam liberally. It may be useful to practice this step on a simple print or a “failed print.”

If you will be sintering your print: Polishing before sintering is not necessary. Post-sinter, the print will behave as the metal it’s made of – file it, weld it, polish it.
