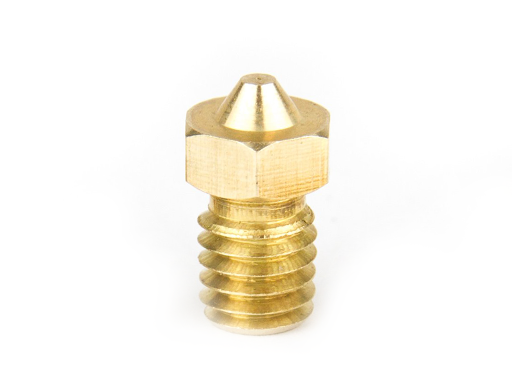

These v6 replacement nozzles have been redesigned from the ground up. Try out a nozzle in every size and experience all the variety that E3D has to offer!
These E3D nozzles are available in 0.15, 0.25, 0.30, 0.35, 0.40, 0.50, 0.60, and 0.80 mm sizes. Try one of each today and customize every print!
|Order Now:||Ships calculating...|
These premium quality E3D replacement nozzles allow you to truly customize each and every print. These nozzles have been created using community feedback and notes so they are fully optimized. This v6 nozzle has been fully redesigned. These nozzles have reduced back-pressure which allows exceptionally smooth and easy flow of filament while improving retractions.
The smaller nozzles have a small nozzle tip which offers increadible precision. The larger nozzles afford you the ability to print with larger layers.
You can easily identify all the nozzles in the series by looking at the markings on the flats of the hex head. See below to help you identify what each set of markings means in relevance to size.
Marks on Nozzle = Size
- 0 = 0.15mm (Store separately from 0.25 to avoid confusion)
- 0 = 0.25mm
- 1 = 0.30mm
- 2 = 0.35mm
- 3 = 0.40mm
- 6 = 0.50mm
- 4 = 0.60mm
- 5 = 0.80mm
- v6 Nozzles feature backwards compatibility, so they can be used to upgrade your v5 HotEnd.
- If you are using a v6 HeatBreak it is recommended that you use a v6 Nozzle.
- This nozzle is compatible with the E3D Lite6 HotEnd.
These nozzles have M6x1 thread, which makes them compatible with many printers. Some common printers with this thread size:
- Robo3D R1+
- SeeMeCNC Rostock MAX V3
- OpenBeam Kossel Pro
- Prusa i3 MK2
- MAKEiT Pro
- Makerbot Replicator
- Ultimaker 2+ and older Ultimakers with the Olsson block upgrade.
- Lulzbot TAZ 5 and 6
- Lulzbot Mini
If you are unsure about your printer, ask the manufacturer about their nozzle thread size.
