Nema 17 Stepper Motor 1.8

Clearance

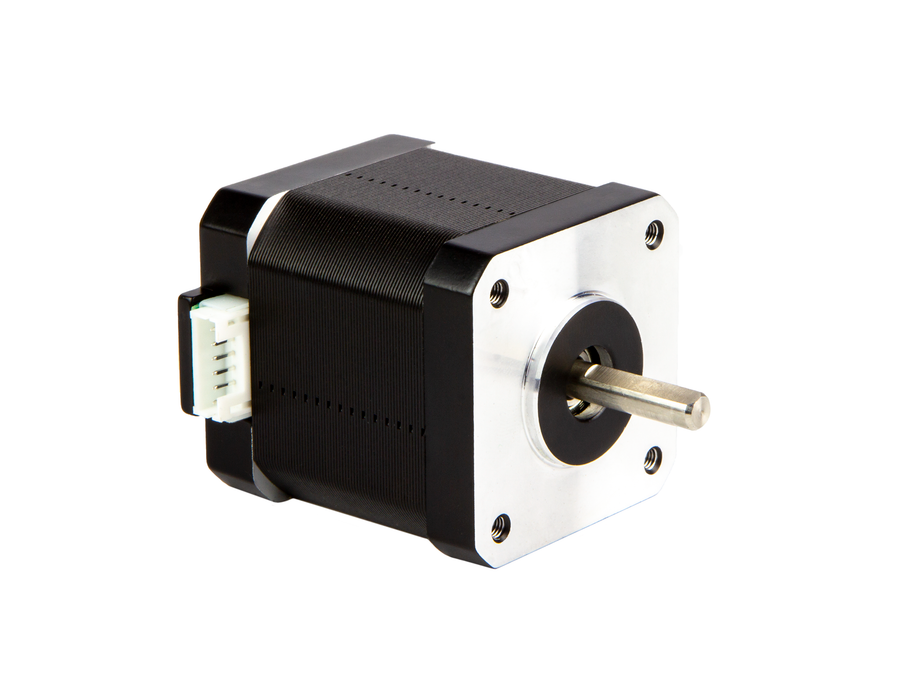

Nema 17 Stepper Motor with 1.8° stepping accuracy.

SALE - Take an extra 25% off this item - use code EXTRA25OFF during checkout. Discount applied in cart with use of EXTRA25OFF code. Offer ends 8/8/22

Product No. M-1C4-A52S
List Price: $20.50
Price: $19.89
Price: $...
Order Now: Ships calculating...
Qty
Checkout

The motors have twice the step accuracy of a typical motor. These motors have been designed to use with the various RepRap printer build types.

Specifications

Motor Type - Bipolar Stepper

Step Angle - 1.8°

Holding Torque - 59Ncm(83.6oz.in)

Rated Current/phase - 2.0A

Phase Resistance - 1.4ohms

Recommended Voltage - 12-24V

Inductance - 3.0mH±20%(1KHz)

Frame Size - 42 x 42mm

Body Length - 47mm

Shaft Diameter - Φ5mm

Shaft Length - 16.5mm

Double D-cut Length - 16.5mm

Number of Leads - 4

Lead Length - 225mm

Weight - 390g
