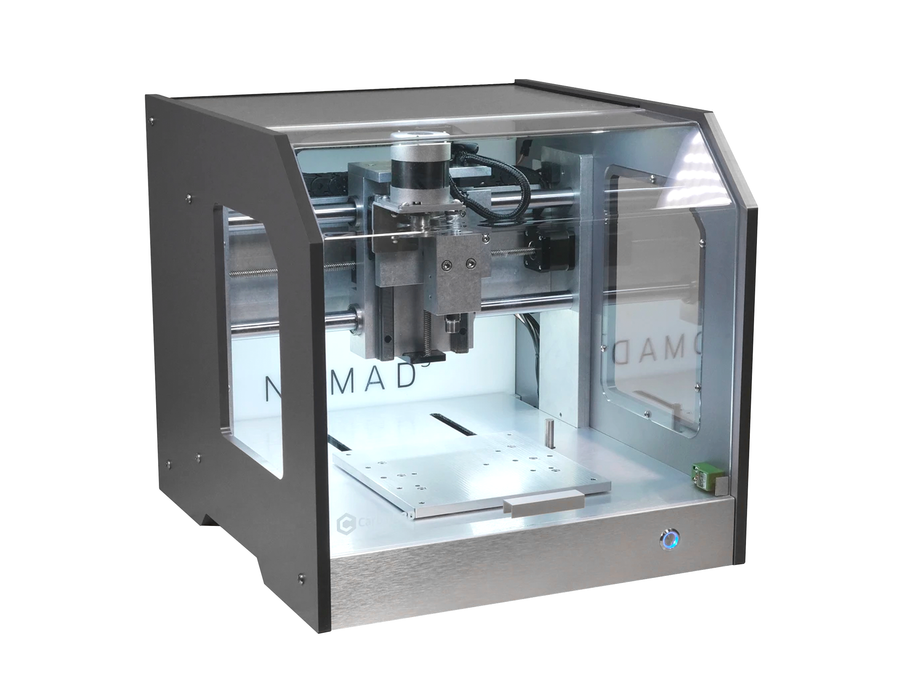

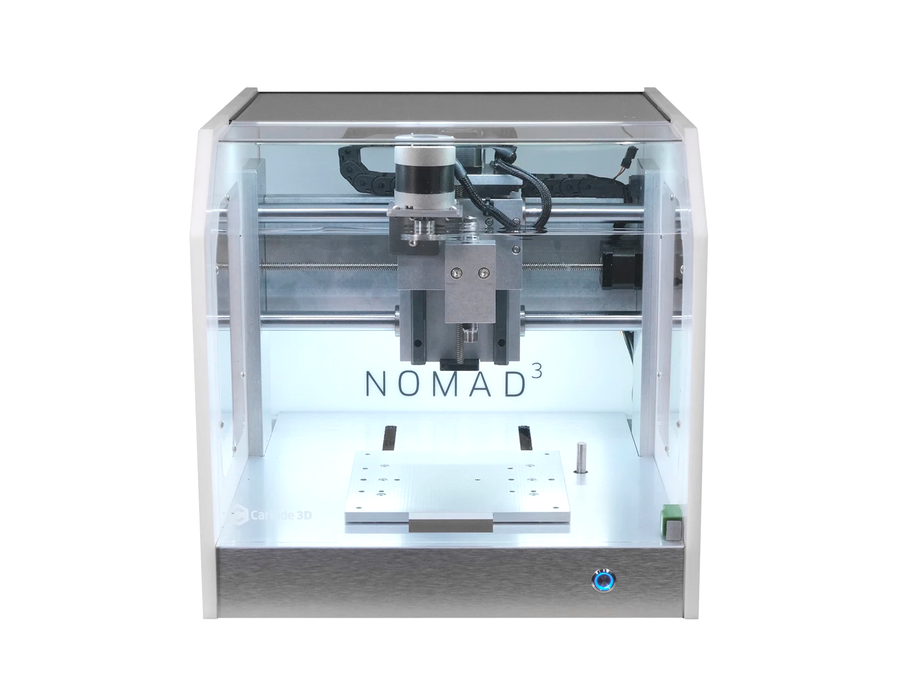

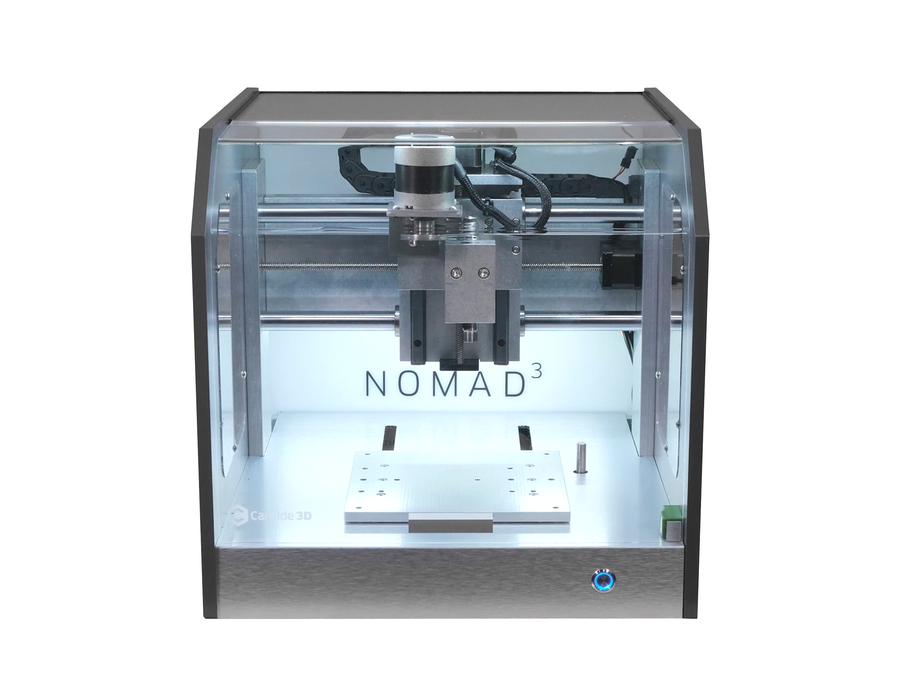

Carbide 3D Carbide 3D Nomad 3 CNC Machine - Bamboo

New

The Nomad 3 is a powerful, compact desktop CNC machine that is easy to use and comes with automatic tool length measurement for accurate and precise results.

• Small footprint
• Custom spindle and drive electronics
• Automatic tool length measurement

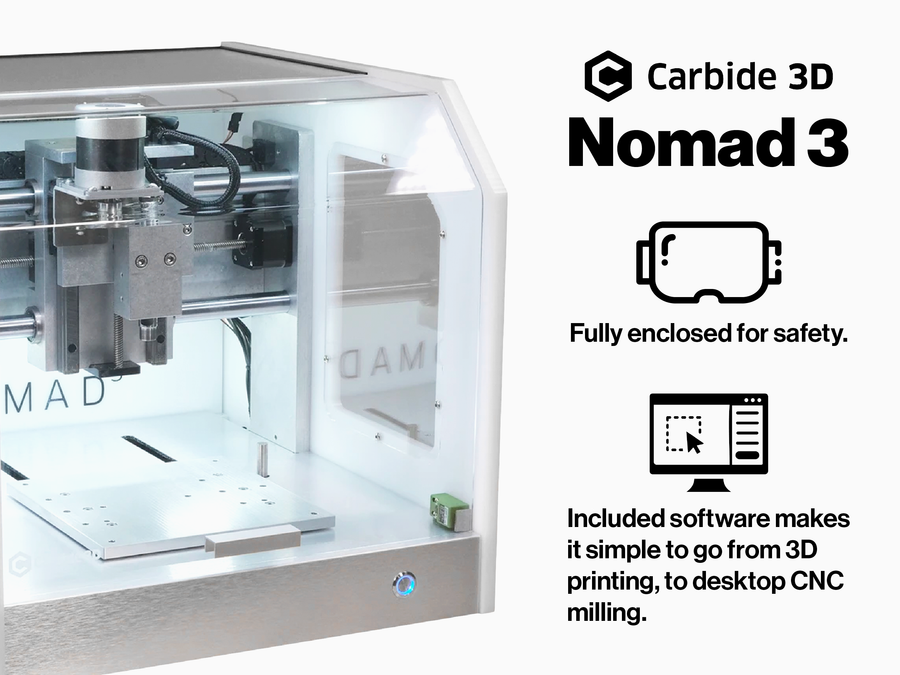

• Fully Enclosed for Safety

loading...
Product No. loading...

The Nomad 3 Packs a Powerful Punch in a Small Frame

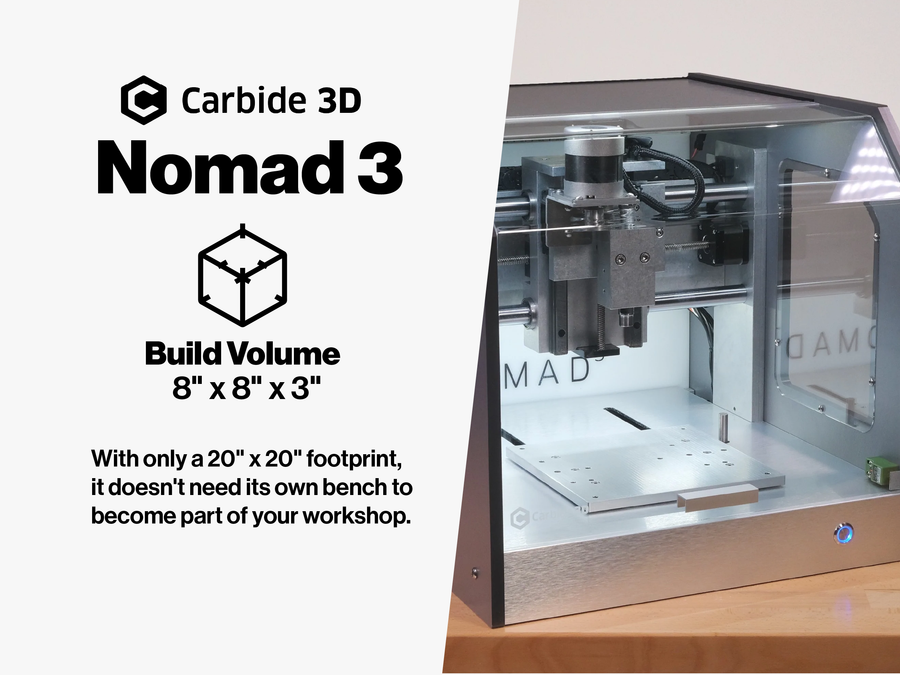

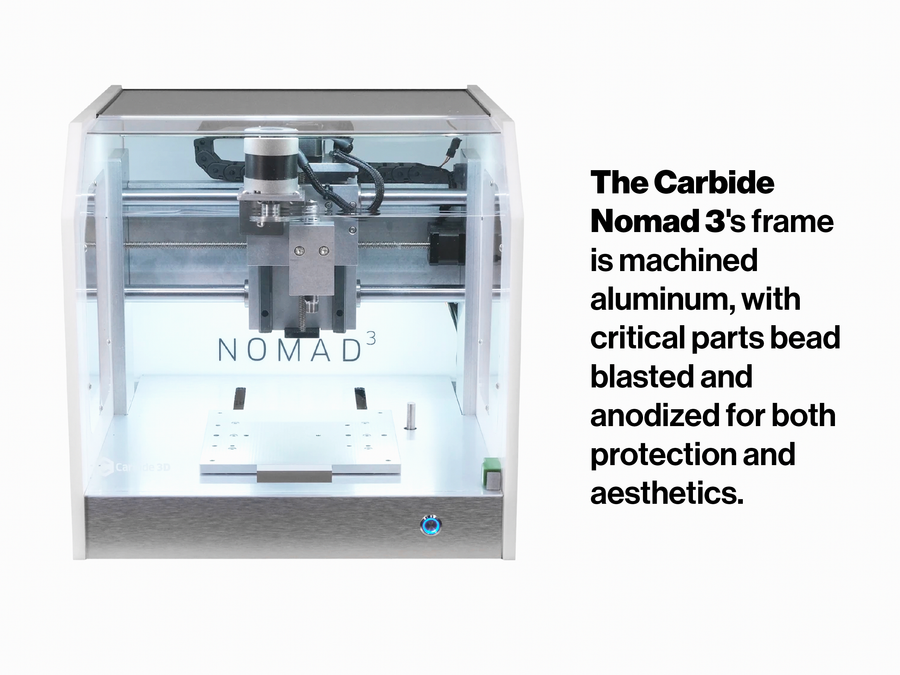

The Nomad 3 is truly a desktop machine, with only a 20" x 20" footprint, it doesn't need its own bench to become part of your workshop. The Nomad 3's frame is machined aluminum, with critical parts bead blasted and anodized for both protection and aesthetics.

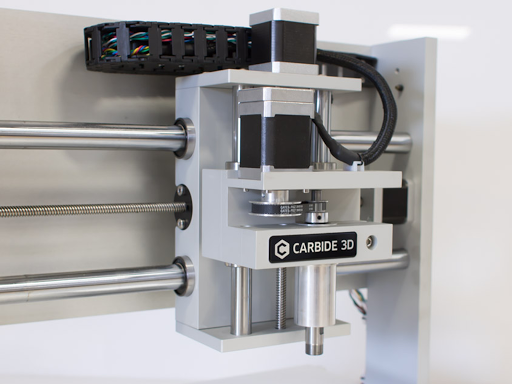

Purpose built components

Carbide 3D has custom designed their own spindle complete with:

  • Sealed Ball Bearings
  • Brushless DC Motor
  • ER-11 Collet

Running on their custom drive electronics and firmware allows their spindle to operate at up to 10,000 RPM. This custom built spindle assembly is the most durable and quiet available on any desktop milling machine.

Automatic Tool Length Measurement

CNC Machines--industry-scale or desktop--can make measuring tool length a difficult process, especially on jobs that requires several different cutters and tools. But the Nomad avoids all of that with its custom BitZero 2.0. Designed with an accurate and automatic measuring program built in, the BitZero and Nomad work in concert to ensure the measurement is completely integrated into the machine and runs during every cut to ensure pin-point calibration.

Nomad 3's Integrated Software Package Gets You Designing and Building Right Out of the Box

Included with the Nomad 3 are two of Carbide3D's most powerful pieces of software: Carbide Create and Carbide Motion. Carbide Create is a 2D CAD/CAM software platform developed by the team at Carbide to be easy to approach for beginners yet powerful enough to support and empower advanced projects. Design your project from the ground up to be exactly what you need, then export it as vector gcode. Available for both Windows and Mac.

MechCAM is a more universal CAD/CAM program that is less fine-tuned to Carbide3D CNC's, but may be the more familiar option for some users.

Bring them both together with Carbide Motion, to control your Nomad or Shapeoko, moment to moment. Set tools, jog the spindle, and re-home, all from within the easy-to-use interface.

What's in the Box

  • Nomad 3
  • Power Cable
  • MDF Wasteboard
  • 1/8" ER-11 Collet and wrenches
  • 1/8" Ball endmill
  • 1/8" Flat endmill
  • Double-sided tape
  • BitZero V2
  • Software Suite
    • MeshCAM for Nomad, 3D CAM software
    • Carbide Create 2D CAD/CAM software
    • Carbide Motion machine control software
    • Carbide Copper for PCB machining

Tech Specs

  • Build Volume: 8" x 8" x 3"
  • Max X & Y Speed: 100" /min
  • Max Z Speed: 50" /min
  • Mechanical Resolution: 0.0005 in
  • Mechanical Repeatability: 0.0015 in
  • Mechanical Accuracy: 0.005 in/ft

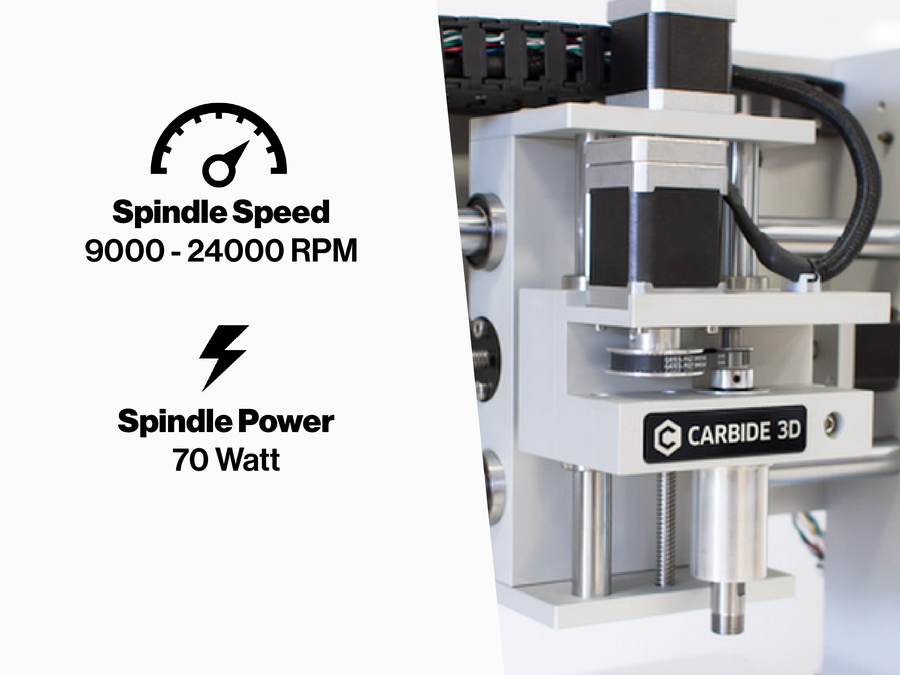

  • Spindle Power: 70 watt
  • Spindle Speed: 9000 - 24000 RPM
  • Spindle Collet: ER-11
  • Max Cutter Diameter: 1/4 in
  • Power Supply: 240 watt
  • Input Voltage: 110V or 220V
  • Physical dimensions: 17.5" x 19" x 17"
  • Weight: 60 lbs
  • Computer Interface: USB
  • Control Software: Carbide Create

Shipping Notice

Please note that, due to its size and weight, this product cannot be shipped to a PO Box. If you have any questions or would like help making shipping arrangements, please contact support@matterhackers.com.

Please note: Carbide 3D products are no longer eligible for the redemption or accrual or MatterHackers Rewards.
