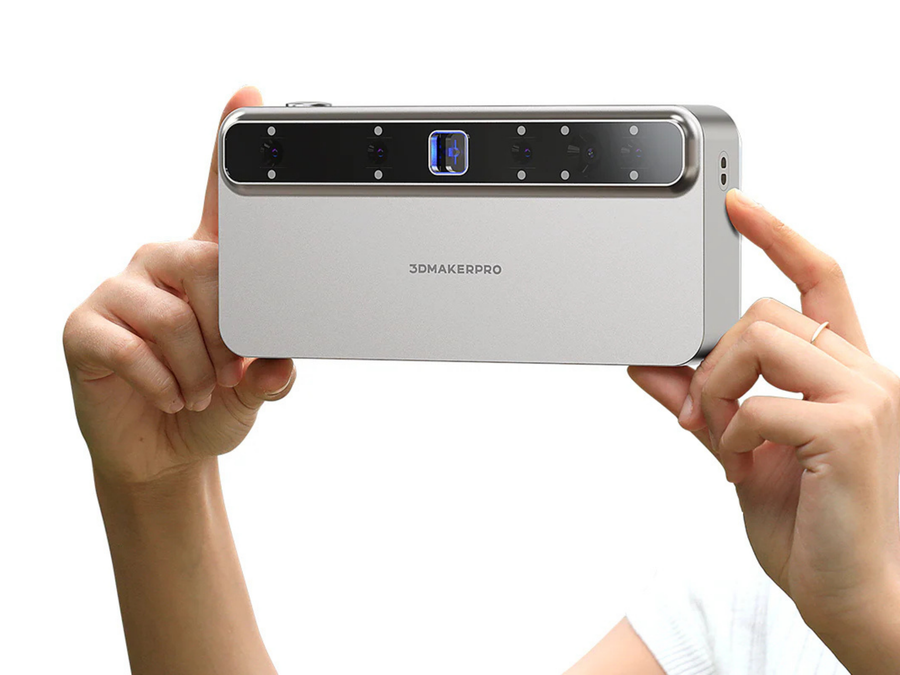

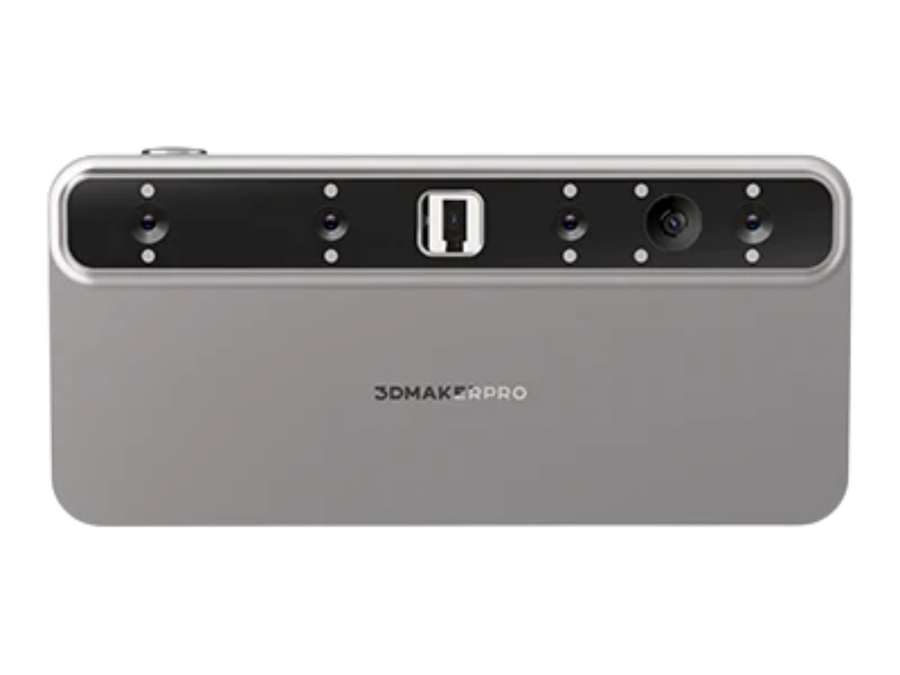

3DMakerPro 3DMakerPro Toucan 3D Scanner - Standard Bundle
The 3DMakerpro Toucan is a professional-grade 3D scanner that combines scanning, editing, and export capabilities in a single device. With 0.03mm accuracy and advanced phase-shifting technology, it delivers precise results for professional applications. The integrated MEMS optics system ensures reliable scanning performance for a wide range of objects.
- 0.03mm scanning accuracy for professional-grade precision.
- Phase-shifting technology with MEMS optics for reliable performance.

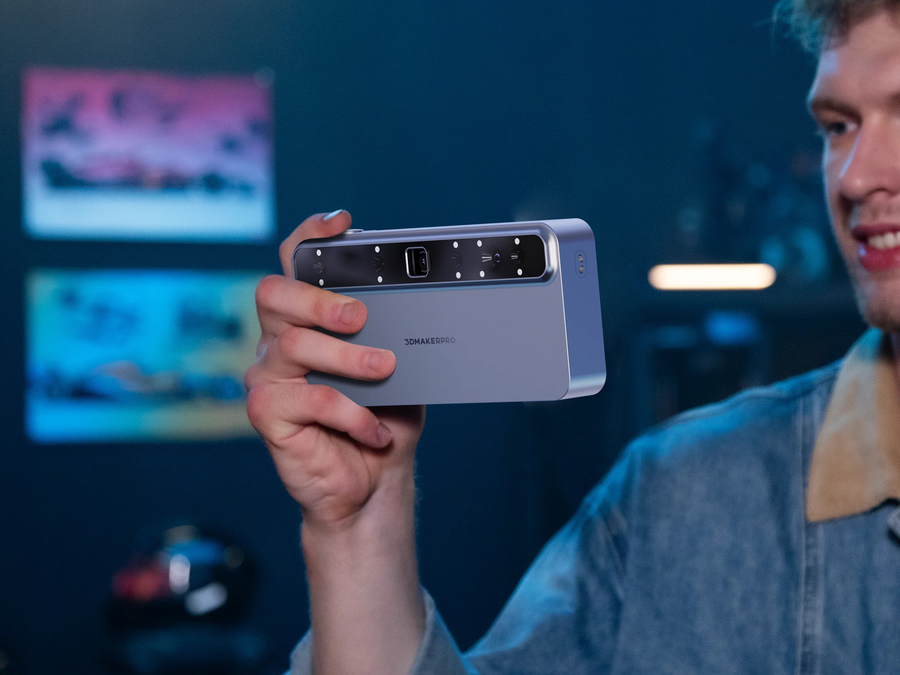

- Handheld mobile scanning capability for flexible 3D capture.
- Dual scanning modes: continuous scan and high-accuracy photograph mode.
- Color texture capture with selectable monochrome or color modes.
- All-in-one device for scanning, editing, and exporting.
3DMakerPro Toucan 3D Scanner
Who Can? Toucan!
Toucan 3D Scanner offers handheld mobile scanning with color texture capture, marker registration, and large-format scanning modes for accurate 3D models. 3DMakerpro Toucan 3D scanner delivers 0.03mm accuracy with phase-shifting technology and MEMS optics. Professional scanning, editing, and exporting in one device.
Key Features of the 3DMakerPro Toucan 3D Scanner:
- A professional 3D scanning system suitable for various industries.
- Compatible with Geomagic Wrap software for advanced processing.
- Designed for medium-sized objects and professional applications.
- Advanced registration options, including geometric features and marker-based tracking.
- Global marker scanning prevents tracking loss during complex scans.
- Large-format and small-format scanning mode selection.
- Integrated mesh generation with quality settings optimization.

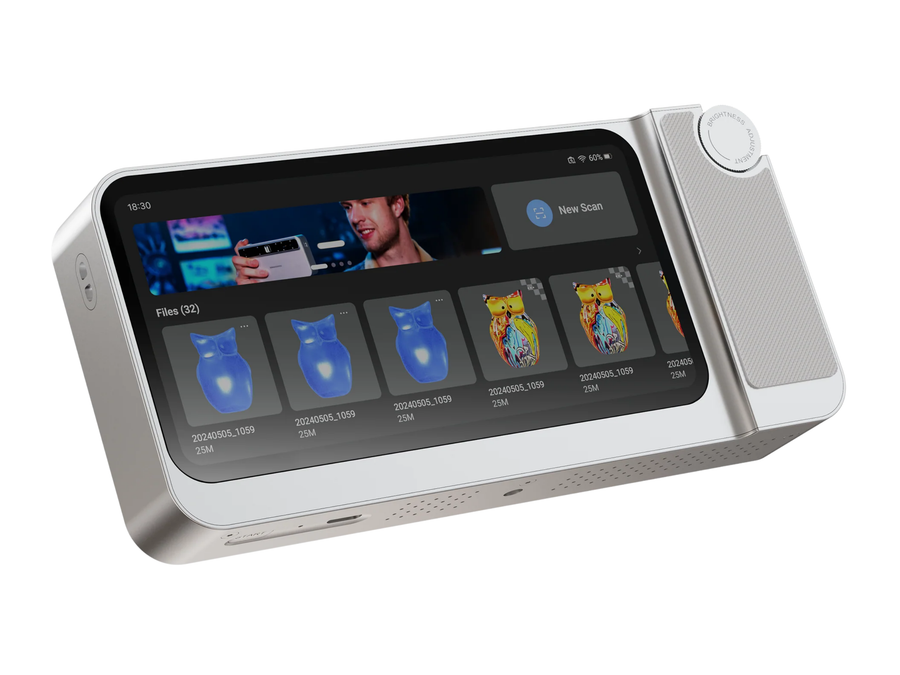

- Built-in model editing tools with rotation and trimming functions.
Precision Phase-Shifting Technology
Advanced phase-shifting scanning technology combined with MEMS optics delivers exceptional accuracy and reliability. This professional-grade system ensures consistent, high-quality scans with 0.03mm precision for detailed capture of complex geometries.
- 0.03mm scanning accuracy.
- MEMS optics for stable performance.
- Phase-shifting technology for precision.
Integrated Workflow Solution
Streamline your 3D scanning workflow with an all-in-one device that handles scanning, editing, and export functions. This integrated approach saves time and simplifies the process from capture to final output.
- Scan, edit, and export in one device.
- Streamlined professional workflow.
- Compatible with Geomagic Wrap software.
Flexible Scanning Modes
The Toucan offers both continuous handheld scanning for mobile flexibility and photograph mode for stationary high-accuracy captures. The continuous mode enables free-form scanning of objects from multiple angles, while the photograph mode provides enhanced precision for detailed work requiring maximum accuracy.
- Continuous scan mode for handheld mobile operation.
- Photograph mode delivers higher accuracy results.
- Optimal scanning distance of 200-250mm recommended.
Terrific Tracking Technology
Multiple registration methods ensure reliable tracking throughout the scanning process. Choose between geometric feature registration (uses the object's natural characteristics) and marker-based registration for complex surfaces. The global marker system scans all reference points upfront to prevent tracking loss during scanning.
- Geometric feature registration uses object characteristics.
- Marker registration mode for challenging surfaces.
- Global marker scanning prevents tracking loss.
Incredible Color Capture
Capture both geometry and texture data with selectable color or monochrome modes. The integrated mesh generation system converts point cloud data into triangular mesh models with adjustable quality settings, optimizing performance based on your specific requirements and intended use.
- Color mode captures texture data for realistic 3D models.
- Monochrome mode for geometry-focused 3D scanning.
- Built-in mesh generation with quality optimization.
What's in the Box?
|
Standard |
Premium |
|
|
Technical Specifications

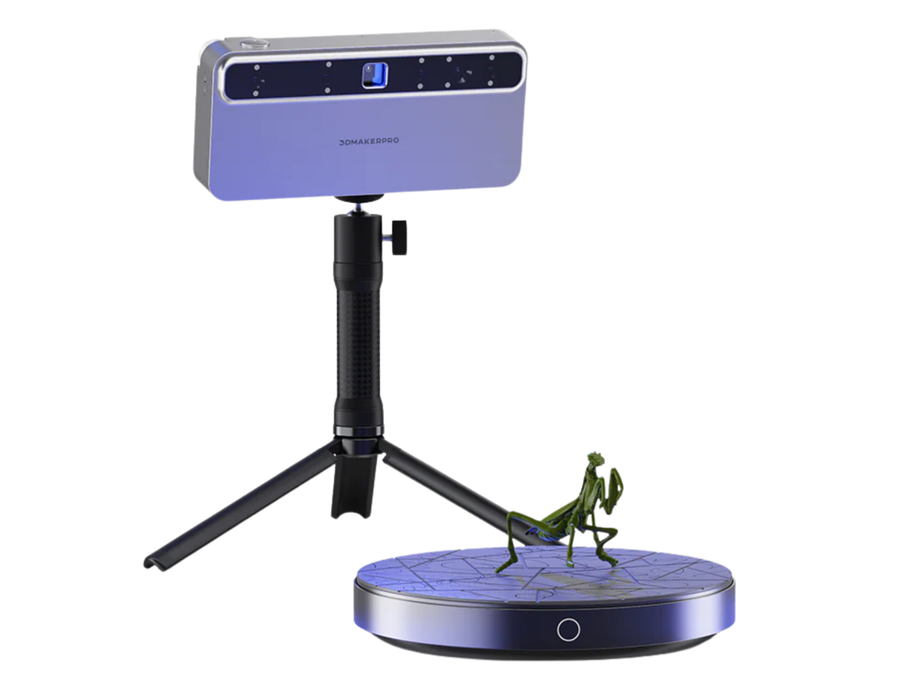

| Scan Type | Continuous Handheld Scan / Photo Scan / Table Scan |
| Camera | 3D Cameras ×4 48 MP RGB Camera ×1 |
| Light Source | Blue Laser Structured Light (Class1 / Class3R) |
| Single-Frame Accuracy | ≤ 0.03 mm (Small) / ≤ 0.10 mm (Large) |
| Resolution | ≤ 0.03 mm (Fixed Shot) / ≤ 0.05 mm (Small) / ≤ 0.10 mm (Large) |
| Scanning Range (FOV) | 135 × 185 mm (Small) / 1000 × 750 mm (Large) |
| Working Distance | 200–1000 mm |
| Scan Speed | Up to 15 fps |
| Processor | 8-core 2.4 GHz CPU + Mali-G52 GPU |
| Memory / Built-in Storage | 32 GB DDR4 / 256 GB eMMC |
| Battery | 6600 mAh |
| Connectivity | Wi-Fi 6, Bluetooth 4.1, Interface: USB-C |
| Sensors & Interaction | Position Sensor: 9-axis IMU Tracking Method: Features / Markers / Global Markers Buttons: 2 Scroll Wheel: 1 |
| Volume | 200 × 93 × 37.5 mm |
| Weight | 735 g |
