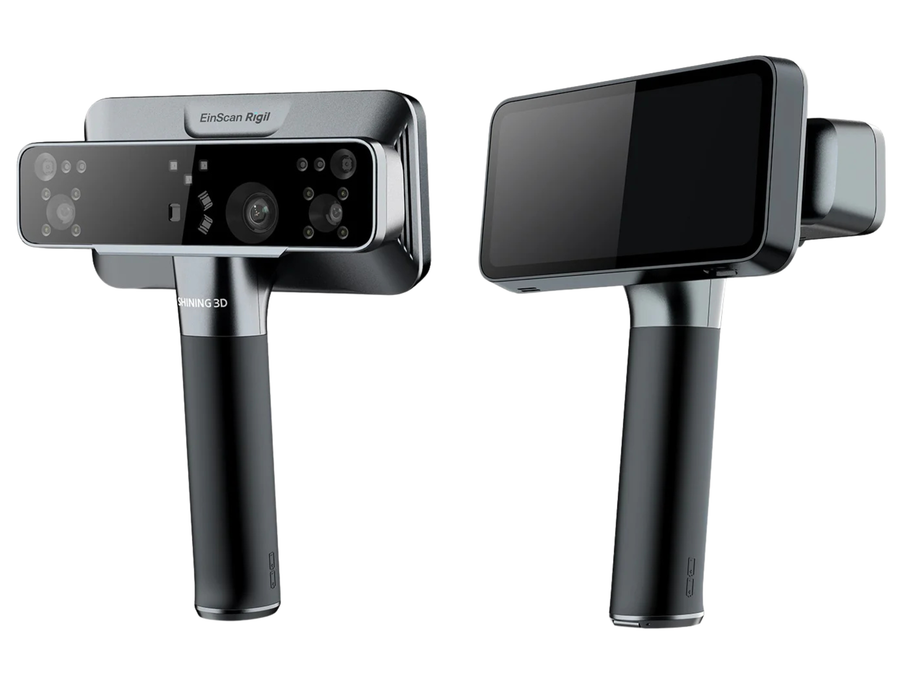

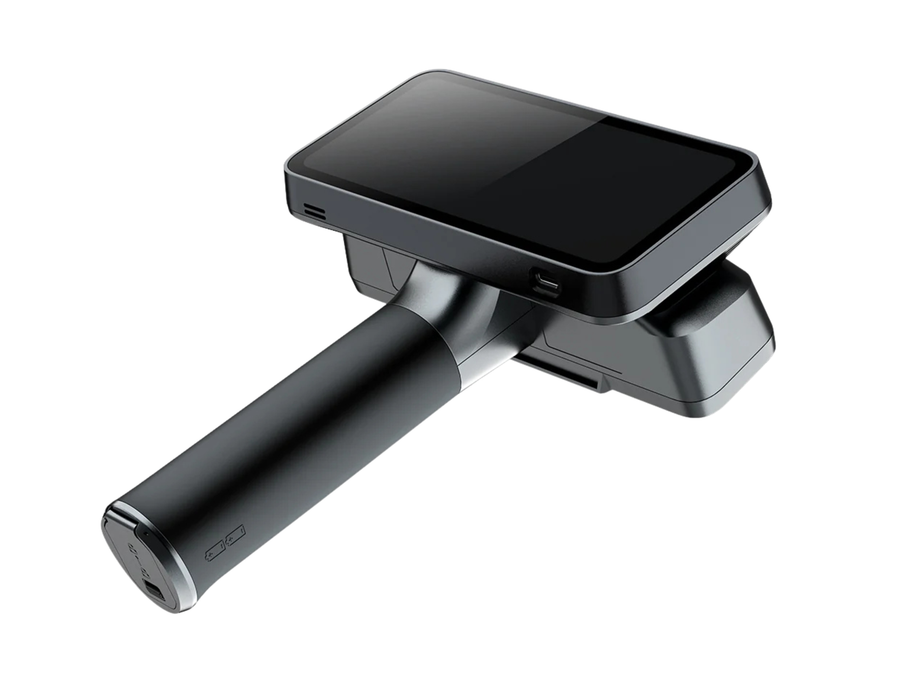

EinScan Einscan Rigil Wireless Handheld 3D Scanner
The EinScan Rigil is a wireless, handheld, tri-mode laser 3D scanner that features built-in computing capabilities. It provides a fully integrated 3D scanning workflow with three operational modes: Standalone, Wireless PC, and Wired PC Mode. This innovative design effectively eliminates the traditional trade-off between computing power and flexibility.
- Versatility with wired, wireless, and standalone modes.
- Reliable scanning capabilities for both indoor and outdoor use.
- Streamline your scanning process with on-device scan-to-mesh functionality.
- Capture stunning, marker-free laser scans with full-color texture for vivid and detailed results.
- Advanced embedded computing technology powered by NVIDIA, ensuring optimal performance on every scan.
| List Price: | $4,999.00 |
|---|---|
| Price: | $4,999.00 |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Einscan Rigil Wireless Handheld 3D Scanner
Rapid, Refined, and Reliable
The EinScan Rigil is a versatile laser 3D scanner with built-in computing and wireless capabilities. It features three light sources—38 cross laser lines, 7 parallel laser lines, and an infrared VCSEL—along with two camera systems, enhancing its performance on objects of various sizes. Its infrared mode and advanced tracking algorithms improve efficiency, making it ideal for industries such as automotive, cultural and art preservation, AR, VR, and digital content creation.
Key Features of the Einscan Rigil Wireless Handheld 3D Scanner:
- Rapid and precise scanning of high-quality models can achieve a volumetric accuracy of 0.04 + 0.06 mm/m, along with a high geometric resolution of up to 0.05 mm.
- Using hybrid light sources, this technology ensures versatile performance and peak efficiency across a wide range of object sizes and surface types.
- The fully integrated 3D scanning workflow operates wirelessly and offers three working modes, eliminating the trade-off between computing power and flexibility.
- A specialized tracking algorithm enhances efficiency and improves the quality of data scans, allowing for the maintenance of high-fidelity models during the digitization process. This results in more precise information for subsequent analysis and creation.
Three Work Modes for Infinite Versatility
The three distinct work modes of the EinScan Rigil offer flexibility without sacrificing accessibility, enabling you to achieve peak performance regardless of your project location.
- In Standalone Mode, all scanning and processing tasks are handled directly on the hardware, ensuring exceptional
portability. - Wireless PC Mode uses built-in Wi-Fi 6, allowing for seamless wireless scanning connected to a computer. This maximizes computing power, enhancing performance for complex tasks.
- For environments with complex network requirements or limited network access, Traditional PC Mode ensures consistent availability and maximum stability.
Wireless Workflow
The Wireless Work Mode offers an efficient and seamless workflow, in addition to the three standard work modes.
- Scan wirelessly without connecting to a PC.
- Transfer data wirelessly for sharing with the SHINING 3D Cloud.
- Use wireless screen casting to display content on a second screen.
Streamlined and Accurate
EinScan Rigil is programmed with a special feature-tracking algorithm that enables a marker-free blue-laser scanning mode, improving efficiency and data quality.
- Save time and effort by eliminating the need for physical markers, thus enhancing overall productivity.
- Achieve high-quality 3D models with precise details, crucial for professional applications.
- Focus on capturing the object without worrying about marker placement - especially beneficial for scanning intricate or delicate items.
Comprehensive Coverage
The EinScan Rigil features two distinct groups of cameras, each specifically designed to capture different light sources. This hybrid technology ensures high-quality 3D models with a volumetric accuracy of 0.04 + 0.06 mm and a geometric resolution of up to 0.05 mm. Additionally, users can switch between two laser scan modes during the scanning process, allowing for the merging of data to achieve both speed and detail in a single scanning project.
- The 19 crossed laser lines are designed for high-speed scanning, offering exceptional efficiency and flexibility.
- The 7 parallel laser lines ensure consistent results for capturing finer details.
- VCSEL Infrared-powered scanning is ideal for achieving high efficiency and extensive coverage when scanning medium to large objects, while ensuring eye-safe portrait scanning.
Digitize Every Detail
The EinScan Rigil features a 5MP high-definition camera that captures detailed textures in Blue Laser and Infrared rapid modes.
- This capability ensures high-fidelity models during digitization, providing accurate information for analysis, preservation, and creation.
- Adapts well to various lighting conditions, enabling smooth scanning indoors or outdoors.
- The EinScan Rigil is versatile across industries and can scan dark or reflective metal surfaces with the use of a spray.
High-Powered Hardware
The EinScan Rigil 3D Scanner is equipped with powerful hardware, featuring NVIDIA's embedded computing for seamless performance. Including 6000 mAh replaceable batteries to ensure extended scanning sessions without interruption.
- 6.4" 2K AMOLED Touch Screen
- 32GB DDR5 RAM
- 32GB eMMC + 1 TB SSD ROM
What's Included?
- 1x EinScan Rigil
- 4x 6000 mAh Batteries
- 1x Battery Compartment
- 1x Carrying Case
- 1x Calibration Board
- 1x Universal Holder
- 1x Power Adapter
- 1x Type C to Type C Cable for Scanner
- 1x Marker Removal Tool
- 2x 3mm and 2x 6mm Reflective Markers
- 1x Type C to USB Adapter
- 1x Cleaning Cloth and Packing List
TECHNICAL SPECIFICATIONS
| Work Mode |
|
| Scan Mode |
|
| Light Source |
|
| Resolution |
|
| Scanning Speed |
|
| Working Distance |
|
| Alignment Mode |
|
| Volumetric Accuracy |
|
| Camera Resolution | 3D: 2.3MP*2 1.3MP*2; Texture: 5MP |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Laser Class | Class II / |
| Hardware |
|
| Operation Conditions | Temperature -10°C ~ 40°C |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 |
| Recommended Configuration for PC |
|
| Interface & Power Source |
|
| Dimension | (H*D*W) 233x180x72.8 mm |
| Net Weight | 870g (batteries included) |
For additional information, please download and view the EinScan Rigil Brochure.
