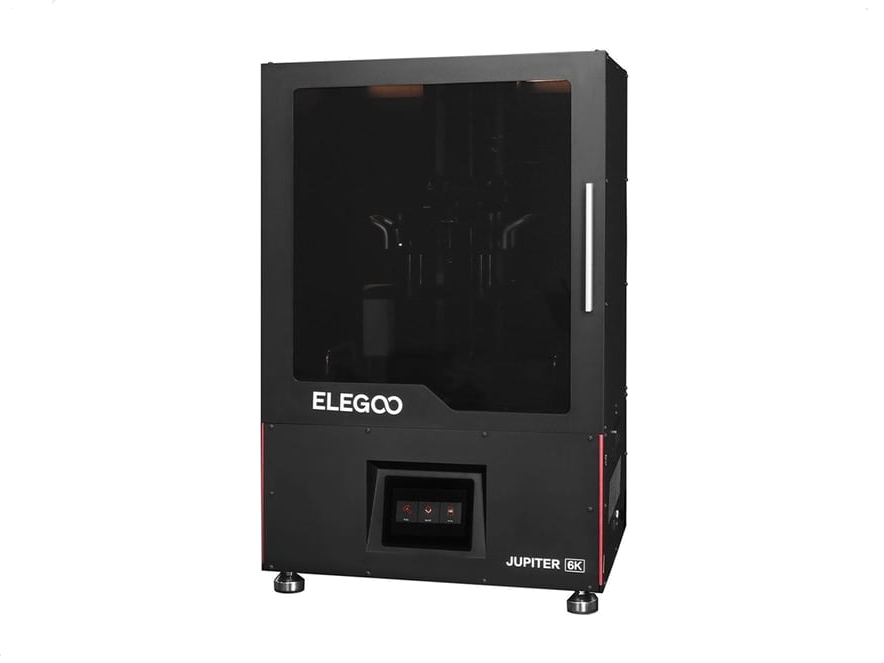

Elegoo Elegoo Jupiter 6K Mono LCD Resin 3D Printer

The Elegoo Jupiter is a robust 3D printer with an impressive 12.8-inch 6K monochrome LCD panel, a massive 277mm x 156mm x 300mm (10.9" x 6.1" x 11.8") build volume, automatic resin feeding, a 5-inch capacitive touchscreen, and offers lightning-fast layer curing to 70 mm/h. With an all-metal frame and activated carbon air filtration, this is the SLA 3D printer that makes printing giant, gorgeous prints easy as possible.

  • 12.8-inch 6K Monochrome LCD for 51microns of Eye-Popping Detail
  • Massive Build Volume of 277 x 156 x 300mm (10.9" x 6.1" x 11.8")
  • Automatic Resin Feeding to Ensure Every Print Completes
loading...
Product No. M-JYT-CUN2
List Price: $1,300.00
Price: $990.00
Price: $...
Order Now: Ships calculating... MatterHackers Shipping Truck Free U.S. Shipping
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Qty

ELEGOO JUPITER 6K

FINE QUALITY AT AN AFFORDABLE PRICE

The Elegoo Jupiter is a 6K resolution mSLA resin 3D printer with a large build volume ideal for producing high-quality resolution parts in large sizes or batches.

Key Features of the Elegoo Jupiter 6K Resin 3D Printer:

  • Large Build volume of 277 x 156 x 300mm
  • 12.8" 6K Mono LCD, 405nm Wavelength
  • XY Resolutions of 51 microns
  • Built-In Automatic Resin Feeder
  • Air Purifier Included
  • All-Metal Structure
  • Sandblasted Build Plate

MORE VOLUME MORE PRINTS

The Elegoo Jupiter 6K Resin 3D Printer has a large build volume so you can go big in size or batches with your prints.

  • Build Volume: 277 x 156 x 300mm
  • Output larger production batches
  • Produce larger parts
Multiple Detailed Models by Printed Obsession printed on the Elegoo Jupiter 6K Resin 3D Printer

Highly Detailed Model by Loot Studios Produced on the Elegoo Jupiter 6K Resin 3D Printer

DETAILED FEATURES WITH 6K

Elegoo's Jupiter utilizes a 6K HD LCD Screen with its powerful COB light source with fresnel lens to render beautifully detailed features in your models for consistent quality results.

  • 6K 12.8" HD LCD
  • XY Resolution: 51 microns
  • Powerful COB light with fresnel lens

DESIGNED FOR RELIABILITY AND EASE

The Elegoo Jupiter is designed to deliver a reliable and easy resin 3D printing experience via thoughtful features such as an automatic resin feeder, handles on the build platform, and more.

  • Automatic Resin Feeder
  • Long Printer Lifespan with All-Metal Structure
  • Built-In LED Strip
  • Handles on the Build Platform
  • Strong Adhesion w/ Sandblasted Build Plate
Built-In Automatic Resin Feeder distributing Elegoo Resin into the Elegoo Jupiter 6K Resin 3D Printer

Air Purifier being plugged into an Elegoo Jupiter 6K Resin 3D Printer

PLEASANT RESIN 3D PRINTING

The Elegoo Jupiter 6K Resin 3D Printer has a plug-in activated carbon filter to reduce the unpleasant odor that comes with some resin materials.

  • Included Air Purifier
  • Improve Resin 3D Printing Environment

What Are the Main Differences between Elegoo's Top-of-the-Line Resin 3D Printers?

Elegoo Mars 3 Pro 4K Elegoo Saturn 2 8K Elegoo Jupiter 6K
Model Mars 3 Pro 4K Saturn 2 8K Jupiter 6K
Price $299.99 $549.99 $1299.99
Build Volume 143 x 89 x 175mm
(5.6" x 3.5" x 6.9")
219 x 123 x 250mm
(8.6" x 4.8" x 9.8")
278 x 156 x 300mm
(10.9" x 6.1" x 11.8")
LCD Screen 6.6" Mono LCD 10" Mono LCD 12.8" Mono LCD
High Definition 4K (4098x2560 px) 8K (7680x4320 px) 6K (5448x3064)
XY Resolution 35µm 28µm 51µm
Max Print Speed 50 mm/h 70 mm/h 70 mm/h
Double Axis
Linear Rails
No Yes Yes
Display 3.5" Touchscreen 3.5" Touchscreen 5" Touchscreen
Free Chitubox Pro 1 Year
Auto Resin Feeder ✔️
LED Light Strip ✔️
All-Metal Structure ✔️
Aluminum Handles ✔️
UV-tinted Glass Door ✔️
UV-tinted Cover ✔️ ✔️

What Comes with the Elegoo Jupiter 6K Resin 3D Printer?

1 x Elegoo Jupiter 3D Printer (main body w/ resin tank)
1 x Red UV Cover
1 x Build Platform
1 x Mini Air Purifier
5 x Auto Feeding Bottle Cap
1 x Set of backup screws
1 x Set of wrenches
1 x USB Disk
1 x Adapter & cable
2 x PFA (FEP 2.0) Film
1 x Toolbox
1 x Flush cutters
1 x Set of scrapers (2 pcs)
1 x Metal Scraper
1 x Plastic Putty Knife
5 x Disposable funnel
2 x Disposable mask
1 x Pair of disposable gloves
1 x Instructions Manual
1 x 1 Year Free Trial of Chitubox Pro

*Please refer to the included packing list/manual included with your printer for the most up-to-date list.


What are the Technical Specifications of the Elegoo Jupiter 6K Resin 3D Printer?

GENERAL
Technology mSLA
Assembly Fully-Assembled
Made in China
Dimensions
(W × D × H)
498 x 358 x 750mm
(19.61" x 14.09" x 29.53")
Weight 40kg (88.2lbs)
LIGHT
Light Source UV LED
Light Source Design COB with Fresnel Lens
Light Source Wavelength 405nm
LCD Screen 12.8" Monochrome LCD
LCD Screen XY Resolution 6K HD, 51µm (0.051mm)
5448x3064 pixels
PRINTER PARAMETERS
Build Volume
(W × D × H)
277.85 x 156.06 x 300mm
(10.94" x 6.14" x 11.81")
Layer Height 0.01 – 0.2 mm (10µm - 200µm)
Print Speed 30 - 70mm/h
Z Axis Positioning Accuracy 0.00125mm (1.25µm)
FEP PFA Release Liner
PRINTER FEATURES
Resin Feeder Built-In, Automatic
LED Light Strip Built-In (does not affect resin)
Build Plate Sandblasted surface
Air Purifier Included activated carbon filter
Material Compatibility 405nm UV resins
SOFTWARE
Slicer Software CHITUBOX
Supported File Export Format STL, OBJ, CBDDLP, ZIP, SLC, WOW, FHD,
CWS, CTB, PHZ, SVGX, LGS, CFG, etc.
OS compatibility Windows, macOS, Linux
COMMUNICATION
Display 5" Capacitive LCD Touchscreen
Connectivity USB
POWER REQUIREMENT
Operating Voltage 100–240V, 50/60Hz
WARRANTY
Warranty Period 12 Months
