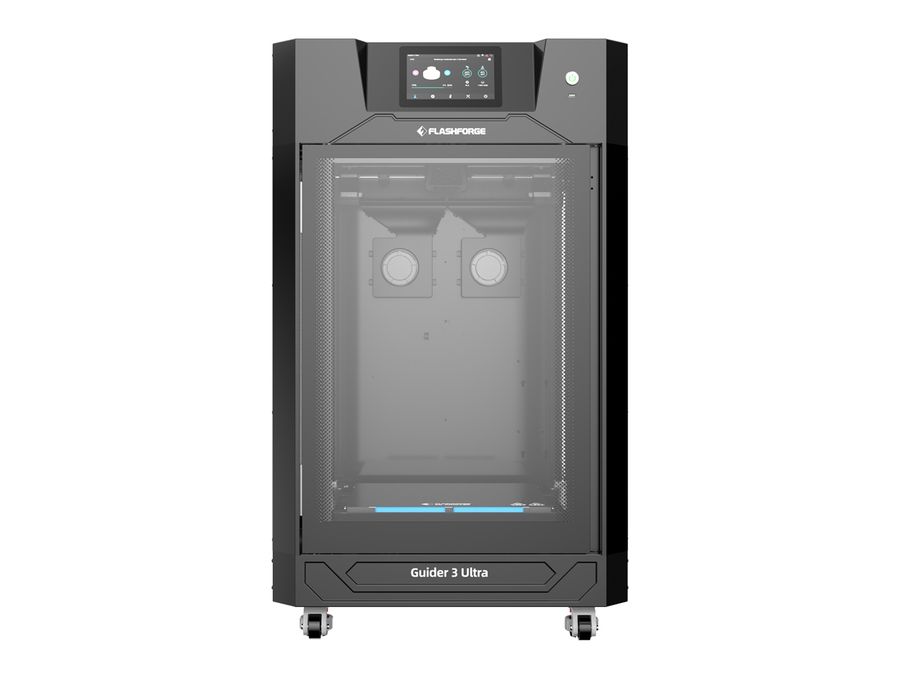

FlashForge FlashForge Guider 3 Ultra 3D Printer
The FlashForge Guider 3 Ultra is an ideal choice for commercial-grade additive manufacturing, offering reliable and efficient performance. Thanks to its CoreXY design, this 3D printer combines FlashForge's renowned technology with high speed printing, high fidelity, and quiet operation in one convenient package. Whether you need high-precision prints or silent printing, the FlashForge Guider 3 Ultra is the perfect all-in-one solution.
- Dual Extrusion High speed & quiet printing
- Built-in filament drying chamber & Hepa 13 air filtration
- Flexible and removable steel plate
Disclaimer* Shipping is only covered within the lower 48 states, the following US territories are not covered; Alaska, Hawaii, Puerto Rico, U.S. Virgin Islands, & American Samoa.
| List Price: | $5,999.00 |
|---|---|
| Price: | $5,999.00 Financing starts at: $113 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Features of Flashforge Guider 3 Ultra
The FlashForge Guider 3 Ultra offers unparalleled speed and efficiency for your business needs with its CoreXY design, combining the best of FlashForge's renowned technology.
- High speed - 500mm/s print speed.
- Extremely sturdy z-axis guides and ball screws for the stability of large models and long print jobs
- Built-in filament drying chamber & Hepa 13 air filtration system
- High-temperature extruder 320C
- Quick release nozzle
- Passive filament storage chambers
Technical Specifications
Printing
Printing Precision: ±0.15mm or 0.002mm/mm
Position Precision: X/Y axis: 0.011 mm; Z axis; 0.0025 mm
Layer Thickness: 0.05-0.4mm
Build Volume: 330(L) x 330(W) x 600(H) mm
Nozzle Diameter: 0.4 mm Standard (Optional 0.6 mm/0.8 mm)
Maximum Extruder Temperature: 350°C (608°F)
Adjustable Heated Build Plate Temperature: Up to 110°C (230°F)
Filament Diameter: 1.75 mm
Filament Compatibility: PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA
Print Speed: 10-250 mm/s
Mechanical & Dimensions
Number of Extruders: One
Printer Dimensions: 496 (L) x 436 (W) x 696 (H) mm (19.5 x 17 x 27 in)
Packaging Dimensions: 585 (L) x 530 W) x 760 (H) mm (23 x 21 x 30 in)
Net Weight: 60 LBS (27 KG)
Electrical
Power Supply: AC100-240V / DC24V / 20.8A, 650W
HD Touch Screen: 4.3 inch
Connectivity: USB Cable, USB Stick, Wi-Fi, Ethernet
Certification: CE / FCC / RoHS
Software
Software: FlashPrint
Compatible Slicing Software: Slic3r, Skeinforge, Cura (Require to set up), Simplify3D (Coming Soon)
File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
File Output Format: GX / G / gcode
Supports (OS): Windows XP/Vista/7/8/10, and Mac OS
Choosing between the Flashforge Guider 3 Printer options
| Guider 3 | Guider 3 Plus | Guider 3 Ultra | |
|---|---|---|---|
| Build Volume | 300 x 250 x 340 mm | 350 x 350 x 600 mm | 330 x 330 x 600 mm |
| Print Speed | 250 mm/s sprint speed | 250 mm/s print speed and under 50 dB noise level | 500 mm/s print speed, Up to 20,000 mm/s² acceleration, Quiet operation |
| Max Build plate temperature |
110°C |
120°C | 120°C |
| Max Extruder Temperature | 320°C | 320°C | 350°C |
| Number of Extruders | Single Extruder | Single Extruder | Dual Extruder |
