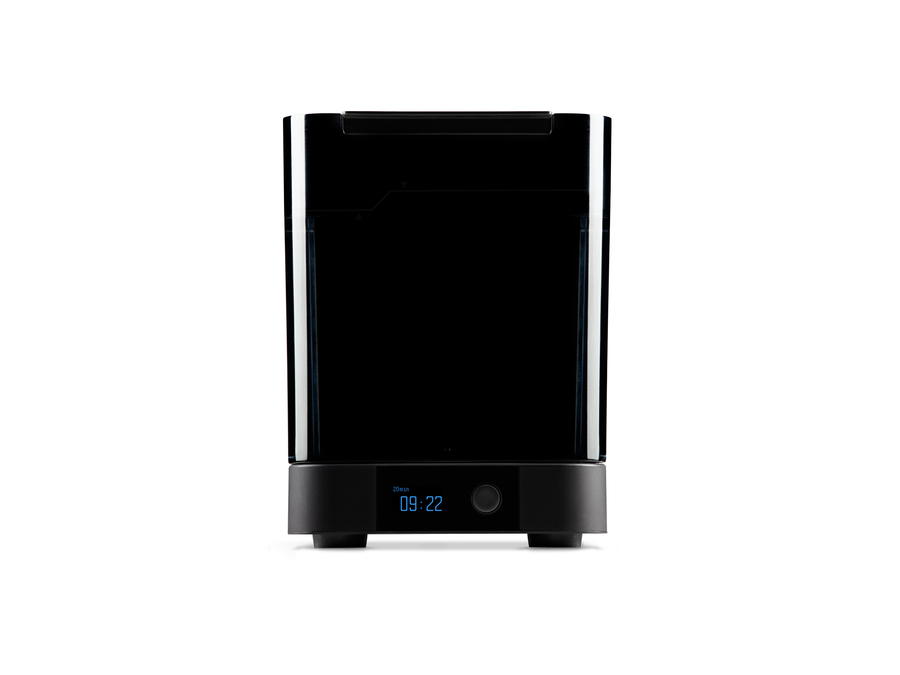

Formlab Formlabs Form Wash


The Form Wash is an automated cleaning station for Formlabs Form series 3D printers, streamlining the post-printing process by offering a hassle-free, thorough cleaning of prints without manual effort. It is compatible with all Formlabs resins, features automated wash cycles with precise agitation in IPA for perfect cleaning, and supports a max part size of 145 × 145 × 175mm. The process is quick and simple: transfer the print, select the resin-specific cleaning setting, and let the machine do the work.

  • Automated, hassle-free cleaning process
  • Compatible with all Formlabs resins
  • Precise agitation for thorough cleaning
Formlabs Form Wash Models
List Price: $548.00
Price: $548.00
Price: $...
Order Now: Processed Immediately MatterHackers Shipping Truck Free U.S. Shipping
Available Add-ons (2)
Price: $750.00 View Addon »
Price: $299.00 View Addon »
Show More Addons
Product No. M-YG7-5U9U

Form Wash


Enhance your 3D printing workflow with Form Wash, the automated cleaning station designed for Formlabs resin 3D printers. Effortlessly transfer prints from printer to wash for a deep, consistent clean—zero manual effort required. Compatible with all Formlabs resins, it features an automated wash cycle that precisely agitates parts in IPA, ensuring every detail is perfectly cleaned. Ideal for both small and large prints, Form Wash saves time and elevates part quality, streamlining post-processing.

Key Features of the Formlabs Form Wash:

  • Quick—Directly transfer build platform from printer to wash
  • Easy—wash settings available for all Formlabs resins
  • Automated—parts automatically lifted out of IPA post wash
  • Thorough—impeller precisely agitates IPA perfectly cleaning every nook & cranny
  • Max Part Size: 145 × 145 × 175mm (5.7" x 5.7" x 6.9")


The Formlabs Form Wash quickens and simplifies the cleaning process post-printing in three easy steps:

  1. Move build platform from printer to wash station
  2. Choose pre-determined cleaning settings based on resin printed
  3. Let Form Wash clean your prints

That's it!

Formlabs Form Wash automates the cleaning process
Formlabs Form Wash automatically raises the platform out of the cleaning solution to ensure no warp post-cleaning


Gain confidence knowing the resin parts cleaning in your Form Wash are the precise agitation to produce a perfectly clean part. Formlabs has pre-determined wash settings for all Formlabs materials to ensure consistent reliable quality and cleanliness is achieved with every wash.

For additional consistency, Form Wash automatically raises parts out of IPA post-cleaning for them to air dry. This ensures your parts don't warp, a side effect if parts are left too long in cleaning solutions.


✔ Form 2
✔ Form 3 / Form 3B
✔ Formlabs Form 3+ / 3B+
✔ Form 3L / Form 3BL*

*Small parts produced on the Form 3L and 3BL can be washed in the Form Wash if its size does not exceed 145 × 145 × 175mm (5.7" x 5.7" x 6.9"). If the print does exceed that size, use the Form Wash L.

What are the Tech Specs of the different Formlabs Form Wash stations?

Formlabs Form Wash Formlabs Form Wash L
Model Form Wash Form Wash L


Height when open:
640mm (25.2")


Height when open:
1130mm (44.5")

Weight 6.7 kg
14.5 lbs
56.7 kg (w/o solvent)
125lbs (w/o solvent)
Bucket Volume 8.6 L 37.9 L (10 US gal)
Maximum Part Size 145×145×175mm
Suggested Operating
Suggested 18 - 28°C
Suggested 64 - 82°F
Suggested 18 - 28°C
Suggested 64 - 82°F
Agitation Method Magnetically coupled impeller Magnetically coupled impeller
Included Accessories a. Wash Bucket
b. Wash Basket
c. Hydrometer
d. Siphon Pump
e. Flexible Scraper
f. Scraper
g. Tweezers
h. Flush Cutters
a. Wash Bucket
b. Wash Basket
c. Electric Solvent Pump
d. Flexible Scraper
e. Scraper
f. Flush Cutters
g. Rinse Bottle
h. Gloves
i. Form 3 Build Platform Adaptor
Power Requirements 90–240 V
2.0 A 50/60 Hz
50 W

Input (NA) 100 -
120 VAC, 50-60Hz, 1A

Input (EU) 220 -
240 VAC, 50-60Hz, 1A

Compatible Solvents IPA, TPM, Water IPA, TPM, Water
