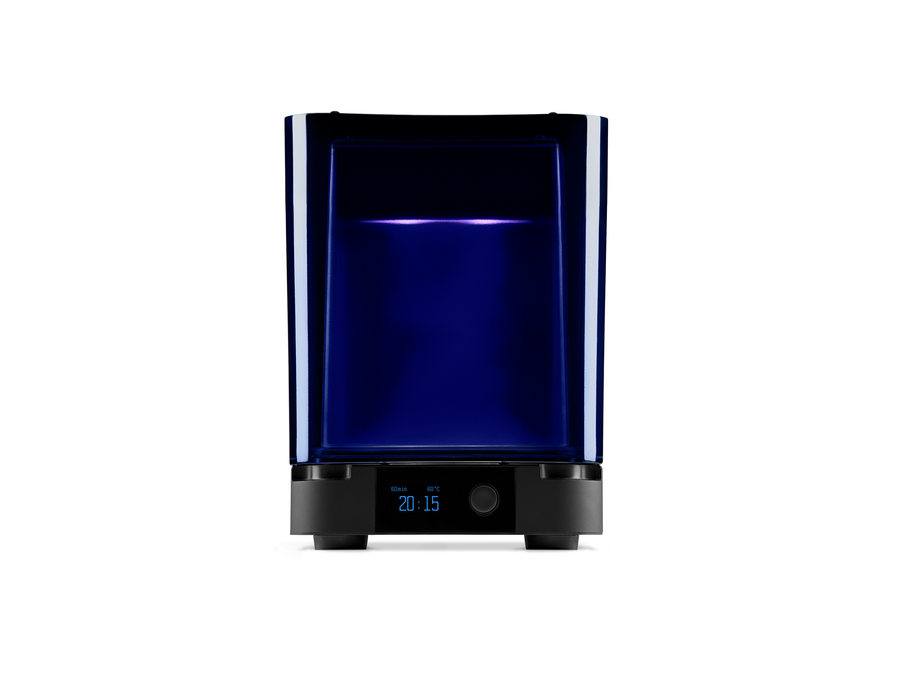

Formlabs Formlabs Form Cure
The Form Cure enhances resin print performance through a combination of advanced heating and 405nm light for rapid, uniform post-curing. Achieve maximum mechanical properties and accuracy with pre-determined settings for consistent results. With features like a preheated chamber, rotating turntable, and specific cure settings for each Formlabs material, it ensures reliable, efficient curing for optimal material performance.
- Enhances resin prints with heat and light
- Pre-determined settings for consistent, optimal results
- Rotating turntable ensures even, effective curing
| List Price: | $750.00 |
|---|---|
| Price: | $750.00 |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Form Cure
ENHANCE PERFORMANCE
Achieve peak performance in your resin prints with Form Cure, designed for Form 3 series 3D printers. It expertly combines advanced heating and 405nm light for rapid, uniform post-curing that delivers optimal strength and durable results. Experience the difference in your parts' performance with Form Cure's high-intensity, efficient curing process.
Key Features of the Formlabs Form Cure:
- Engineered to deliver an even cure
- Achieve max mechanical properties and peak accuracy
- Pre-determined settings available for easy, consistent results
- Max Part Height: 185mm (7.28")
RELIABLE PRECISION CURING
The Form Cure delivers reliable curing by utilizing the following features:
- Preheating the chamber for a quick curing start
- Rotating turntable for even curing
- Combining heat & light for quick, effective curing
MAXIMIZE MATERIAL PERFORMANCE
Optimal cure settings are crucial to a viable resin part. Formlabs knows this which is why the Form Cure offers default time and temperature settings unique to each Formlabs material to achieve that optimum performance.
WHICH 3D PRINTERS ARE COMPATIBLE WITH THE FORM CURE?
✔ Form 2
✔ Form 3 / Form 3B
✔ Formlabs Form 3+ / 3B+
✔ Form 3L / Form 3BL*
*Small parts produced on the Form 3L and 3BL can be cured in the Form Cure if its size can fit within a diameter of 193mm (7.6") and a height of 185mm (7.28"). If the print does exceed those dimensions, use the Form Cure L.
What are the Tech Specs of the Formlabs Form Cure stations?
 |
 |
|
|---|---|---|
| Model | Form Cure | Form Cure L |
| Dimensions | 262×262×340mm (10.3"×10.3"×13.4") Height when open: 640mm (25.2") |
690×540×445mm (27.2"×21.3"×17.5") |
| Weight | 5.6kg (12.4lbs) | 24kg (53lb) |
| Turntable Diameter | 193mm (7.6") | 395mm (15.6") |
| Maximum Part Height | 185mm (7.28") | 32mm (12.6") |
| Operating Temperature | Suggested 18 - 28°C Suggested 64 - 82°F |
Suggested 18 - 28°C Suggested 64 - 82°F |
| Maximum Cure Chamber | 80°C (176°F) | 80°C (176°F) |
| Light Source | 13 multi-directional LEDs | 45 multi-directional LEDs |
| LED Power | 39W | 70W |
| LED Radiant | 9.1 W | 36W |
| LED Wavelength | 405 nm | 375nm, 405nm |
| Power Requirements | 90–240 V 6.0 A 50/60 Hz 144W |
Input (NA) 100 - 120 VAC, 50-60Hz, 15A Input (EU) 220 - 240 VAC, 50-60Hz, 8A |
