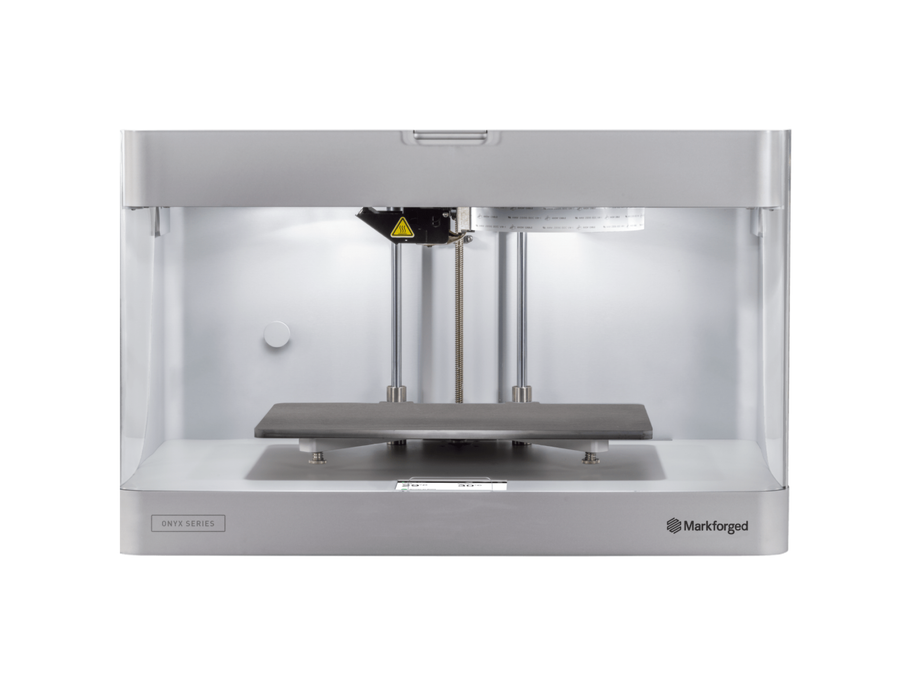

Markforged Markforged Onyx One 3D Printer (Gen 2)

The Markforged Onyx One is a desktop 3D printer designed by engineers for engineers. It offers reliable, high-quality manufacturing-grade output with Markforged Onyx filament, and is easy to operate and maintain. It is optimized to print tough, accurate, and chemical-resistant parts, such as prototypes, plastic-replacement parts, and housings.

  • Prints durable carbon fiber nylon parts
  • Uses Advanced-Materials Single Extrusion FFF 3D Printing
  • Compatible with Markforged Onyx 3D printer filament
  • Perfect for prototyping and plastic replacement parts
  • Made in the USA
Markforged Printers
List Price: $6,490.00
loading...
Available Add-ons (4)
Price: $30.00 View Addon »
Price: $55.00 $50.00 View Addon »
Price: $400.00 View Addon »
Price: $121.00 $110.00 View Addon »
Show More Addons
Product No. M-49Y-9ML8

Markforged Onyx One

THE DESKTOP 3D PRINTER DESIGNED BY ENGINEERS FOR ENGINEERS

The Markforged Onyx One brings progressional-grade reliability, part quality, and accuracy to a desktop FFF form factor. Simply hit print and get accurate, beautiful, manufacturing-grade parts every time with Markforged's flagship Onyx filament.

Key Features of the Markforged Onyx One 3D Printer:

  • Produce Tough Carbon Fiber Composite Parts
  • Advanced-Materials Single Extrusion FFF 3D Printing
  • Entry Into High-Quality Manufacturing Grade Output
  • Optimized to print with Markforged Onyx Filament
  • Best-in-Class Reliability
  • Easy to Operate and Maintain


Print Tough, High-Quality Onyx Parts

Parts produced on the Markforged Onyx One are extruded with Onyx, Markforged's signature micro carbon fiber-filled nylon that yields strong, accurate parts.

  • Generate cosmetic prototypes, plastic-replacement parts, housings, and more
  • Parts are tough and chemical resistant for industrial performance
  • Optimized for Markforged Onyx filament
  • Want to reinforce parts with continuous fiber? See the Onyx Pro and Mark Two
Image of Dexter, a robotic arm with some Markforged Onyx 3D printed parts. It was invented by Kent Gilson at Haddington Robotics

GIF of a Markforged Onyx part printing on a Markforged 3D printer

The FFF 3D Printer for Engineers & Designers

Professional-grade reliability, part quality, and accuracy are achieved in a desktop FFF form factor with the Onyx One. Hit print and receive a quality part every time.

  • Maximize high-quality composite printing capabilities
  • Accurate, manufacturing-grade repeatability
  • Drive innovation right from your desktop
  • Save big with on-demand, low-cost production

Onyx Carbon Fiber Nylon 3D Printing Made Easy

Pure and simple—the Markforged Onyx One is optimized to print with Markforged Onyx, a micro carbon fiber-filled nylon material that yields accurate parts with a near-flawless surface finish. More than a million Onyx parts in the field are transforming manufacturing.

  • Flexural Strength: 71MPa
  • Heat Deflection Temp: 145°C
  • Useful for a wide variety of applications
  • Maximize Markforged Onyx filament properties using a Markforged 3D printer
FDM 3D Printed parts made from Markforged Onyx filament and printed on a Markforged 3D printer

GIF of two beautiful Carbon Fiber Parts produced on Markforged desktop composite 3D printers

Produce Precise Polished Parts

The Onyx One produces precise parts with best-in-class surface finish thanks to Markforged spearheading production of its own in-house machines, materials, and software to create an optimal manufacturing process.

  • Precision repeatability—platform locks into place with 10µm accuracy
  • In-house materials engineered for industrial-grade results
  • In-house software optimized for accessible professional production

Machines Built to Last

Machines manufactured by Markforged, including the Onyx One 3D printer, are engineered to deliver reliability over the course of thousands of print hours.

  • Unibody aluminum chassis
  • Precision-machined components
  • Manufacturing-grade results
  • Designed by engineers for engineers
Multiple 3D printed parts being lowered on the platform of a Markforged 3D printer

Markforged Eiger software on a laptop for a Markforged 3D printer

Physical Inventory Turned Digital

No need for physical storage—Eiger™, Markforged's secure browser-based software, has a cloud-based storage system allowing you to print whatever and however many parts you need on demand from your digital library.

  • Store and access parts effortlessly anywhere
  • Prepare parts with a single click or drill deeply into part settings
  • Produce your inventory with the thermoplastics, composites, fibers, and metals by Markforged

Press Print. Forge Parts.

Print industrial parts at the speed of software with the Digital Forge—Markforged's platform of in-house software, materials, and hardware designed to make production simple and streamlined.

  • Prepare your parts with Eiger
  • Use top-quality Markforged materials
  • Forge the best possible prints out of Markforged materials with your Markforged Onyx One
3 step process of the The Digital Forge for Markforged 3D printers

Which Markforged 3D Printer is Right for Me?

Markforged has fine-tuned its robust line of 3D printers to have a solution for every desktop user - here are some quick Markforged 3D printer features at a glance:

  • Markforged Onyx One: single extrusion workhorse that prints a blend of nylon and chopped carbon for stronger and stiffer parts - entry-level starting at $6,490.
  • Markforged Onyx Pro: all the features of the Onyx One, but with the ability to use CFR technology for continuous fiber-reinforced printing, and more material capabilities - starting at $9,600.
  • Markforged Mark Two: the most advanced Markforged desktop 3D printer available, the Mark Two is capable of making parts with unparalleled durability and has the widest material compatibility of the Desktop Composite 3D Printer series - starting at $17,490.

What are the Differences Between Markforged Desktop Composite 3D Printers?

Markforged Onyx One Desktop Composite 3D Printer Markforged Onyx Pro Desktop Composite 3D Printer Markforged Mark Two Desktop Composite 3D Printer
Model Onyx One Onyx Pro Mark Two
Price $6,490 $9,600 $17,490
No Wi-Fi Option
Patented CFR™
Technology
Compatible Materials
Onyx™
Precise PLA
Smooth TPU 95A
Nylon
Fiberglass CFF
HSHT Fiberglass CFF
Carbon Fiber CFF
Aramid Fiber
(Kevlar®) CFF
Specifications
Build Volume
(W x D x H)
320 x 132 x 154 mm
(12.6" x 5.2" x 6")
320 x 132 x 154 mm
(12.6" x 5.2" x 6")
320 x 132 x 154 mm
(12.6" x 5.2" x 6")
Machine Dimensions
(W x D x H)
584 x 330 x 355mm
(23" x 13" x 14")
584 x 330 x 355mm
(23" x 13" x 14")
584 x 330 x 355mm
(23" x 13" x 14")
Weight 16kg (35lbs) 16kg (35lbs) 16kg (35lbs)
Z Layer Resolution 100 µm - 200 µm 100 µm - 200 µm 100 µm - 200 µm
Power Requirements 100-240VAC
150W (2A peak)
100-240VAC
150W (2A peak)
100-240VAC
150W (2A peak)

What Comes with the Markforged Onyx One 3D Printer?

HARDWARE
Mark Onyx One Desktop Composite 3D Printer
SPARE PARTS & TOOLS
Dry Box
Maintenance Tools
Print Removal Tools
Spare Nozzles (x3) (for FFF Plastic)
Extra Plastic Load Tube
Plastic and Fiber Bed
Leveling Shims
Anti-Seize Lubricant
Wifi Antennae
CONSUMABLES
800cc Onyx Filament

What are the Technical Specifications of the Markforged Onyx One 3D Printer?

GENERAL
Technology Fused Deposition Modeling (FDM)
Assembly Fully-Assembled
Desktop-friendly Yes
MACHINE DIMENSIONS
Dimensions
(L × W × H)
584 x 330 x 355mm3
(23 x 13 x 14in3)
Weight 15kg (34 lbs)
PRINTER PARAMETERS
Build Volume
(W × D × H)
320 x 132 x 154mm3
(12.6 x 5.2 x 6in3)
Filament Diameter 1.75mm
Extrusion System Second-generation extruder, out-of-plastic detection
# of Nozzles 1
Nozzle Diameter 0.4mm
Nozzle Type Plastic Nozzle
Default Layer Resolution 100 μm
Max Layer Resolution 200 μm
Dimensional Accuracy (XY) ± 250 μm
Dimensional Accuracy (Z) ± 1 μm
Infill Closed cell infill (multiple geometries available)
Print Bed Kinematic coupling — flat to within 160 μm
Fully Enclosed Yes
COMPATIBLE MATERIALS
Plastics Onyx1
Fibers See the Markforged Onyx Pro and Markforged Mark Two
to utilize continuous fiber fabrication
SOFTWARE
Software Eiger Cloud (Basic)*
Cloud Browser-Based Yes - Google Chrome
Security Two-factor authentication, org admin access, single sign-on
Paid Subscription Required Basic - No
Essential - Yes*
Advanced - Yes*
On-Prem - Yes*
Operating System 64-bit
OS compatibility Mac OS 11 or later, Windows 10 or later
Supported File Types STL
Supported Output File Types MFP (MarkForged Print)
COMMUNICATION
LCD Screen Touchscreen
RF Module Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Connectivity WiFi / USB / Ethernet
POWER
Operating Voltage 100–240 VAC, 150 W (2 A peak)
WARRANTY
Warranty Period 12 Months

1 Onyx data: Tensile Strength: 37 MPa (1.25x ABS); Tensile Modulus: 2.4 GPa (1.1x ABS)
* All Markforged 3D Printers come with Eiger software at the Basic tier along with 1 year of free, limited additional features from the Premium tier of the Digital Forge Subscription. Interested in higher-tier subscriptions? Email support@matterhackers.com.


FAQ



Do you offer training and installation services for Markforged machines and software?


Yes! We can arrange training, installation, and more. Please reach out to support@matterhackers.com for more information.


Can I use third-party materials with Markforged desktop 3D printers?


It is not recommended to use materials outside of Markforged to print on these machines. Markforged's filaments are developed, tested, and manufactured by them specifically to create a complete system of materials and machines to ensure your parts meet the expected professional quality and performance.


What support materials can I use on a Markforged desktop 3D printer?


Use the same material used for your part. Eiger, Markforged's proprietary 3D printing software included with every Markforged 3D printer, automatically creates the supports. The supports that are generated and produced are easily removed by hand or with small needle nose pliers.


Which slicers are compatible with Markforged 3D printers?


Eiger, Markforged's self-developed 3D printing software, ensures your prototyping, fixturing, and end-use parts production workflow is intuitive and efficient.


Do I have to pay for an Eiger subscription?


No. Eiger (Basic) is free and available with every Markforged 3D printer.

- For additional features and perks, a paid subscription will be required at higher tiers. Reach out to support@matterhackers.com if you need other requirements such as an offline software workflow or additional management tools.


What's the heated bed temperature on the Markforged desktop 3D printers?


The Markforged desktop 3D printers do not have heated beds (or heated chambers). These machines are fully enclosed and the heat emanating from the hotend work together to create the right environment for your parts to be produced in.


Do Markforged composite desktop 3D printers require ventilation?


No.


Why should I consider using fiber infill?


Combining continuous fiber infill with additive FDM technology allows you to create strong, stiff parts that are lightweight and have the additional benefits of being able to be produced at a relatively affordable cost and on-the-fly, quick turnaround from your benchtop.



Is maintenance required for Markforged 3D printers?


Like any machine, Markforged requires periodic maintenance to ensure peak operation. This includes but is not limited to standard procedures such as changing the tubes and the print nozzles for each material, keeping the machine clean, cleaning (and re-gluing) the bed after each print, and tensioning the belts when.

- Perk with Markforged: The printer will track and remind you when you need to perform maintenance!


Which Markforged desktop 3D printer has the widest material compatibility range?


The Markforged Mark Two


Which Markforged desktop 3D printer is ideal for users with a strict budget and who just want to print Onyx?


The Markforged Onyx One


Which Markforged desktop 3D printer is the perfect model that is between price points and functionality?


The Markforged Onyx Pro
