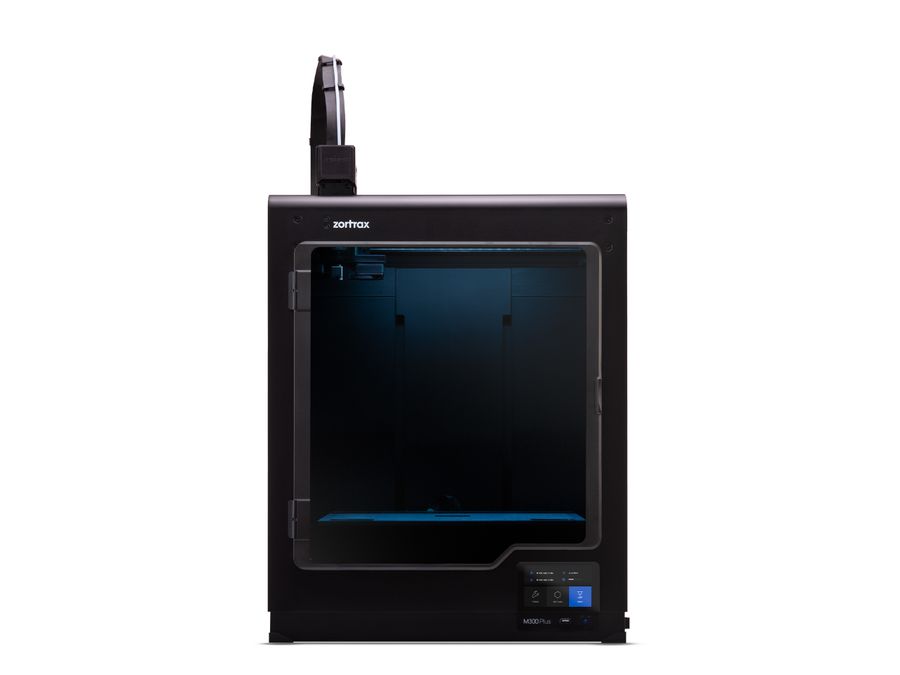

Measuring in at 300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in) the Zortrax M300 Plus has no shortage of space when it comes to completing medium to large prints. This large print space combined with the added feature of wireless connectivity allows users to create a network of connected M300 Plus 3D Printers, speeding up manufacturing time and virtually eliminating the need to slice larger models in favor of producing smaller combinable parts.
Can’t watch your print? No problem! The M300 Plus comes equipped with several features making it even more reliable than ever before. The addition of an endstop detection removes the possibility of print failure due to material miscalculation and an integrated camera inside of the print chamber allows users to remotely monitor the progress of prints. Going a step further the Z-SUITE slicer application allows users to start, analyze, pause, resume, and stop the print process remotely; this process managed over a network of M300 Plus 3D printers makes streamlining the production process and maximizing time-efficiency of production manageable for operations of all sizes.
Build Volume: 11.8 x 11.8 x 11.8 in (300 x 300 x 300 mm)
Material Diameter: 1.75mm
Available Materials: Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-PCABS, Z-ABS, Z-ASA Pro, Z-PLA Pro
Max Layer Resolution: 90 microns
Print Technology: LPD
Extruder: Single (upgraded for Flex Materials)
Extruder Cooling System: Radial fan cooling the extruder block; two fans cooling the print.
Nozzle Diameter: 0.4mm
Maximum Printing Temperature: 290° C (554° F)
Maximum Bed Temperature: 105°C (221°F)
Connectivity: WI-FI, USB, ETHERNET
Supported operating system: Mac OS X / Windows 7 and newer versions
Software bundle: Z-SUITE 2
Supported File Types: .stl, .obj, .dxf, .3mf
AC Input: 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz
Power Requirements: 24 V DC @ 14 A
