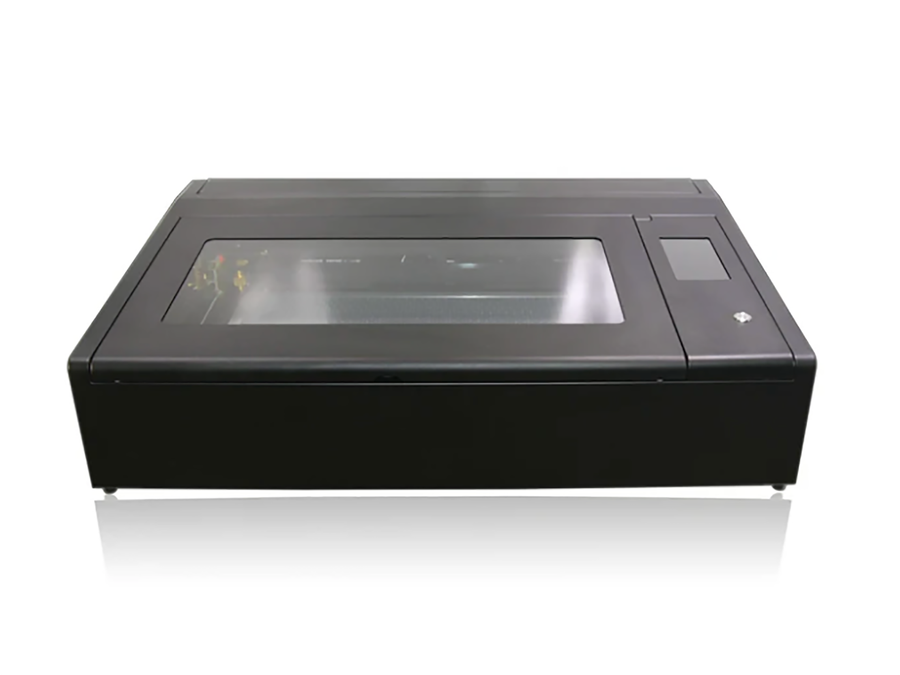

FLUX BeamBox Pro 50W CO2 Laser Cutter & Engraver

The FLUX Beambox Pro Desktop Laser Cutter and Engraver was created with a single goal in mind – to make it easier than ever to bring your ideas and designs to life. This powerful laser cutter and engraver features a 50W CO2 laser and boasts features such as built-in HD camera alignment, a closed-loop internal water cooling system, an integrated ventilation system for extracting fumes, and safety features such as emergency power shut off and a smart lid sensor to automatically pause a task if opened during operation. The BeamBox Pro is sure to surpass your expectations.

Product No. M-KY6-DNK7
Available Add-ons (3)
Price: $399.00 View Addon »
Price: $899.00 View Addon »
Price: $2,346.75 View Addon »
Show More Addons
Price: $5,799.00
Price: $...
Order Now: Processed Immediately
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Qty

BRING YOUR IDEAS AND DESIGNS TO LIFE WITH BEAMBOX PRO

With its sleek design and intuitive user interface, the Beambox Pro Laser Cutter and Engraver is an excellent addition to your design studio and the top of the line model currently offered by FLUX. Capable of cutting and engraving on organic materials, plastics, and selected metals users are just a few steps away from making amazing finished products.

Features:

Camera alignment: Utilizing the built-in HD camera, users can preview the work area and the material being used from the convenience of their laptop or cellphone. Placing designs, and ensuring the finished product is exactly as intended has never been simpler.

Internal water cooling: The built-in closed-loop water cooling system, which is designed to circulate water throughout the machine, ensures that all components of Beambox remain at the optimal operating temperature when in use.

High-resolution laser: Beambox is equipped with a CO2 laser tube that operates in the 10,640 nm wavelength. The maximum cutting thickness of this laser is 10mm (varies by materials). It is possible to achieve higher cutting thicknesses if you slow down the speed or pass over the cutting area multiple times.

Integrated ventilation system: The ventilation fan produces 340CMH (200 CFM), this assists with the extraction of smoke and fumes that may occur during the cutting process.

Smart safety features: In addition to being fully enclosed (protecting users from laser light and fumes), the Beambox compact will automatically pause processes if the lid is opened during a task (Smart lid sensor). Though highly unlikely, in the event of an emergency Beambox Compact can be shut down immediately using its emergency power switch.

Add on-features:

Rotary: The Rotary add-on allows users to unlock the full engraving potential of Beamo by enabling engraving on curved objects such as glassware and bottles. The rotary module spins the workpiece. This easy to install add-on opens up whole new creative dimensions.

Equipped with premium quality rails, the performance and durability of Beambox is unparalleled.

CUTTING AND ENGRAVING COMPARISION CHART

Material

Wood

Cut

5 mm

Pro Version

8 mm

Engrave

Acrylic

5 mm

8 mm

Leather

6 mm

8 mm

Cardboard

7 mm

10 mm

Felt

10 mm

12 mm

Rubber

5 mm

8 mm

Paper

5 mm

8 mm

Glass

Anodized Aluminum

Stainless Steel*

Note: *Using FLUX Stainless Steel Spray

Maximum thickness 12mm (Varies by material))

Beam Studio & BeamCam are compatible with JPG/PNG/SVG/DXF files - bring your designs to reality using the file types of your choice!

CONTROL AND MONITOR TASKS FROM YOUR COMPUTER OR PHONE

Beambox Pro is powered by FLUX’s in-house design software – Beam Studio & the iOS/Android app BeamCam. This hassle-free software and app provide users with a one-stop design experience. Edit text and vector file, modify bitmap images, align, distribute objects and more!

Utilizing the display panel, users can start, pause, control, and monitor the status of your Beambox Pro all with a touch of a finger.

TECHNICAL SPECIFICATIONS

Laser:

  • Spec: 50W COLaser
  • Wavelength: 10640 nm
  • Moving Speed: 0 -300 mm/s
  • Cutting Thickness: 0-12mm (varies by material)

Hardware:

  • Dimensions: 9.8” x 40.5” x 26.3” in (25 x 83 x 67 cm)
  • Weight: 105lb (48kg)
  • Work Area: 23.6” x 14.7” in (60 x 37.5 cm)
  • Camera Preview Area: 23.6” x 14.1” in (60 x 36 cm)
  • Work Area Depth: 3.14” in (8 cm)
  • Power: AC 110V/220V
  • Touch Panel: 1024 x 600 LCD
  • Camera: HD CMOS
  • I/O: Wi-Fi/Ethernet

Software:

  • Mode: Vector/Graphic (monochrome, gray scale)
  • Operating System: Windows/macOSX/Linus
  • Supported File Type: JPG/PNG/SVG/DXF
