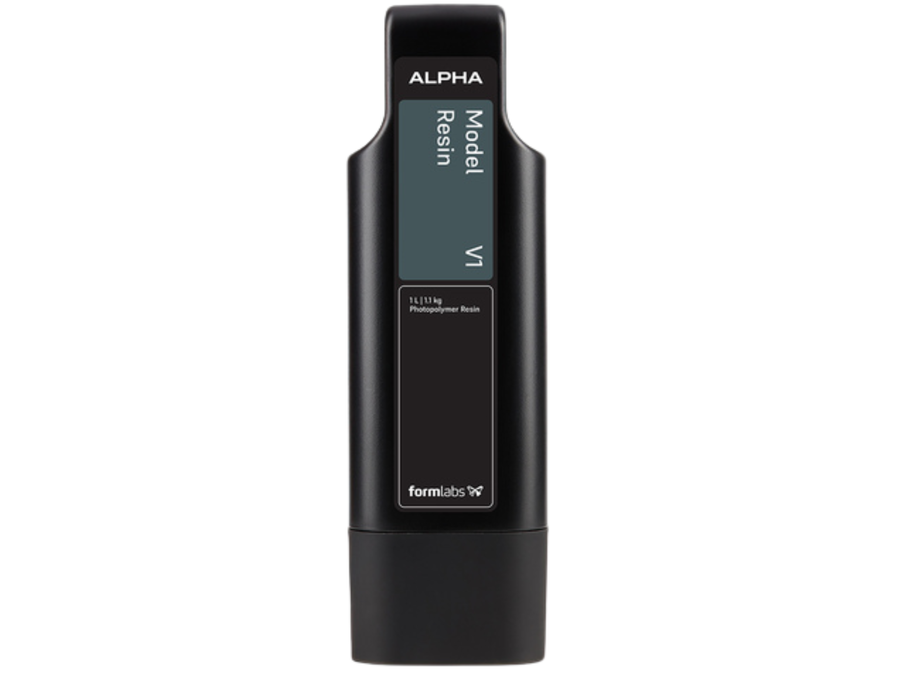

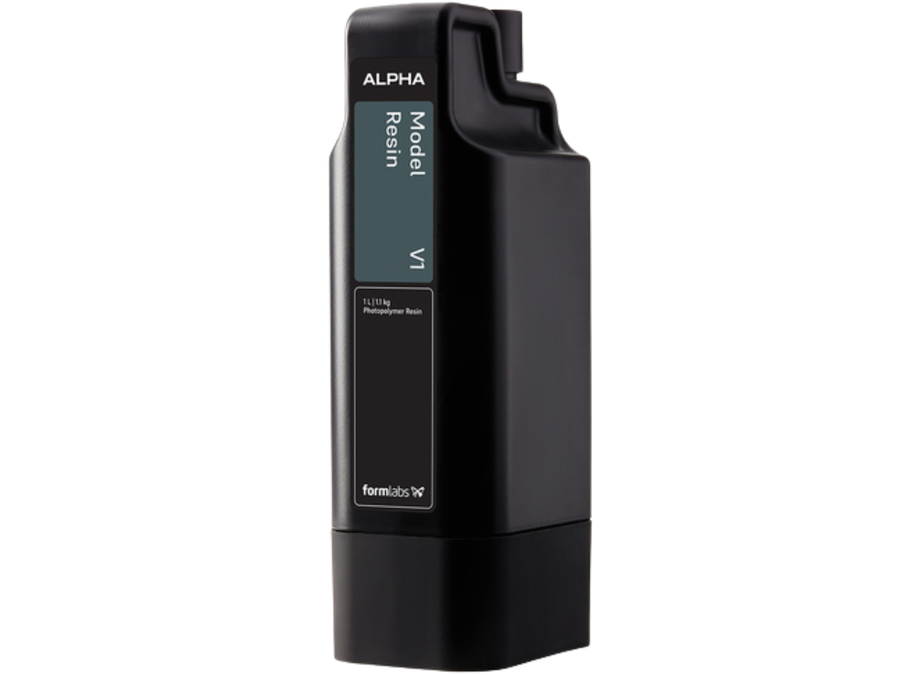

Formlabs Formlabs Alpha Model Resin 1L
Alpha Model Resin is a high-detail SLA resin designed to capture every surface nuance, from the finest crevices to rich textures. Thin features flex instead of snap, so your finished models hold up through painting, transport, and the occasional drop. Formulated with low-odor components, this resin is the first 3D printing material certified for UL GREENGUARD Gold when printed on Form Studio 1 with a VOC Extractor.
- Supremely detailed output with a deep, fully matte, neutral surface finish.
- Low-odor resin formula for a more comfortable workspace.
- Post-processed parts meet safety requirements for long-term skin contact.
- Compatible exclusively with the Formlabs Form Studio 1.
Detail-First Resin for Models and Miniatures
Alpha Model Resin is a supremely detailed resin with a deep, fully matte, neutral surface that captures every detail, down to the finest crevices and textures.
Low odor
The Alpha Resin Family is formulated with low-odor components.
Skin-safe parts
Post-processed parts meet safety requirements for long-term skin contact.
UL GREENGUARD Gold
The first 3D printing materials certified for GREENGUARD Gold, when printed on Form Studio 1 with the VOC Extractor.
Made for Form Studio 1
Supplied in 1 L cartridges for Form Studio 1, the only printer Alpha Resins support.

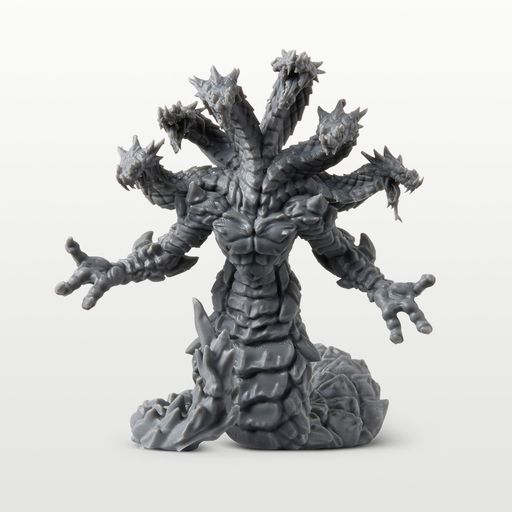

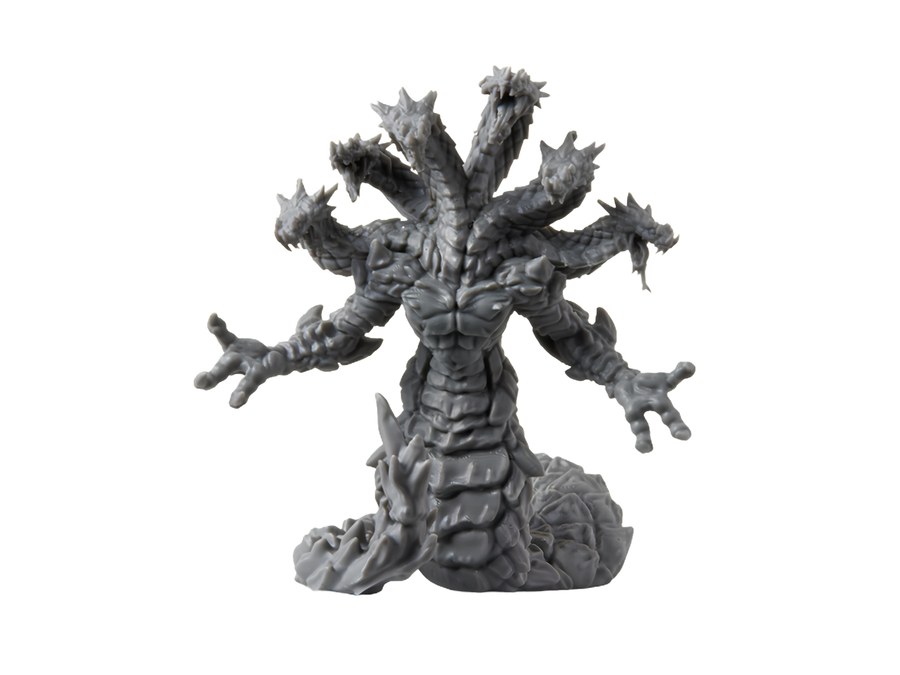

Built for Models, Sculptures and Miniatures
Create detailed scale models, life-like sculptures, and richly textured miniatures with thin features that flex instead of snapping, so finished models survive painting, transport, and drops.
From Cartridge to Finished Part
Alpha Resins are part of the Form Studio 1 workflow, from loading the cartridge to post-curing the finished part.
1. Load the Cartridge
Insert the Alpha Resin cartridge into Form Studio 1. The printer dispenses resin into the tank as the print requires it.
2. Print
Prepare the job in PreForm and start it from the touchscreen, PreForm or the mobile app.
3. Remove Parts
Remove parts from the build platform. On Build Platform Flex, parts release with a flex of the platform.
4. Wash and Cure
Wash and post-cure parts in Form Studio Wash+Cure. See Formlabs' Alpha Resin washing guidelines for compatible solvents.
Specifications
- Volume
- 1 L
- Printer
- Form Studio 1 only
- SKU
- RS-C2-APMD-01
- UPC
- 811294039061
- Shipping size
- 8.9 x 10.2 x 28.6 cm (3.50 x 4.02 x 11.26 in), 1.5 kg
Safety information: Alpha Model Resin Safety Data Sheet.
Safety and Handling
The Alpha Resin Family uses low-odor components and post-processed parts meet safety requirements for long-term skin contact. Alpha Resins are the first 3D printing materials certified for UL GREENGUARD Gold, when printed on Form Studio 1 and using VOC Extractor. Alpha Model Resin is only supported on the Form Studio 1.
- Liquid resin causes skin and eye irritation and may cause an allergic skin reaction (SDS: H315, H317, H319).
- Wear gloves and eye protection when handling liquid Alpha Resin.
- Review the Safety Data Sheet before use.
- GREENGUARD Gold certification applies only when printed on Form Studio 1 with the VOC Extractor.
Frequently Asked Questions
Can Alpha Resins be used on Form 4 or other printers?
No. Alpha Resins are only supported on Form Studio 1.
Does GREENGUARD Gold apply on any printer?
No. The certification applies only when Alpha Resins are printed on Form Studio 1 using the VOC Extractor.
Do I need gloves or eye protection?
Yes. Gloves are recommended when working with Alpha Resins in liquid form, and the Safety Data Sheet calls for eye protection. Review the SDS before use.
How are Alpha Resin parts washed?
Parts are washed and post-cured in Form Studio Wash+Cure. Formlabs publishes washing guidelines for compatible solvents, including Resin Washing Solution.
