Formlabs Formlabs Alpha Resin Clear
Alpha Resin is a versatile, general-purpose SLA resin designed for both aesthetic and functional parts on the Formlabs Form Studio 1. It combines exceptional fine detail and a rich matte finish with fast print speeds and mechanical properties that surpass comparable ABS-like resins. Available in Grey and White, Alpha Resin is ideal for concept models, form-and-fit prototypes, jigs, and any application where strength, surface quality, and safety compliance all matter.
- Post-processed parts meet safety requirements for long-term skin contact.
- UL GREENGUARD Gold Certified when printed on Form Studio 1 with VOC Extractor.
- Compatible exclusively with the Formlabs Form Studio 1.
General Purpose Resin in Grey, White, Black and Clear

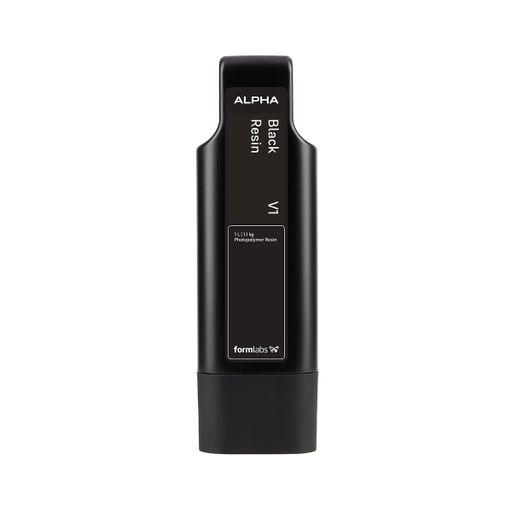

Alpha Resin is the general purpose material for Form Studio 1, available in matte Grey, White and Black and optically clear Clear. Choose a color above; each ships as a 1 L cartridge.
Low odor
The Alpha Resin Family is formulated with low-odor components.
Skin-safe parts
Post-processed parts meet safety requirements for long-term skin contact.
UL GREENGUARD Gold
The first 3D printing materials certified for GREENGUARD Gold, when printed on Form Studio 1 with the VOC Extractor.
Made for Form Studio 1

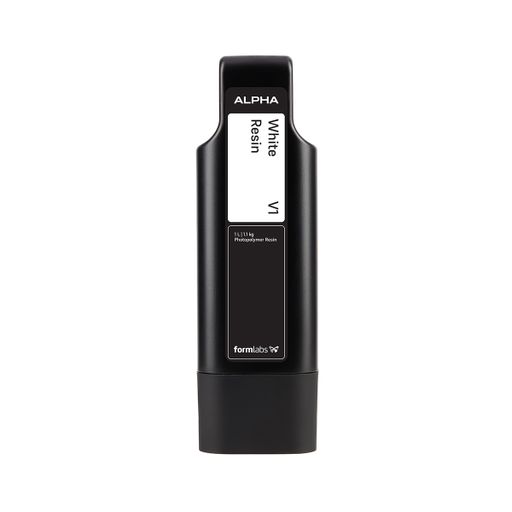

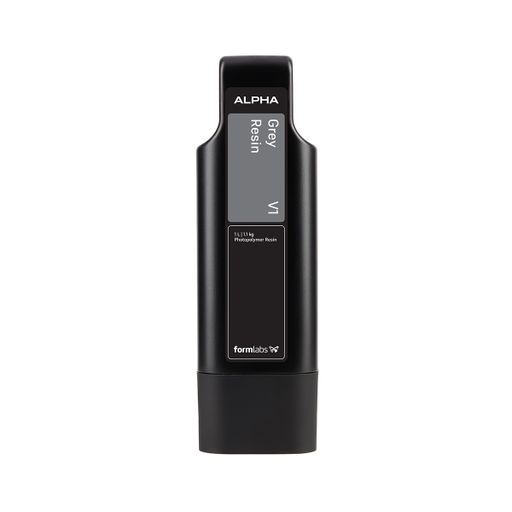

Supplied in 1 L cartridges for Form Studio 1, the only printer Alpha Resins support.
From Cartridge to Finished Part
Alpha Resins are part of the Form Studio 1 workflow, from loading the cartridge to post-curing the finished part.
1. Load the Cartridge
Insert the Alpha Resin cartridge into Form Studio 1. The printer dispenses resin into the tank as the print requires it.

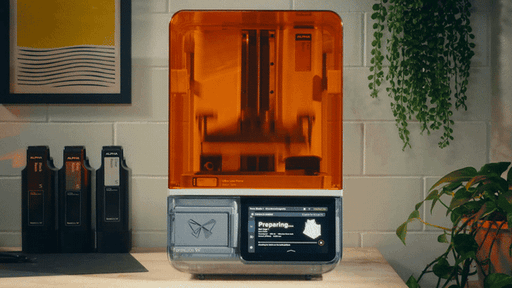

2. Print
Prepare the job in PreForm and start it from the touchscreen, PreForm or the mobile app.

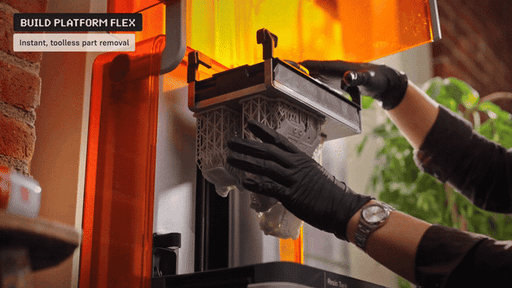

3. Remove Parts
Remove parts from the build platform. On Build Platform Flex, parts release with a flex of the platform.

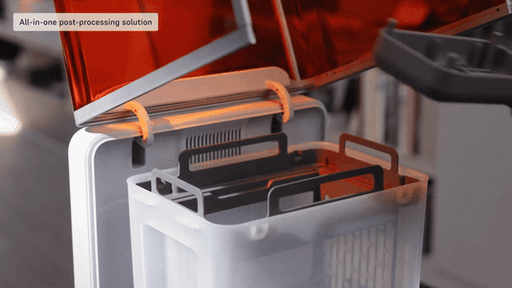

4. Wash and Cure
Wash and post-cure parts in Form Studio Wash+Cure. See Formlabs' Alpha Resin washing guidelines for compatible solvents.
Choose Your Color

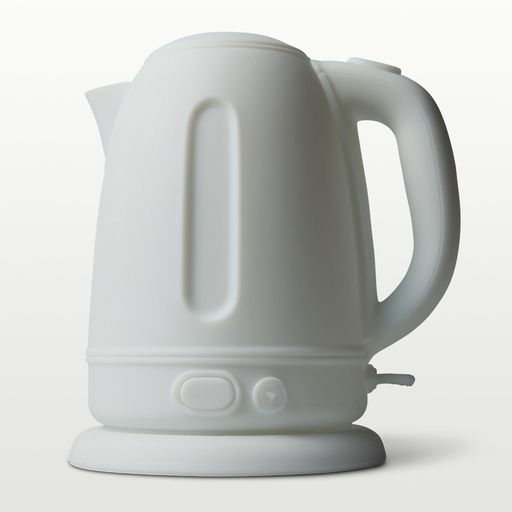

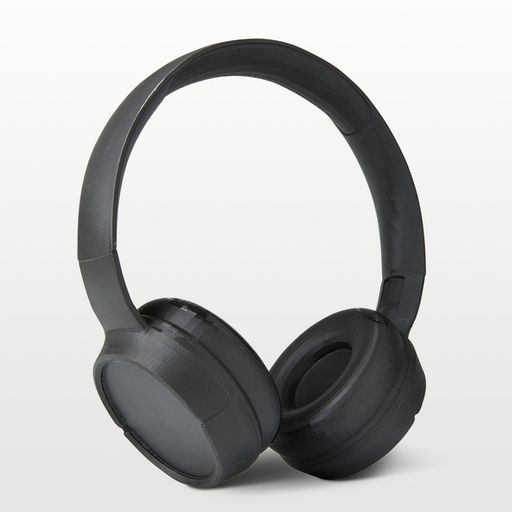

Grey, White and Black

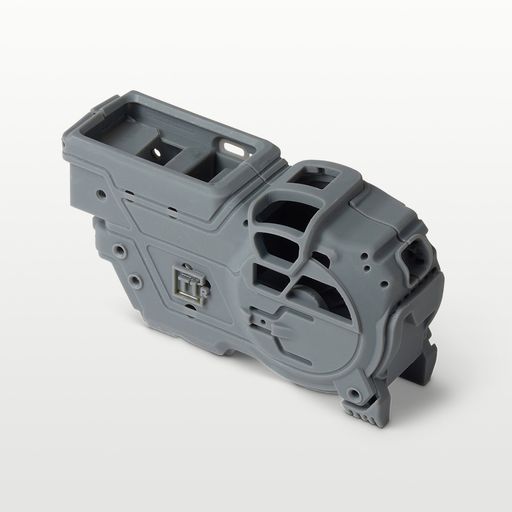

Create concept models, form-and-fit prototypes, and jigs that exceed the strength and toughness of comparable ABS-like resins without sacrificing fine features and surface quality.
Clear

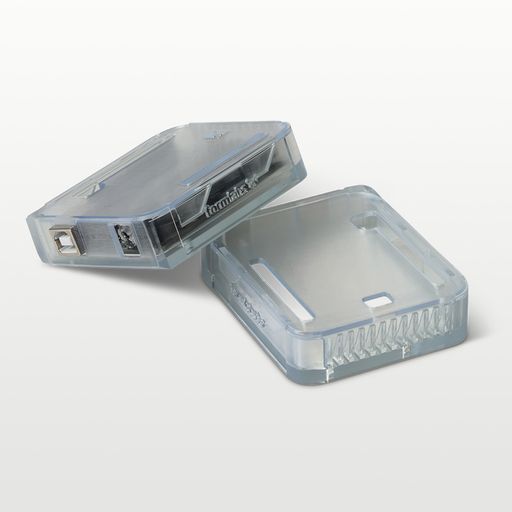

Create transparent enclosures, lighting prototypes, and molds that exceed the strength and toughness of comparable ABS-like resins with a surface quality that rivals acrylic.
Specifications
- Volume
- 1 L
- Printer
- Form Studio 1 only
- Colors
- Grey, White, Black, Clear
- Alpha Grey SKU
- RS-C2-APGR-01 (UPC 811294039016)
- Alpha White SKU
- RS-C2-APWH-01 (UPC 811294039030)
- Alpha Black SKU
- RS-C2-APBK-01 (UPC 811294039047)
- Alpha Clear SKU
- RS-C2-APCL-01 (UPC 811294039023)
- Shipping size
- 8.9 x 10.2 x 28.6 cm (3.50 x 4.02 x 11.26 in), 1.5 kg
Safety and Handling
The Alpha Resin Family uses low-odor components and post-processed parts meet safety requirements for long-term skin contact. Alpha Resins are the first 3D printing materials certified for UL GREENGUARD Gold, when printed on Form Studio 1 and using VOC Extractor. Alpha Resins are only supported on the Form Studio 1.
- Liquid resin causes skin irritation and may cause an allergic skin reaction. Grey, White and Clear cause serious eye irritation; Black is classified as causing serious eye damage (SDS: H315, H317, H319/H318).
- Wear gloves and eye protection when handling liquid Alpha Resin.
- Review the Safety Data Sheet before use.
- GREENGUARD Gold certification applies only when printed on Form Studio 1 with the VOC Extractor.
Safety Data Sheets: Alpha Grey Resin Safety Data Sheet · Alpha White Resin Safety Data Sheets (Formlabs) · Alpha Black Resin Safety Data Sheet · Alpha Clear Resin Safety Data Sheet
Frequently Asked Questions
Can Alpha Resins be used on Form 4 or other printers?
No. Alpha Resins are only supported on Form Studio 1.
Does GREENGUARD Gold apply on any printer?
No. The certification applies only when Alpha Resins are printed on Form Studio 1 using the VOC Extractor.
Do I need gloves or eye protection?
Yes. Gloves are recommended when working with Alpha Resins in liquid form, and the Safety Data Sheet calls for eye protection. Review the SDS before use.
How are Alpha Resin parts washed?
Parts are washed and post-cured in Form Studio Wash+Cure. Formlabs publishes washing guidelines for compatible solvents, including Resin Washing Solution.
