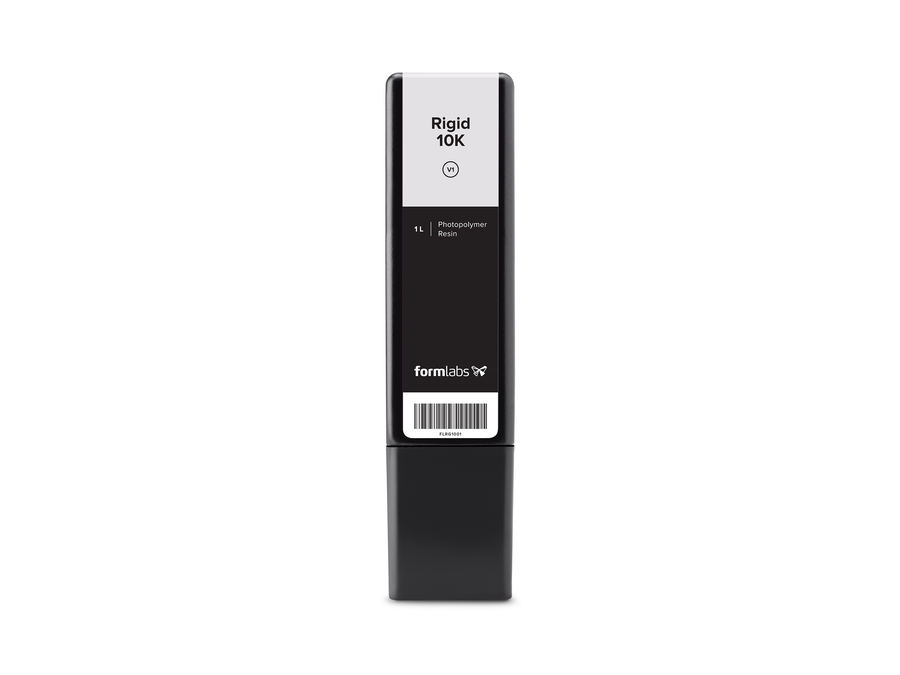

FormLabs Formlabs Rigid 10K Resin Cartridge
Formlabs Rigid 10K Resin is an ultra-stiff, highly durable material ideal for industrial applications requiring precision and resistance to heat and chemicals. It provides a smooth, matte finish with excellent dimensional stability, perfect for molds, jigs, and tooling. Compatible with various Formlabs printers, it offers superior performance for professional-grade projects.
- Ultra-stiff, heat and chemical resistant
- Maintains accuracy under stress
- Ideal for high-stress industrial tooling
- Cartridge compatible with Form 3 series and 2 3D printers
| List Price: | $299.00 |
|---|---|
| Price: | $299.00 |
| Price: | $... |
| Order Now: | Ships calculating... Free U.S. Shipping |
Rigid 10K Resin
INDUSTRIAL STIFFNESS
Elevate your industrial projects with Formlabs Rigid 10K Resin, a highly glass-filled, ultra-stiff material designed for precision and durability. It has a smooth, matte finish and exceptional resistance to heat and chemicals making it perfect for molds, jigs, and high-stress tooling. Ideal for achieving dimensional accuracy and stability in high-temperature processes, this resin is the go-to for professionals needing strong, stable, and detailed components.
Key Features of the Formlabs Rigid 10K V1 Resin:
- Simulates glass and fiber-filled thermoplastics' stiffness
- Superior heat resistance and excellent chemical resistance
- Maintains dimensional accuracy under pressure and heat
- Faster, easier printing compared to milling metals
- Smooth, matte, polished finish
- Ideal for jigs, dies, short-run injection mold masters, and other tooling
| Engineering Application |
SLA Technology |
Heat Resistant |
| 88 MPa Ultimate Tensile Strength |
11 GPa Tensile Modulus |
158 MPa Flexural Strength |
| COMPATIBILITY | ||
| Printer(s)* Form 4 / 4B Form 3L / 3BL Form 3+ / 3B+ Form 3 / 3B Form 2 |
Resin Tank(s) [RT] Form 4 / 4B RT Form 3L / 3BL RT V2 Form 3L / 3BL RT V1 Form 3 / 3B RT V2.1 Form 2 LT Tank |
Build Platform(s) [BP] Form 4 BP Flex Form 4 BP Form 3L BP 2L Form 3L BP Form 3 Stainless Steel BP Form 3 BP 2 Form 3 BP |
*The resin is compatible with these 3D printers. Please ensure you're selecting the correct cartridge compatibility at purchase as the Form 4 uses a different cartridge system from previous models. The listing you are currently on is for the Form 3 series / Form 2.
For the Form 4 compatible cartridges, click here.
What are the Material Properties* of the Formlabs Rigid 10K Resin?
| Ultimate Tensile Strength | 88 MPa |
| Tensile Modulus | 11 GPa |
| Elongation | 0.017 |
| Flexural Modulus | 9.9 GPa |
| Notched Izod | 20 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 238°C |
| Thermal Expansion, 0 - 150 °C | 41 μm/m/°C |
* Data was obtained from parts printed Form 3, 100 µm and post-cured with a Form Cure for 60 minutes at 70°C.
Download the Formlabs Rigid 10K Resin Technical Data Sheet
Download the Formlabs Rigid 10K Resin Safety Data Sheet
 |
 |
|---|---|
| FORM WASH SETTINGS | FORM CURE SETTINGS |
| Duration | Duration |
| 10 min + 10 min in IPA | 60 min |
| Temperature | |
| 70°C | |
| Notes | Notes |
| Rigid 10K Resin contains glass particles, which strengthens printed parts. Maintain separate wash buckets to prevent glass particles adhering to parts printed with other resins. Parts with two wash times require two wash cycles. For the second wash cycle, use clean solvent. The first wash cycle removes the bulk of the resin, while the second cycle fully cleans the parts. |
For parts printed in an engineering- focused resin (such as those in the Rigid, Tough & Durable, and Flexible & Elastic families), post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. There is only one recommended post-curing time for Rigid 10K Resin V1. Optionally, after post- curing, heat the printed part in a non-food oven at 90 °C for 125 minutes for a higher heat deflection temperature. |
