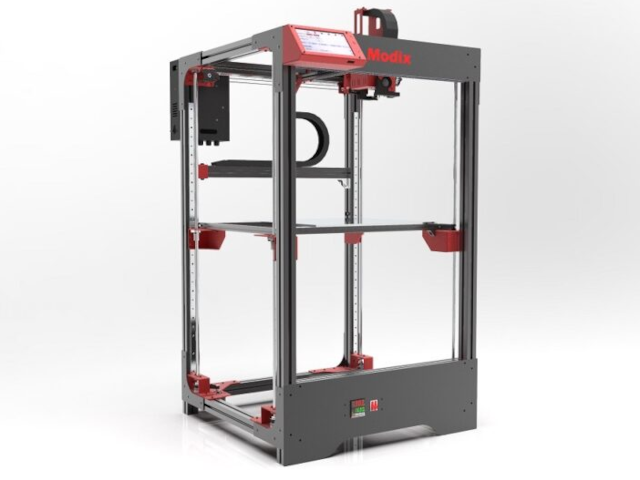

Modix BIG-40 3D Printer Kit

Modix printers are well known in the industry for their massive print volumes, premium components, and high-quality printed parts – the Modix BIG-40 stays true to this standard. Offering a print volume of 400 x 400 x 800mm (15.7 x 15.7 x 31.5” in) this printer is a great option when creating tall 3D printed parts is your end goal. This self-assembly 3D Printer kit has a wide selection of additional add-on and is a highly cost-effective solution for making your large 3D printing goals a reality.

Product No. M-UVF-UEM0
Available Add-ons (9)
Price: $450.00
Price: $500.00 $450.00 View Addon »
Price: $1,350.00 $1,200.00 View Addon »
Price: $320.00 $250.00 View Addon »
Price: $305.00 $250.00 View Addon »
Price: $130.00 $70.00 View Addon »
Price: $180.00 $120.00 View Addon »
Price: $170.00 $110.00 View Addon »
Price: $60.00 View Addon »
Show More Addons
List Price: $5,650.00
Price: $5,600.00
Price: $...
Notify me when this is available

NOTE: Items are shipped from Hong Kong. Pricing does not include customs, taxes, or import & brokerage fees. Customers are responsible for these additional fees which will be collected on delivery.

3D Printer Kit Policy: No returns will be accepted for any kit that has been opened. Only new, unopened 3D printer kits may be returned. The return process must have been started within 30 days of the original purchase.

NOTE: MatterHackers provides support for warranty replacement components.

Assembly instruction, troubleshooting, and technical support are provided directly by the Modix Support team.


If you’re an experienced 3D printing user and in need of a large 3D Printer look no further. Modix 3D printers were designed to make achieving your 3D printing goals as simple as possible. Boasting some of the largest print volumes on the market, Modix printers enable users to print very large models in one complete piece – resulting in stronger finished parts and reducing the amount of time you’ll need to spend on post-processing.

Each Modix printer is comprised of the highest quality components and sourced from some of the best-known brands in the industry, such as E3D, Duet, and Hiwin to name a few. In addition to using premium components every aspect of Modix 3D printers, from the Chassis to the Motion system, has been designed with heavy-duty use in mind while also remaining modular enough for any future upgrades and new technologies that may disrupt the market as 3D printing evolves.


All Modix 3D Printers are sold and delivered as self-assembly kits. Purchasing and assembling a 3D Printer kit has many advantages over traditional fully assembled models. While one of the biggest advantages is the hands-on, and in-depth knowledge you will gain of your printer while following the assembly instructions; 3D printer kits also represent a high level of cost savings and flexibility when it comes to selecting where your new machine will fit within in your production facility.

The in-depth knowledge you will gain also ensures that you will have the necessary skills to confidently upgrade, maintain, and eventually customize your Modix 3D Printer - ensuring that your machine will remain operating and continue to play a pivotal role within your workflow for years to come.

Each Modix kit includes a physical copy as well as links to online assembly instructions. These instructions will walk you through the assembly process with detailed textual and visual step-by-step instructions. Online guides also feature video demonstrations for every step as well as rotatable 3D Models of the various sub-assemblies making the assembly process straight-forward and highly intuitive.


Modularity is at the heart of Modix’s design philosophy. Whether you are deciding on what type of filament or slicing software to you want to use or deciding on what components to upgrade your 3D printer with, Modix believes in giving customers the freedom of choice.

New upgrades and additional components, such as air filters, hotends, and print head configurations are constantly being evaluated for use with the Modix line of 3D printers. Depending on the model, several upgrades may also already come included with your Modix 3D printer, while other components are quickly and easily available for add-on at the time of purchase allowing customers to better match their budgets and 3D printing needs.  Additionally, optional customization guides are regularly published and made available through Modix’s online service portal - providing customers with a wide level of support for any upgrades they may want to implement.


  • BIG-40 Printer Assembly Kit
  • Enclosure
  • Casters
  • Injection mold Filament Run-out-sensor
  • See the full packing list here

NOTE: Items are shipped from Hong Kong. Pricing does not include customs, taxes, or import & brokerage fees. Customers are responsible for these additional fees which will be collected on delivery.



  • Printing technology: Fused Filament Fabrication (FFF)
  • Print heads: Single included, Secondary Printhead optional
  • Print volume (XYZ): 400x400x800 mm / ~15.7 x 15.7 x 31.5 inch
  • Machine size (WDH): 870x720x1,520 mm / ~85.4x41.7x56.3 inch (with enclosure)
  • Shipping weight: 100kg (220.46lbs)
  • Assembly: Self-assembly
  • Closed print chamber: Included
  • Enclosure type: Aluminum composite panels (ACP), 3mm thick. Polycarbonate doors and top lid
  • Feet: Articulated leveling feet included Casters Included



  • Number of print heads: One print head is included, secondary - optional
  • Default filament diameter: 1.75mm, can be converted to 3mm by the user
  • Extruder brand & model: E3D Aero Extruder (direct drive)
  • Hotend brand & mode: E3D Volcano, optional add-ons: V6 (detailed) and E3D Super-Volcano (high flow)
  • Included nozzles (mm): 0.4, 0.6, 0.8 Primary hotend 0.4 for Secondary hotend
  • Hotend max. temperature: 285ºc
  • Optional max hotend temp: 500ºc, requires PT100 thermistor add-on
  • Extruder motors: Motech MT-1703HS168A Direct drive extruders gear reduction of 1:3
  • Filament runout sensor: Dedicated sensor per extruder


  • X & Y axis linear guides: HIWIN MGW9
  • Z axis guides: Smooth Rods included. HIWIN MGW9 optional
  • X & Y axis drive system: Gates GT2 width: 9mm, fiberglass reinforced
  • Z axis drive system: SFU1204 Ball screw 2:5 belt gear reduction
  • X axis motors: 2 X Motech MT-1705HS200A
  • Y axis motor: 1 X Motech MT-1705HS200A
  • Z axis motors: 4 X Motech MT-1705HS200A
  • Resolution (XYZ): 4 X 4 X 0.5 micron
  • Printing speed: Up to 150mm/s Depends on nozzle & layer height
  • Printing acceleration: Up to 1000 mm/s 2



  • Bed plate: Alcoa Mic-6, 6.35mm milled cast aluminum plate
  • Number of heaters: AC heater, 500 Watt , dual zone
  • Temperature controller: Autonics TCN4 PID controller
  • Maximum bed temperature: 120ºc
  • Bed leveling probe: BL touch probe
  • Bed leveling: Automatic. Bed shape is measured by probing 100 different points.
  • Bed tilt leveling: Semi-Automatic, guided by an on-screen macro.
  • Bed motion: system 4 x ball-nut screws. Each screw is mounted to a dedicated stepper motor with a belt gear system



·         Electronic controller: Duet3D: Duet2 Wifi

·         User interface: 7” Touch screen – PanelDue from Duet3D

·         Remote control (WiFi): Upload Gcode files right from your desktop

·         Direct connectivity: SD Card, USB cable

·         Ethernet: Optional with Duet3D Ethernet board. Should be purchased and replaced by customer

·         Electronics (DC) power: Meanwell 24V/280Watt power supply powering the electronic and motion system. Universal AC input: 110-230V, 50/60 Hz

·         Bed heaters (AC) power: Direct AC feed, 500W Silicone pad heater. Two versions are available: 110V and 230V. We supply according to shipping destination.
