Sorry, this product is currently unavailable

Perhaps some of these categories are of interest:

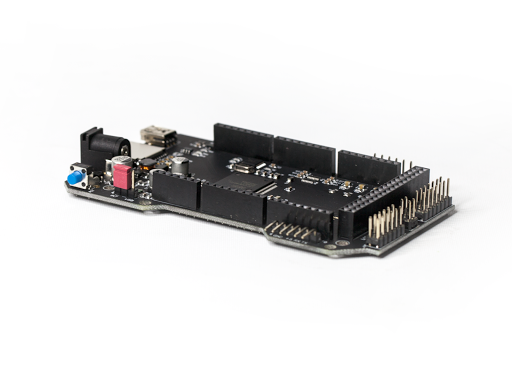

Panucatt Re-ARM Controller for RAMPS

  1. Home
  2. Store
  3. 3D Printer Accessories
  4. 3D Printer Controller Boards
  5. Smoothieware 3D Printer Controller Boards

RE-ARM is a 100Mhz, 32-bit ARM controller with the popular Arduino MEGA footprint. It's a plug-in replacement for the Arduino Mega in your RAMPS setup for a quick and easy upgrade to 32-bit capabilities.

Tagged: 3D Printer Controller Boards, 5 Stepper Max Controller Boards, Controller Boards by Firmware, 3D Printer Controller Board Manufacturers, Controller Boards by Stepper Drivers, Controller Boards by Max Stepper Motors, Marlin 3D Printer Controller Boards, Modular Stepper Driver Controller Boards, Panucatt Controller Boards, 3D Printer Accessories and Smoothieware 3D Printer Controller Boards
Product No. M-Z88-93Y4
Available Add-ons (3)
(Out of stock) Price: $34.92 $34.00 View Addon »
Price: $41.71 $39.00 View Addon »
(Out of stock) Price: $78.00 $73.00 View Addon »
Show More Addons
List Price: $55.00

Benefits of the Re-ARM over an Arduino MEGA

The Re-Arm micro controller board is more powerful and built with a faster processor, enabling faster feed rates for you 3D printer. The board has an SD card slot for firmware and configuration files, but also supports a second SD card connected via an LCD screen for project file loading. Having a separate configuration file outside of the firmware makes settings changes much easier than other boards which require new firmware for any and all settings changes. The configuration is a text file, making changes from a computer easy and fast.

Key Features

  • More powerful, faster processor enabling faster feed rates for you 3D printer.
  • Runs Smoothieware.
  • Easy to manage configuration using a text file on SD card. Other controller boards require freshly uploaded firmware with every settings change
  • Since SD cards appear as a drive in windows, it's easy to drag and drop new firmware or edit the config file right on your computer without the need for specialized software.
  • Capable of running smaller micro-step stepper drivers such as the 1/128 micro-stepping SD6128 driver, available as an addon item.
  • Headers for an Ethernet RJ45 add-on Module, which is not included with this board.
  • Utilize a graphic LCD screen on your Delta 3D printer without issue.
  • Supports 2 SD cards - one for settings and firmware, installed directly onto this board as well as another for file loading, which connects on the LCD screen.
  • 5V tolerant pins, except for analog inputs which are 3.3V
  • Filtered endstop inputs.
  • Able to run CNCs, Laser cutters and 3D printers.

Technical Specifications (running RAMPS)

  • 32-bit LPC1768 ARM processor
  • 100Mhz, 512kb Flash
  • Mini USB B connector
  • 3.3V system voltage
  • 10-30V power supply input range, using Vin pin or barrel jack
  • 1 Heated bed, 2 Hotend Mosfet drivers
  • SD card slot for firmware upgrades and config file
  • 6 End stops, with filter and pull-ups
  • 3 thermistor inputs
  • Smoothieware firmware by Arthur Wolf
  • Support SPI Displays like Viki2 (availalbe as addon item) and mini Viki(direct) and RRD Graphic LCD(adapter)
  • Support for I2C and parallel character LCDs using universal adapter by Jim Morris
  • Header breakout for Ethernet module (RJ45) daughter board. (not included)
