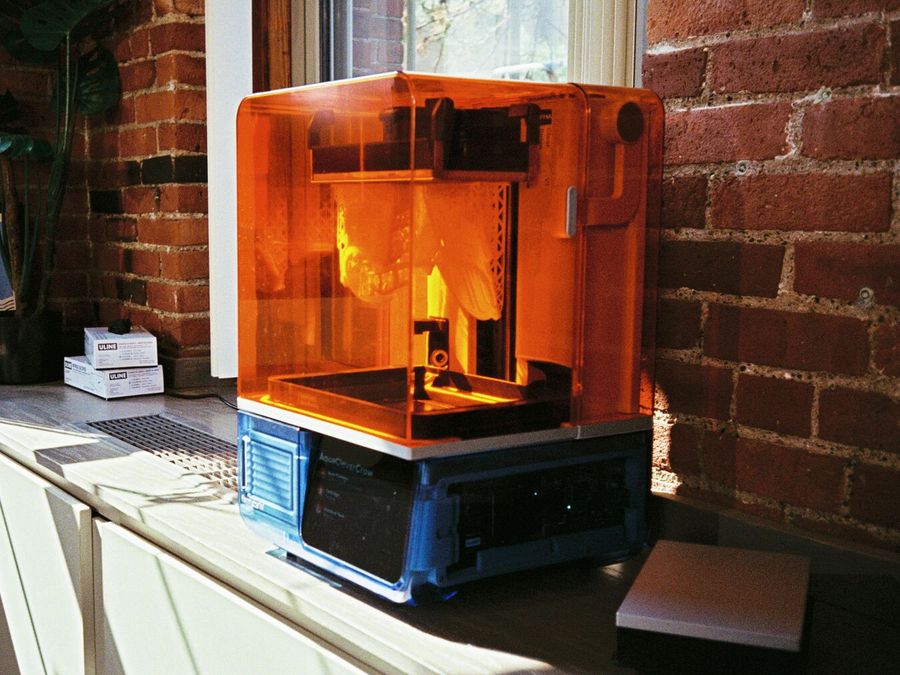

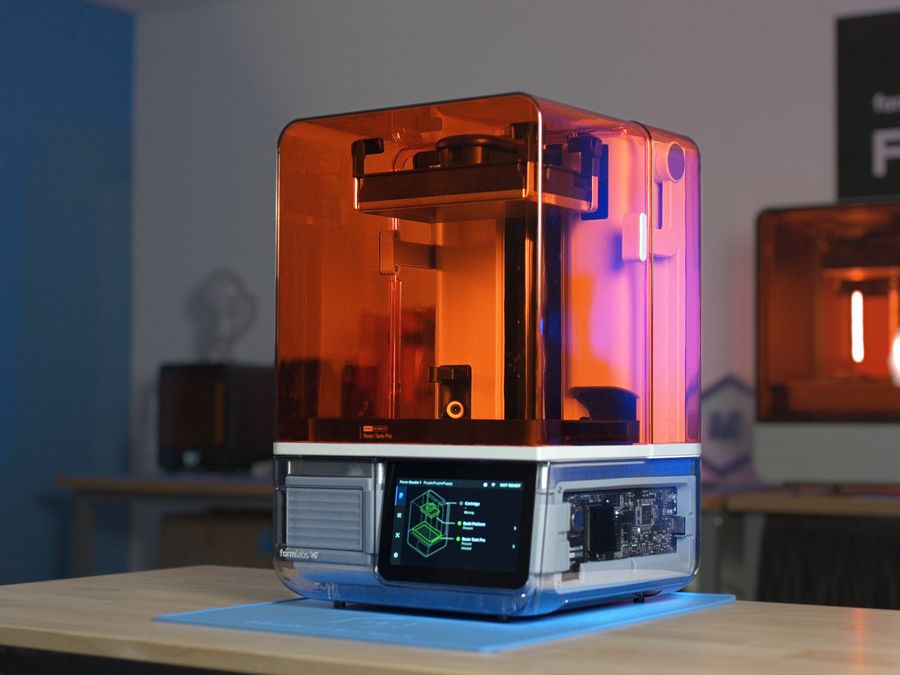

Formlabs Formlabs Form Studio 1 Resin 3D Printer - Standard Edition Graphite Flex - Complete Package
The Form Studio 1 is Formlabs most accessible SLA 3D printer. The Form Studio 1 is the first affordable, professional-grade resin 3D printer with a powerful, long-lasting print engine and an open platform. It 3D prints most parts in under two hours with razor-sharp detail, powered by the same Low Force Display (LFD) architecture as the Form 4, updated for this printer.
- A majority of parts will 3D print in under two hours, with speeds up to 130 mm/h on Alpha Fast Resin.
- Amazing parts at a 35 µm pixel, anti-aliasing, and resins tuned to the light engine deliver sharp edges and smooth surfaces.
- Integrated, automatic resin handling allows hands-free dispensing with glove-free material swaps in under a minute.
- Open Material Mode is included so that customers can print in any 405 nm resin with no license fee.
- Five intelligent control systems monitor temperature, resin level, print force, and print status on every job.
Formlabs Form Studio 1 3D Printer
Professional Resin Printing for Anyone
Form Studio 1 is the first affordable, professional-grade resin 3D printer with a powerful, long-lasting print engine and an open platform. Print most parts in under two hours with razor-sharp detail and a workflow that's safe, reliable, and mess-free from start to finish. Paired with Alpha Resins and the Formlabs VOC Extractor, Form Studio 1 is the first and only resin printer with UL GREENGUARD Certification for low chemical emissions.
Key Features of the Formlabs Form Studio 1:
- Blazing Fast – most parts print in under two hours, and Alpha Fast Resin reaches up to 130 mm/hr.
- Razor-Sharp Detail – 35 µm pixels with pre-tuned anti-aliasing and light-touch supports.
- Safe Wherever You Work – low-odor Alpha Resins are UL GREENGUARD Gold certified when printed on Form Studio 1 with the VOC Extractor.
- Automatic Resin Handling – insert a cartridge, tank, and build platform, and the printer dispenses resin as it prints.
- Open Platform – print validated Formlabs resins, or third-party resins with no license fee.
- Form 4 Engineering – the Low Force Display print engine and Release Texture V2, in a compact desktop printer.
Amazingly Accessible
The Form Studio 1 delivers the same high-resolution SLA printing that professionals rely on in Formlabs' Form 4, now in a compact package designed for a broader range of users. Expect sharp details, smooth surface finishes, and consistent results whether you're prototyping a product or creating intricate art pieces. It's professional-grade output without the professional-grade price barrier.
- SLA technology for high-detail, smooth-surface resin parts.
- Built on Formlabs' proven printing platform and engineering.
- Compact desktop footprint suited for studios, classrooms, and small shops.
A Part of the Form 4 Family

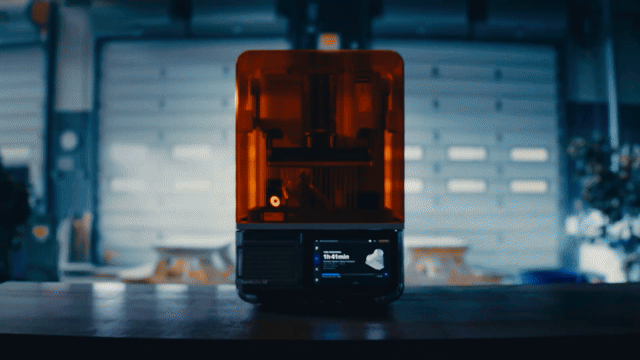

The Formlabs SLA Ecosystem brings professional resin 3D printing within reach of any user or workspace. Built around the Form Studio 1 3D printer, it combines a custom 28-LED lens array, Release Texture V2, and validated material settings to deliver fast, dimensionally accurate parts with smooth, detail-rich surfaces. Paired with low-odor Alpha Resins and an intelligent monitoring system, this ecosystem is engineered for reliability from the first 3D print to the last.
- Form Studio 1 enhances the capabilities of the Form 4 3D printer, complementing its features rather than replacing them.
- Most 3D prints are complete in under two hours due to a custom lens array and 28 LEDs delivering a uniform 6 mW/cm² light field.
- 35 µm pixels with finely tuned anti-aliasing capture subpixel detail for crisp, clean part surfaces.
- ±0.15% XY dimensional tolerance ensures assemblies fit together as designed, every time.
Formlabs Flexibility
Start with validated Formlabs resins for reliable results out of the box, or branch out to third-party resins with no license fee. Every Formlabs material comes with print settings validated on hundreds of test parts.
- Alpha Resins in Grey, White, Black, Clear, Model and Fast, plus Tough 1500 Resin V2, Flexible 80A Resin V2 and True Cast Resin.
- Open Material Mode is included at no extra cost. Third-party resins and Tough 1500 Resin V2 print in the Form Studio 1 Resin Tank Pro.
- Versatile enough for prototyping, education, jewelry, and more.
Clean, Safe, and Effortless

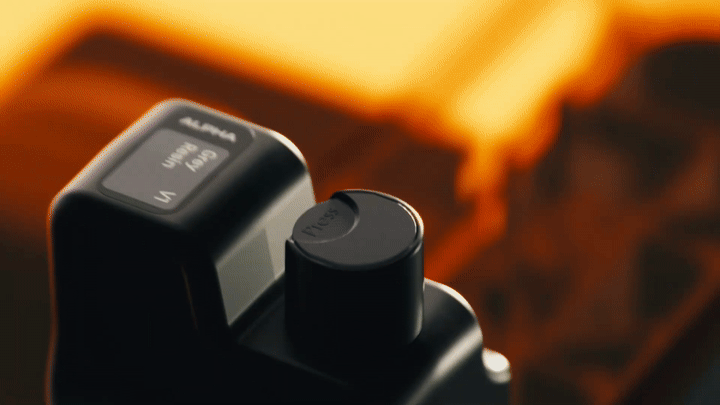

Insert a cartridge, tank, and build platform, and automatic resin dispensing handles the rest. Each resin tank has a reusable lid, so you can store resin in its own tank and switch materials by sliding in a different one. Add Form Studio Wash+Cure and the VOC Extractor for a complete workflow from file to finished part.
- Automatic resin handling reduces manual steps and spills.
- Reusable tank lids make material swaps quick and clean.
- Low-odor Alpha Resins; wear gloves whenever you handle liquid resin.
- Optional wash, cure, and filtration accessories for a complete end-to-end setup.

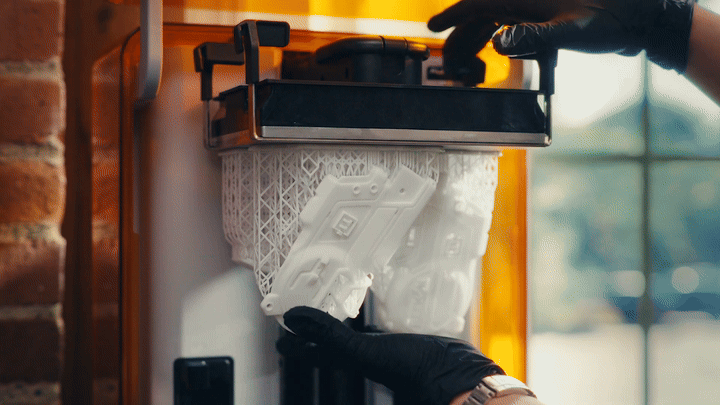

Release Parts With a Flex
To get parts off without a scraper, Build Platform Flex lets you flex the plate until prints pop free. It comes with every Flex package and with the Aqua, Teal and Violet Founders Editions. Graphite printers come with the standard Build Platform or Build Platform Flex, depending on the package you pick.
Keep your gloves on until parts are washed, since they still carry liquid resin.

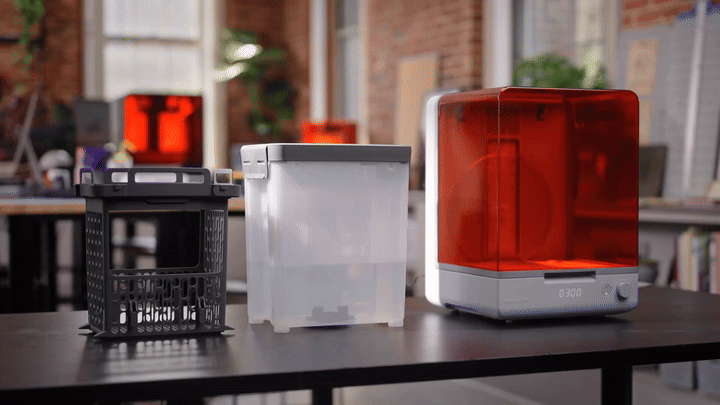

Wash and Cure in One Footprint
To finish parts without a second machine, Form Studio Wash+Cure washes them in stirred solvent, then cures them on a turntable under 405 nm light. When a print finishes, Form Studio 1 shows the recommended wash and cure times on its screen.

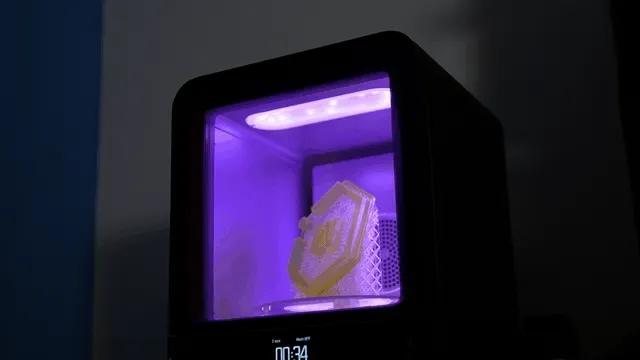

Wash+Cure comes in the Complete and Supreme packages. The Professional package uses Form Wash V2 and Form Cure V2 instead, and Form Cure cures parts three to five times faster because it adds heat.
Cleaner Air While You Print

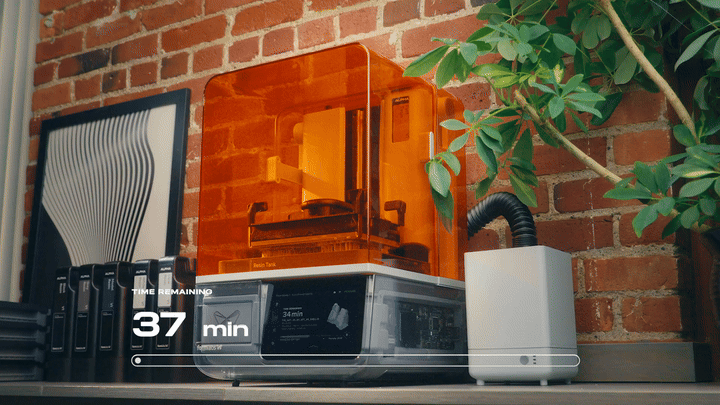

To keep resin vapors out of your workspace, the VOC Extractor connects to the exhaust port on the back of Form Studio 1 and pulls the air through a pre-filter and two activated carbon filters.
Alpha Resins printed on Form Studio 1 with the VOC Extractor at fan speed 2 are UL GREENGUARD Gold certified for low chemical emissions. The certification covers printing, not washing, so plan ventilation for your wash solvent too. The VOC Extractor is included in the Supreme package and sold separately for the others.
We Won't Sell This Unit, We're busy printing on it.

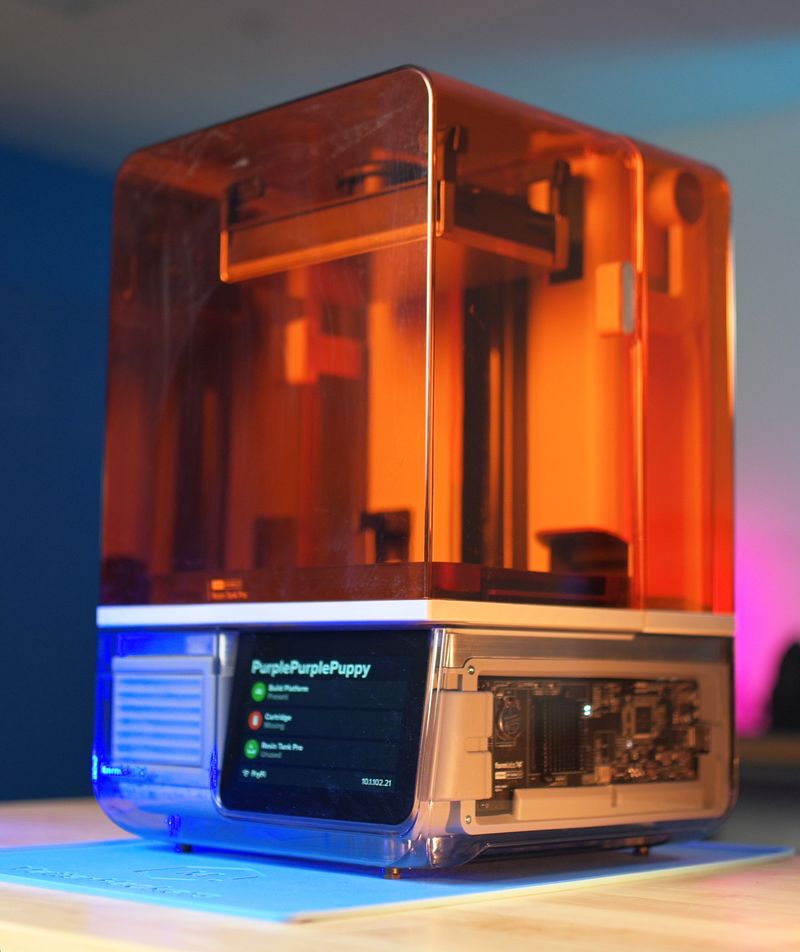

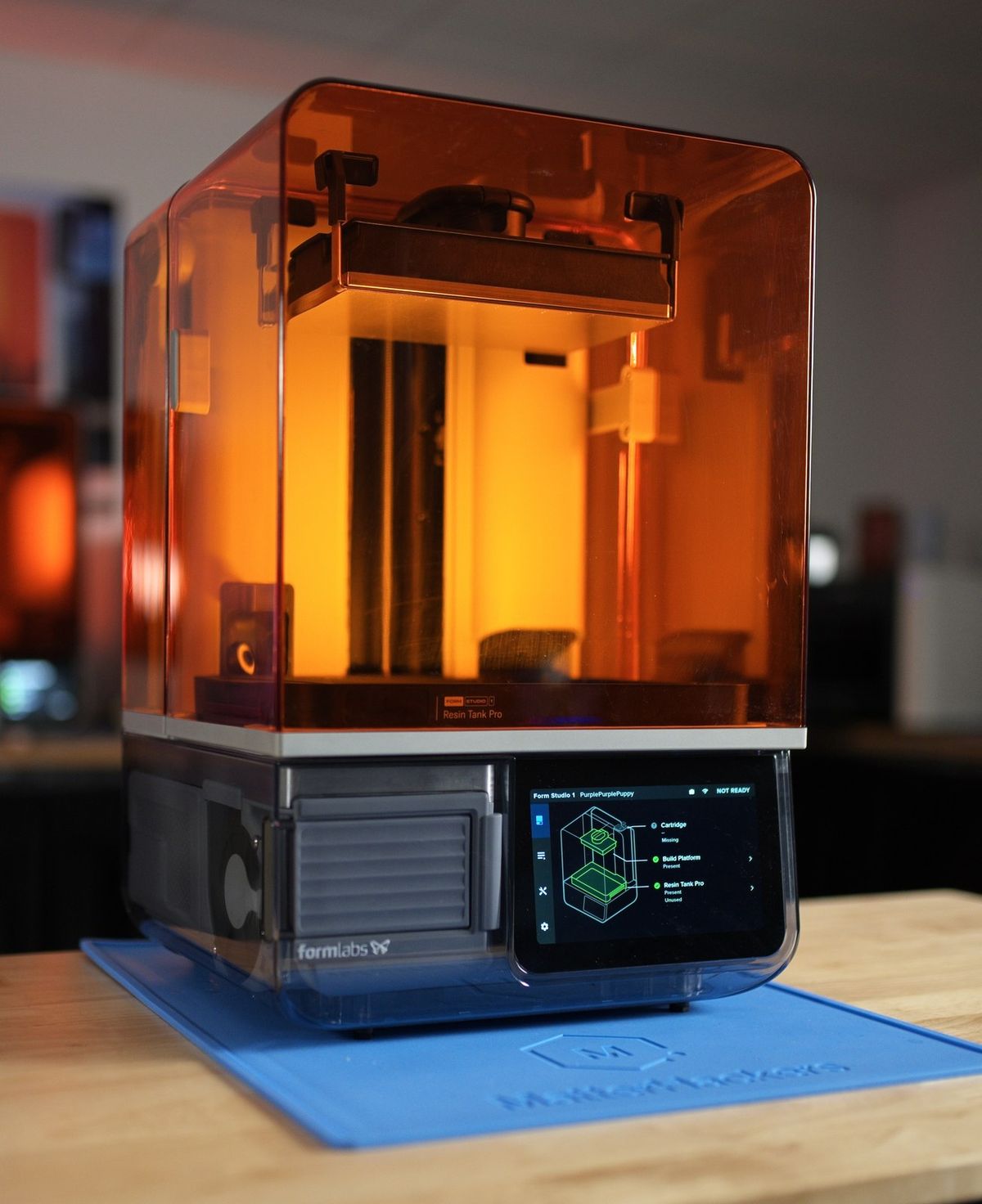

Our first unit, PurplePurplePuppy, lives at MatterHackers. Our advice comes from first-hand experience.

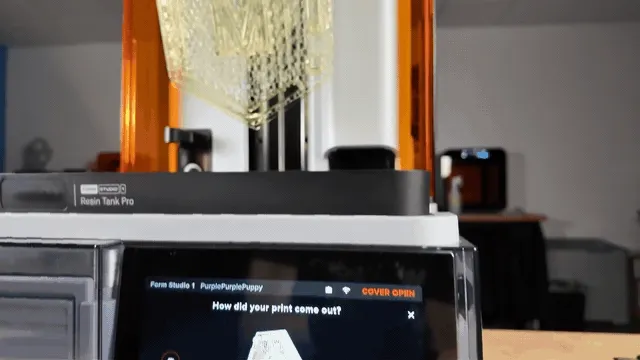

Open Material Mode on day one
We printed our own clear resin in a Resin Tank Pro the day our Form Studio 1 arrived. Ask us what it took.
Answers from real prints
Questions about resins, tanks or post-processing? We answer from our own machine, not a spec sheet.
Launchpad setup
Two hours with our experts to get your printer unboxed, set up and printing.
Supreme, only here
The everything package, put together by us and sold only at MatterHackers.
- Fast, free shipping on orders over $35
- 30-day returns
- Rewards on qualified purchases
- Training and maintenance services
- Expert support
Pick your Form Studio 1 package
Every package starts with the printer and everything it needs to print. Step up for post-processing, or go all in with the Supreme package, only at MatterHackers.
Basic
The printer and its essentials. Best if you already have a wash and cure setup.
Form Studio 1 printerGraphite, or Aqua, Teal or Violet with Build Platform Flex
Build Platform* or Build Platform Flex
Form Studio 1 Resin Tank
- Accessories boxGloves, scraper, USB cable, calibration tools and more
- Open Material ModeIncluded, no license fee
Complete
Adds all-in-one post-processing. One compact unit washes and cures, and remembers your last settings.
Everything in Basic, plusForm Studio Wash+CureWash and cure in one unit
Professional
Adds Formlabs' dedicated wash and cure stations, for more parts per day and heated curing.
Everything in Basic, plusForm Wash V2
Form Cure V2Adds heat: cures 3–5× faster than Wash+Cure
Supreme
The whole studio: spare platforms and tanks, post-processing, clean air, seven resins, tools, and expert setup.
Everything in Basic, plus
Resin Tank ProFor Tough 1500 and Open Material Mode
Alpha Resin ×4Black, White, Grey, Clear, 1 L each
Resin Tool Kit (Premium)Tools plus Resin Workstation Mat
MatterHackers Launchpad2-hour expert setup
Founders Edition printers also come with a limited-edition printer UI, a Form Studio 1 plushie, and your first bottle of Alpha Resin at $29, through November 30 or while supplies last.
*The standard Build Platform is available with Graphite printers only. Aqua, Teal and Violet come with Build Platform Flex.
Founders Edition: Limited Time Only
To celebrate the launch, Formlabs is offering a limited Founders Edition of Form Studio 1 now through November 30, or while supplies last.
The limited colors are produced in a fixed quantity, so order early to get the color you want.

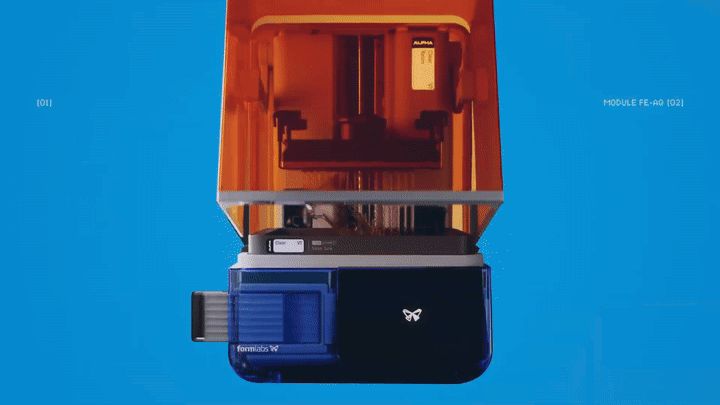

- Four colors: Choose from three limited-run colors (Aqua, Teal, and Violet) or the standard Graphite.
- Founders Edition badge: Your printer's interface displays a Founders Edition tag, marking it as part of the original launch run.
- Form Studio 1 plushie: A collectible plush included with every Founders Edition printer.
- $29 first bottle of Alpha Resin: Get your first bottle of Alpha Resin for just $29.
Planning more than one? Let's spec it together.
Tell us what you're printing and how many seats you need. We'll match packages, resins and service plans, and our Launchpad team can get every printer running.

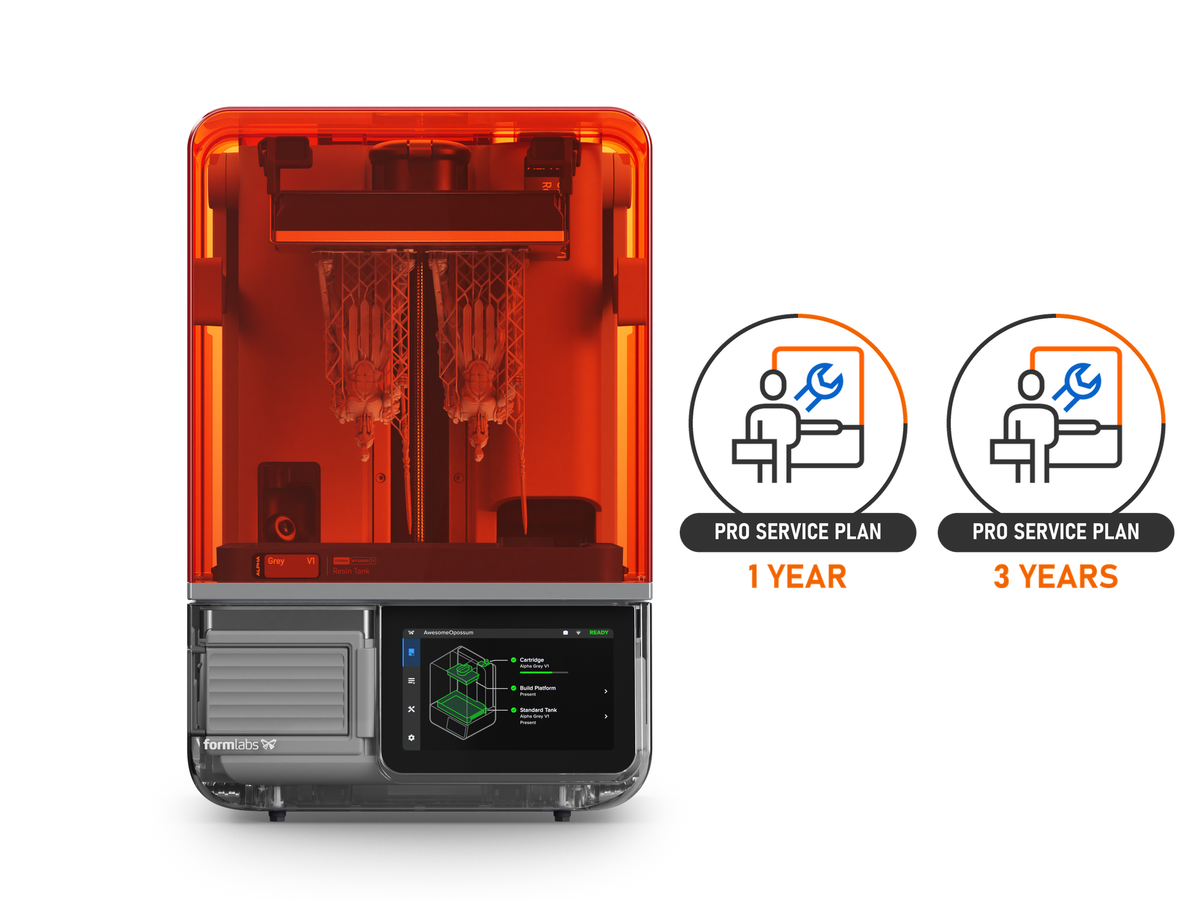

Form Studio 1 Pro Service Plan
Protect your printer from the accidents the standard warranty doesn't cover. Available in 1-year and 3-year terms.
- Unlimited accident repairs, including resin spills and LPU damage
- Low, fixed deductibles: $50 LPU, $150 printer replacement
- Phone and email support from Formlabs
Formlabs Form Studio 1 specifications
Printer
- Technology
- Masked Stereolithography (MSLA)
- Print Engine
- Low Force Display™ (LFD)
- Printer dimensions (W × D × H)
- 34.2 × 31.5 × 50.2 cm | 13.5 × 12.4 × 19.8 in
- Printer weight
- 14.3 kg | 31.5 lb
- Minimum dimensions for convenient access (W × D × H)
- 36 × 33 × 79 cm | 14.2 × 13 × 31.1 in
Build and resolution
- Build volume (W × D × H)
- 200 × 125 × 235 mm | 7.9 × 4.9 × 9.3 inParts taller than 215 mm (8.5 in) require removing the resin tank with the build platform. When washing with Form Wash, remove the basket. When washing with Form Studio Wash+Cure, remove prints taller than 200 mm from the build platform before washing.
- Layer thickness (Axis resolution)
- 25–300 microns | 0.001–0.012 in
- XY resolution
- 35-micron pixel size with pre-tuned anti-aliasing | 0.0014 in
- Optical power intensity
- 6 mW/cm² delivered to the print plane
- Optical wavelength
- 405 nm
Resin system
- Resin cartridges
- 1
- Resin dispensing system
- Automated
- Supports
- Auto-generated, Light-touch removal
- Temperature control
- Direct resin heating
- Operating temperature
- Auto-heats resin to 25–45 °C (77–113 °F), depending on material
- Biocompatible materials
- No
Connectivity and control
- Connectivity
- Wi-Fi: 2.4, 5 GHz
- Ethernet: 100 Mbit
- USB: 2.0
- Wi-Fi connectivity
- Protocol: IEEE 802.11 a/b/g/n/ac/ax
- Frequency: 2.4 GHz, 5 GHz
- Supported security: WPA/WPA2
- Ethernet connectivity
- RJ-45 Ethernet, 100BASE-TX LAN PortConnect with a shielded Ethernet cable (not included): minimum Cat5.
- USB connectivity
- USB-C port with a USB-C to USB-A cable
- Printer control
- Interactive touchscreen
- Alerts
- Touchscreen alerts
- SMS/email via Dashboard
- Speaker for audio alerts
- Mobile notifications via the Formlabs Form Mobile App
- Camera
- Integrated camera
1920 × 1080 resolution (2 MP)
Power and environment
- Power requirements
- 100–240 VAC
- Maximum 3 A
- 50/60 Hz
- 300 W
- Operating environment
- 18–28 °C | 64–82 °F
Low ambient humidity
Software
- Print preparation
- PreForm desktop software
- File type
- STL, OBJ, 3MF, and other CAD file formats. See the PreForm download page for more information.
See Form Studio 1 from every angle
Spin it in 3D, watch a print come together, and read our full guide to the printer, the ecosystem and the Founders Edition.
