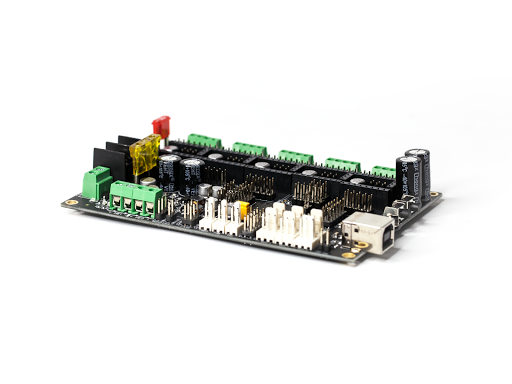

Panucatt Azteeg X5 GT 32bit Motion Controller

The Azteeg X5 GT is a 32 bit ARM based Motion controller for 3D printers, CNC Machines and Laser cutters. The X5 GT runs on Smoothieware firmware and is based on Smoothieboard by Arthur Wolf. The X5 GT uses the powerful 32bit, 120Mhz NXP LPC1769 ARM chip capable of faster calculations for faster and smoother movements.

Product No. MVF1LR3V

Available Add-ons (3)

Price: 48.00 39.00 USD View Addon »
Price: 40.00 34.00 USD View Addon »
Price: 85.00 73.00 USD View Addon »
Show More Addons
List Price: 120.00 USD
Price: 110.00 USD
Order Now: Ships calculating... Free U.S. Shipping
Qty
Checkout

Easy Configuration

Configuration files for the X5 GT are text based, making editing easy using any text editor. Other boards require fresh firmware whenever changes are made, but with a text based configuration file simply reboot the board with the new file on the SD card and you're good to go.

Powerful hardware

The X5 GT features the Bigfoot stepper driver footprint which is twice the size of the regular board. This larger size allows for higher current drivers and more advanced SPI controlled drivers to run on the X5 GT for demanding CNC applications. The X5 GT will accept both Bigfoot and Pololu style drivers for maximum compatibility.

Recommended Stepper Drivers

  • SD6128 - 1/128 microstepping, 2A 35V max
  • SD8825 - 1/32 microstepping, 2.5A 40V max

Both are sold separately and available as add on items with this board.

Full features and technical specifications

  • 32BIT NPC LPC1769 120MHZ ARM processor
  • Compatible with Smoothieware firmware by Arthur Wolf
  • Isolated USB using Analog Devices iCoupler technology
  • Accepts Bigfoot Stepper Driver profile
  • Accepts Standard Pololu style divers with digipot control for Panucatt drivers.
  • 1 High Current Mosfet for Heat bed control
  • 2 Mosfet for Hotend control
  • 2 FAN Mosfets
  • 5 Stepper Driver slots
  • 6 Endstops with ESD/EMI protection
  • 3 analog thermistor inputs ( Over voltage protected)
  • Wide input high efficiency 5V switching power supply
  • Wide input high efficiency 12V switching power supply (dedicated)
  • Micro SD card slot built in
  • Terminal Block motor connectors
  • Vertical connectors for Endstops and thermistors.
  • High current input connector can handle up to 30 Amps
  • 4 Layer, 2oz outer layers PCB
  • 0-10V control for VFD drives
  • 5V Servo output (level shifted)
  • 30V max for main input
  • 48V max for stepper driver input
