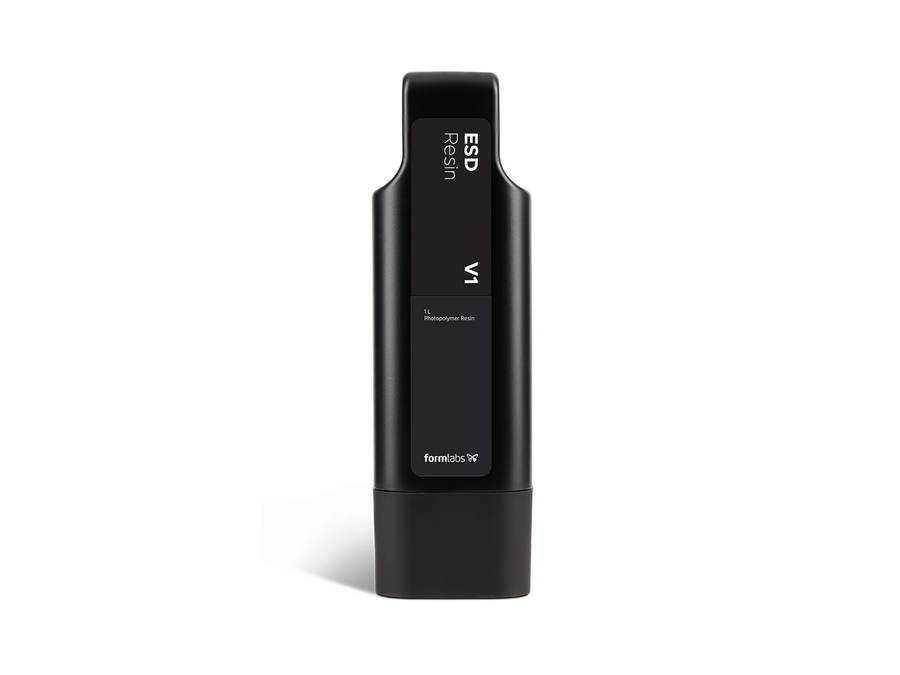

Formlabs Formlabs ESD Resin (1L) for Form 4
Formlabs ESD Resin is designed for creating ESD-safe prototypes and tooling in manufacturing. It features static-dissipative properties, high impact strength akin to ABS, and is ideal for automotive, aerospace, and electronics sectors. This resin ensures operational efficiency and protects sensitive electronics from static discharge.
- ESD-safe for electronics, automotive, aerospace manufacturing
- Enables custom tooling, fixtures, etc. on the fly
- High impact strength, similar to ABS
- Cartridge compatible with Form 4 series 3D printers
| List Price: | $229.00 |
|---|---|
| Price: | $229.00 |
| Price: | $... |
| Order Now: | Ships calculating... Free U.S. Shipping |
ESD Resin
STATIC-REPELLENT
Boost your electronics production with Formlabs ESD Resin, the go-to for ESD-safe prototypes and tooling. Its combination of static-dissipative properties, high modulus, and impact strength ensure operational efficiency and increased yield. Ideal for custom tooling, jigs, and enclosures, ESD Resin protects sensitive electronics from static discharge, making it perfect for automotive, aerospace, and electronics manufacturing.
Key Features of the Formlabs ESD V1 Resin:
- Produces ESD-safe prototypes and production tooling
- Static-dissipative, repelling dust and powder
- Cost-effective choice for durable, static-repellent parts
- High modulus and impact strength, akin to ABS
- Enables custom tooling, jigs, and fixture printing
- Enhances operational efficiency in electronics manufacturing
- Ideal for automotive, aerospace, and electronics sectors
| Engineering Application |
SLA Technology |
High Strength |
| 69 MPa Ultimate Tensile Strength |
4.1 GPa Tensile Modulus |
105 MPa Flexural Strength |
| COMPATIBILITY | ||
| Printer(s)* Form 4 / 4B Form 3L / 3BL Form 3+ / 3B+ Form 3 / 3B Form 2 |
Resin Tank(s) [RT] Form 4 / 4B RT Form 3L / 3BL RT V2 Form 3L / 3BL RT V1 Form 3 / 3B RT V2.1 Form 2 LT Tank |
Build Platform(s) [BP] Form 4 BP Flex Form 4 BP Form 3L BP 2L Form 3L BP Form 3 Stainless Steel BP Form 3 BP 2 Form 3 BP |
*The resin is compatible with these 3D printers. Please ensure you're selecting the correct cartridge compatibility at purchase as the Form 4 uses a different cartridge system from previous models. The listing you are currently on is for the Form 4.
For the Form 3 series / Form 2 compatible cartridges, click here.
What are the Material Properties of the Formlabs ESD Resin?
| Post-cured at 70ºC | |
| Surface Resistivity | 105 - 108 Ohms/sq |
| Ultimate Tensile Strength | 44.2 MPa |
| Tensile Modulus | 1.937 GPa |
| Strain at Break | 0.12 |
| Notched Izod | 26 J/m |
| Heat Deflection Temperature 0.45 MPA |
62.2ºC |
| Heat Deflection Temperature 1.8 MPA |
54.2ºC |
Download the Formlabs ESD Resin Technical Data Sheet
Download the Formlabs ESD Resin Safety Data Sheet
 |
 |
|---|---|
| FORM WASH SETTINGS | FORM CURE SETTINGS |
| Duration | Duration |
| 20 min in IPA or TPM | 60 min |
| Temperature | |
| 70°C | |
| Notes | Notes |
| Do not leave ESD Resin in solvent for longer than 20 minutes, as excessive solvent exposure affects the quality of the final part. We recommend washing ESD Resin separately from other resins to avoid staining. |
Follow the post-curing indications to achieve |
